Toyota Tundra

2006-11 → 2021-10 · chassis GSK5#,UCK5#,UPK5#,USK5# · catalogue 841430 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

10 part groups · 8 illustrations

Illustrations

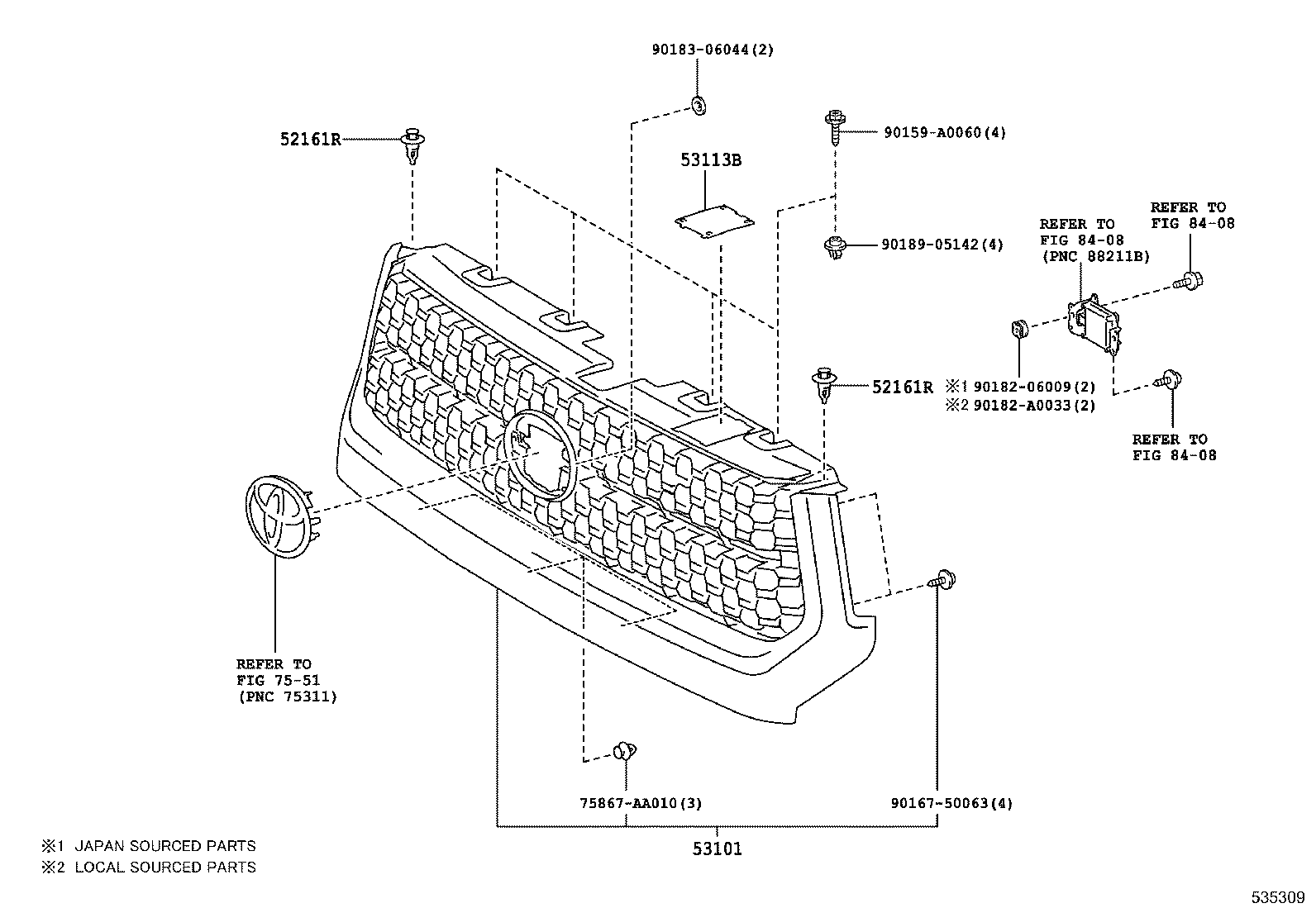

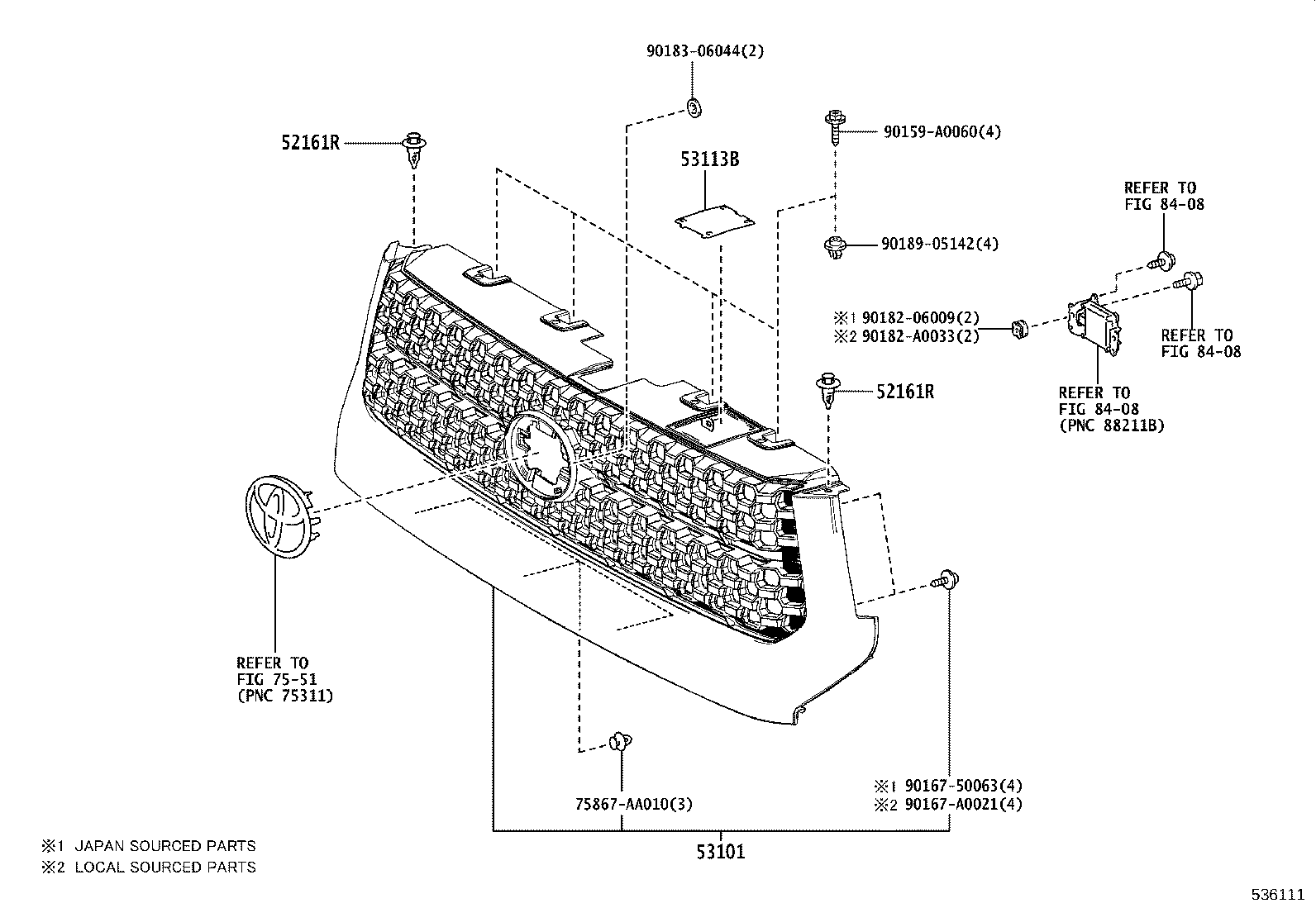

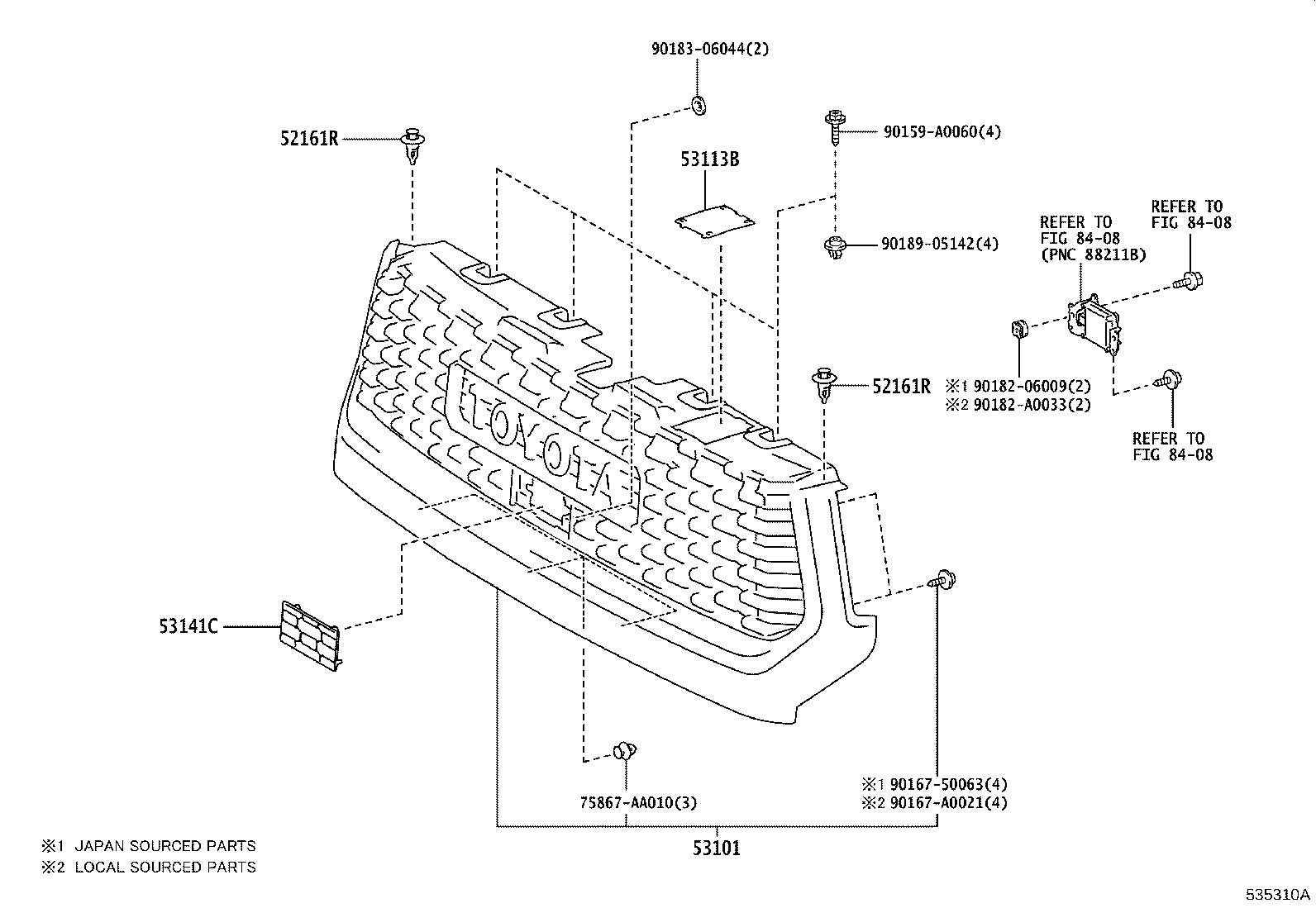

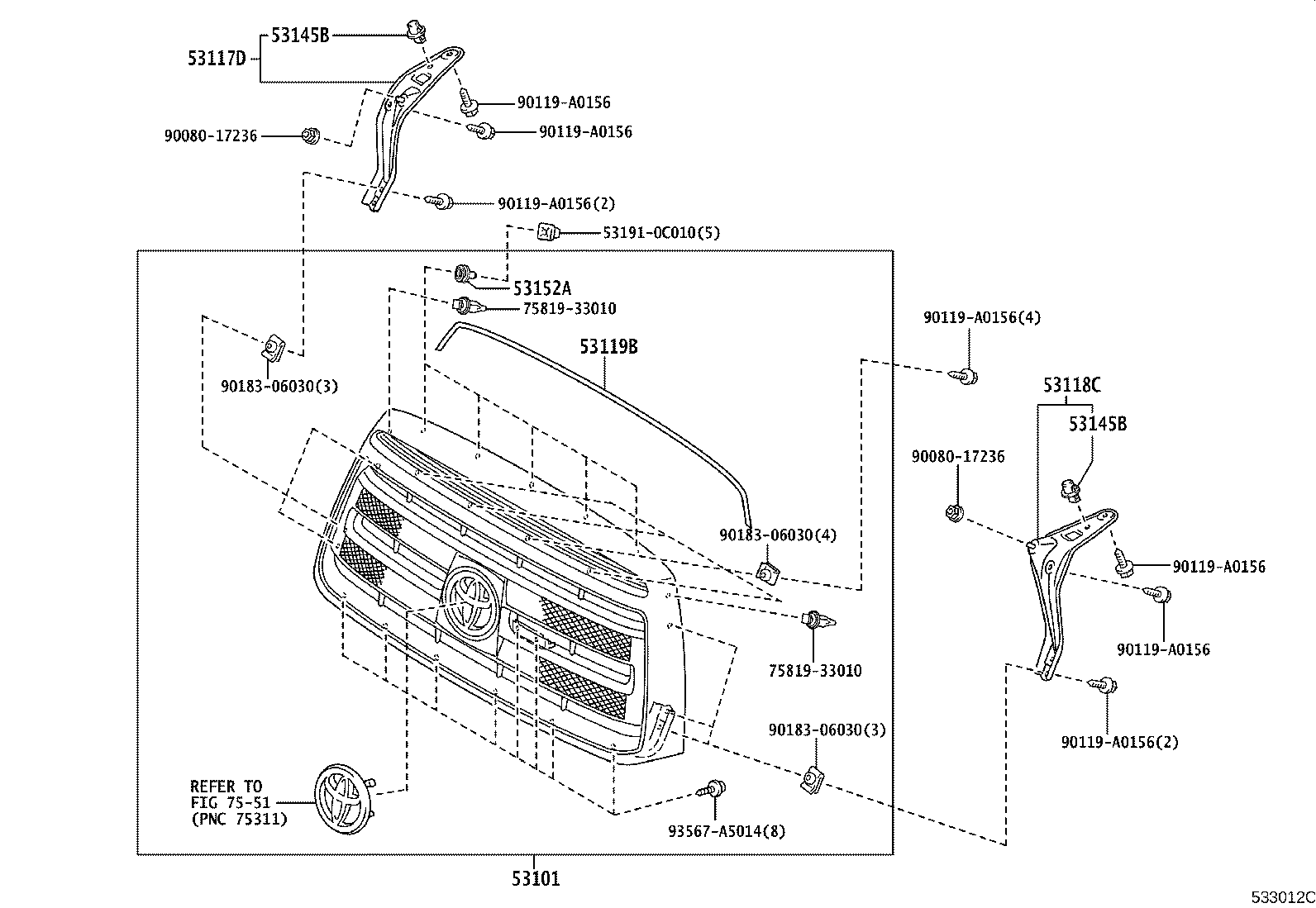

Figure 532379B 532379B 2006-11 → 2009-04 Figure 533012C 533012C 2009-04 → 2013-08 Figure 534026C 534026C 2013-08 → 2017-08 Figure 534347 534347 2014-09 → 2017-08 Figure 535309 535309 2017-08 → 2018-11 Figure 535310A 535310A 2017-08 → — Figure 535866C 535866C 2018-11 → 2019-11 Figure 536111 536111 2019-11 → —

Part groups

PNCDescription
52161R Piece, Front Bumper
53101 Grille Sub-assy, Radiator
53113B Grille, Radiator Side, LH
53117D Bracket, Radiator Grille, Lower RH
53118C Bracket, Radiator Grille, Lower LH
53119B Protector, Radiator Grille
53121B Moulding, Radiator Grille, Upper
53141C Garnish, Radiator Grille
53145B Clip, Radiator Grille Garnish
53152A Guide, Radiator Grille Air
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
