Toyota Tundra
2006-11 → 2021-10 · chassis GSK5#,UCK5#,UPK5#,USK5# · catalogue 841430 · United States
Supported model
Data version 2023-05

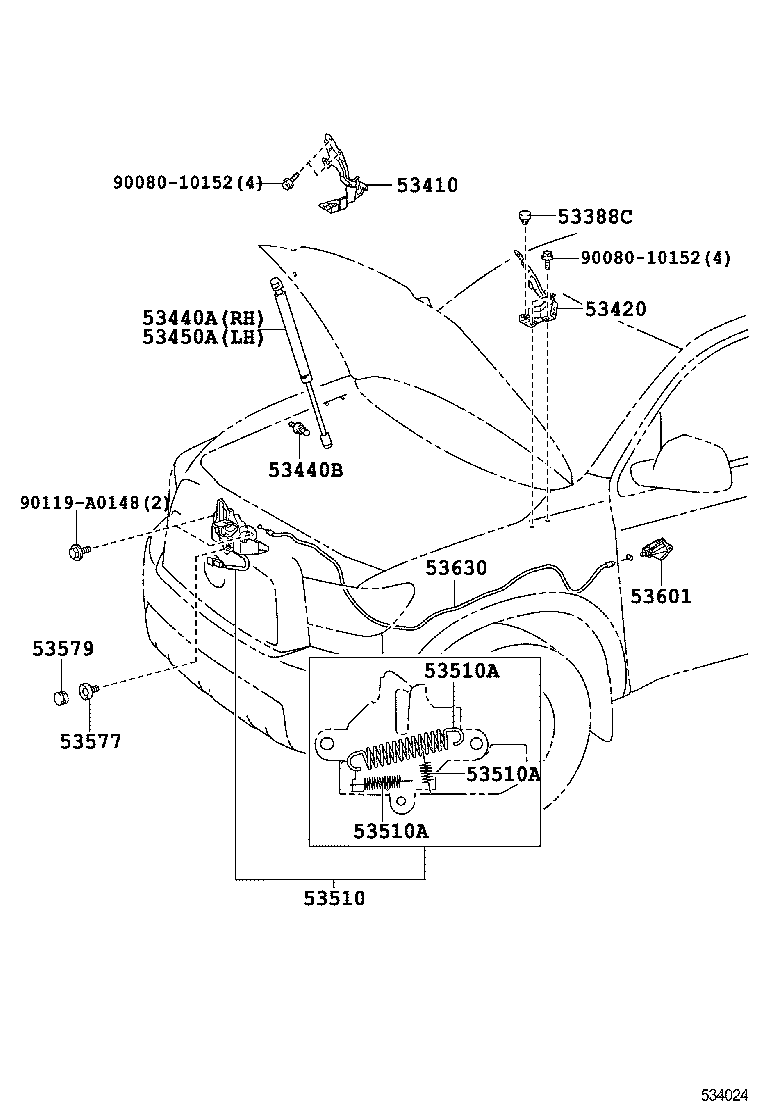

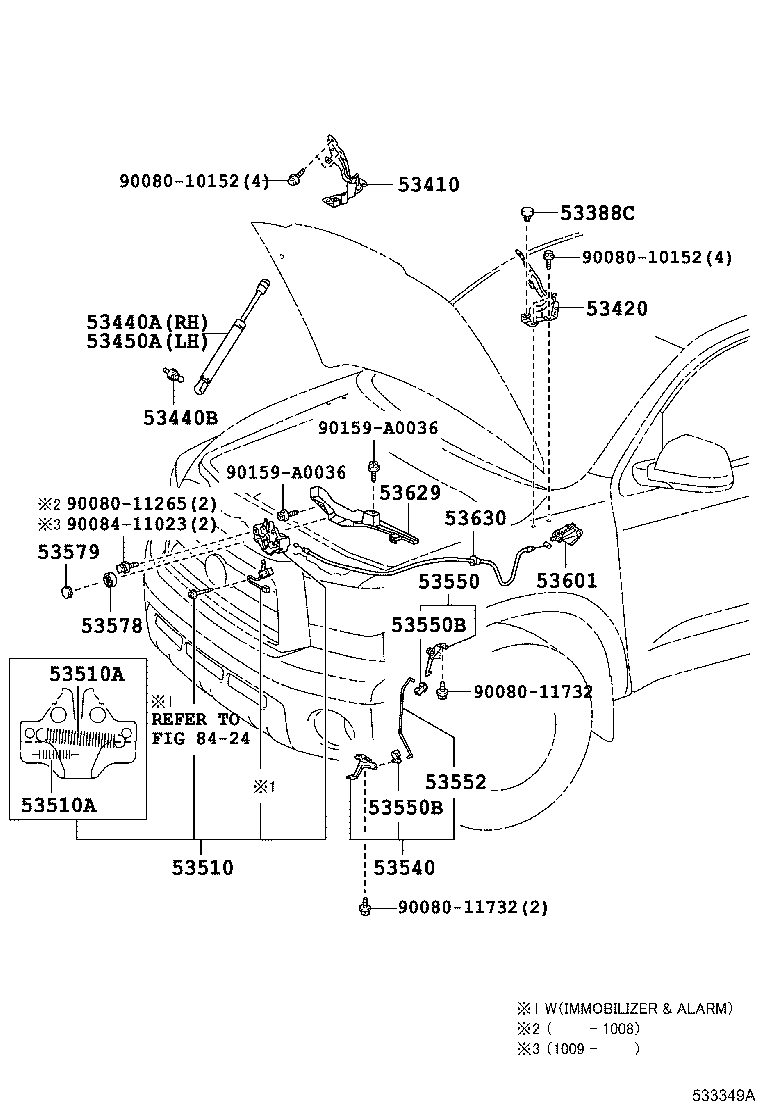

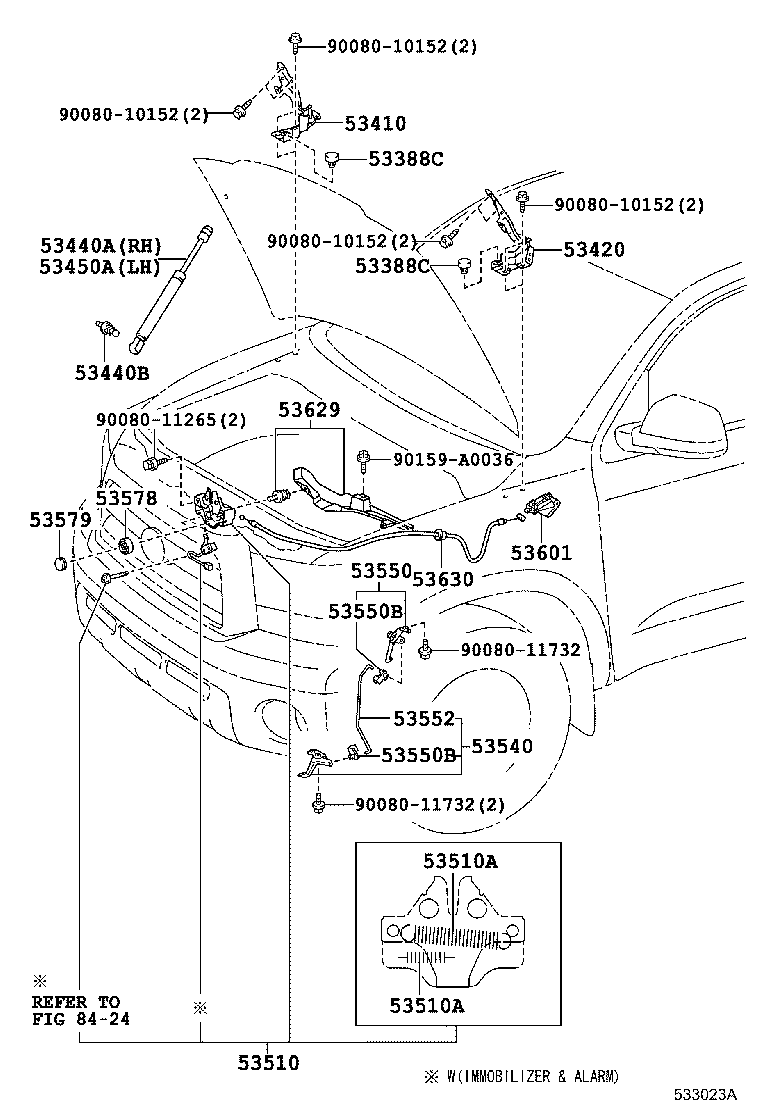

Hood Lock & Hinge
18 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 53388C | Cushion, Hood, Rear |
| 53410 | Hinge Assy, Hood, RH |
| 53420 | Hinge Assy, Hood, LH |
| 53440A | Support Assy, Hood, RH |
| 53440B | Bolt, Hood Support, NO.1 |
| 53450A | Support Assy, Hood, LH |
| 53510 | Lock Assy, Hood |
| 53510A | Spring, Tension(FOR HOOD LOCK) |
| 53540 | Lever Assy, Auxiliary Catch Release |
| 53550 | Hook Assy, Hood Auxiliary Catch |
| 53550B | Snap, Hood Auxiliary Catch Hook Control Link |
| 53552 | Rod, Hood Auxiliary Catch Hook |
| 53577 | Bolt, Hood Lock |
| 53578 | Nut, Hood Lock |
| 53579 | Cap, Hood Lock Nut |
| 53601 | Lever Sub-assy, Hood Lock Control |
| 53629 | Cover, Hood Lock Control Cable |
| 53630 | Cable Assy, Hood Lock Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
