Toyota Tundra

2006-11 → 2021-10 · chassis GSK5#,UCK5#,UPK5#,USK5# · catalogue 841430 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Floor Panel & Rear Floor Member

14 part groups · 4 illustrations

Illustrations

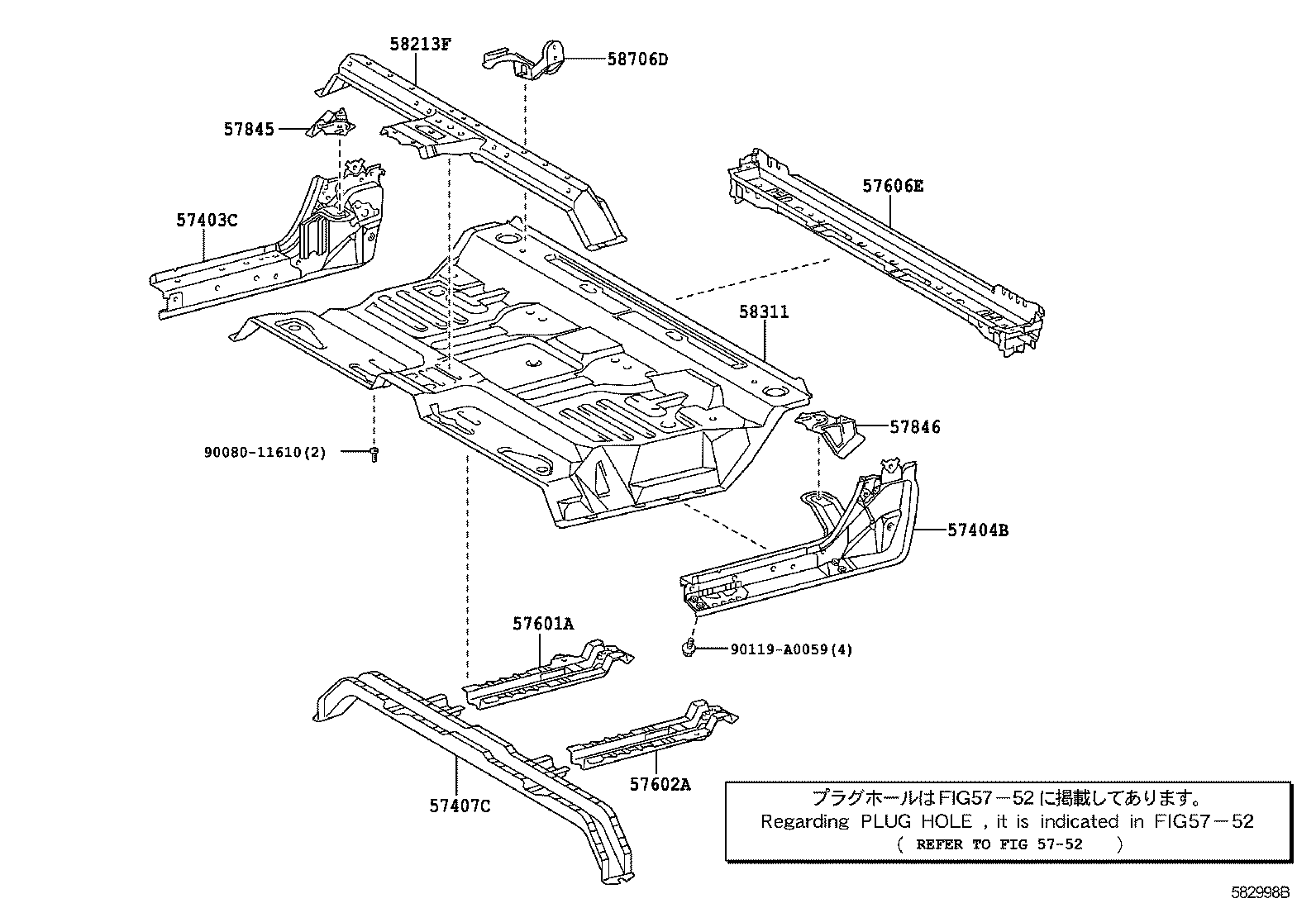

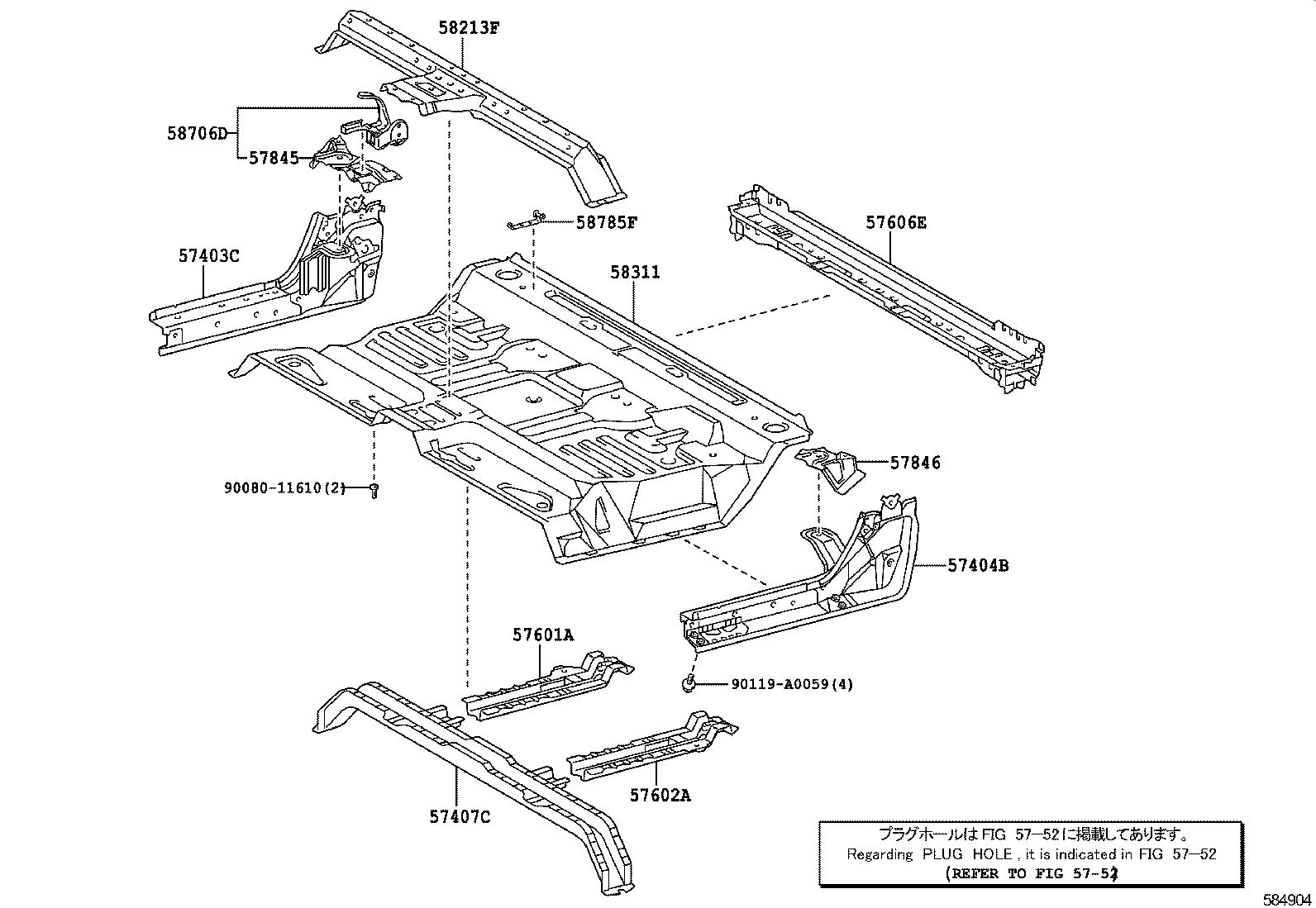

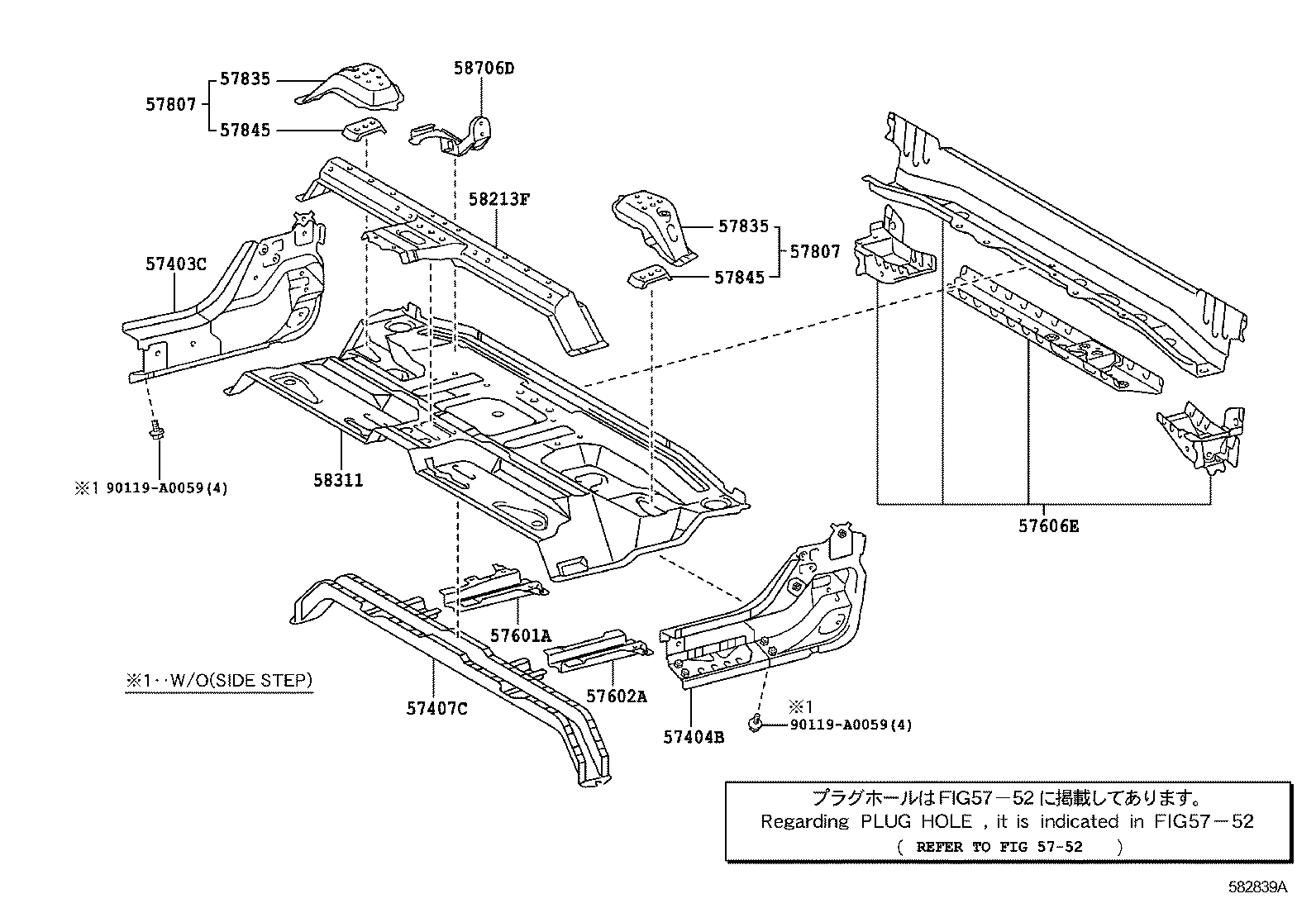

Figure 582838A 582838A 2006-11 → 2017-08 Figure 582839A 582839A 2006-11 → — Figure 582998B 582998B 2007-03 → 2013-08 Figure 584904 584904 2013-08 → —

Part groups

PNCDescription
57403C Reinforce Sub-assy, Floor Side, Inner RH
57404B Reinforce Sub-assy, Floor Side, Inner LH
57407C Member Sub-assy, Center Floor Cross, NO.1
57601A Member Sub-assy, Rear Floor Side, RH
57602A Member Sub-assy, Rear Floor Side, LH
57606E Member Sub-assy, Rear Floor Cross, NO.2
57807 Reinforcement Sub-assy, NO.1 Seat Leg, Rear NO.3
57835 Reinforcement, Rear NO.1 Seat Leg, Rear NO.1
57845 Reinforcement, Rear NO.2 Seat Leg, Rear RH
57846 Reinforcement, Rear NO.2 Seat Leg, Rear LH
58213F Reinforcement, Center Floor Panel
58311 Pan, Rear Floor
58706D Bracket Sub-assy, Jack Carrier, NO.1
58785F Bracket, Tool Bag Band
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
