Toyota Tundra

2006-11 → 2021-10 · chassis GSK5#,UCK5#,UPK5#,USK5# · catalogue 841430 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Insulator

8 part groups · 6 illustrations

Illustrations

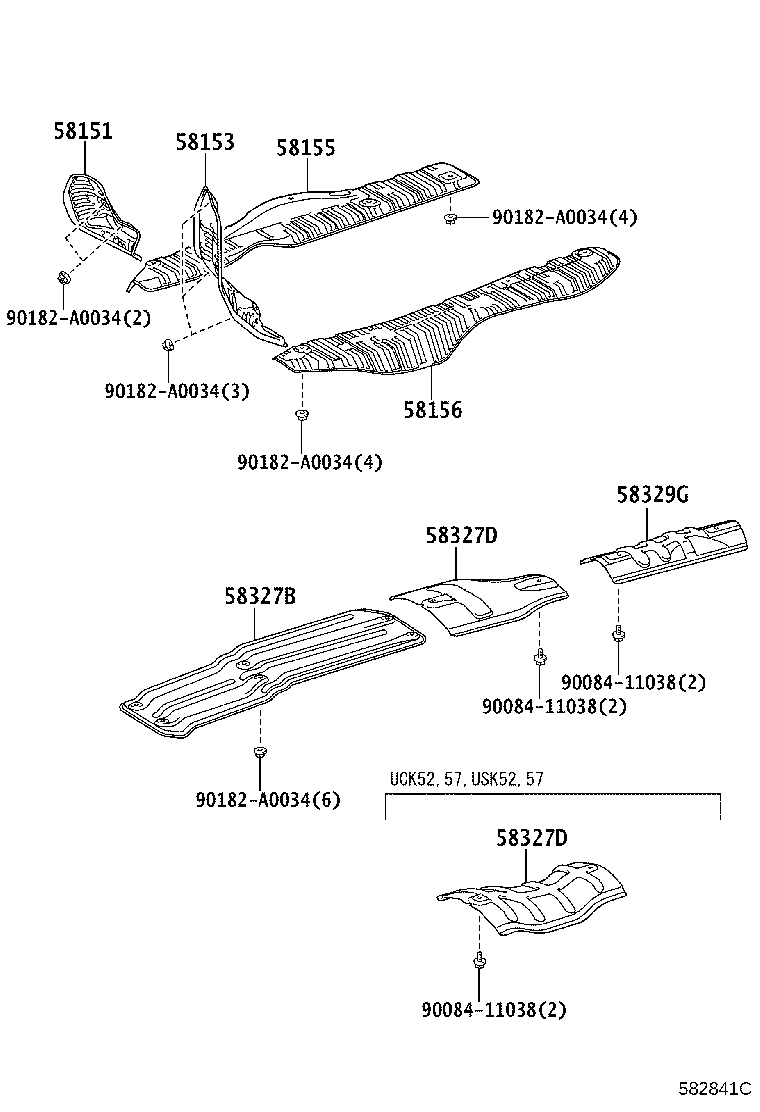

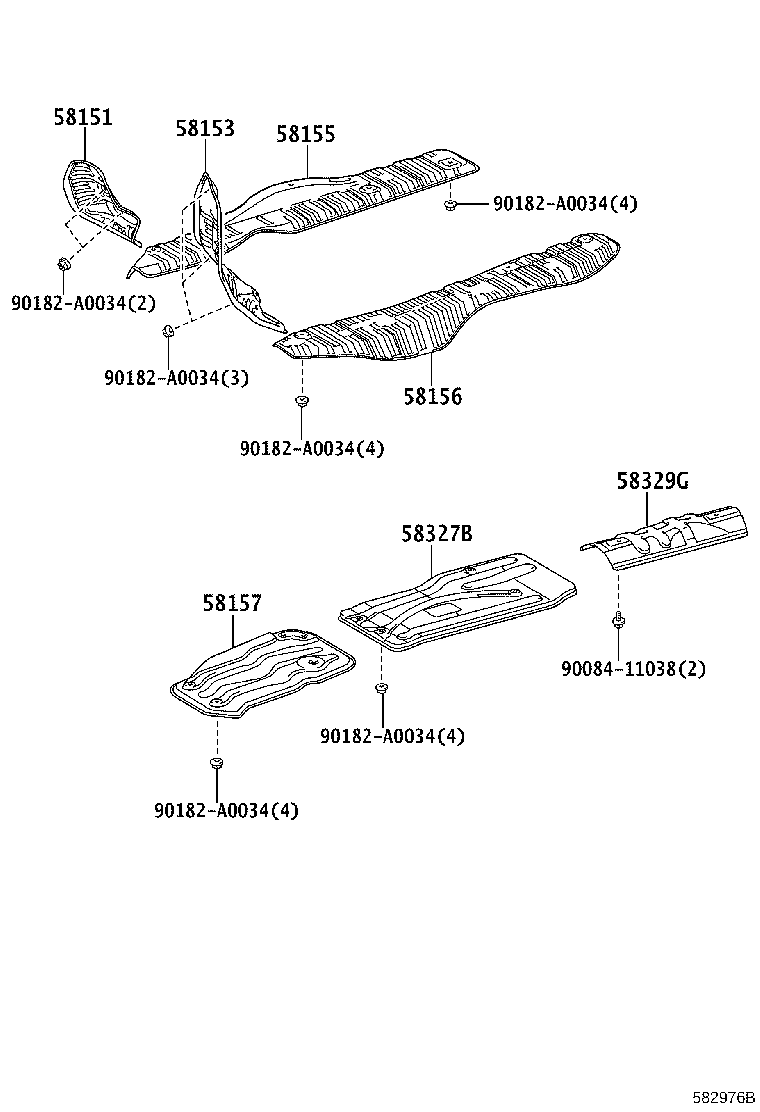

Figure 582840C 582840C 2006-11 → 2017-08 Figure 582840C 582840C 2015-08 → 2017-08 Figure 582841C 582841C 2006-11 → — Figure 582841C 582841C 2015-08 → — Figure 582976B 582976B 2007-03 → — Figure 582976B 582976B 2015-08 → —

Part groups

PNCDescription
58151 Insulator, Front Floor Heat, NO.1
58153 Insulator, Front Floor Heat, NO.2
58155 Insulator, Front Floor Heat, NO.3
58156 Insulator, Front Floor Heat, NO.4
58157 Insulator, Front Floor Heat, NO.5
58327B Insulator, Main Muffler Heat
58327D Insulator, Main Muffler Heat, Upper
58329G Insulator, Main Muffler Heat, Rear Upper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
