Toyota Tundra

2006-11 → 2021-10 · chassis GSK5#,UCK5#,UPK5#,USK5# · catalogue 841430 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

8 part groups · 8 illustrations

Illustrations

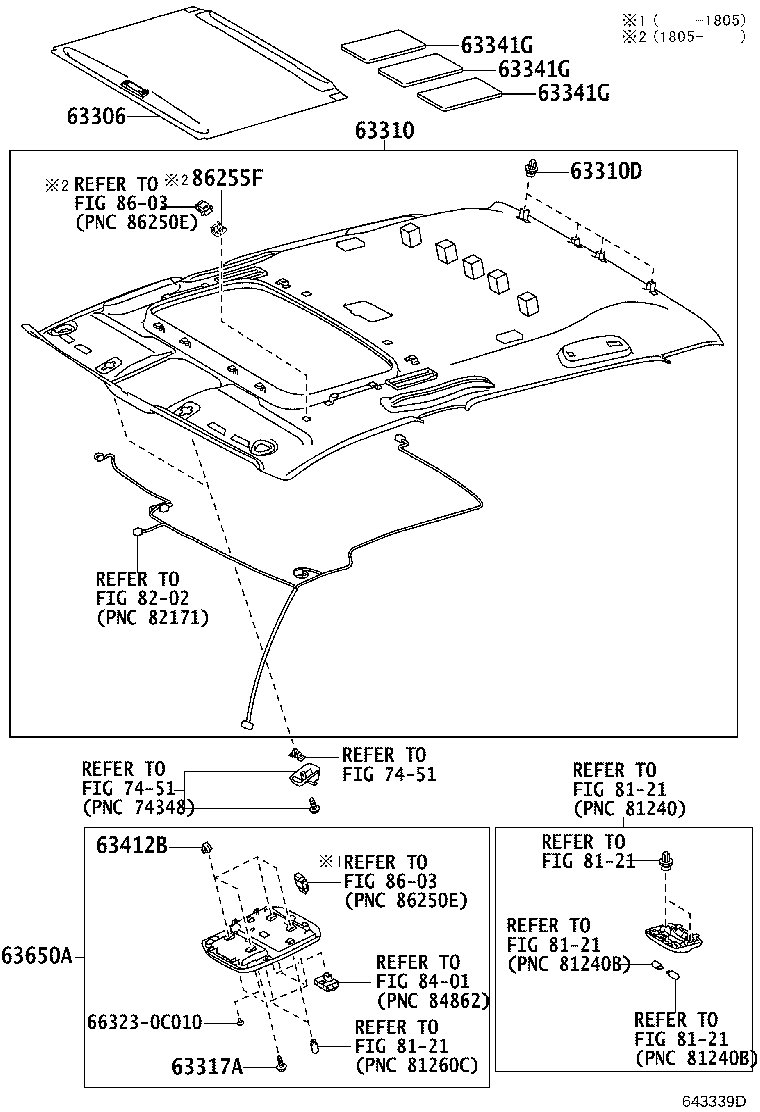

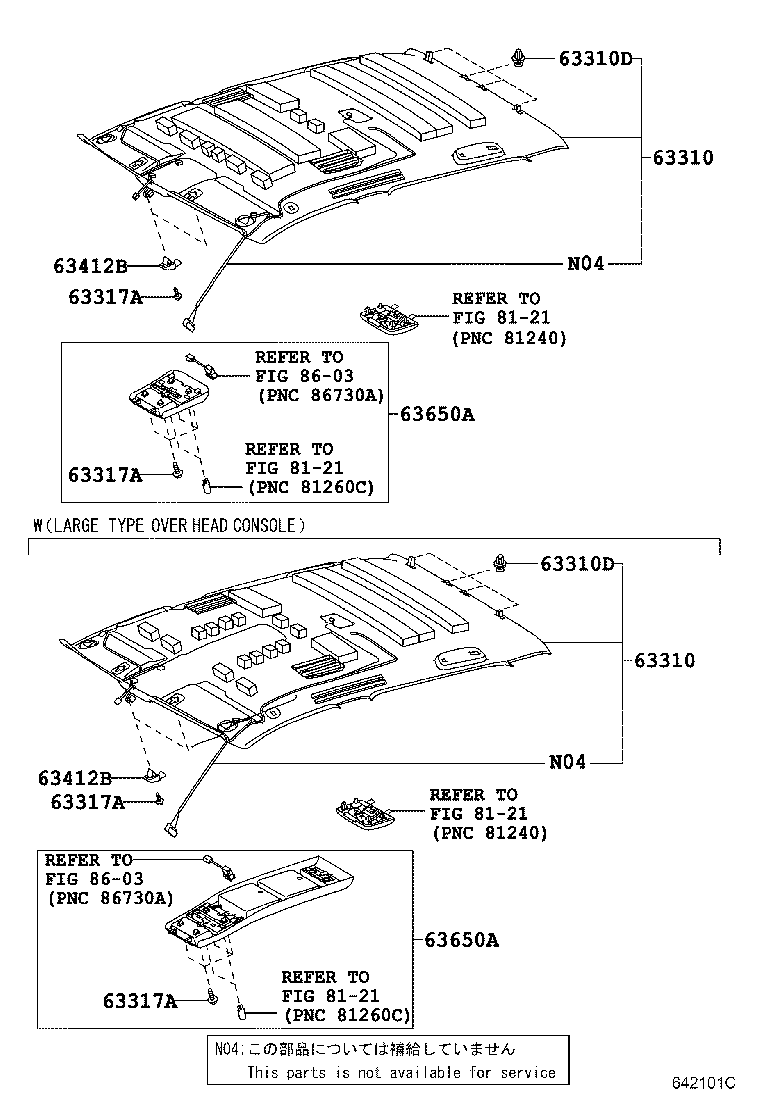

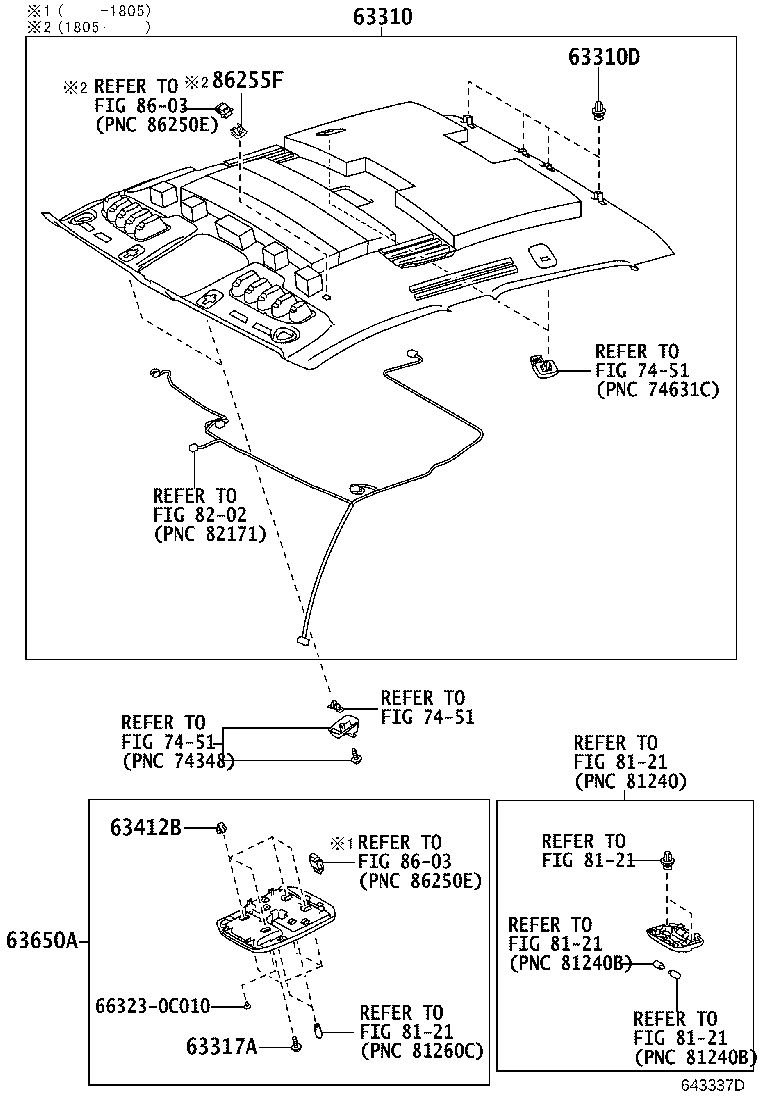

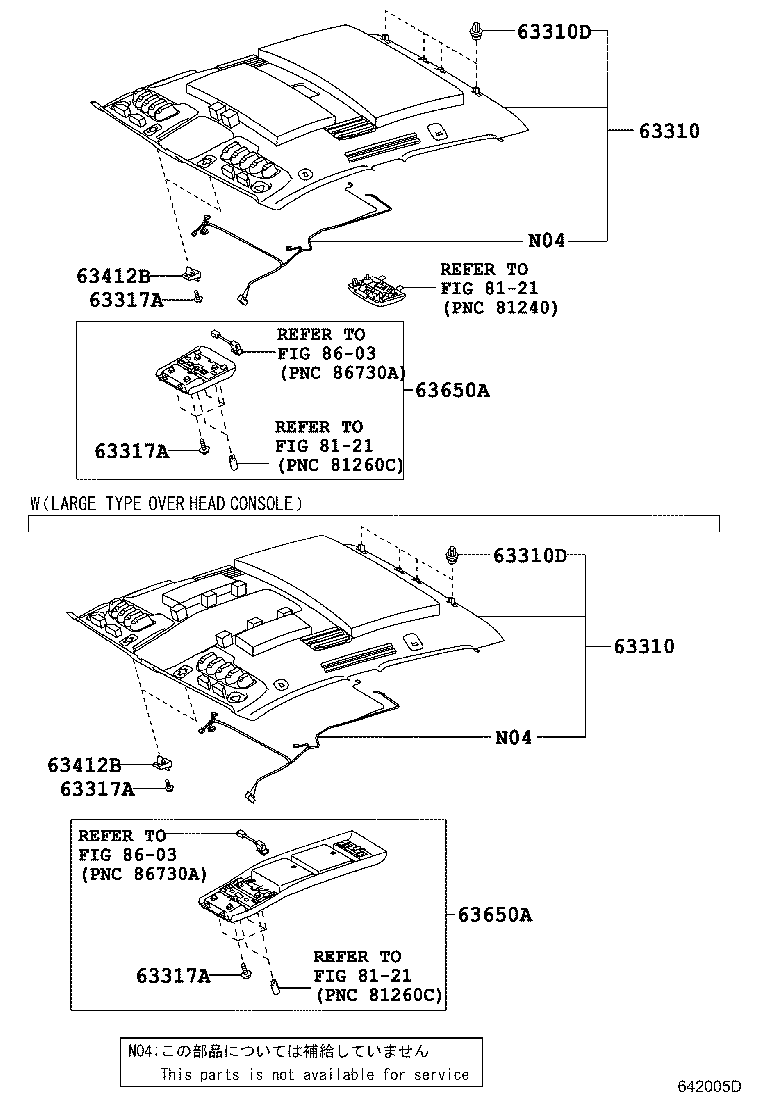

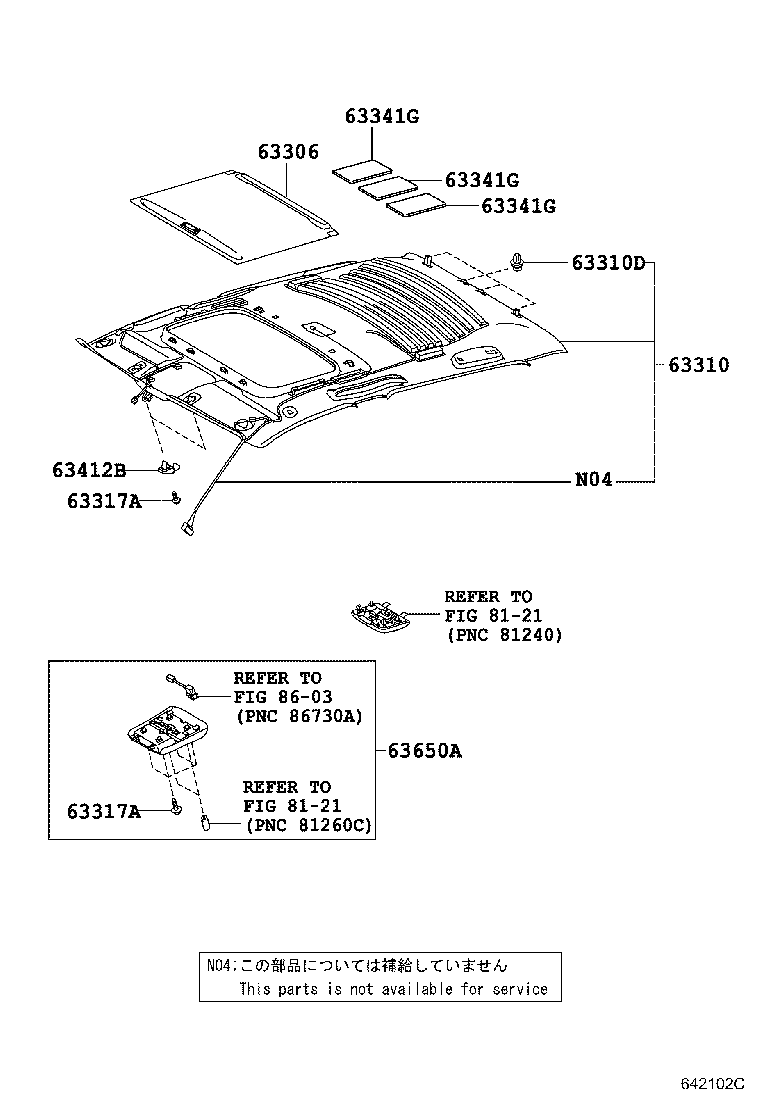

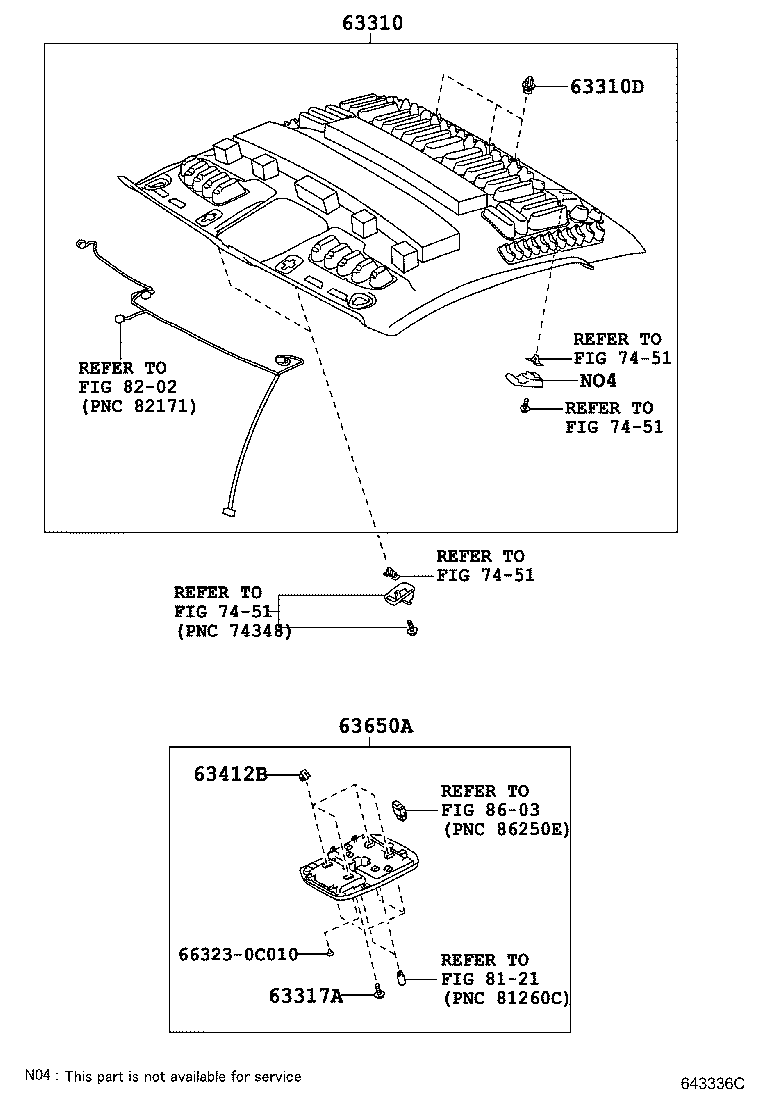

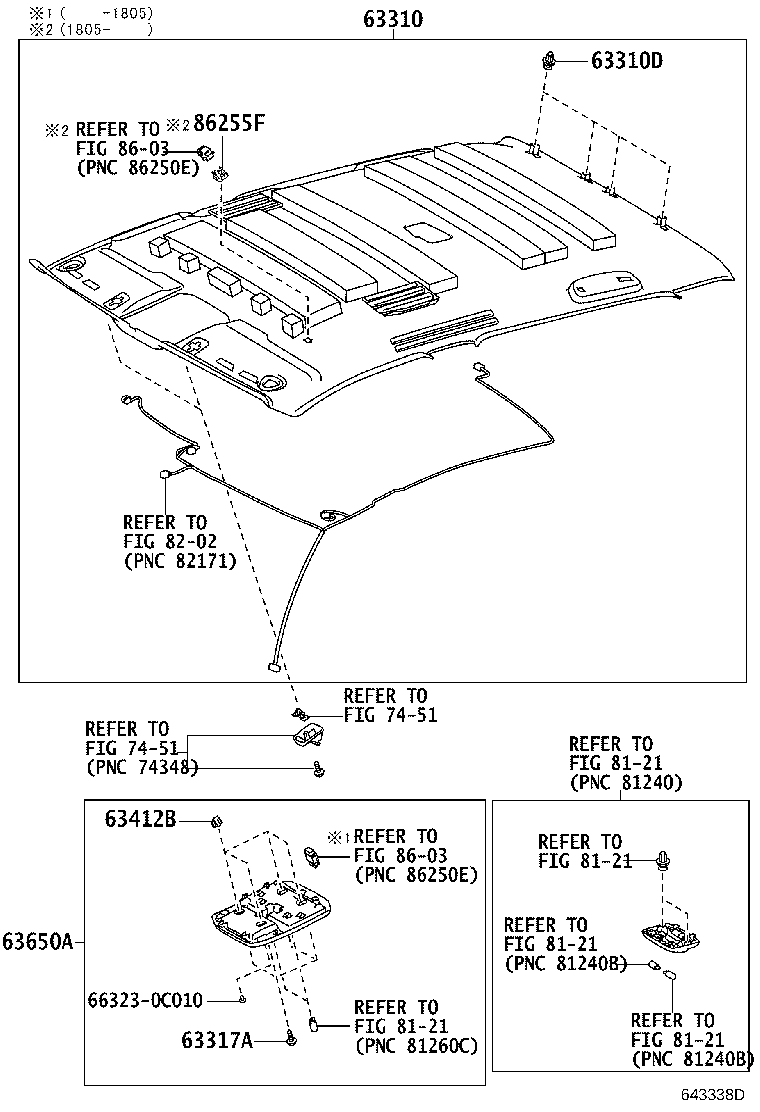

Figure 642004C 642004C 2006-11 → 2013-08 Figure 642005D 642005D 2006-11 → 2013-08 Figure 642101C 642101C 2007-03 → 2013-08 Figure 642102C 642102C 2007-03 → 2013-08 Figure 643336C 643336C 2013-08 → — Figure 643337D 643337D 2013-08 → — Figure 643338D 643338D 2013-08 → — Figure 643339D 643339D 2013-08 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63317A Retainer, Roof Headlining
63341G Pad, Roof Silencer
63412B Retainer, Roof Console
63650A Box Assy, Roof Console
86255F Case, Microphone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
