Toyota Tundra

2006-11 → 2021-10 · chassis GSK5#,UCK5#,UPK5#,USK5# · catalogue 841430 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Panel & Glass

51 part groups · 7 illustrations

Illustrations

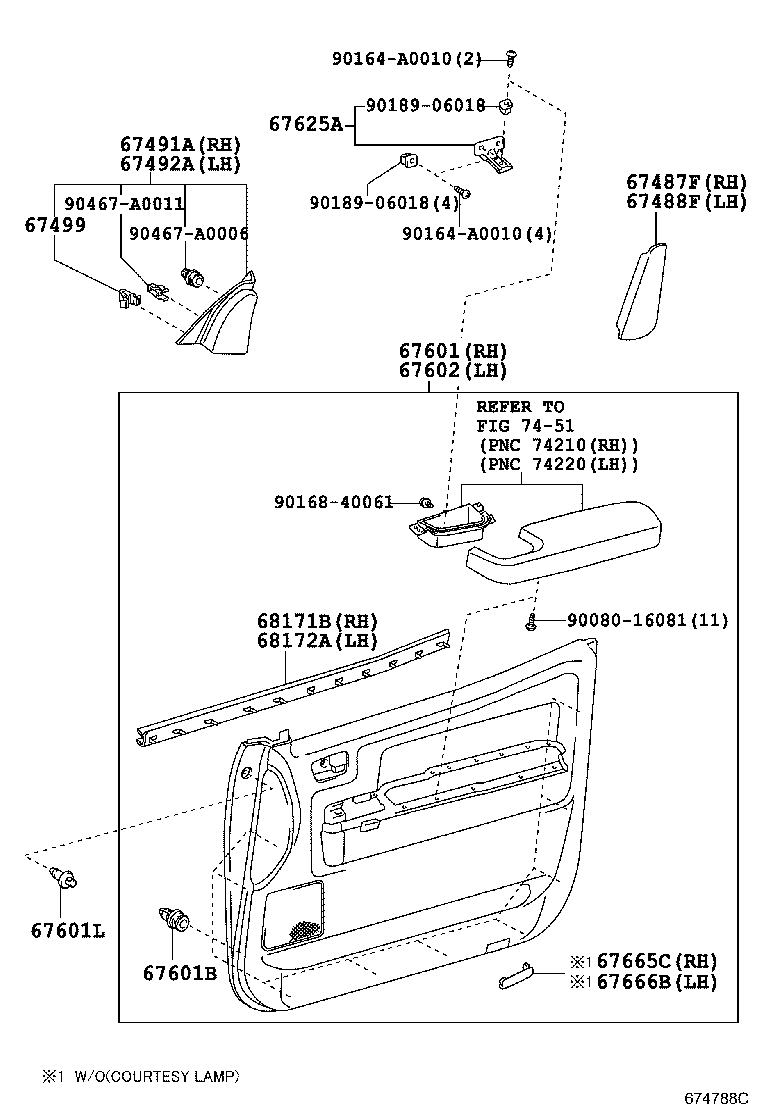

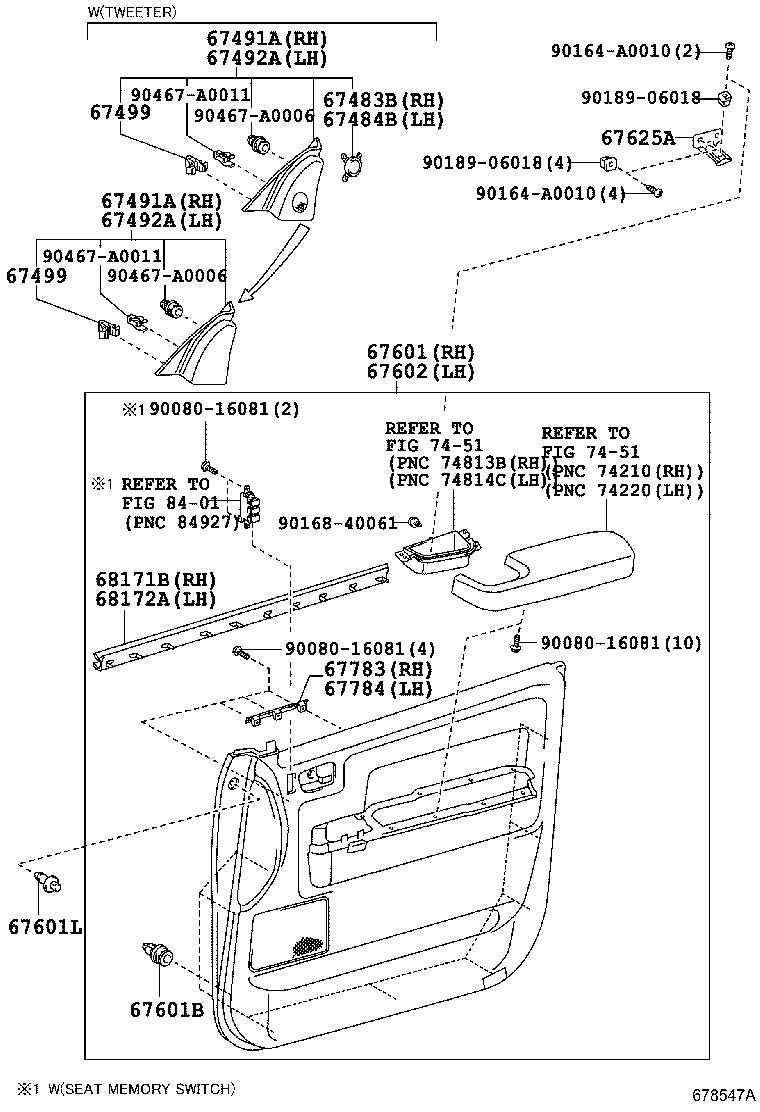

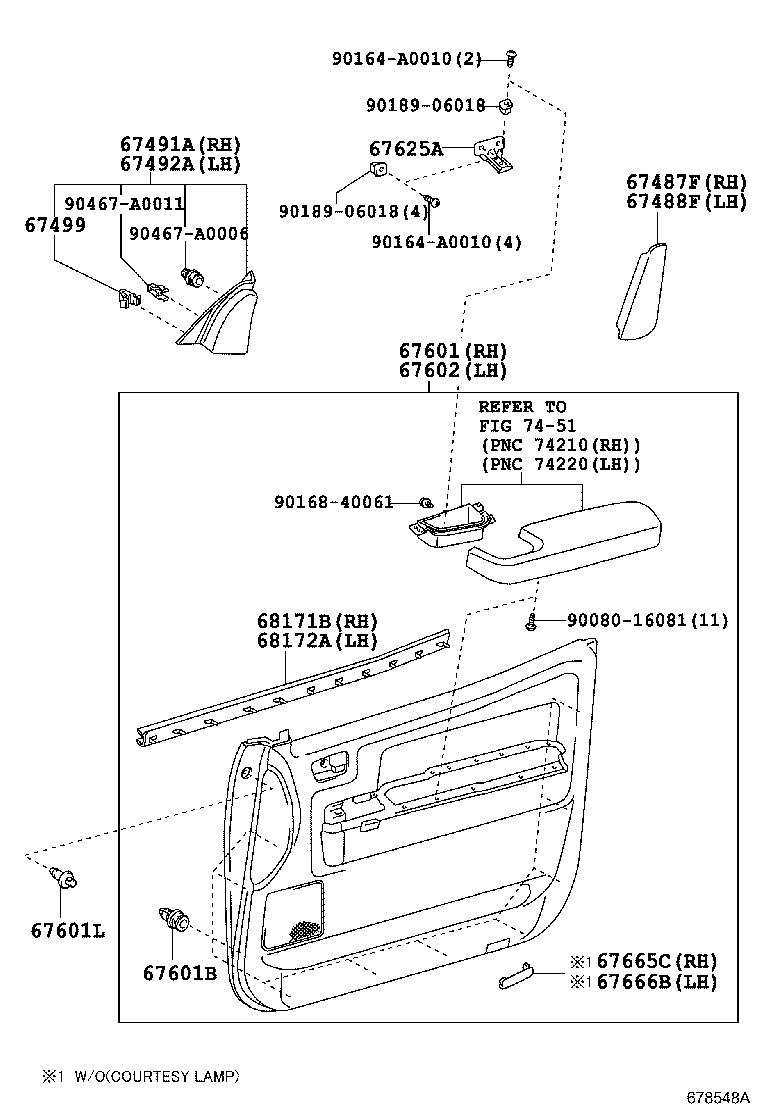

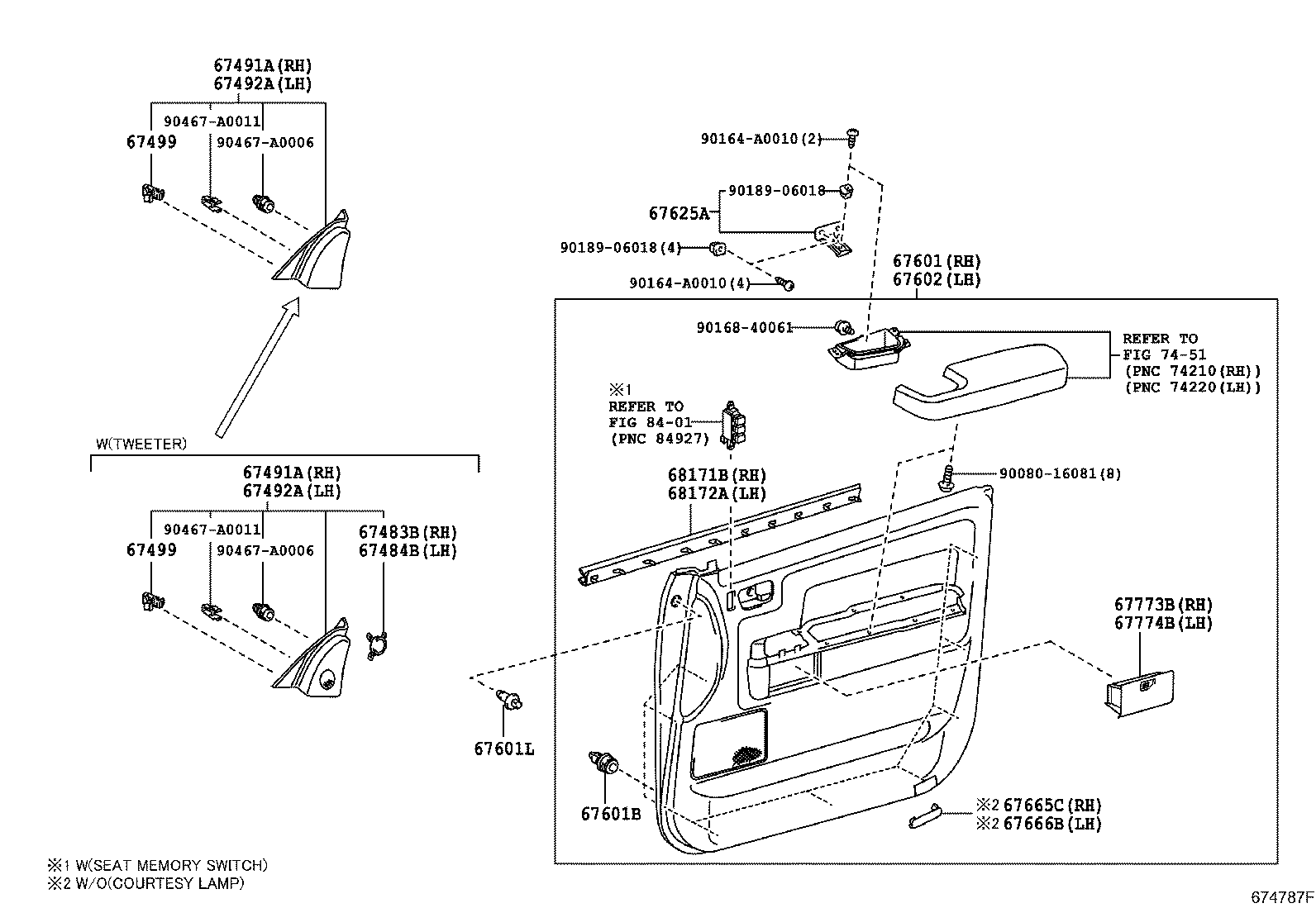

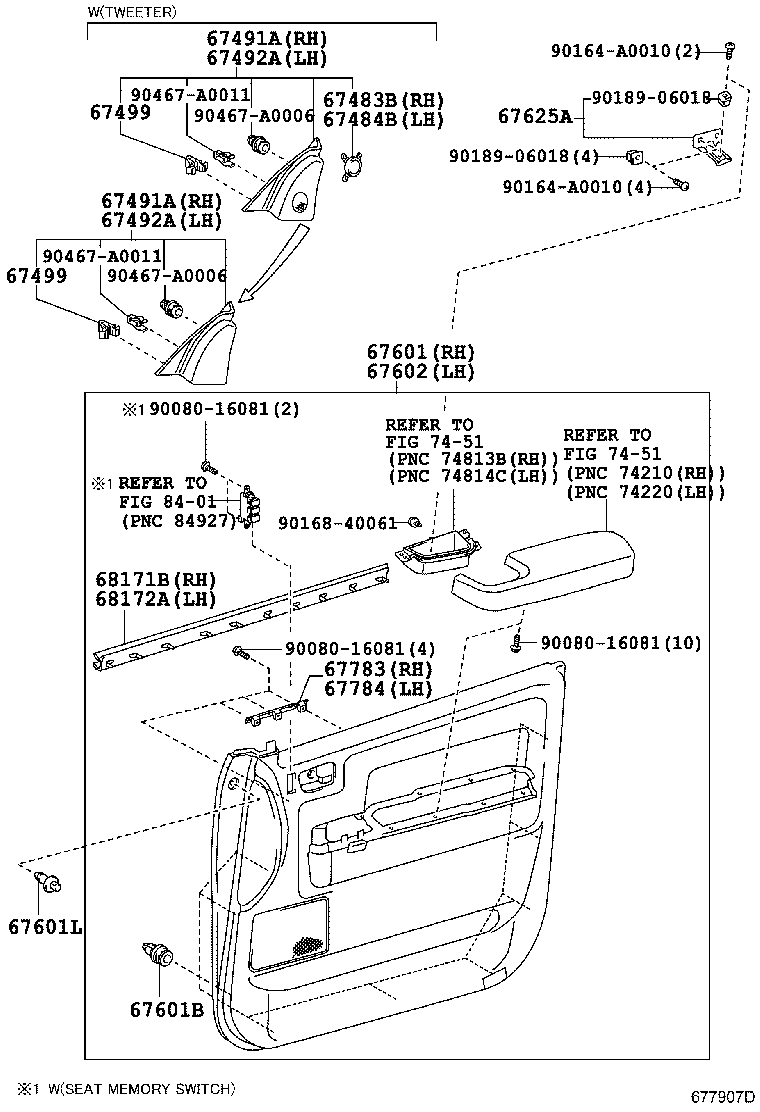

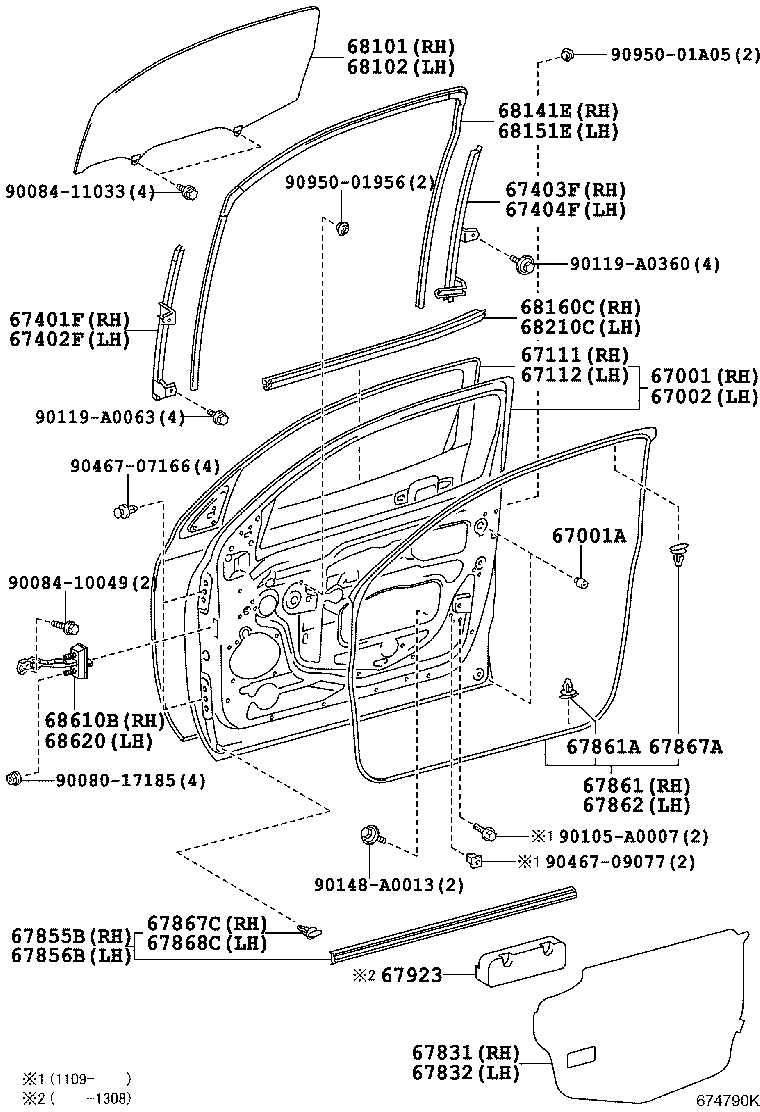

Figure 674791H 674791H 2006-11 → — Figure 674790K 674790K 2006-11 → — Figure 674787F 674787F 2006-11 → 2013-08 Figure 677907D 677907D 2013-08 → 2015-03 Figure 678547A 678547A 2015-03 → — Figure 674788C 674788C 2006-11 → 2015-03 Figure 678548A 678548A 2015-03 → —

Part groups

PNCDescription
67001 Panel Sub-assy, Front Door, RH
67001A Cushion, Front Door Panel
67002 Panel Sub-assy, Front Door, LH
67111 Panel, Front Door, Outer RH
67112 Panel, Front Door, Outer LH
67401F Frame Sub-assy, Front Door, Front Lower RH
67402F Frame Sub-assy, Front Door, Front Lower LH
67403F Frame Sub-assy, Front Door, Rear Lower RH
67404F Frame Sub-assy, Front Door, Rear Lower LH
67483B Retainer, Front Door Front Lower Frame Seal, RH
67484B Retainer, Front Door Front Lower Frame Seal, LH
67487F Garnish, Rear Door Rear Guide Bracket, RH
67488F Garnish, Rear Door Rear Guide Bracket, LH
67491A Garnish, Front Door Lower Frame Bracket, RH
67492A Garnish, Front Door Lower Frame Bracket, LH
67499 Retainer, Front Door Lower Frame Bracket Garnish
67601 Board Sub-assy, Front Door Trim, RH
67601B Clip(FOR FRONT DOOR TRIM BOARD)
67601L Clip(FOR FRONT DOOR TRIM BOARD)
67602 Board Sub-assy, Front Door Trim, LH
67625A Bracket, Front Door Trim, NO.1
67665C Reflector, Front Door Trim, RH
67666B Reflector, Front Door Trim, LH
67773B Pocket, Front Door Trim, NO.2 RH
67774B Pocket, Front Door Trim, NO.2 LH
67783 Cover, Front Door Trim, Center RH
67784 Cover, Front Door Trim, Center LH
67831 Cover, Front Door Service Hole, RH
67832 Cover, Front Door Service Hole, LH
67855B Protector, Front Door Panel, RH
67856B Protector, Front Door Panel, LH
67861 Weatherstrip, Front Door, RH
67861A Retainer(FOR FRONT DOOR WEATHERSTRIP)
67862 Weatherstrip, Front Door, LH
67867A Clip, Door Weatherstrip(FOR FRONT DOOR)
67867C Retainer, Front Door Weatherstrip, RH
67868C Retainer, Front Door Weatherstrip, LH
67923 Cushion, Front Door Stiffener, NO.1
67924 Cushion, Front Door Stiffener, NO.2
68101 Glass Sub-assy, Front Door, RH
68102 Glass Sub-assy, Front Door, LH
68141E Run, Front Door Glass, RH
68151E Run, Front Door Glass, LH
68160C Weatherstrip Assy, Front Door Glass, Outer RH
68171B Weatherstrip, Front Door Glass, Inner RH
68172A Weatherstrip, Front Door Glass, Inner LH
68210C Weatherstrip Assy, Front Door Glass, Outer LH
68610B Check Assy, Front Door, RH
68620 Check Assy, Front Door, LH
75921C Tape, Black Out, NO.1 RH
75922M Tape, Black Out, NO.1 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
