Toyota Tundra

2006-11 → 2021-10 · chassis GSK5#,UCK5#,UPK5#,USK5# · catalogue 841430 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Door Panel & Glass

47 part groups · 8 illustrations

Illustrations

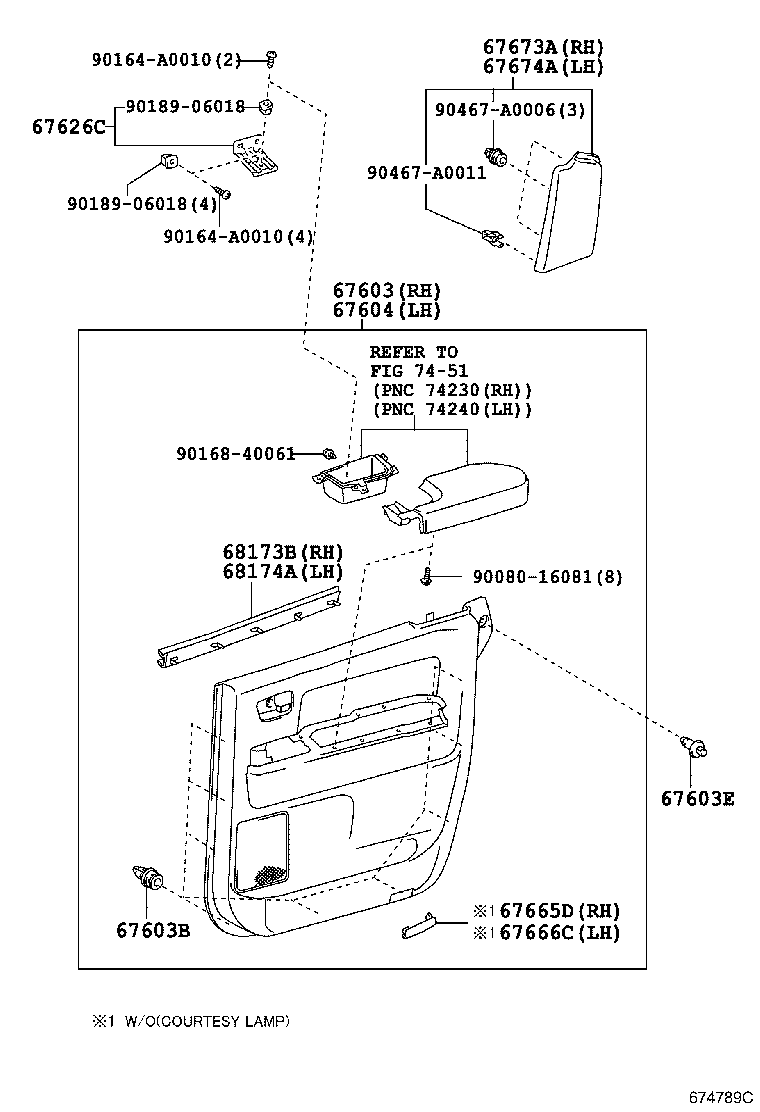

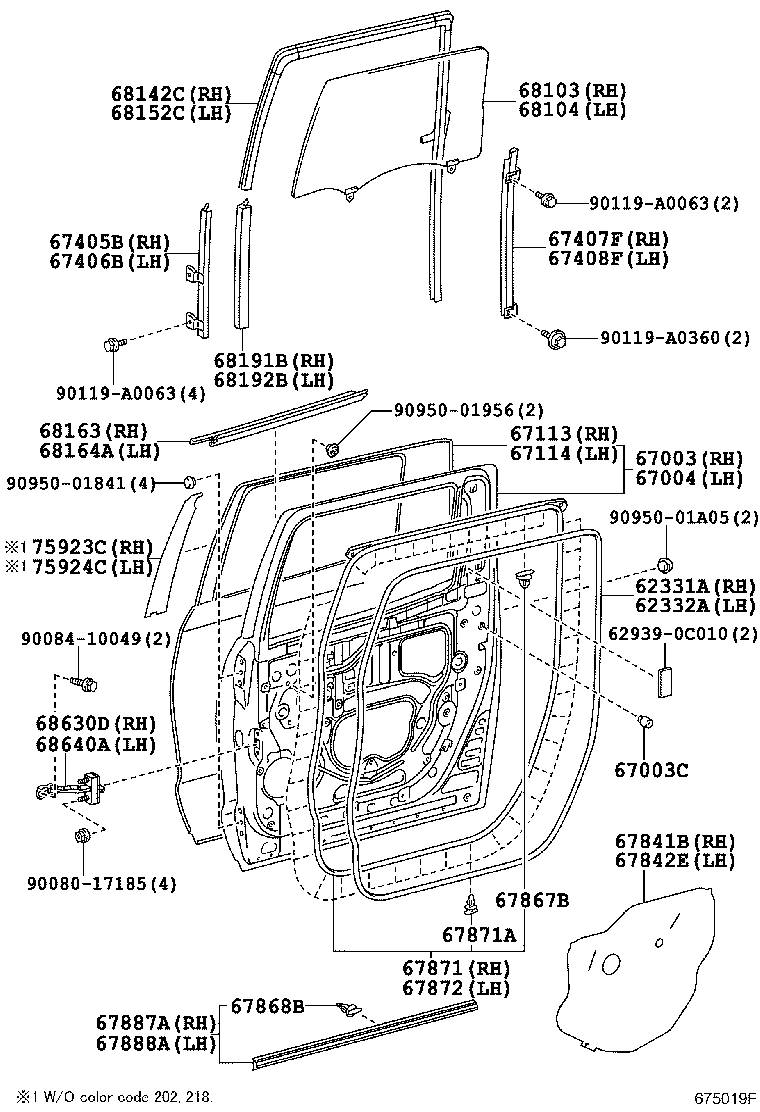

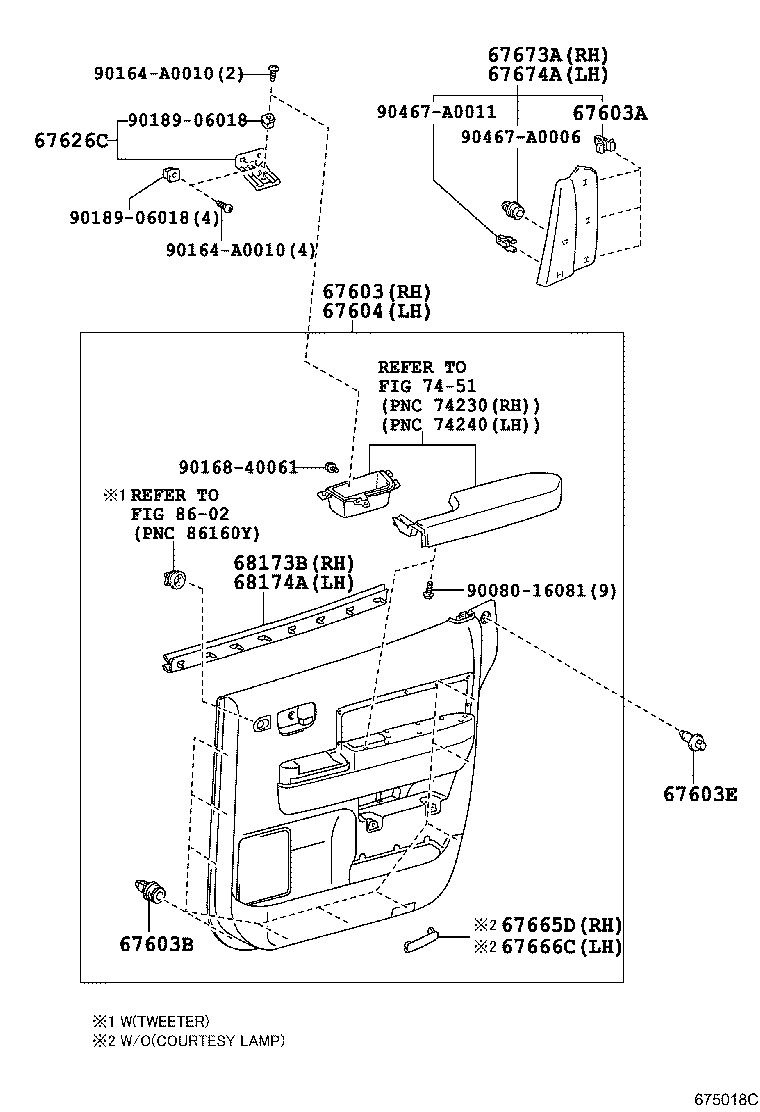

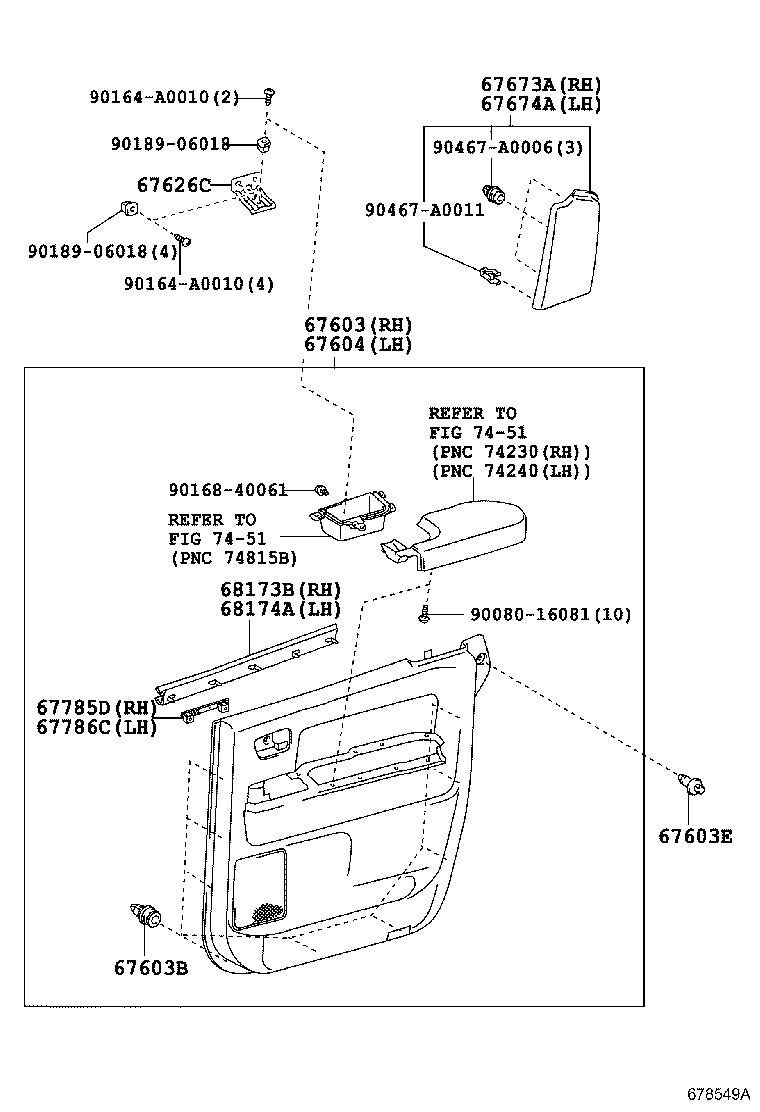

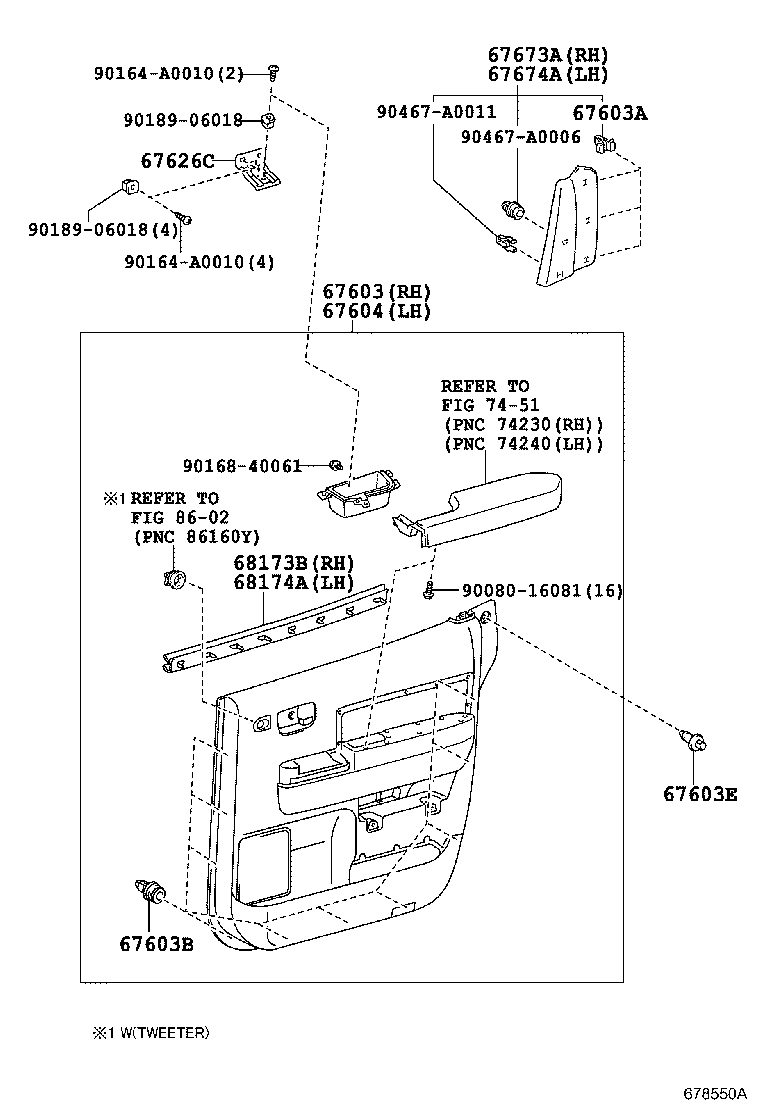

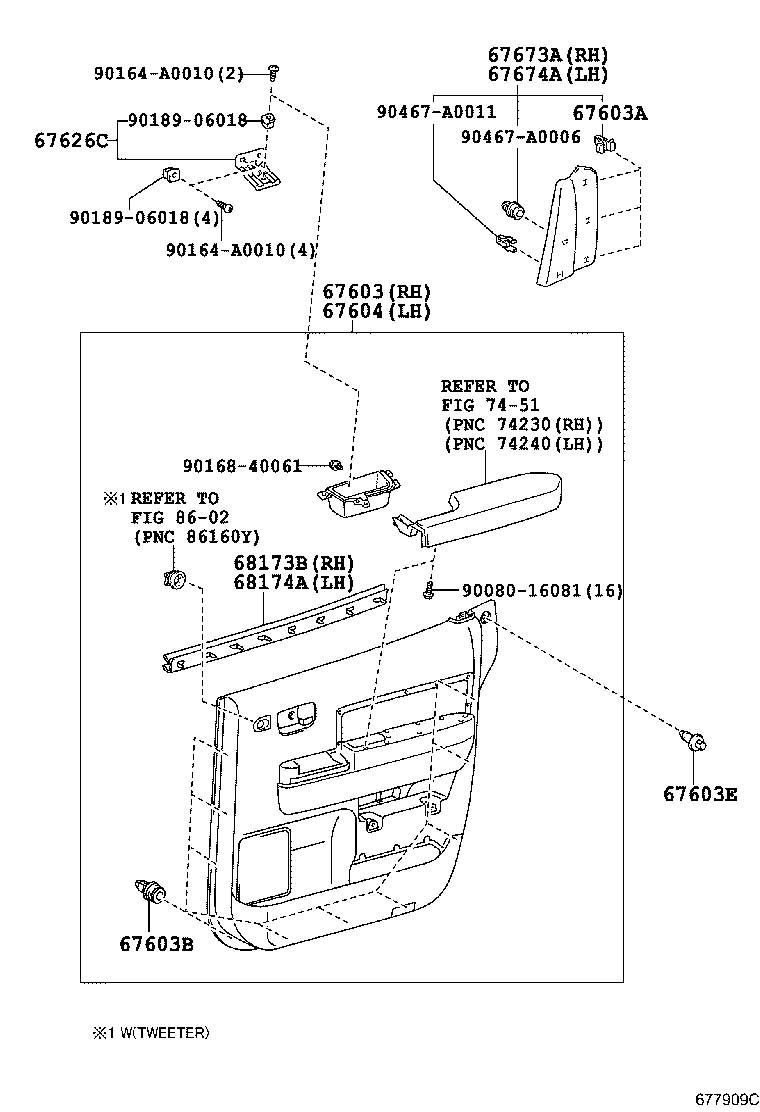

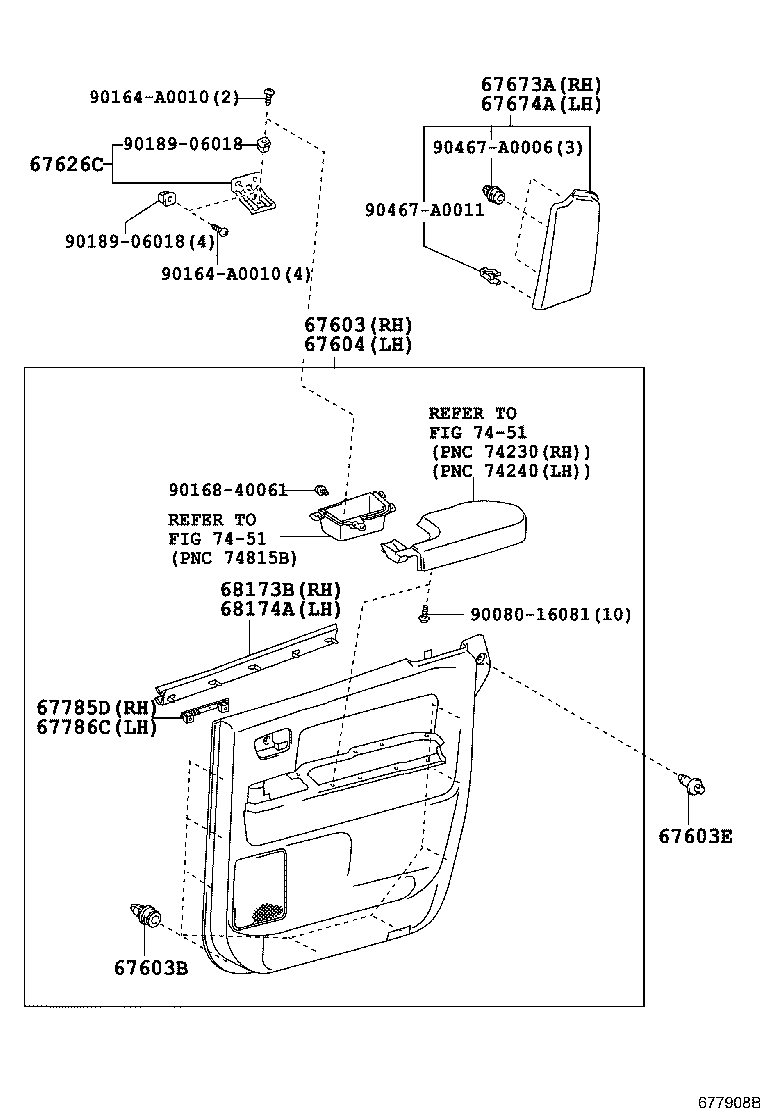

Figure 674792H 674792H 2006-11 → — Figure 675019F 675019F 2007-03 → — Figure 674789C 674789C 2006-11 → 2013-08 Figure 677908B 677908B 2013-08 → 2015-03 Figure 678549A 678549A 2015-03 → — Figure 675018C 675018C 2007-03 → 2013-08 Figure 677909C 677909C 2013-08 → 2015-03 Figure 678550A 678550A 2015-03 → —

Part groups

PNCDescription
62331A Weatherstrip, Rear Door Opening Trim, RH
62332A Weatherstrip, Rear Door Opening Trim, LH
67003 Panel Sub-assy, Rear Door, RH
67003C Cushion, Rear Door Panel
67004 Panel Sub-assy, Rear Door, LH
67113 Panel, Rear Door, Outer RH
67114 Panel, Rear Door, Outer LH
67405B Guide Sub-assy, Rear Door Window, Front RH
67406B Guide Sub-assy, Rear Door Window, Front LH
67407F Frame Sub-assy, Rear Door Window, Rear Lower RH
67408F Frame Sub-assy, Rear Door Window, Rear Lower LH
67603 Board Sub-assy, Rear Door Trim, RH
67603A Retainer(FOR REAR DOOR TRIM BOARD)
67603B Clip(FOR REAR DOOR TRIM BOARD)
67603E Clip(FOR REAR DOOR TRIM BOARD)
67604 Board Sub-assy, Rear Door Trim, LH
67626C Bracket, Rear Door Trim, NO.2
67665D Reflector, Rear Door Trim, RH
67666C Reflector, Rear Door Trim, LH
67673A Garnish, Rear Door Frame, RH
67674A Garnish, Rear Door Frame, LH
67785D Cover, Rear Door Trim, Upper RH
67786C Cover, Rear Door Trim, Upper LH
67841B Cover, Rear Door Service Hole
67842E Cover, Rear Door Service Hole, LH
67859B Cover, Rear Door Lower Hole
67867B Clip, Door Weatherstrip(FOR REAR DOOR)
67868B Clip, Door Glass Weatherstrip(FOR REAR DOOR)
67871 Weatherstrip, Rear Door, RH
67871A Retainer(FOR REAR DOOR WEATHERSTRIP)
67872 Weatherstrip, Rear Door, LH
67887A Weatherstrip, Rear Door, NO.2 RH
67888A Weatherstrip, Rear Door, NO.2 LH
68103 Glass Sub-assy, Rear Door, RH
68104 Glass Sub-assy, Rear Door, LH
68142C Run, Rear Door Glass, RH
68152C Run, Rear Door Glass, LH
68163 Weatherstrip, Rear Door Glass, Outer
68164A Weatherstrip, Rear Door Glass, Outer LH
68173B Weatherstrip, Rear Door Glass, Inner RH
68174A Weatherstrip, Rear Door Glass, Inner LH
68191B Run, Rear Door Glass, NO.2 RH
68192B Run, Rear Door Glass, NO.2 LH
68630D Check Assy, Rear Door, RH
68640A Check Assy, Rear Door, LH
75923C Tape, Black Out, NO.2 RH
75924C Tape, Black Out, NO.2 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
