Toyota Tundra

2006-11 → 2021-10 · chassis GSK5#,UCK5#,UPK5#,USK5# · catalogue 841430 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

26 part groups · 7 illustrations

Illustrations

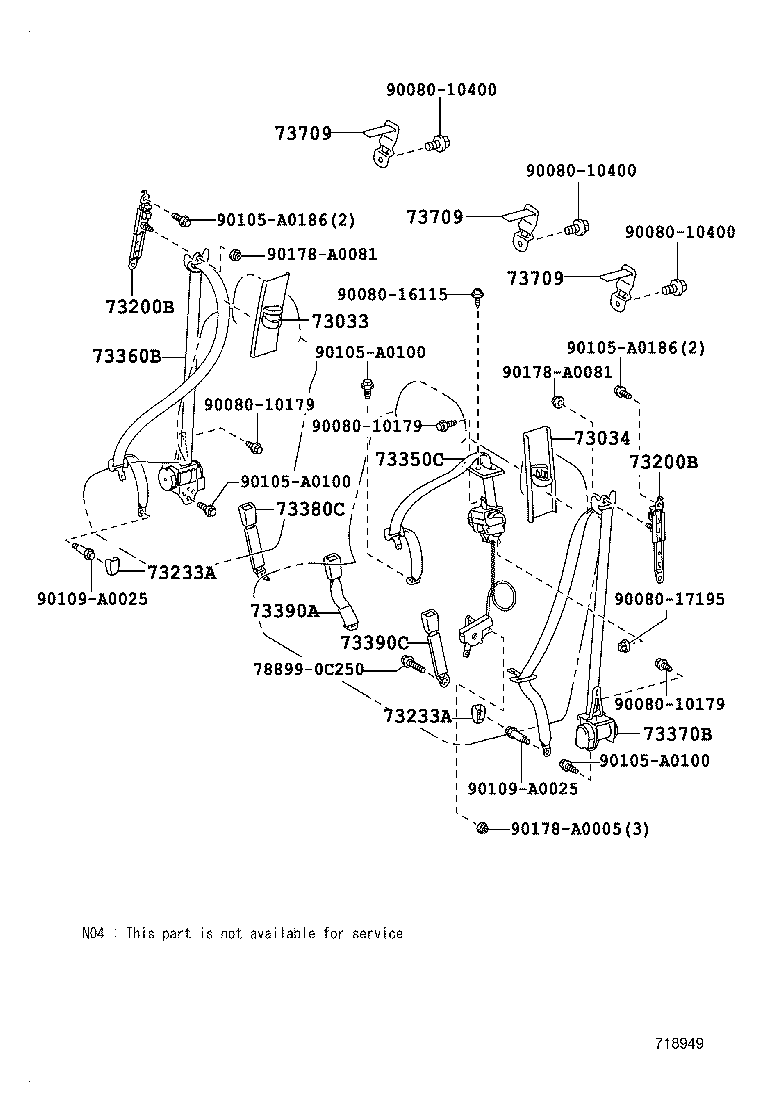

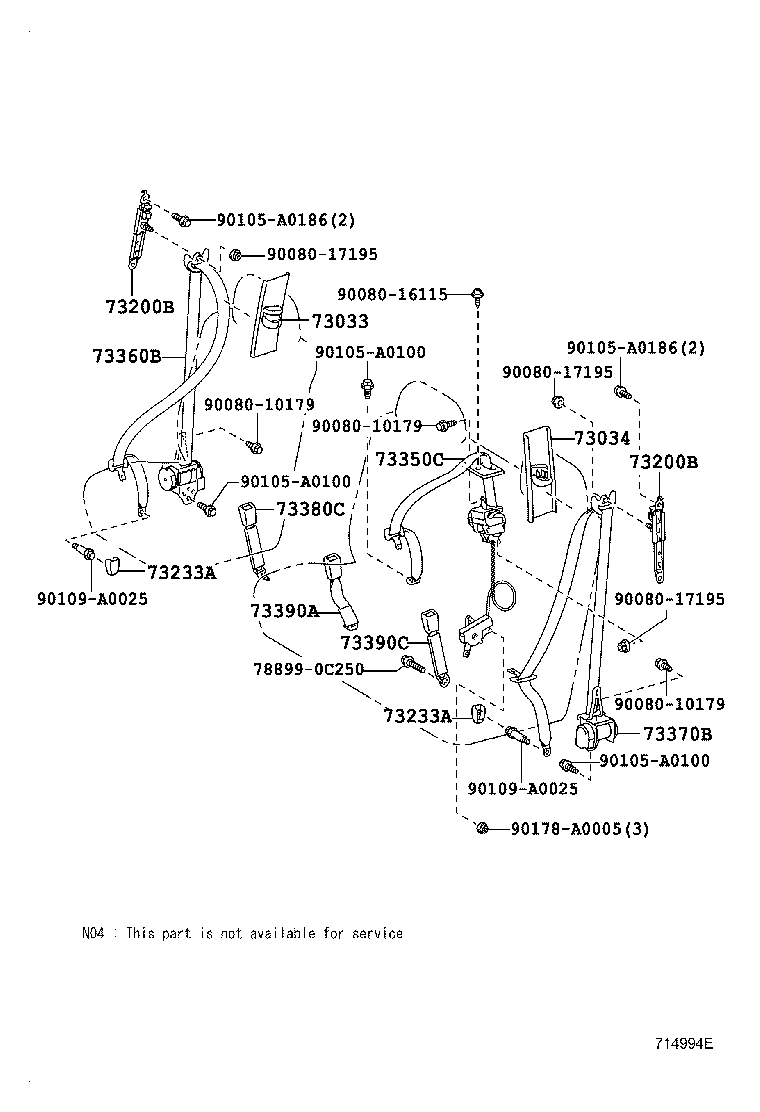

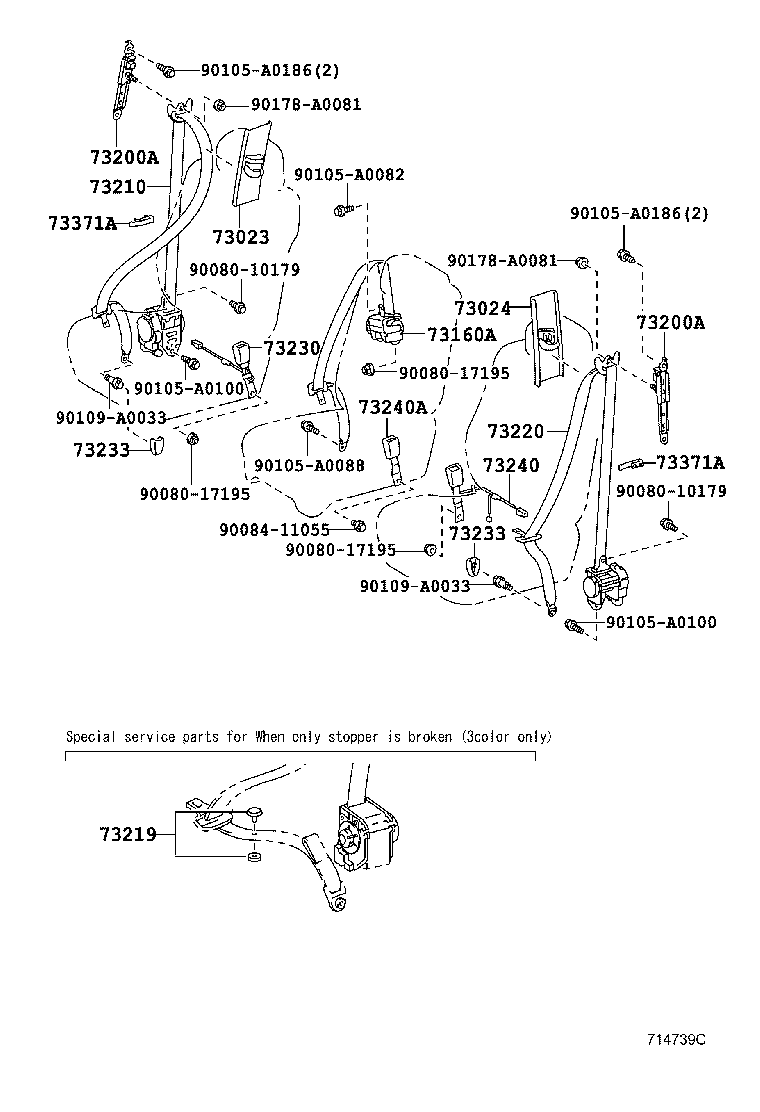

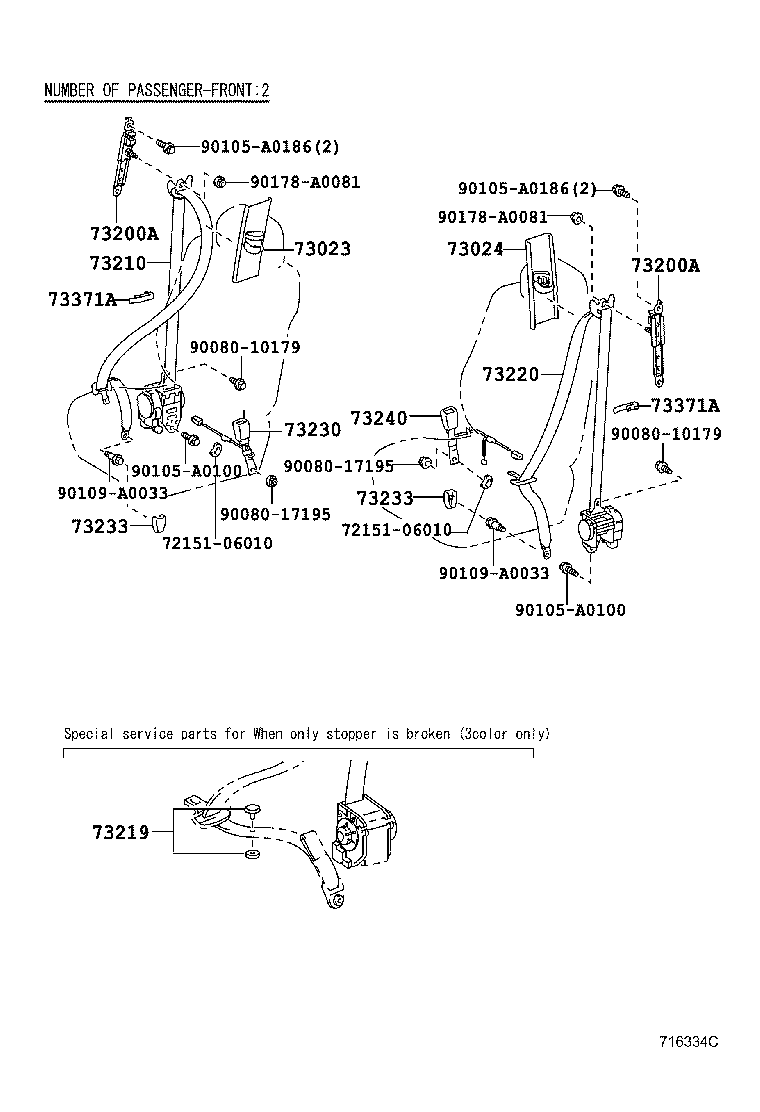

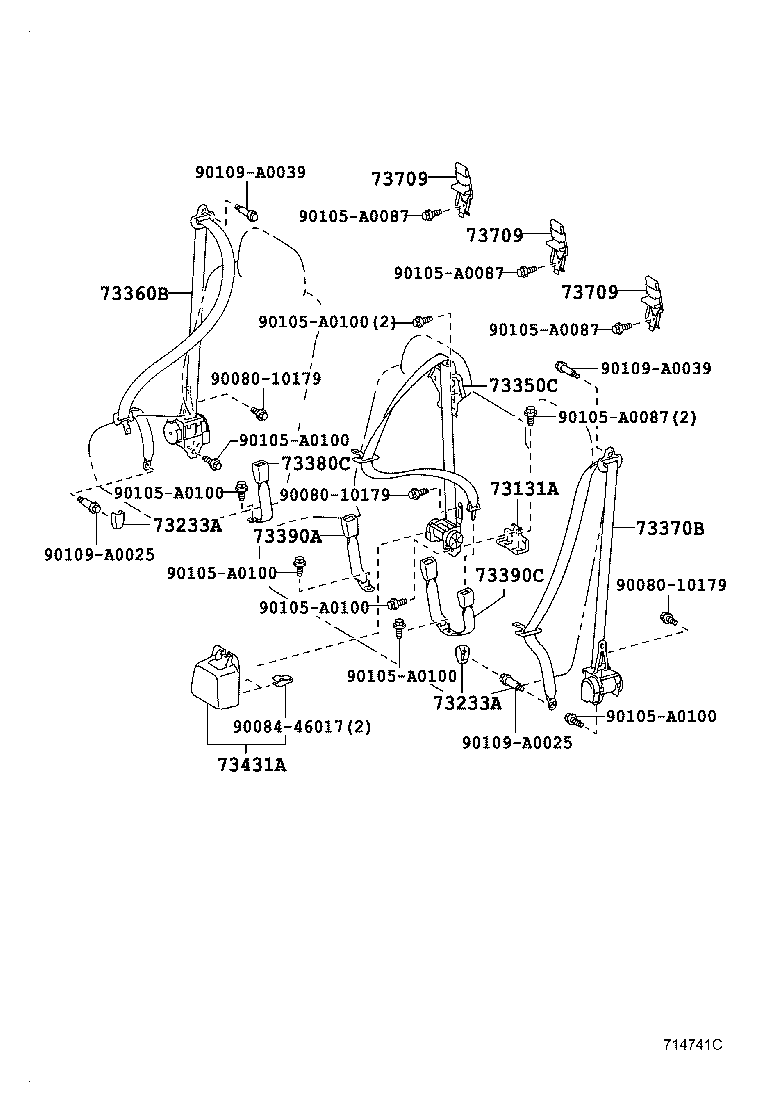

Figure 714740C 714740C 2006-11 → — Figure 716333B 716333B 2006-11 → — Figure 714739C 714739C 2006-11 → — Figure 716334C 716334C 2006-11 → — Figure 714741C 714741C 2006-11 → — Figure 714994E 714994E 2007-03 → 2013-08 Figure 718949 718949 2013-08 → —

Part groups

PNCDescription
73023 Plate Sub-assy, Front Shoulder Belt Anchor, RH
73024 Plate Sub-assy, Front Shoulder Belt Anchor, LH
73033 Plate Sub-assy, Rear Shoulder Belt Anchor, RH
73034 Plate Sub-assy, Rear Shoulder Belt Anchor, LH
73131A Bracket, Seat Belt
73160A Seat Belt Assy, Front Center, RH
73200A Adjuster Assy, Front Shoulder Belt Anchor
73200B Adjuster Assy, Rear Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73233A Cover, Lap Belt Outer Anchor, Rear NO.1 Seat
73240 Belt Assy, Front Seat Inner, LH
73240A Belt Assy, Front Seat Inner LH
73350C Belt Assy, Rear Seat, Outer Center
73360B Belt Assy, Rear Seat, Outer
73370B Belt Assy, Rear Seat, Outer
73371A Hanger Rear Seat Shoulder Belt
73380C Belt Assy, Rear NO.1 Seat, Inner RH
73390A Belt Assy, Rear Seat, Inner
73390C Belt Assy, Rear NO.1 Seat, Inner LH
73431A Cover, Rear Seat Belt Retractor
73709 Bracket Sub-assy, Tether Anchor
73719 Bracket, Child Restraint Seat Tether Anchor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
