Toyota Tundra

2006-11 → 2021-10 · chassis GSK5#,UCK5#,UPK5#,USK5# · catalogue 841430 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate

11 part groups · 2 illustrations

Illustrations

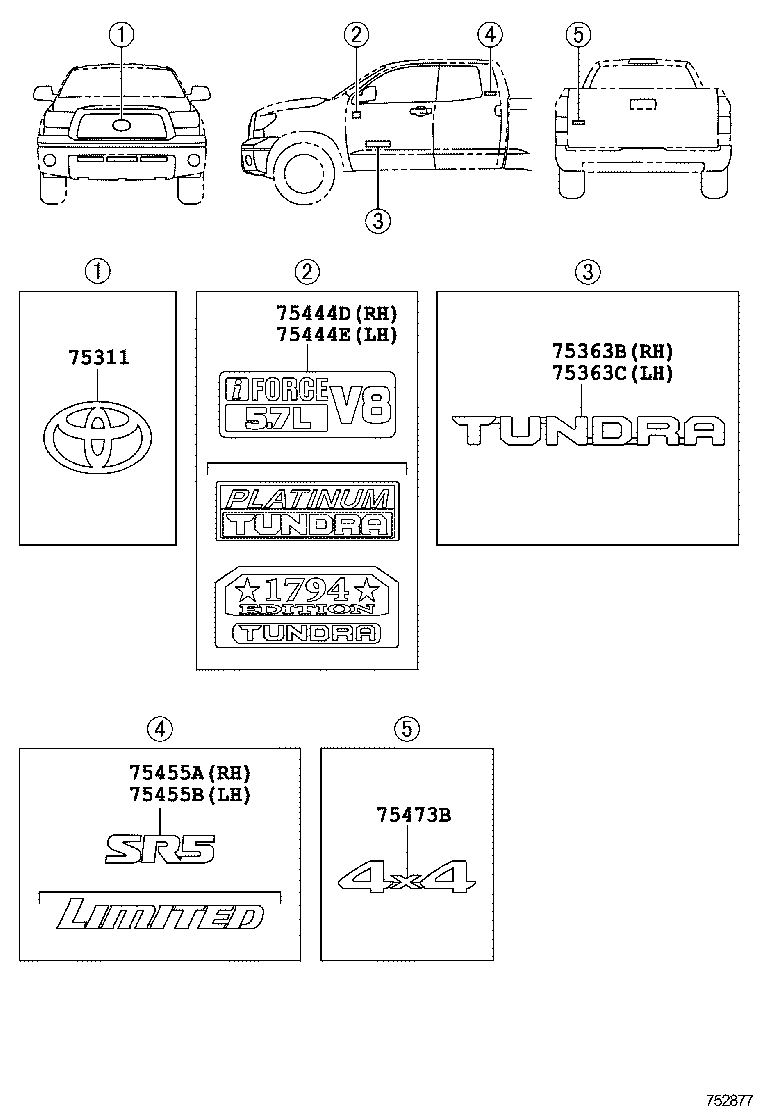

Figure 751814C 751814C 2006-11 → 2013-08 Figure 752877 752877 2013-08 → —

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75363B Plate, Door Name, RH
75363C Plate, Door Name, LH
75442A Plate, Back Door Name, NO.2
75444D Plate, Front Fender, RH
75444E Plate, Front Fender, LH
75445A Plate, Back Door Name, NO.5
75455A Mark, Roof Side, NO.1 RH
75455B Mark, Roof Side, NO.1 LH
75471B Plate, Rear Body Name, NO.1
75473B Plate, Rear Body Name, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
