Toyota Tundra

2006-11 → 2021-10 · chassis GSK5#,UCK5#,UPK5#,USK5# · catalogue 841430 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

61 part groups · 18 illustrations

Illustrations

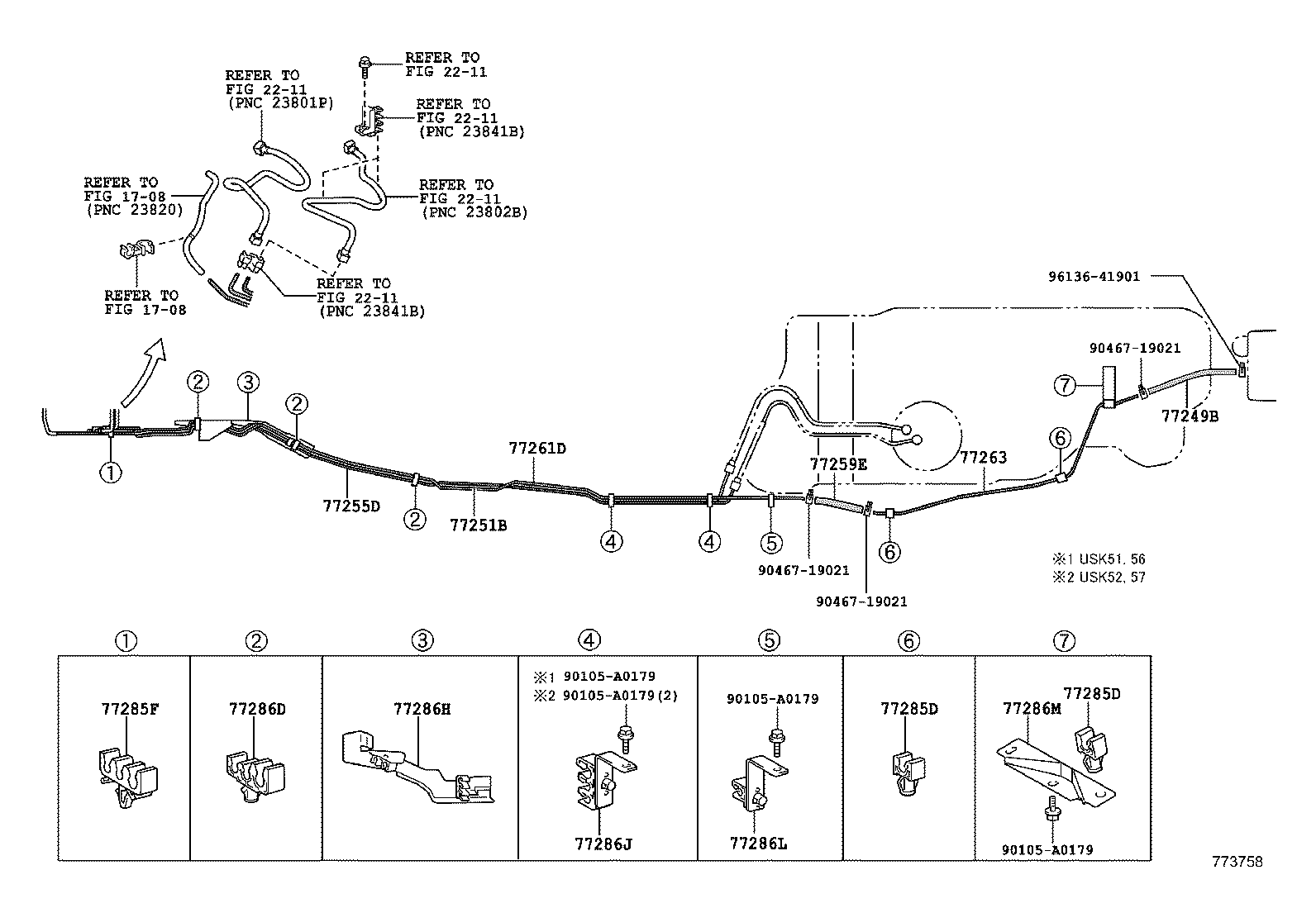

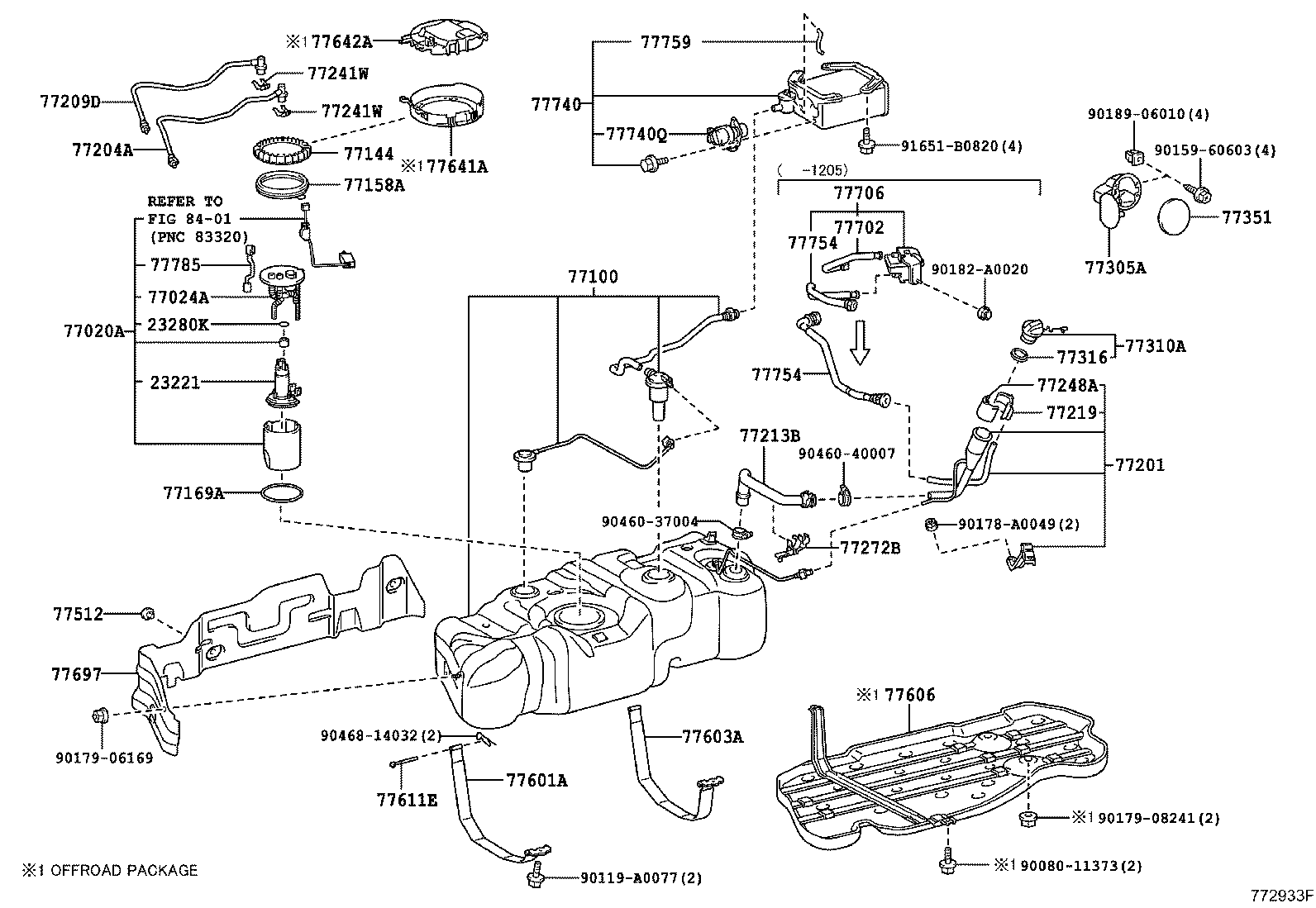

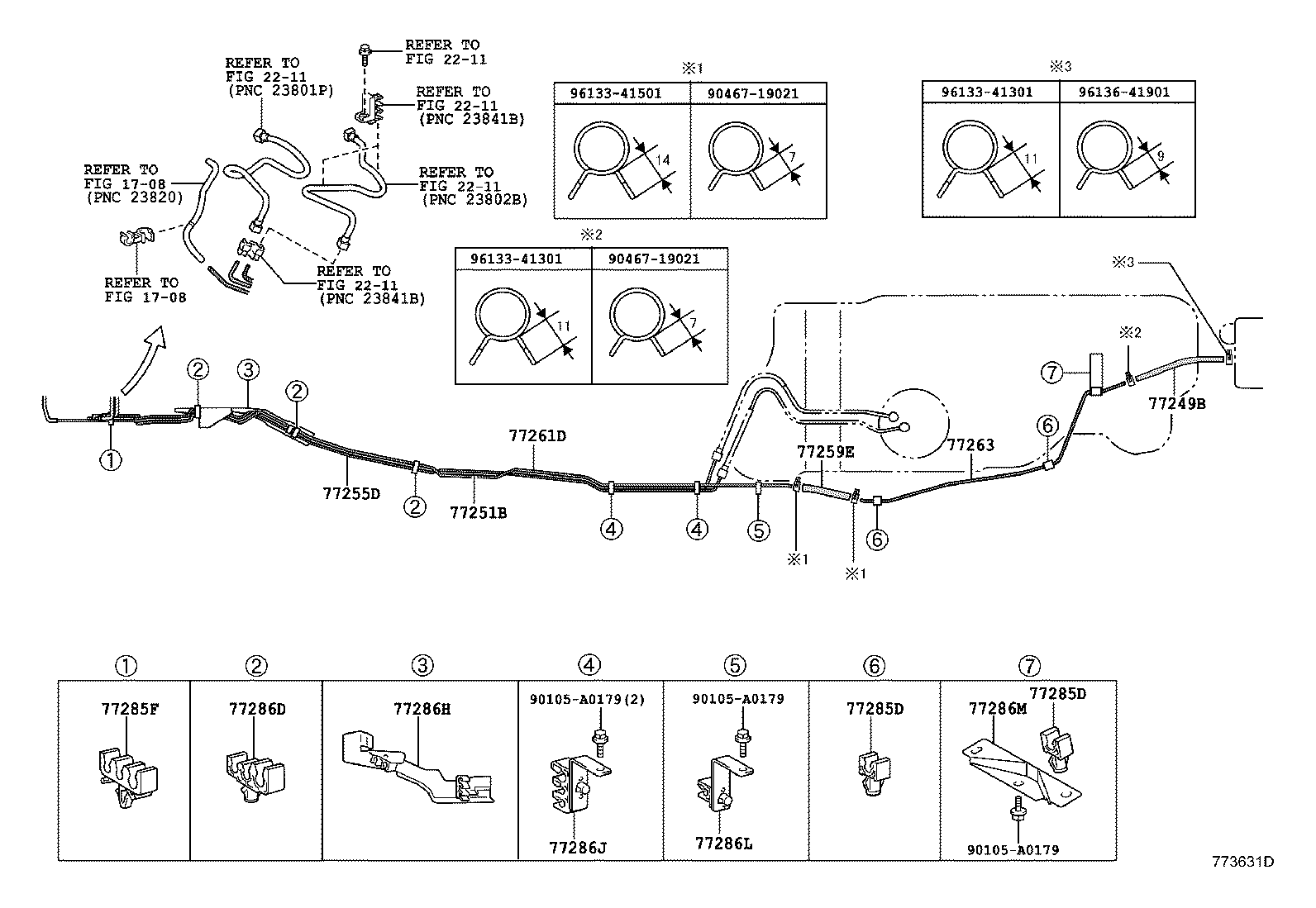

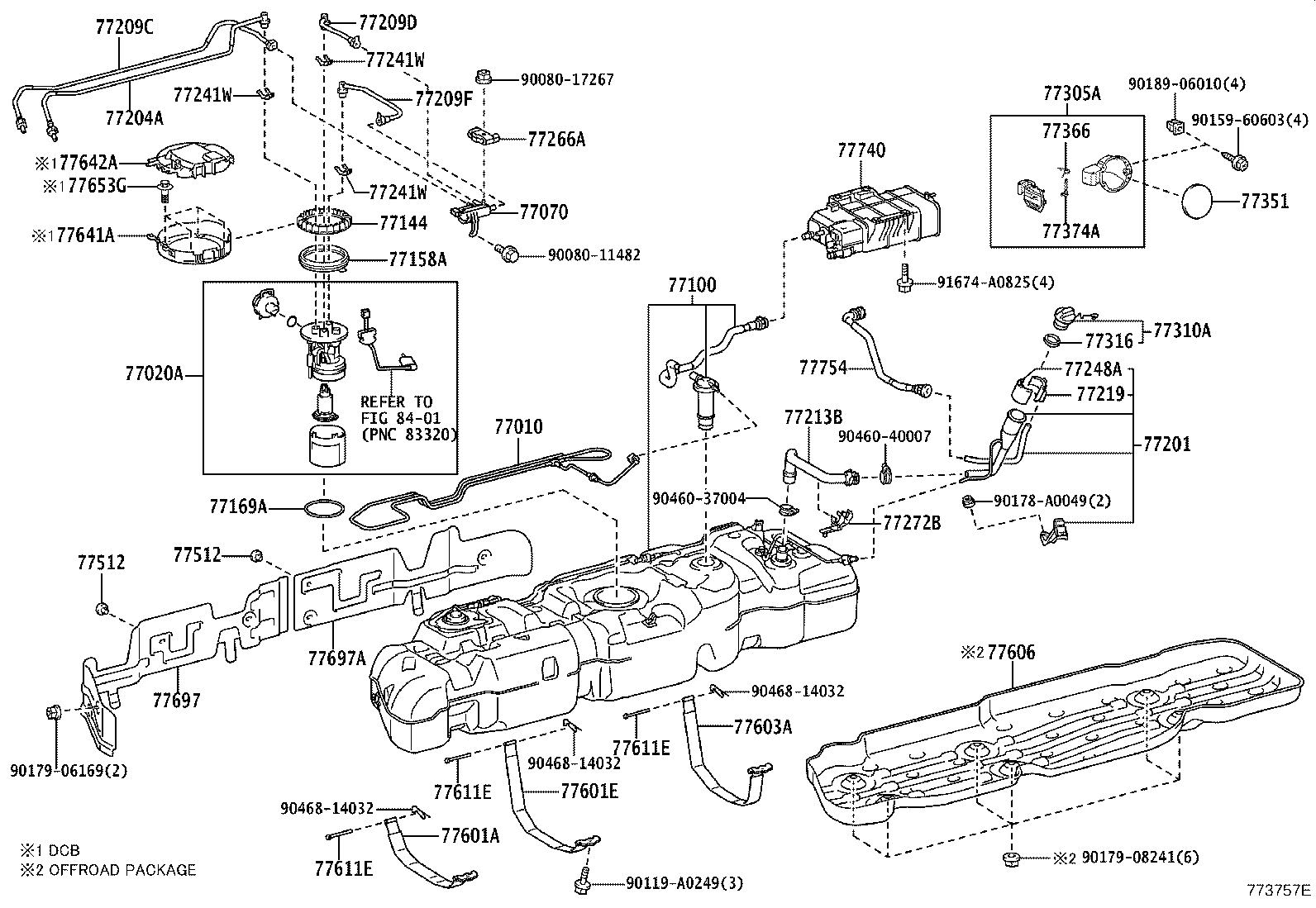

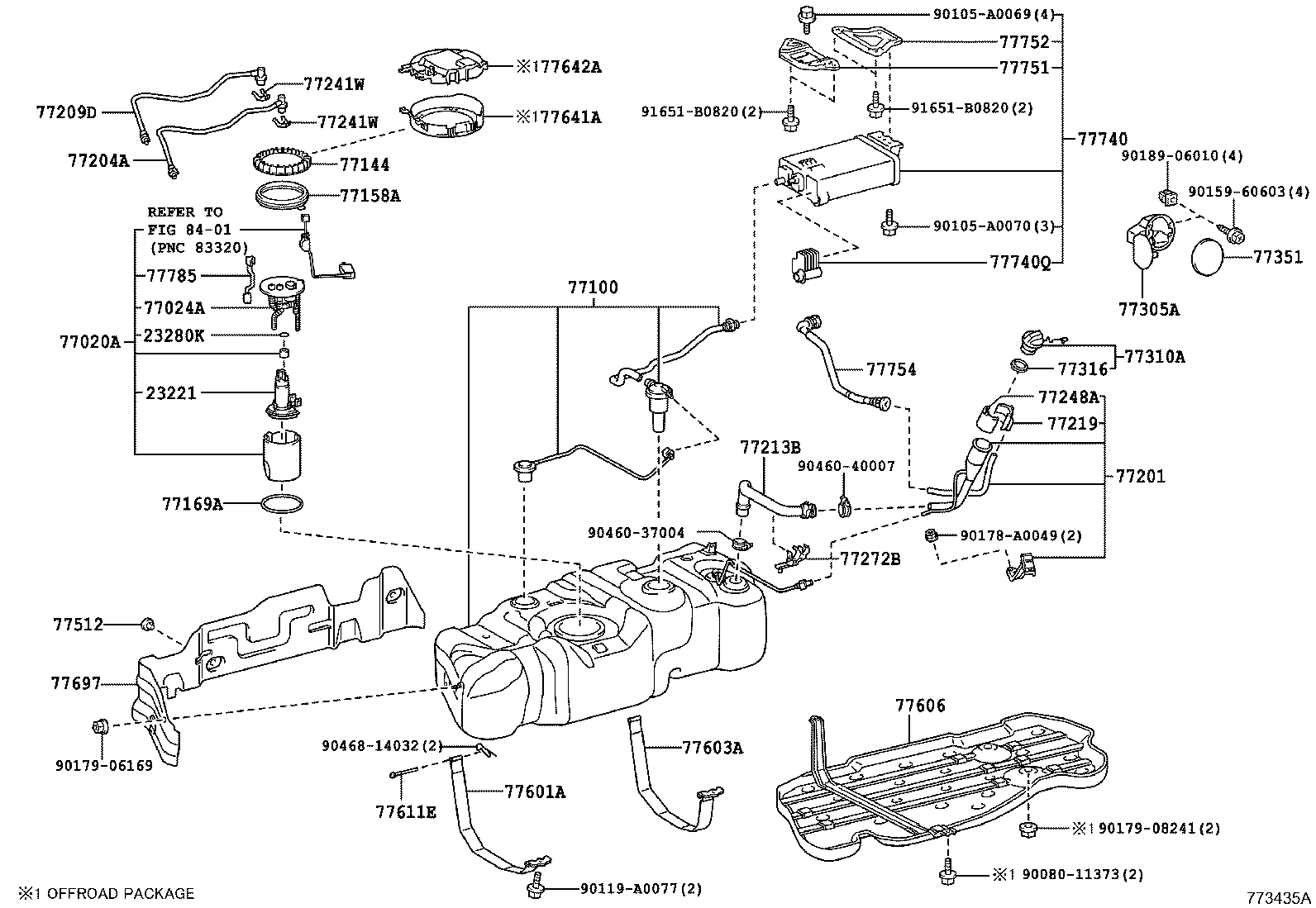

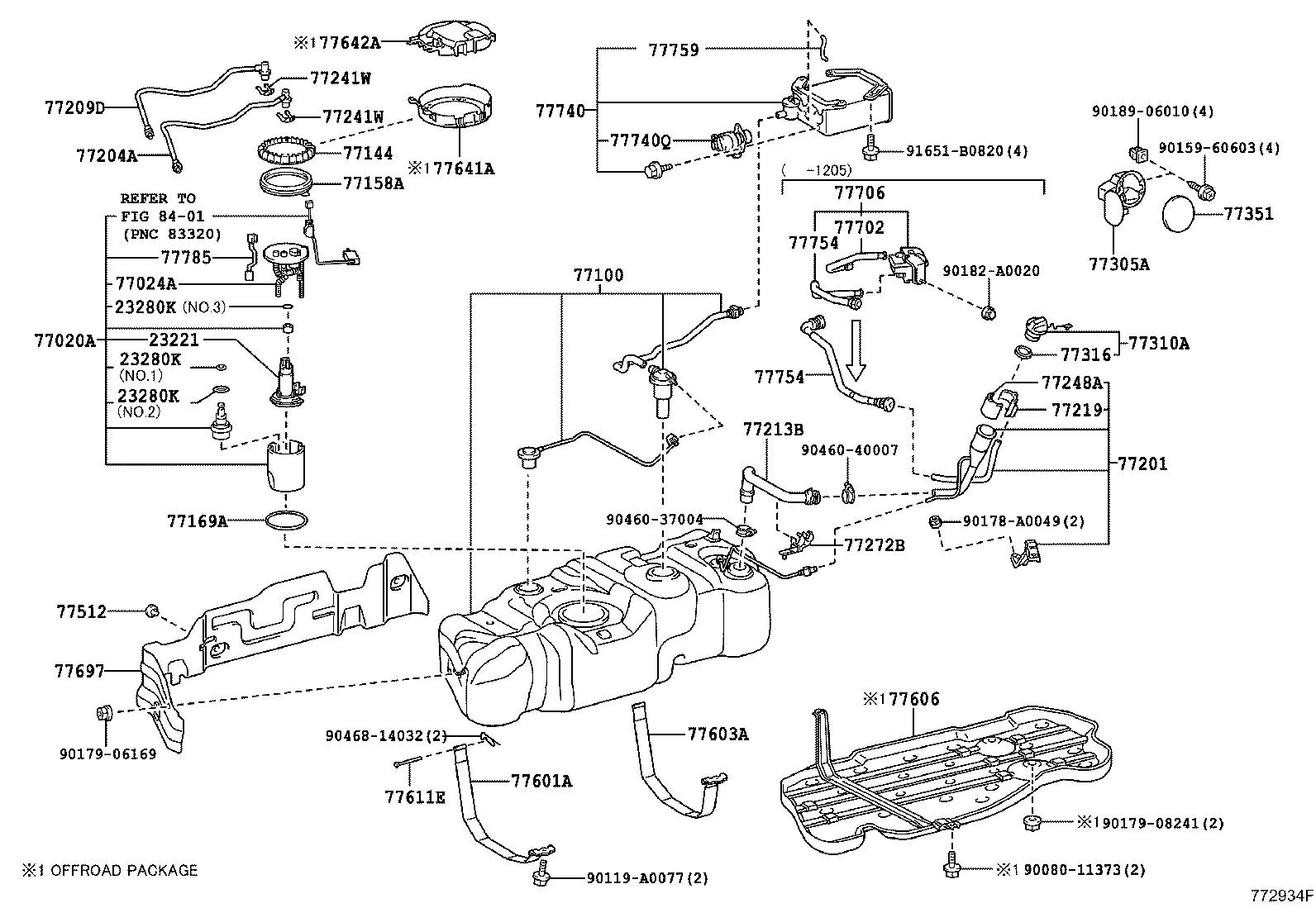

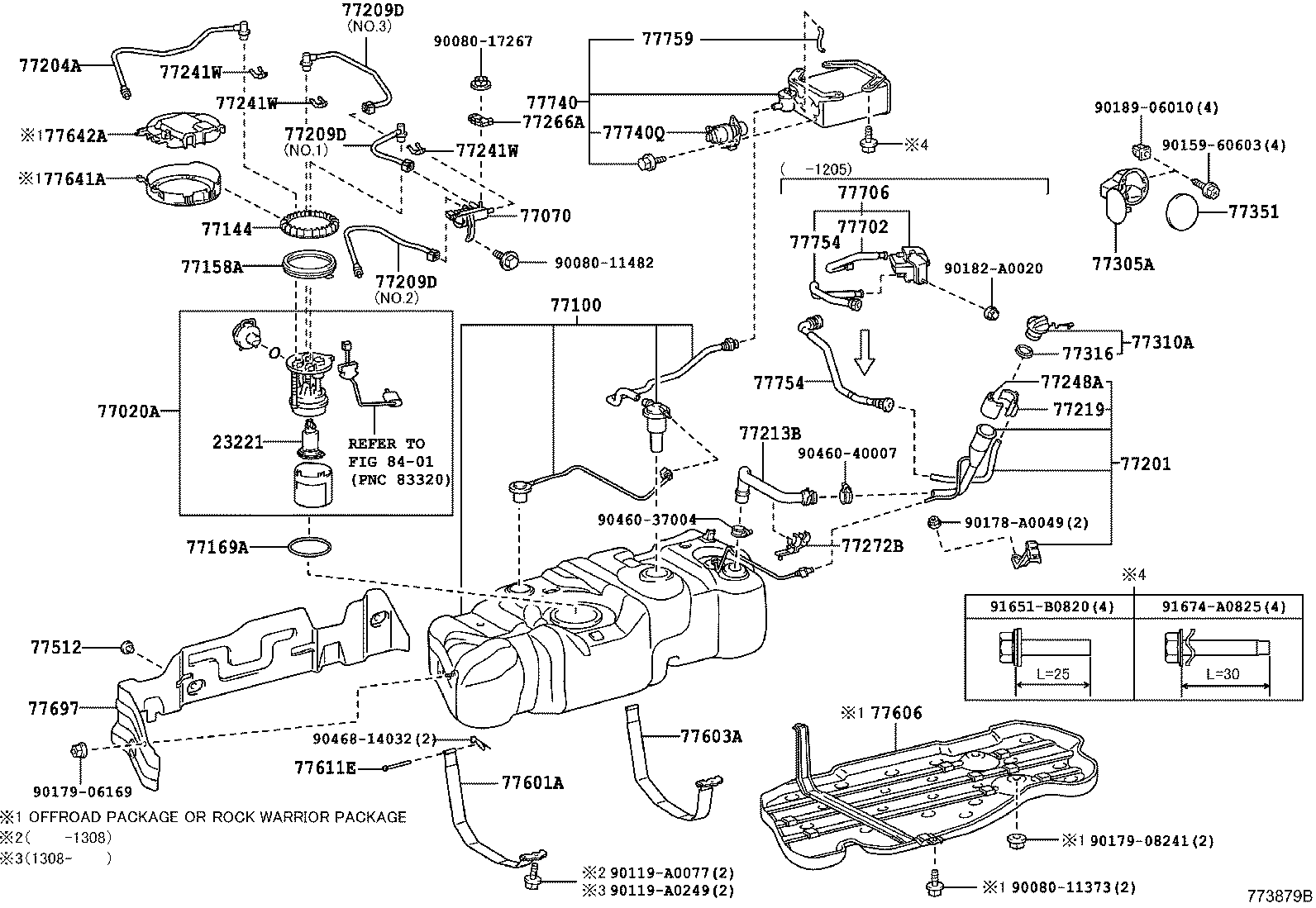

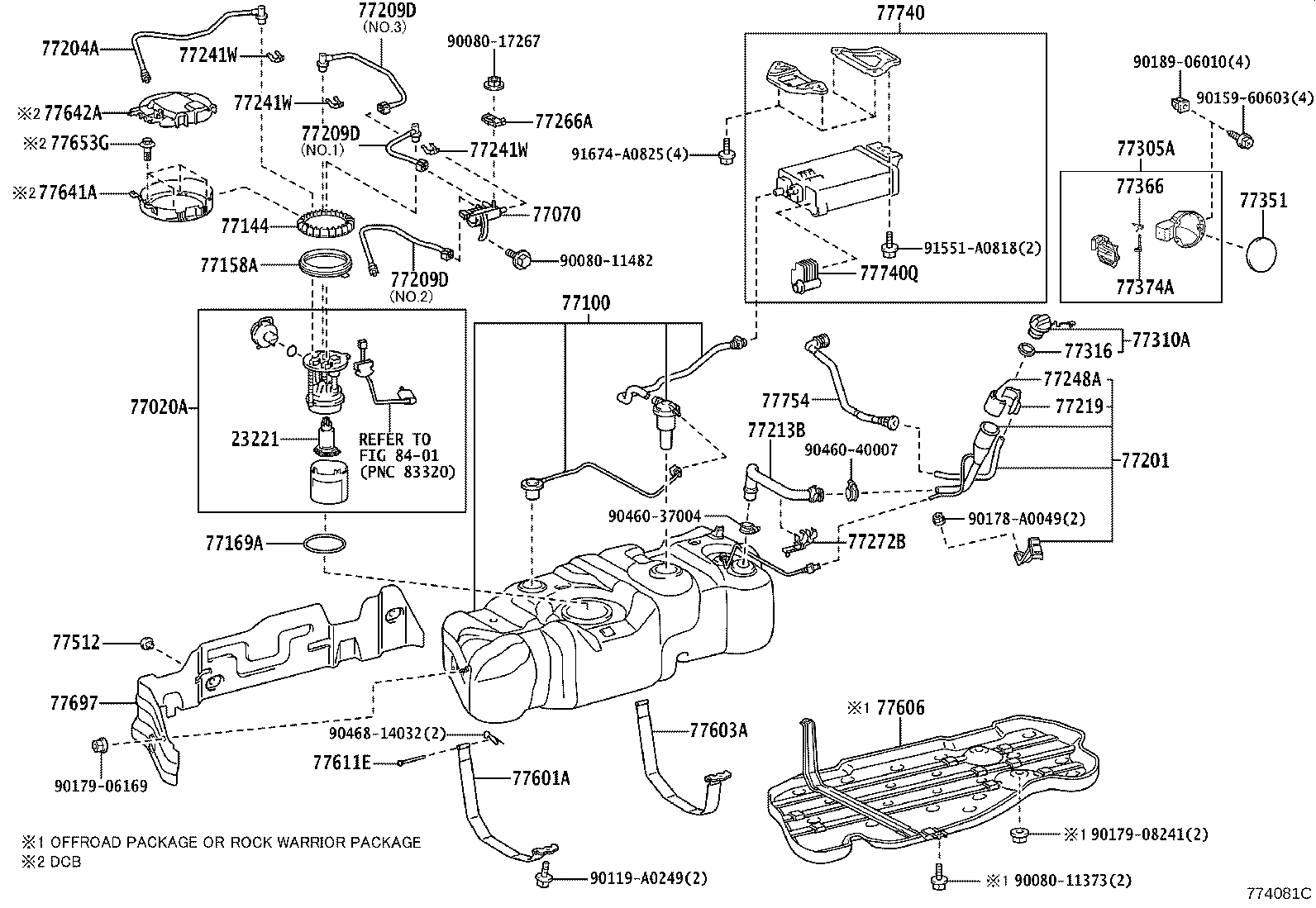

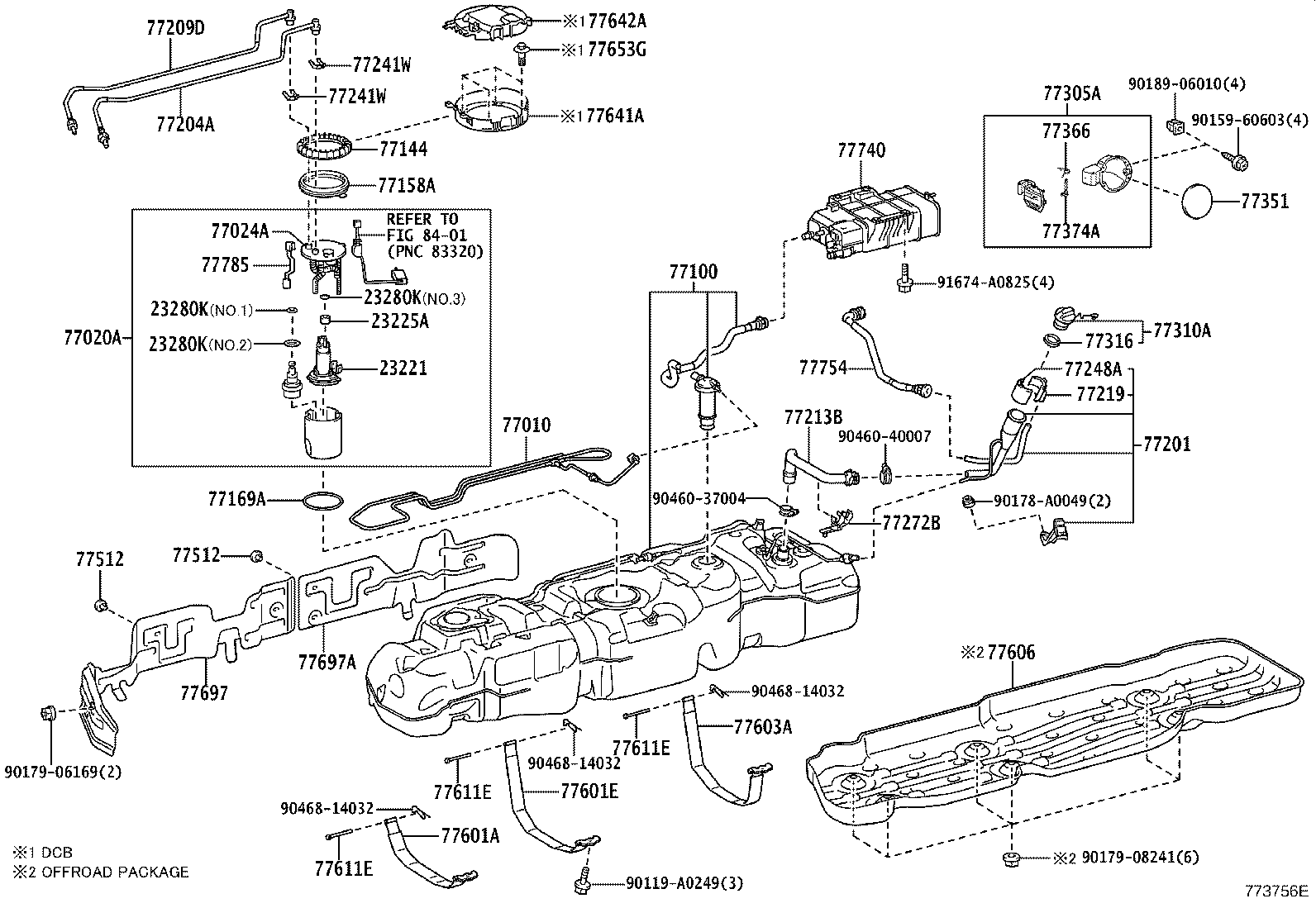

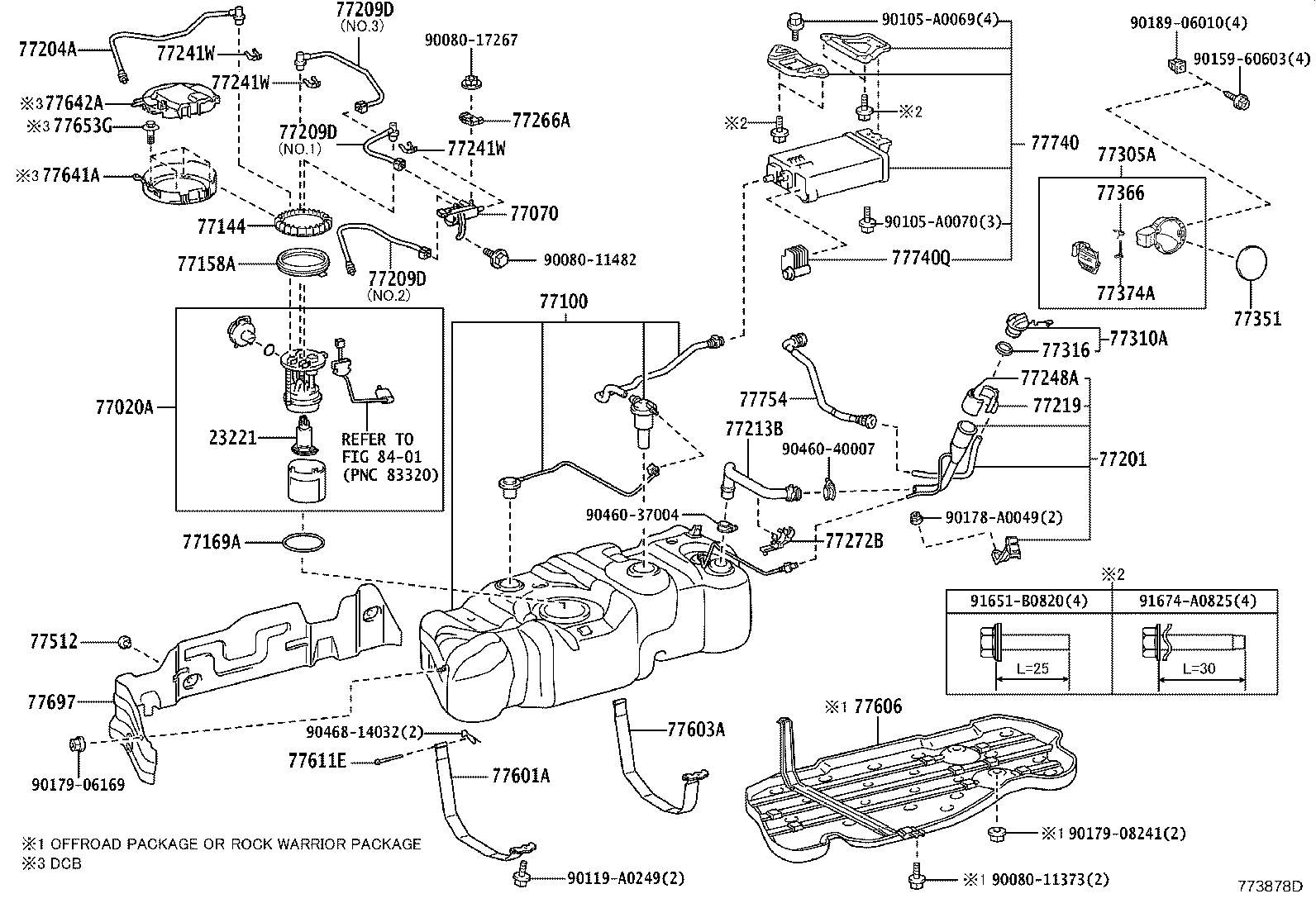

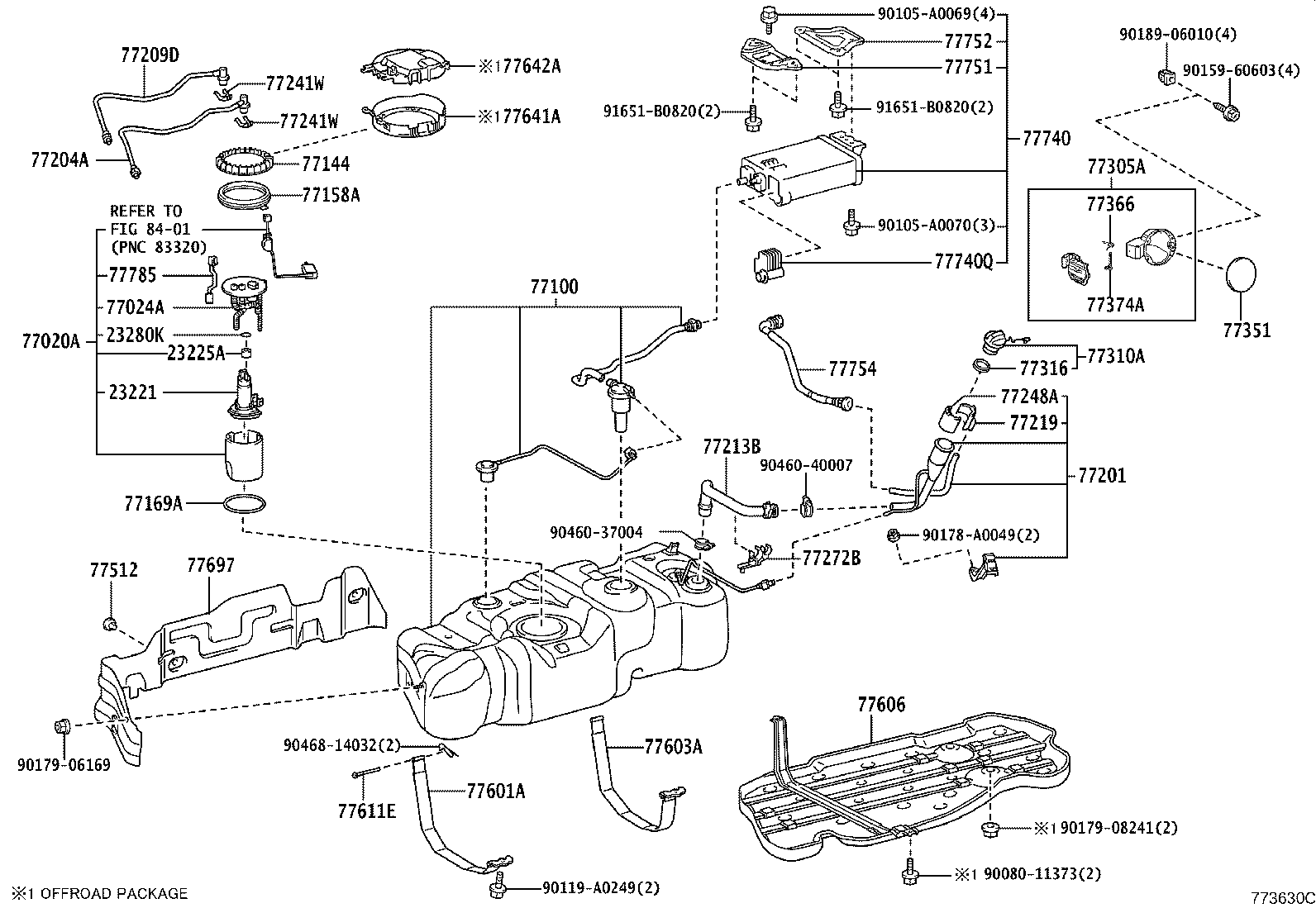

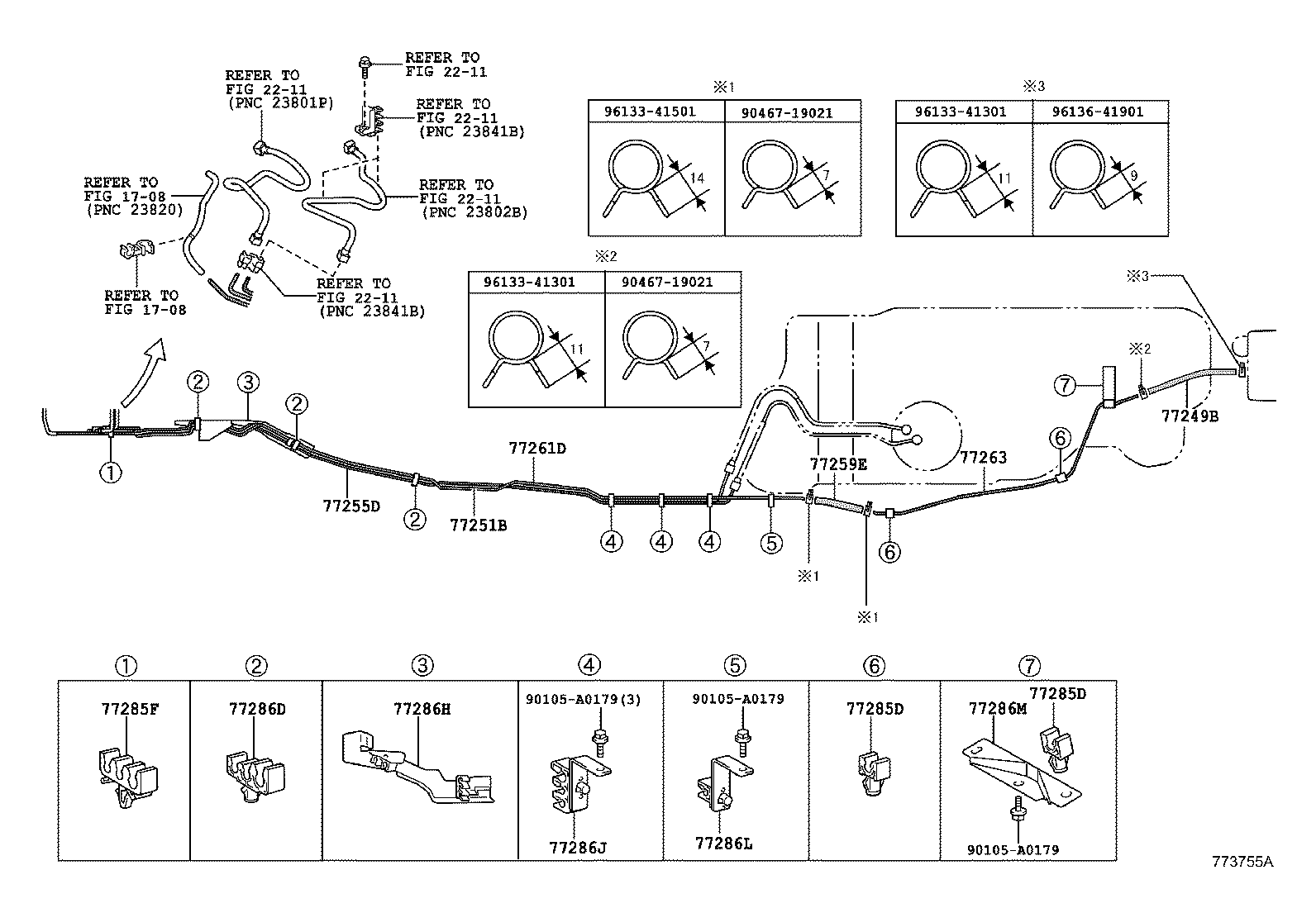

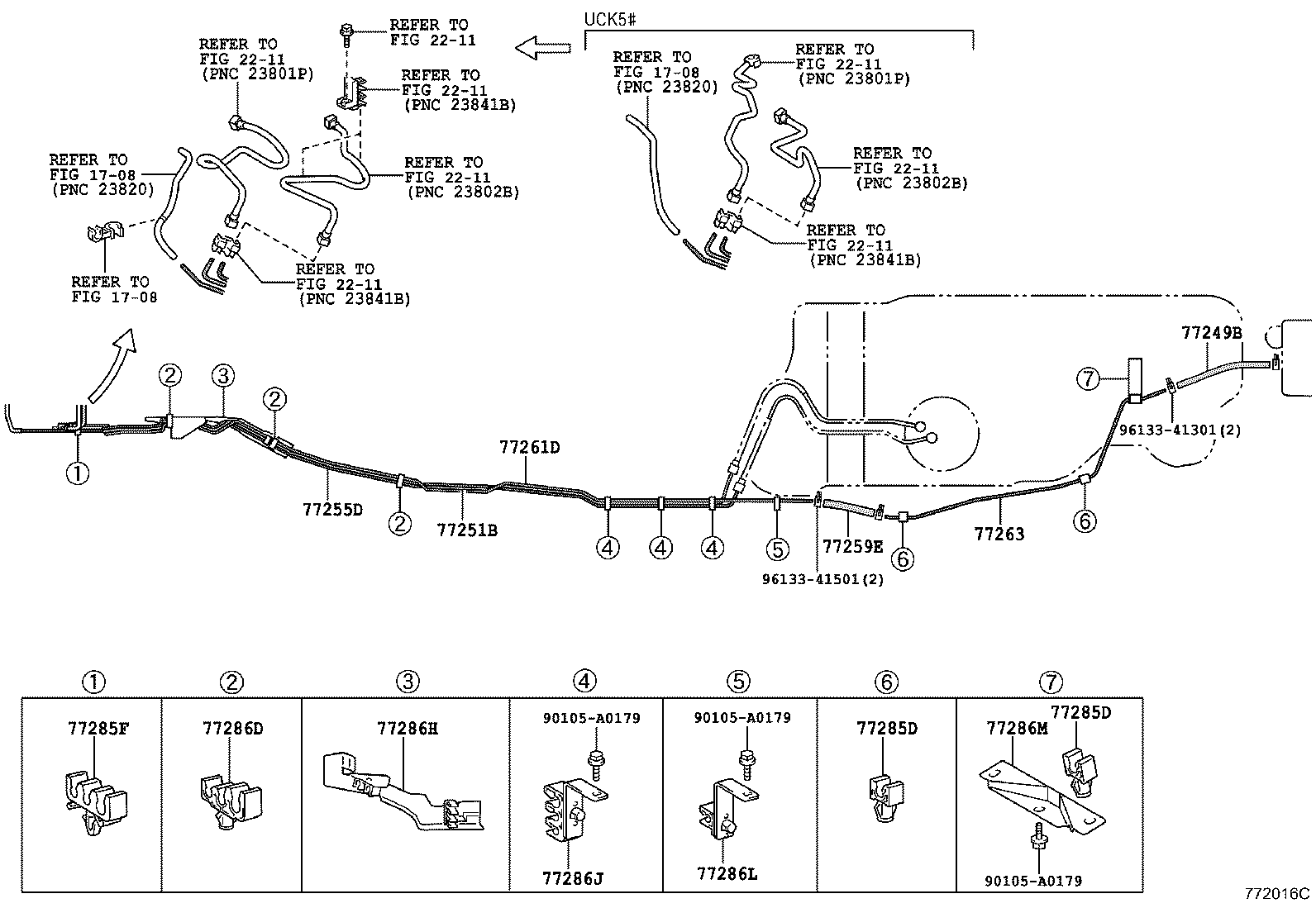

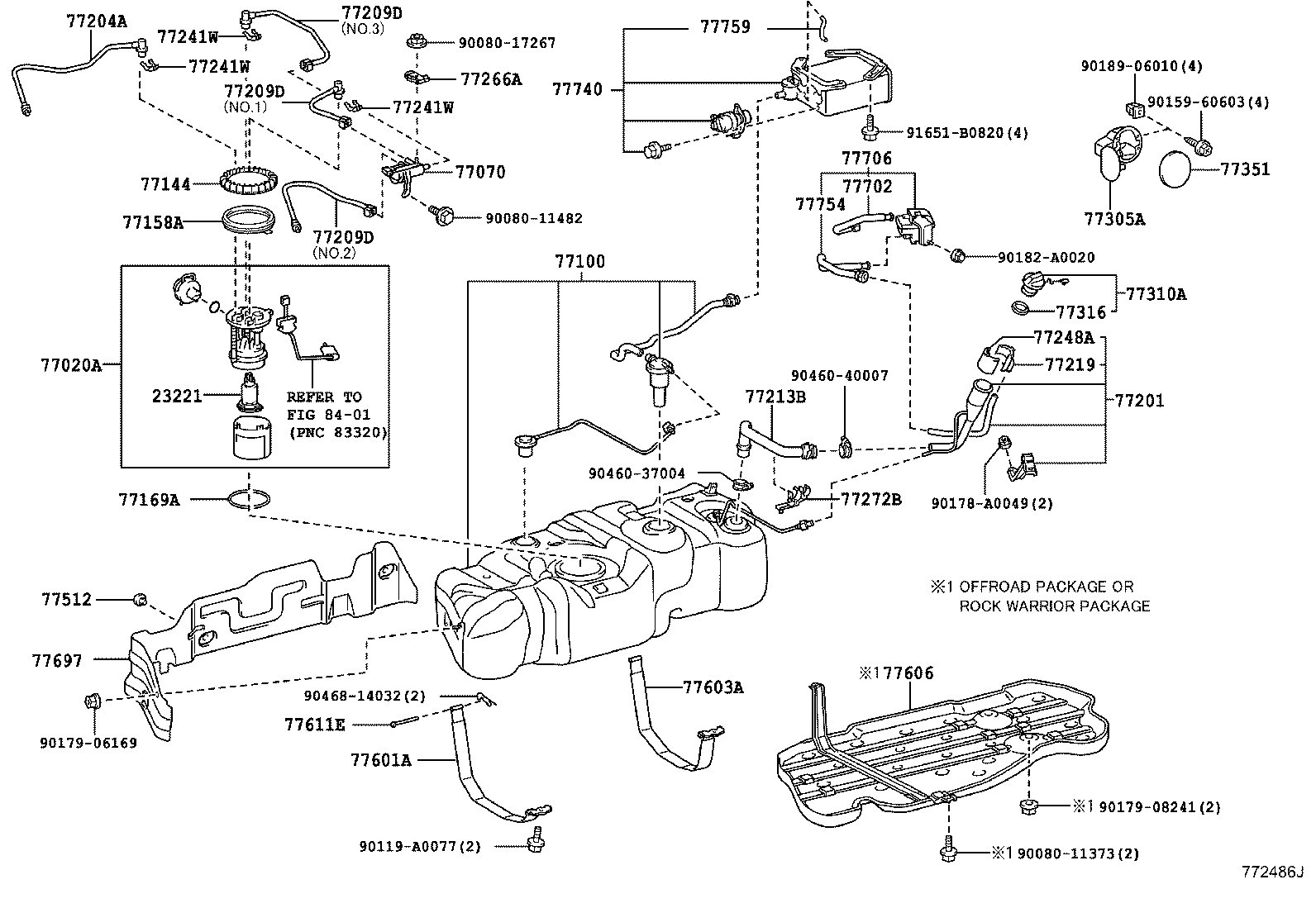

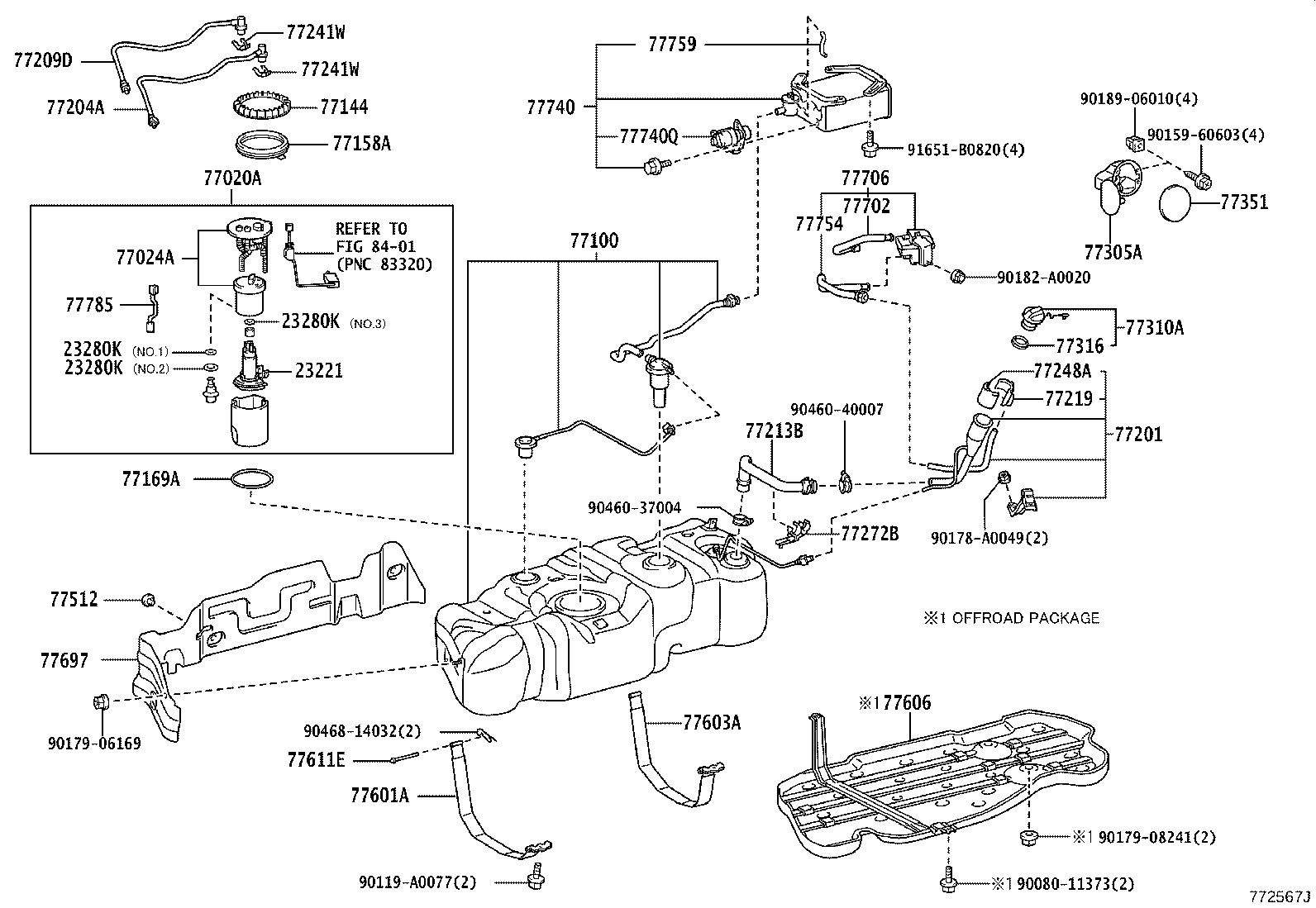

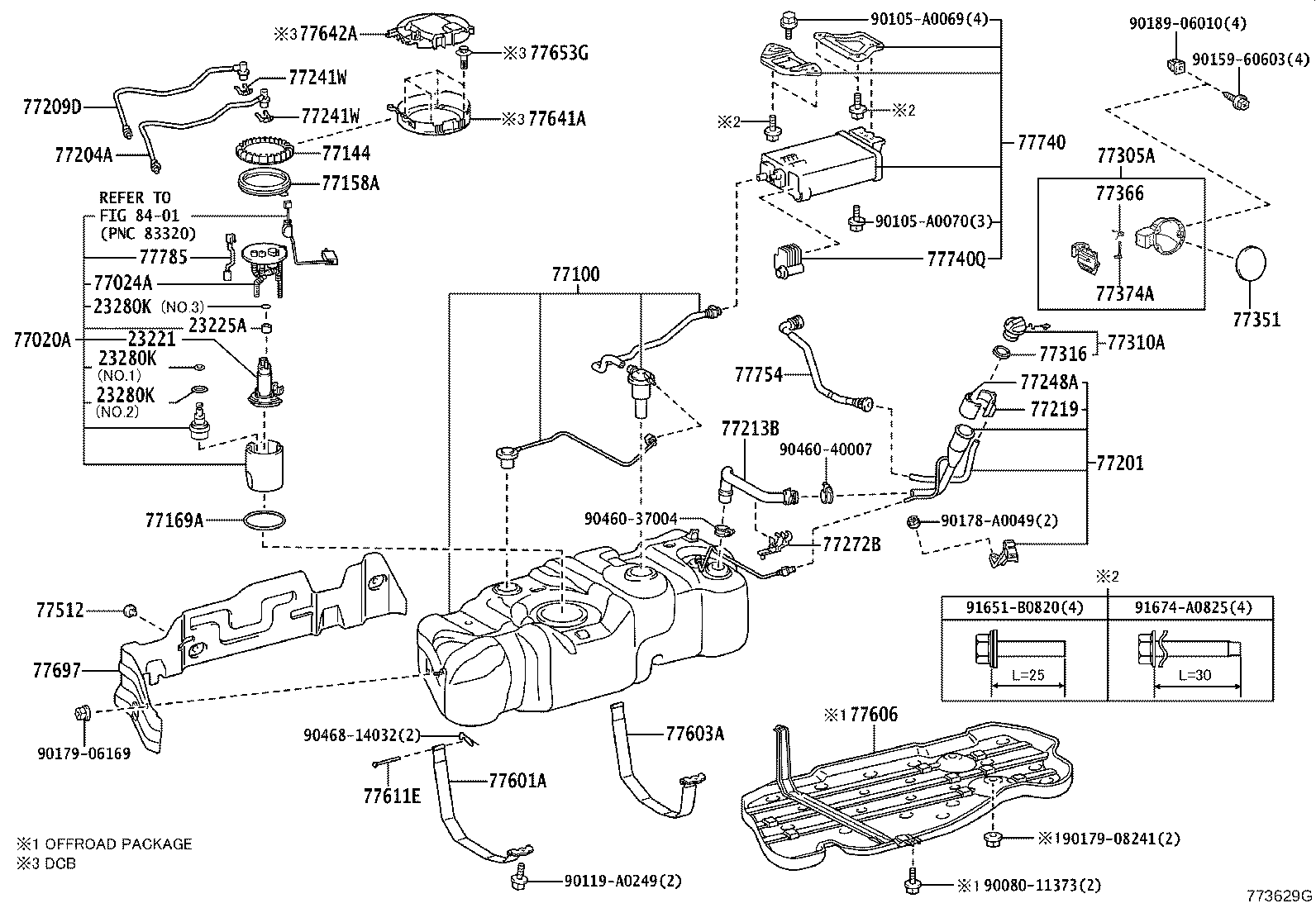

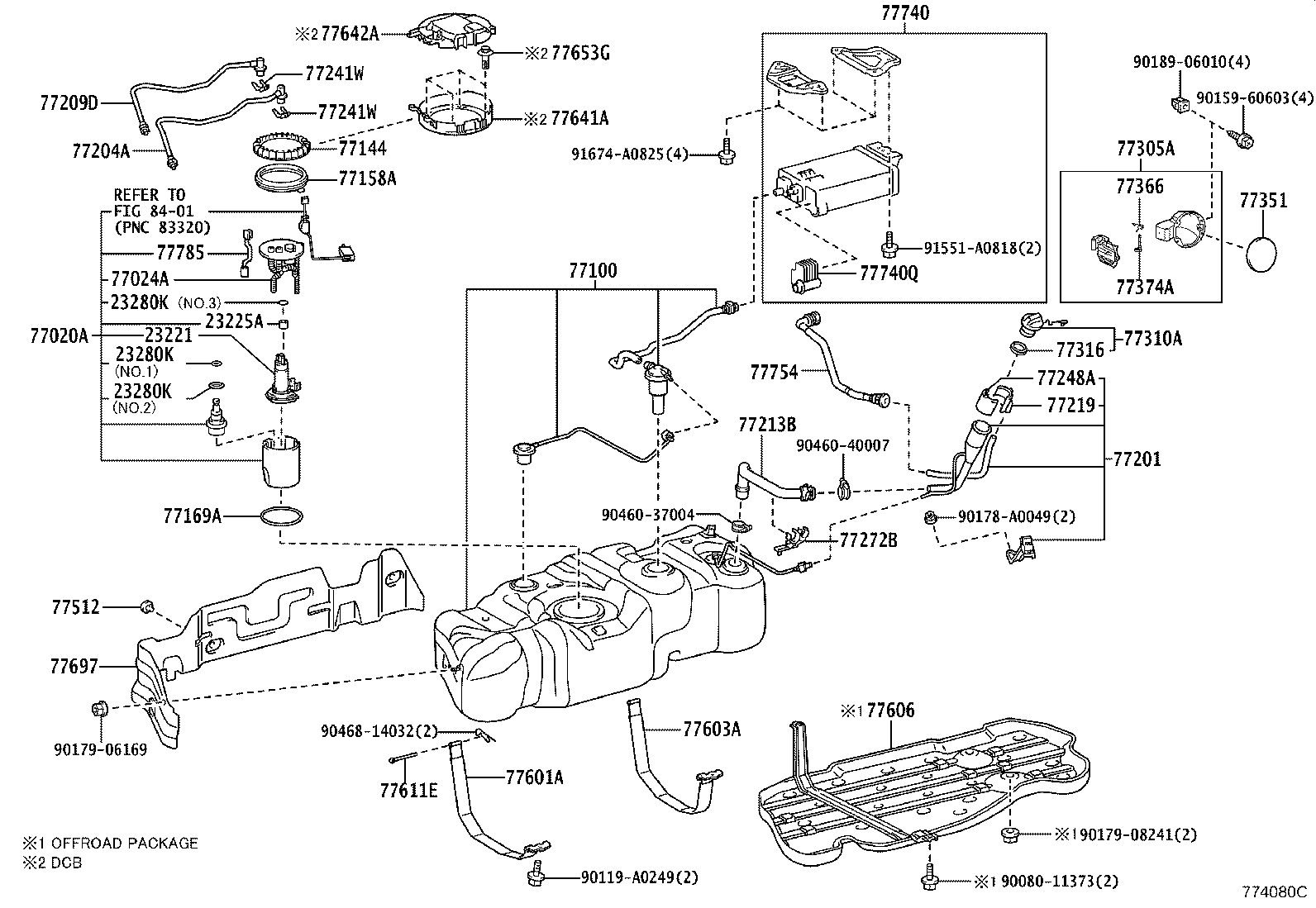

Figure 772015P 772015P 2006-11 → 2009-04 Figure 772567J 772567J 2007-01 → 2009-04 Figure 772486J 772486J 2008-08 → 2009-04 Figure 772933F 772933F 2009-04 → 2012-08 Figure 772934F 772934F 2009-04 → 2013-08 Figure 773435A 773435A 2012-08 → 2013-08 Figure 773879B 773879B 2009-04 → 2013-08 Figure 773630C 773630C 2013-08 → 2014-09 Figure 773629G 773629G 2013-08 → 2015-12 Figure 773878D 773878D 2013-08 → 2015-12 Figure 773756E 773756E 2014-09 → — Figure 773757E 773757E 2014-09 → — Figure 774080C 774080C 2015-12 → — Figure 774081C 774081C 2015-12 → — Figure 772016C 772016C 2006-11 → 2013-08 Figure 773631D 773631D 2013-08 → — Figure 773755A 773755A 2013-08 → — Figure 773758 773758 2014-09 → —

Part groups

PNCDescription
23221 Pump, Fuel
23225A Spacer, Fuel Pump
23280K Ring, O(FOR FUEL PRESSURE REGULATOR)
77010 Tube Assy, Fuel Tank Vent
77020A Tube Assy, Fuel Suction W/Pump & Gage
77024A Plate Sub-assy, Fuel Suction
77070 Valve Assy, Fuel Tank Solenoid W/Hose
77100 Tank Assy, Fuel
77144 Retainer, Fuel Pump Gauge
77158A Support, Tank Suction Tube
77169A Gasket, Fuel Suction Tube Set
77201 Pipe Sub-assy, Fuel Tank Inlet
77204A Tube, Fuel Tank Return
77209C Tube Sub-assy, Fuel Tank Main
77209D Tube Sub-assy, Fuel Tank Main
77209F Tube Sub-assy, Fuel Tank Main
77213B Hose, Fuel Tank TO Filler Pipe
77219 Cover, Fuel Tank Filler Pipe
77241W Clip, Tube Joint
77248A Holder, Fuel Tank Filler Pipe Cover
77249B Hose, Fuel
77251B Tube, Fuel Main
77255D Tube, Fuel Return
77259E Hose, Fuel
77261D Tube, Fuel Tank TO Canister
77263 Tube, Fuel Tank TO Canister, NO.3
77266A Protector, Fuel Tube, NO.1
77272B Support, Breather Tube, NO.1
77285D Clamp, Fuel Tube, NO.1
77285F Clamp, Fuel Tube, NO.1
77286D Clamp, Fuel Tube, NO.2
77286H Clamp, Fuel Tube, NO.3
77286J Clamp, Fuel Tube, NO.4
77286L Clamp, Fuel Tube, NO.5
77286M Clamp, Fuel Tube, NO.6
77305A Lid Sub-assy, Fuel Filler Opening
77310A Cap Assy, Fuel Tank
77316 Gasket, Fuel Tank Cap
77351 Lid, Fuel Filler Opening, Outer
77366 Spring, Fuel Filler Opening Lid Hinge
77374A Pin, Fuel Filler Opening Lid Lock
77512 Bracket, Fuel Tank, Rear
77601A Band Sub-assy, Fuel Tank, NO.1
77601E Band Sub-assy, Fuel Tank
77603A Band Sub-assy, Fuel Tank, NO.2
77606 Protector Sub-assy, Fuel Tank, NO.1
77611E Pin, Fuel Tank Band
77641A Protector, Fuel Tank, NO.1
77642A Protector, Fuel Tank, NO.2
77653G Pin, Fuel Tank Packing
77697 Insulator, Fuel Tank Heat, NO.1
77697A Insulator, Fuel Tank Heat, NO.2
77702 Hose Sub-assy, Canister Outlet, NO.2
77706 Filter Sub-assy, Charcoal Canister
77740 Canister Assy, Charcoal
77740Q Leak Detection Pump Sub-assy, Charcoal Canister
77751 Bracket, Charcoal Canister Base
77752 Bracket, Charcoal Canister Support
77754 Hose, Charcoal Canister Outlet, NO.1
77759 Hose, Charcoal Canister
77785 Harness, Fuel Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
