Toyota Tundra

2006-11 → 2021-10 · chassis GSK5#,UCK5#,UPK5#,USK5# · catalogue 841430 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

15 part groups · 6 illustrations

Illustrations

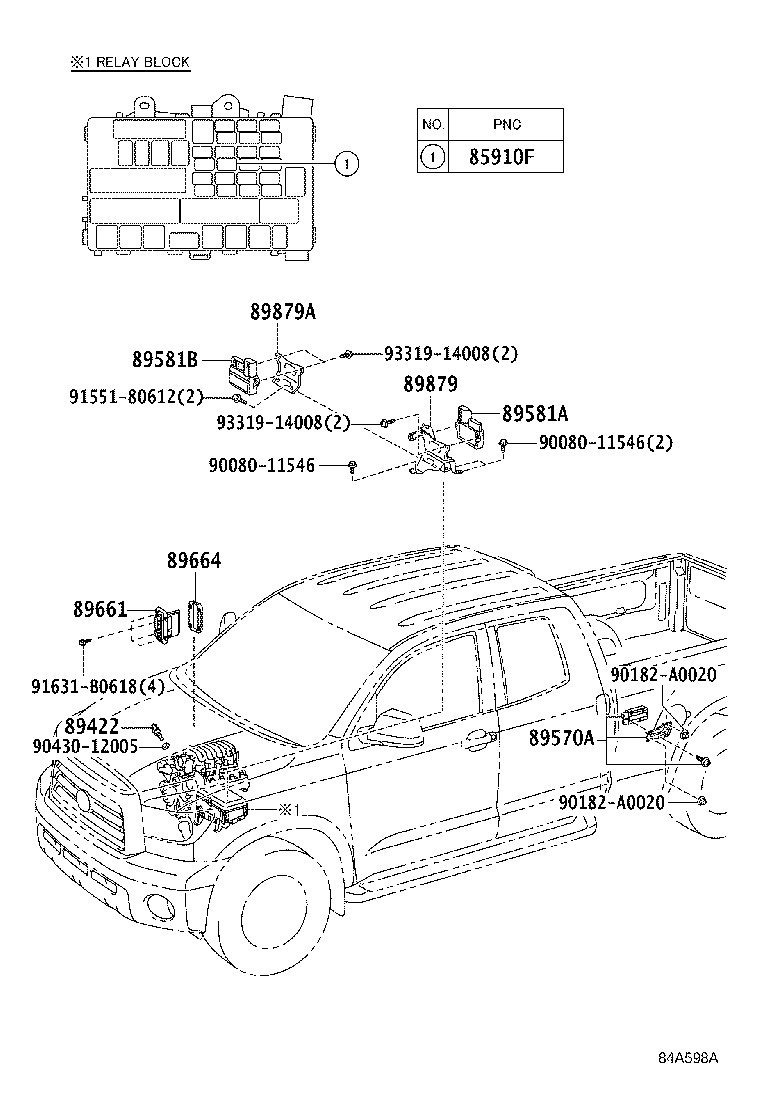

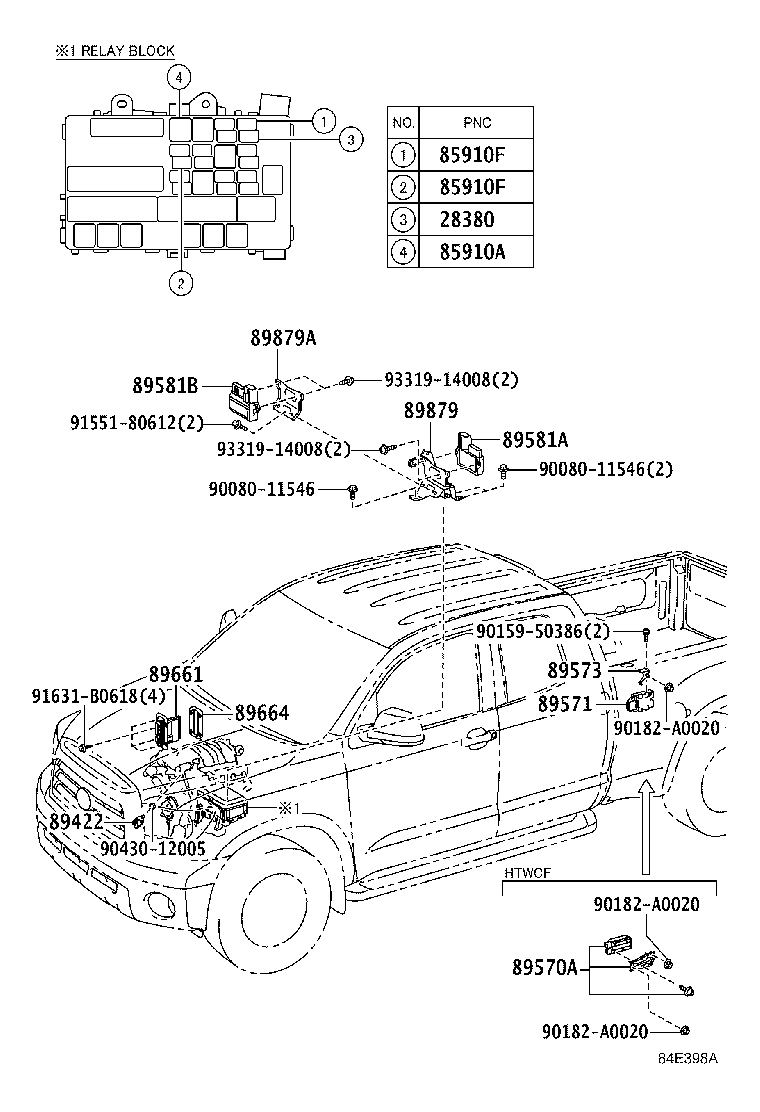

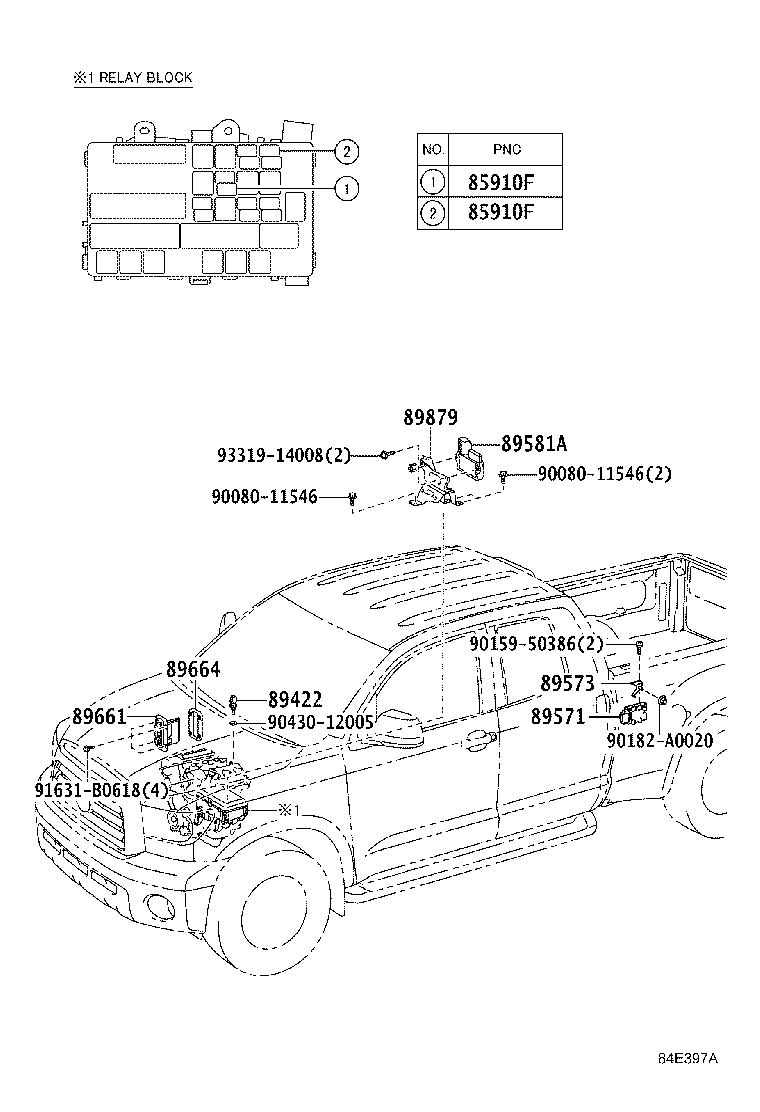

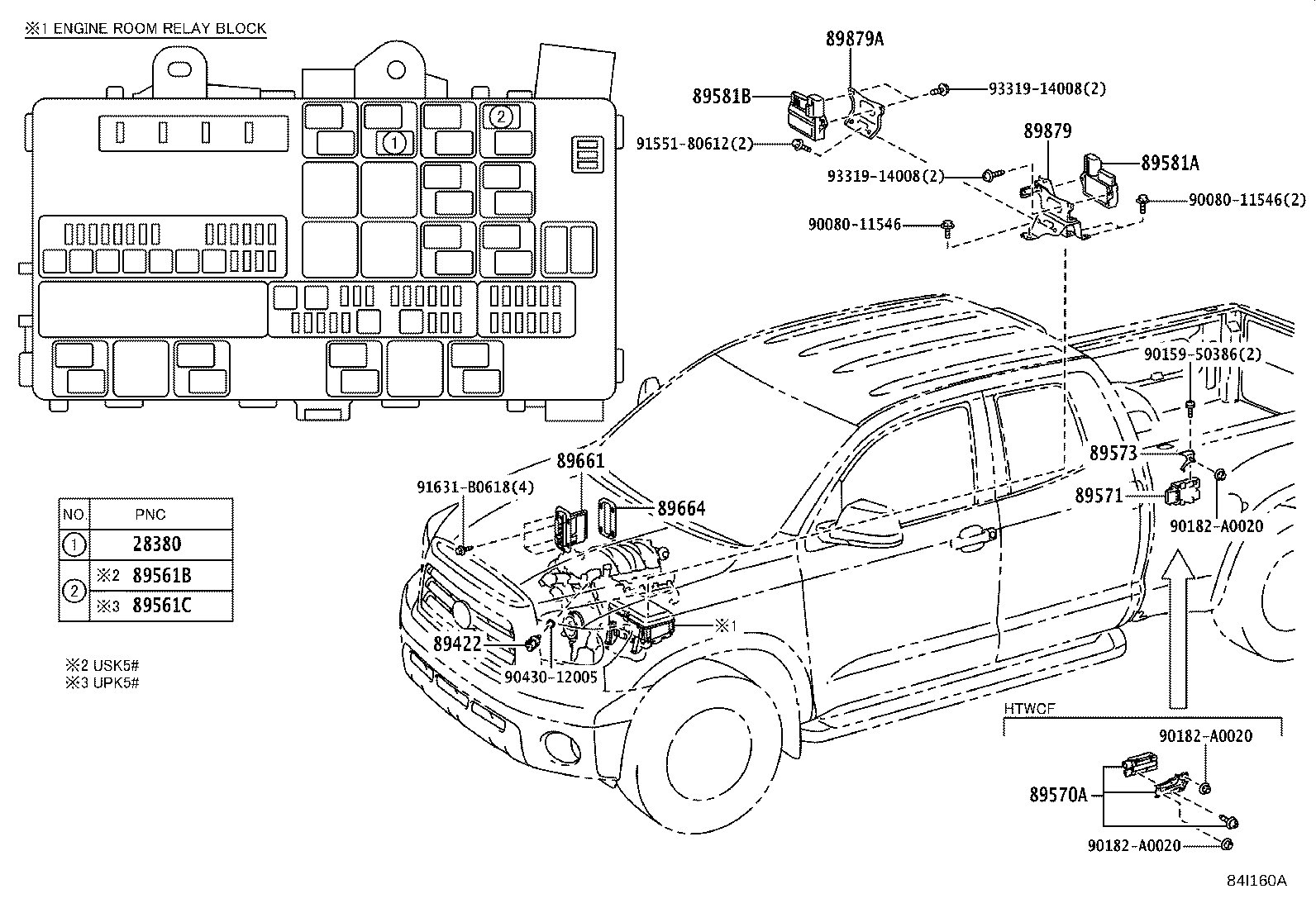

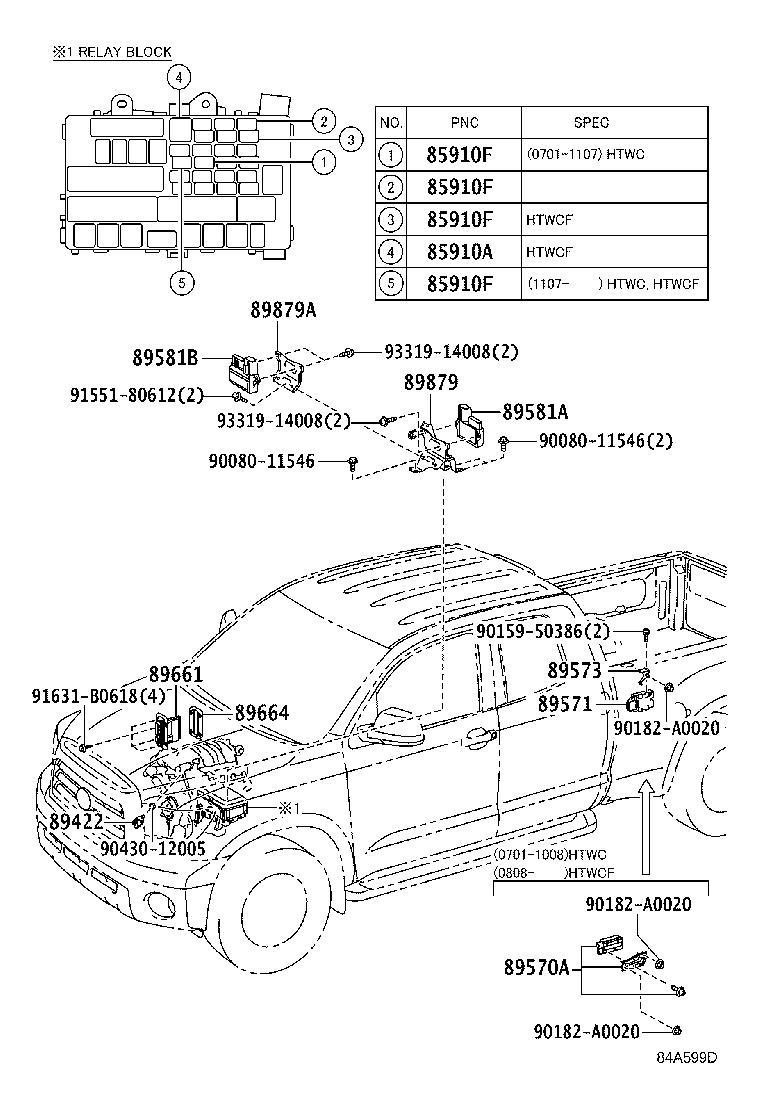

Figure 848384L 848384L 2006-11 → 2013-08 Figure 84E397A 84E397A 2013-08 → — Figure 84A598A 84A598A 2006-11 → 2009-04 Figure 84A599D 84A599D 2007-01 → 2013-08 Figure 84E398A 84E398A 2013-08 → 2017-08 Figure 84I160A 84I160A 2017-08 → —

Part groups

PNCDescription
28380 Relay Assy, Fuel Pump
85910A Relay Assy, Circuit Opening (FOR EFI)
85910F Relay, Computer (FOR EFI)
89422 Sensor, Water Temperature (FOR E.F.I.)
89561B Relay, Electronic Fuel Injection Main, NO.1
89561C Relay, Electronic Fuel Injection Main, NO.2
89570A Computer Assy, Fuel Pump Control
89571 Computer, Fuel Pump Control
89573 Bracket, Fuel Pump Control Computer
89581A Driver, Air Injection Control
89581B Driver, Air Injection Control
89661 Computer, Engine Control
89664 Plate, Engine Control Computer
89879 Bracket, Injector Driver
89879A Bracket, Injector Driver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
