Toyota Tundra

2006-11 → 2021-10 · chassis GSK5#,UCK5#,UPK5#,USK5# · catalogue 841430 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

4 part groups · 6 illustrations

Illustrations

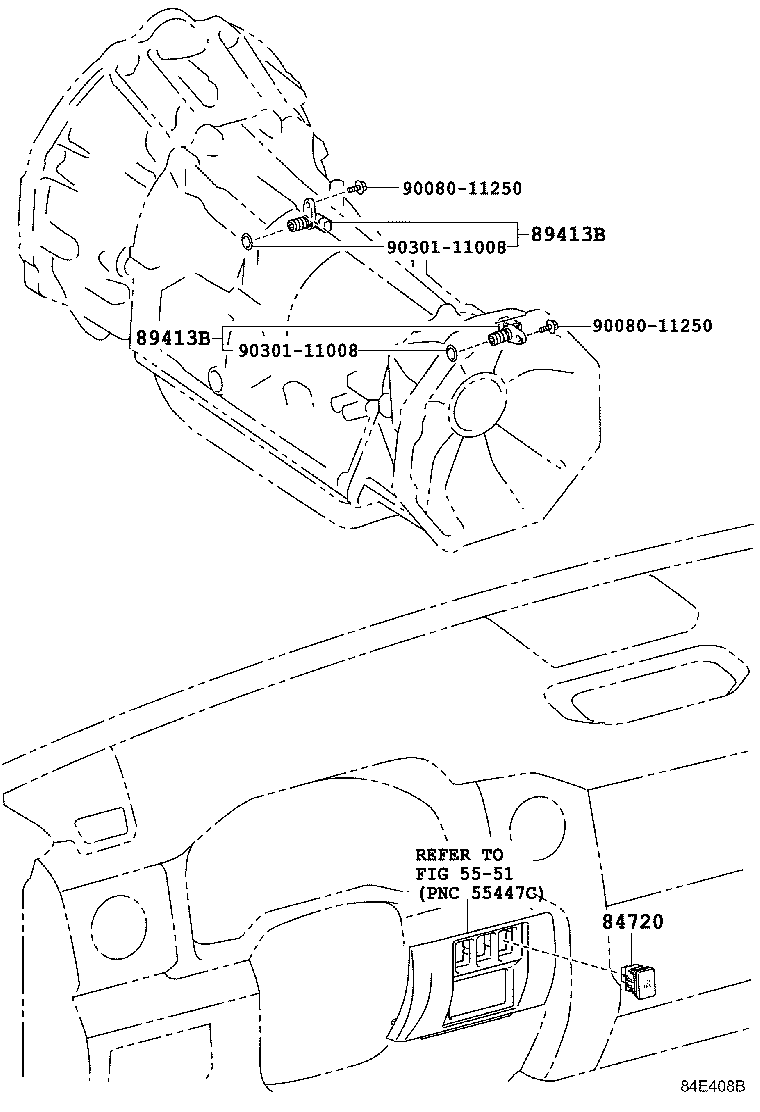

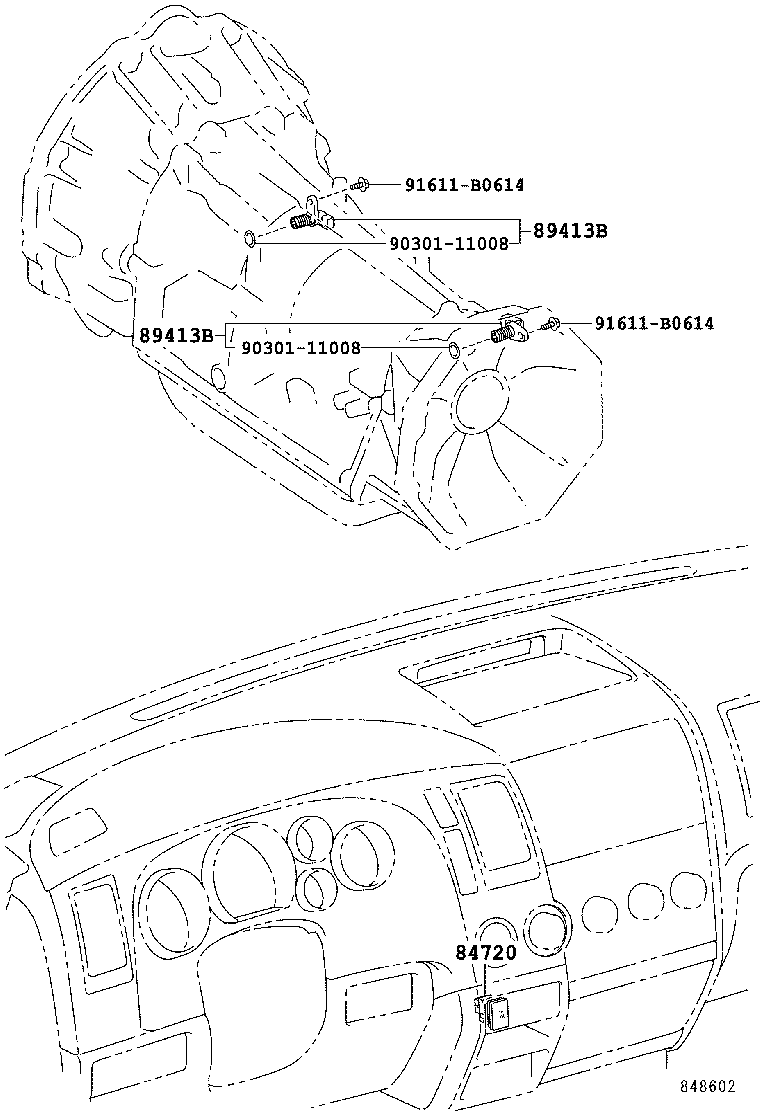

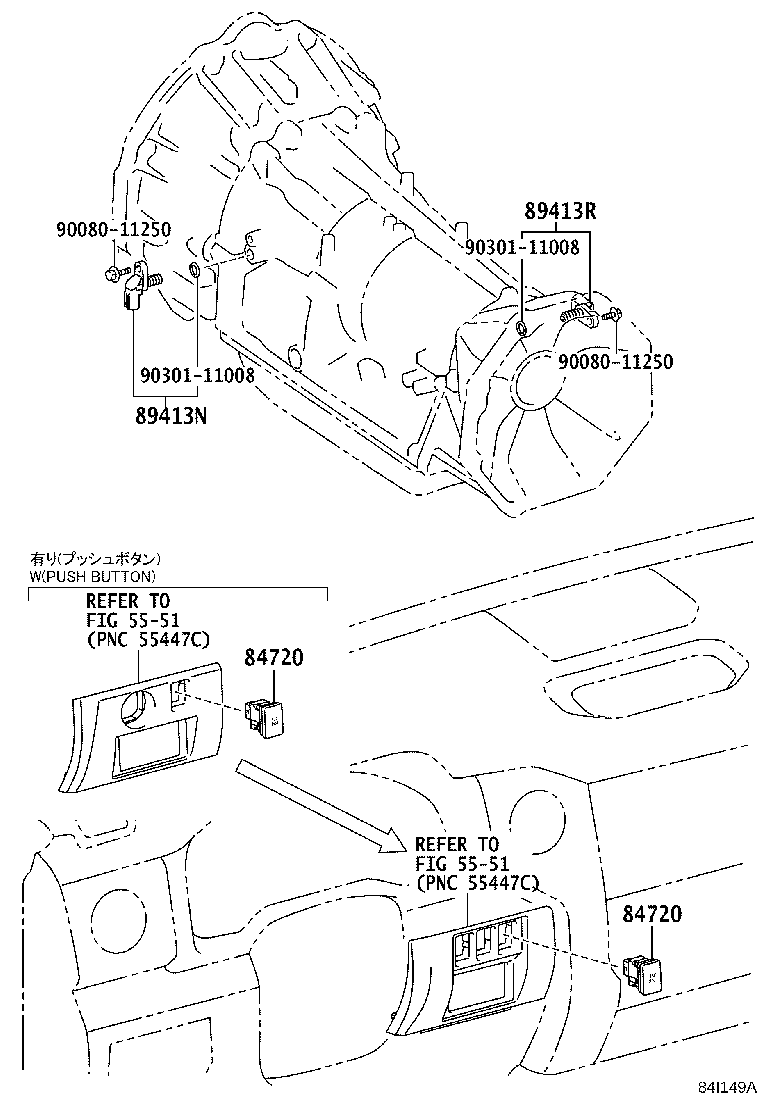

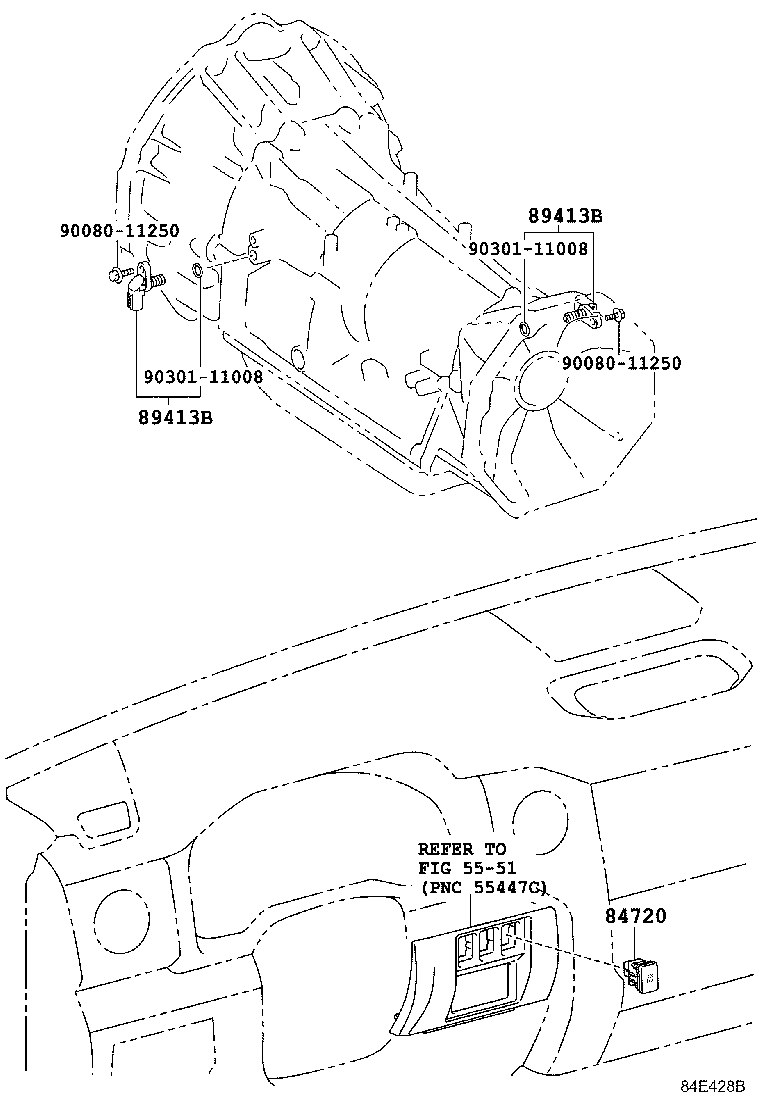

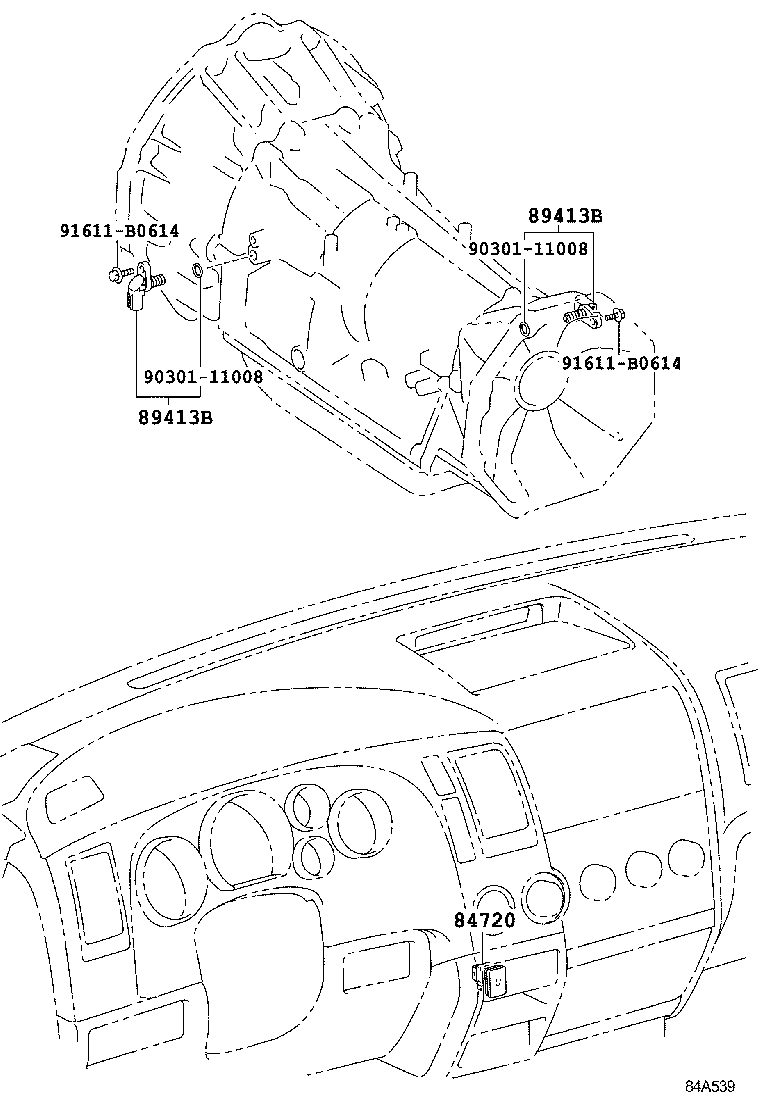

Figure 848388A 848388A 2006-11 → — Figure 848602 848602 2007-01 → 2013-08 Figure 84E408B 84E408B 2013-08 → 2017-08 Figure 84A539 84A539 2009-04 → 2013-08 Figure 84E428B 84E428B 2013-08 → 2017-08 Figure 84I149A 84I149A 2017-08 → —

Part groups

PNCDescription
84720 Switch Assy, Pattern Select
89413B Sensor, Transmission Revolution
89413N Sensor, Transmission Revolution, (NT)
89413R Sensor, Transmission Revolution (SP2)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
