Toyota Tundra

2006-11 → 2021-10 · chassis GSK5#,UCK5#,UPK5#,USK5# · catalogue 841430 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clearance & Back Sonar

7 part groups · 2 illustrations

Illustrations

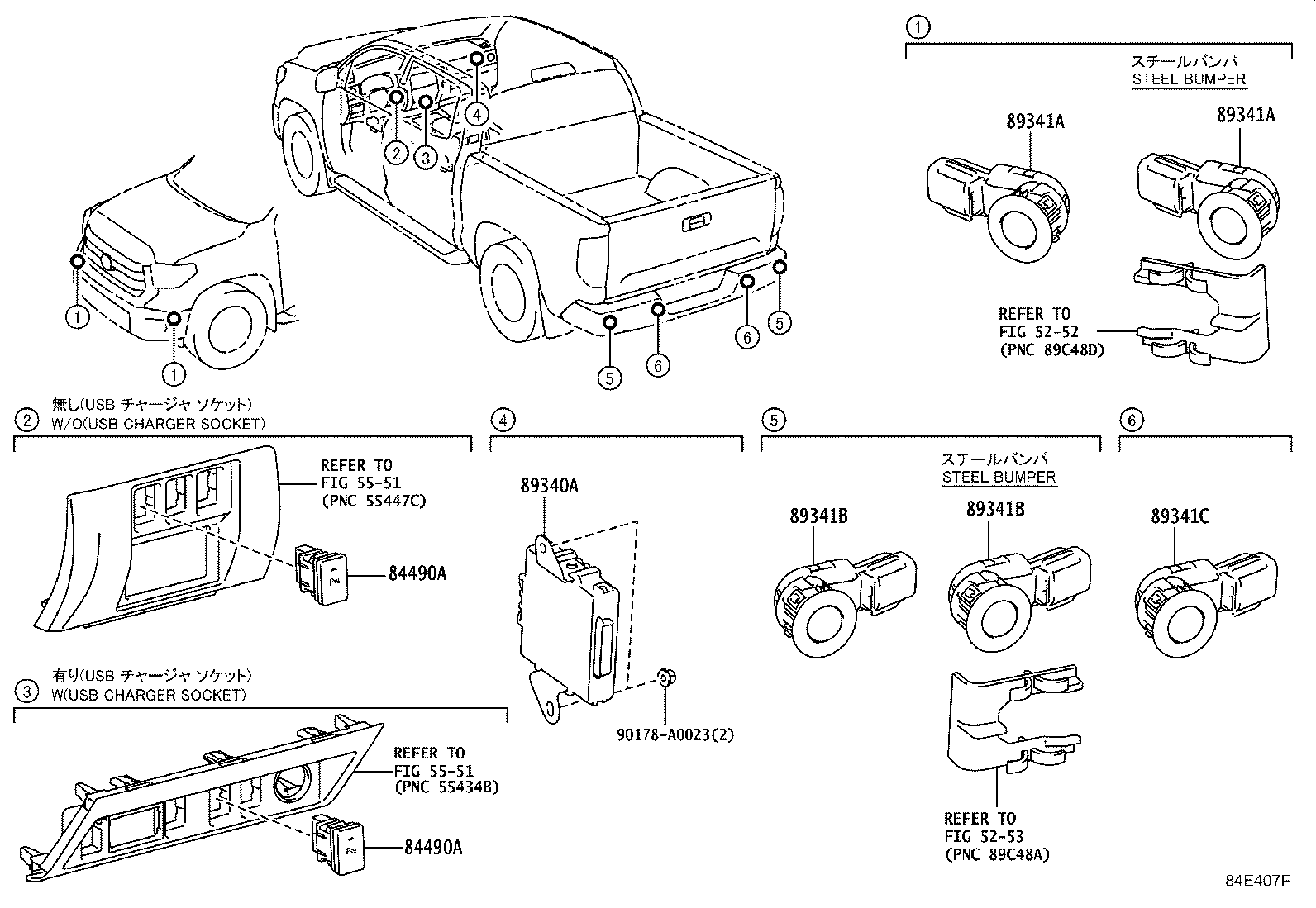

Figure 848406C 848406C 2006-11 → 2013-08 Figure 84E407F 84E407F 2013-08 → —

Part groups

PNCDescription
84490A Switch Assy, Back Sonar OR Clearance Sonar
89340A Computer Assy, Clearance Warning
89341A Sensor, Ultrasonic, NO.1
89341B Sensor, Ultrasonic, NO.2
89341C Sensor, Ultrasonic, NO.3
89348 Retainer, Ultrasonic Sensor, NO.1
89348A Retainer, Ultrasonic Sensor, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
