Toyota Tundra

2006-11 → 2021-10 · chassis GSK5#,UCK5#,UPK5#,USK5# · catalogue 841430 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Tire Pressure Warning System

3 part groups · 2 illustrations

Illustrations

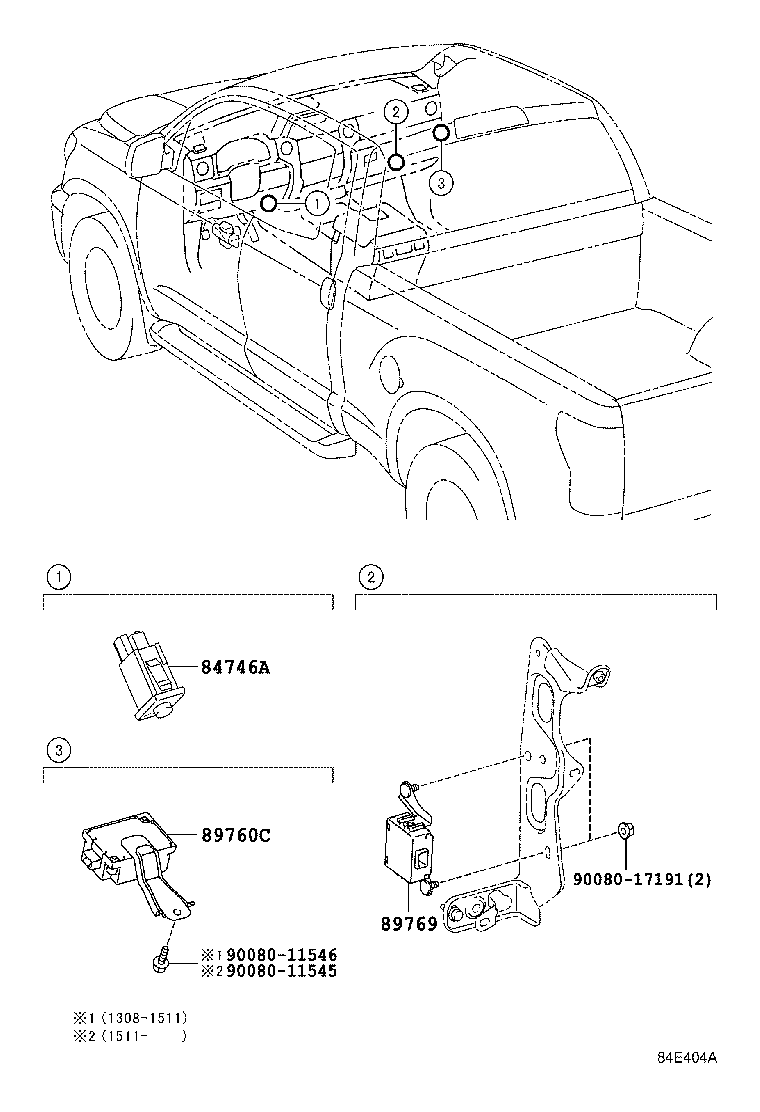

Figure 848411 848411 2006-11 → 2013-08 Figure 84E404A 84E404A 2013-08 → —

Part groups

PNCDescription
84746A Switch, Tire Pressure Warning, NO.1
89760C Receiver Assy, Tire Pressure Monitor
89769 Computer, Tire Pressure Monitor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
