Toyota Tundra

2006-11 → 2021-10 · chassis GSK5#,UCK5#,UPK5#,USK5# · catalogue 841430 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

13 part groups · 7 illustrations

Illustrations

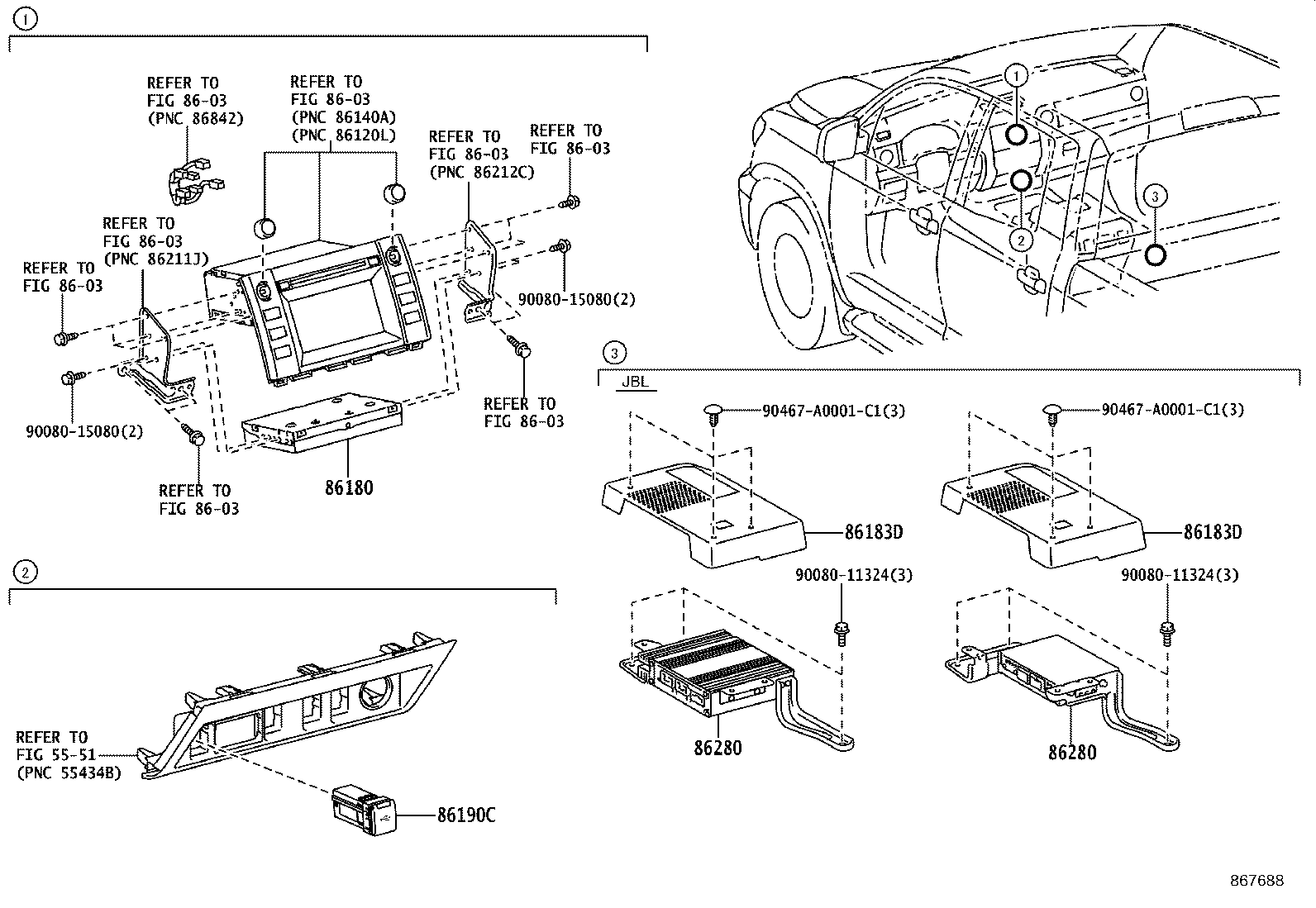

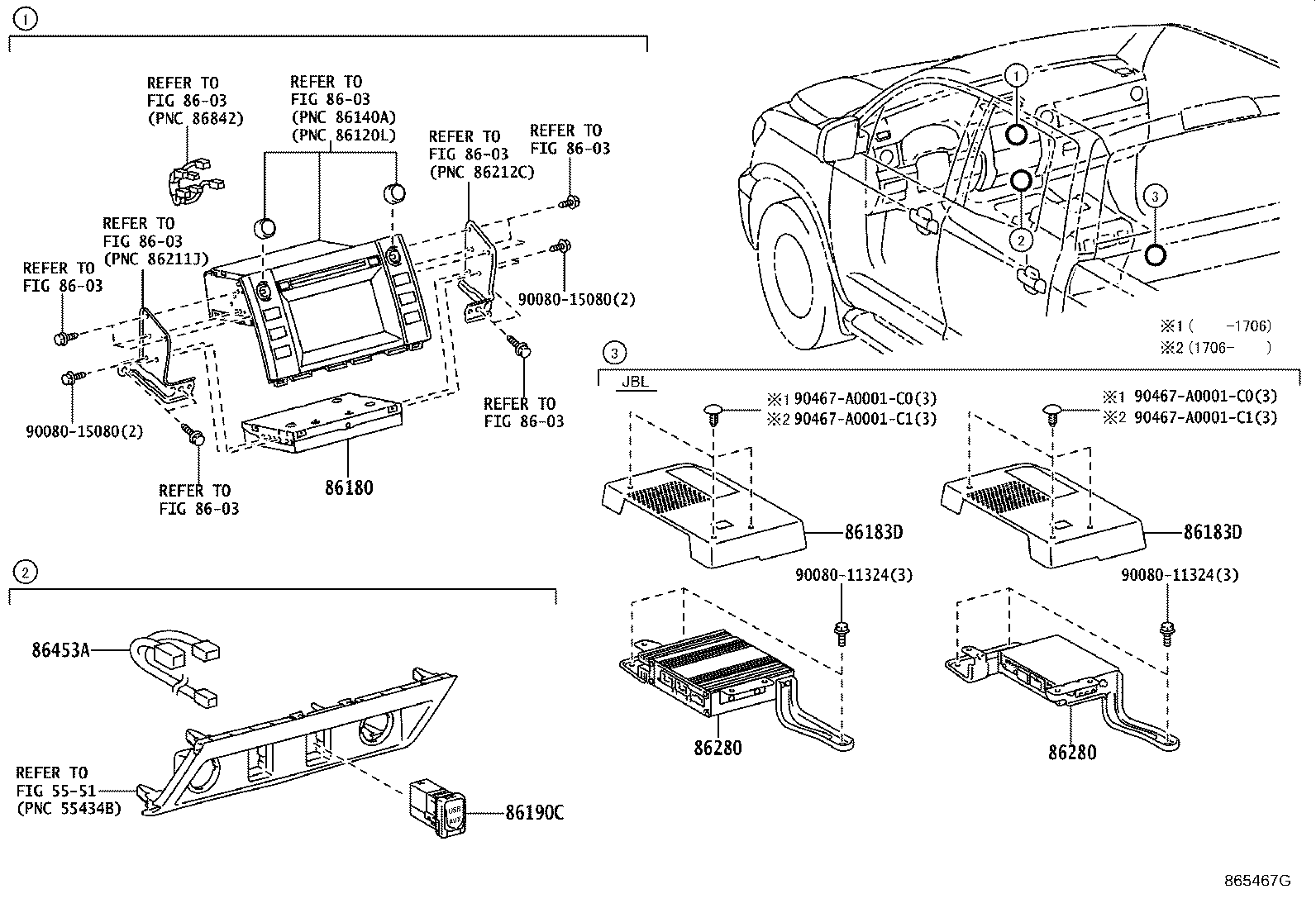

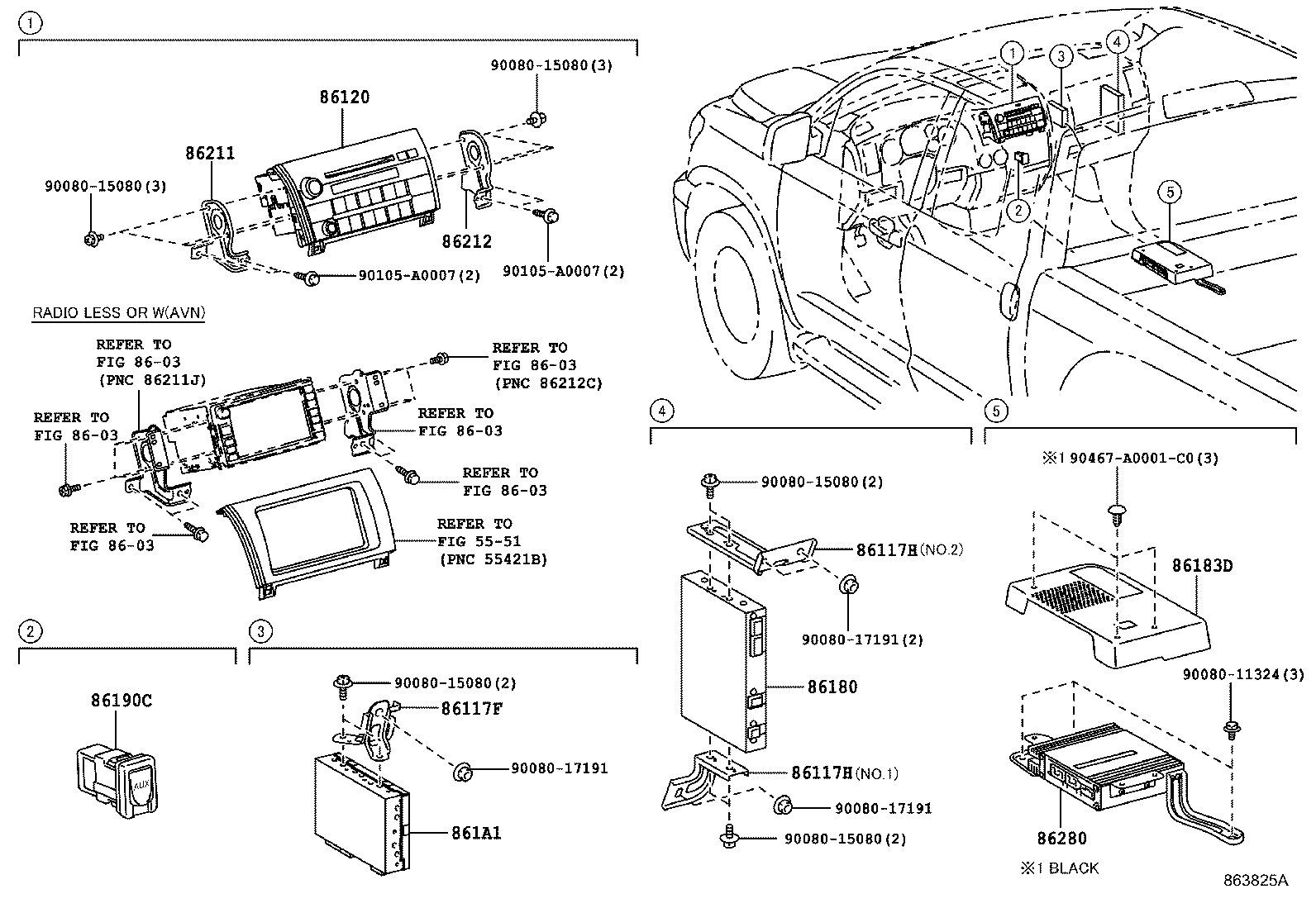

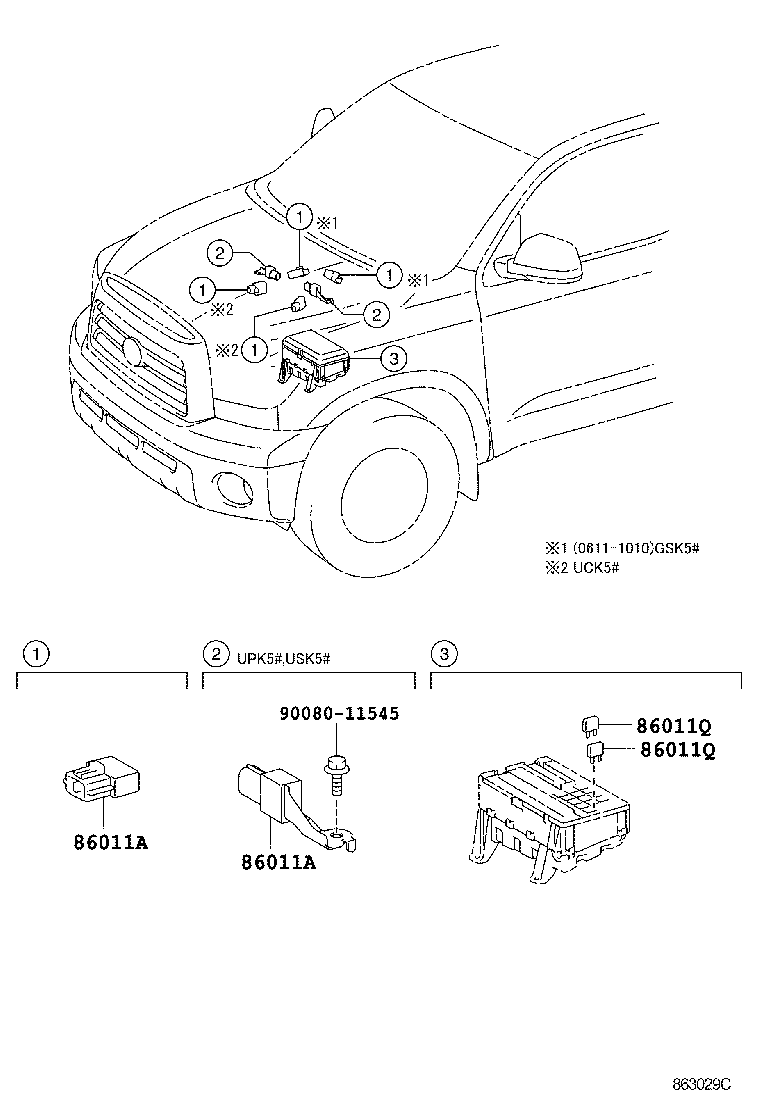

Figure 863052C 863052C 2006-11 → 2009-04 Figure 863825A 863825A 2009-04 → 2013-08 Figure 863842 863842 2006-11 → 2013-08 Figure 863029C 863029C 2006-11 → 2013-08 Figure 865467G 865467G 2013-08 → 2019-08 Figure 867688 867688 2019-08 → — Figure 865464 865464 2013-08 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011Q Condenser, Radio Setting
86117F Bracket, Multi-display Controller, A
86117H Bracket, Multi-display Controller, A
86120 Receiver Assy, Radio
86180 Tuner Assy, Stereo Component
86183D Cover, Audio Amplifier
86190C Adapter Assy, Stereo Jack, NO.1
861A1 Computer, Multi-media Interface
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86280 Amplifier Assy, Stereo Component
86453A Wire, Multi-media Module
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
