Toyota Tundra

2006-11 → 2021-10 · chassis GSK5#,UCK5#,UPK5#,USK5# · catalogue 841430 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

7 part groups · 6 illustrations

Illustrations

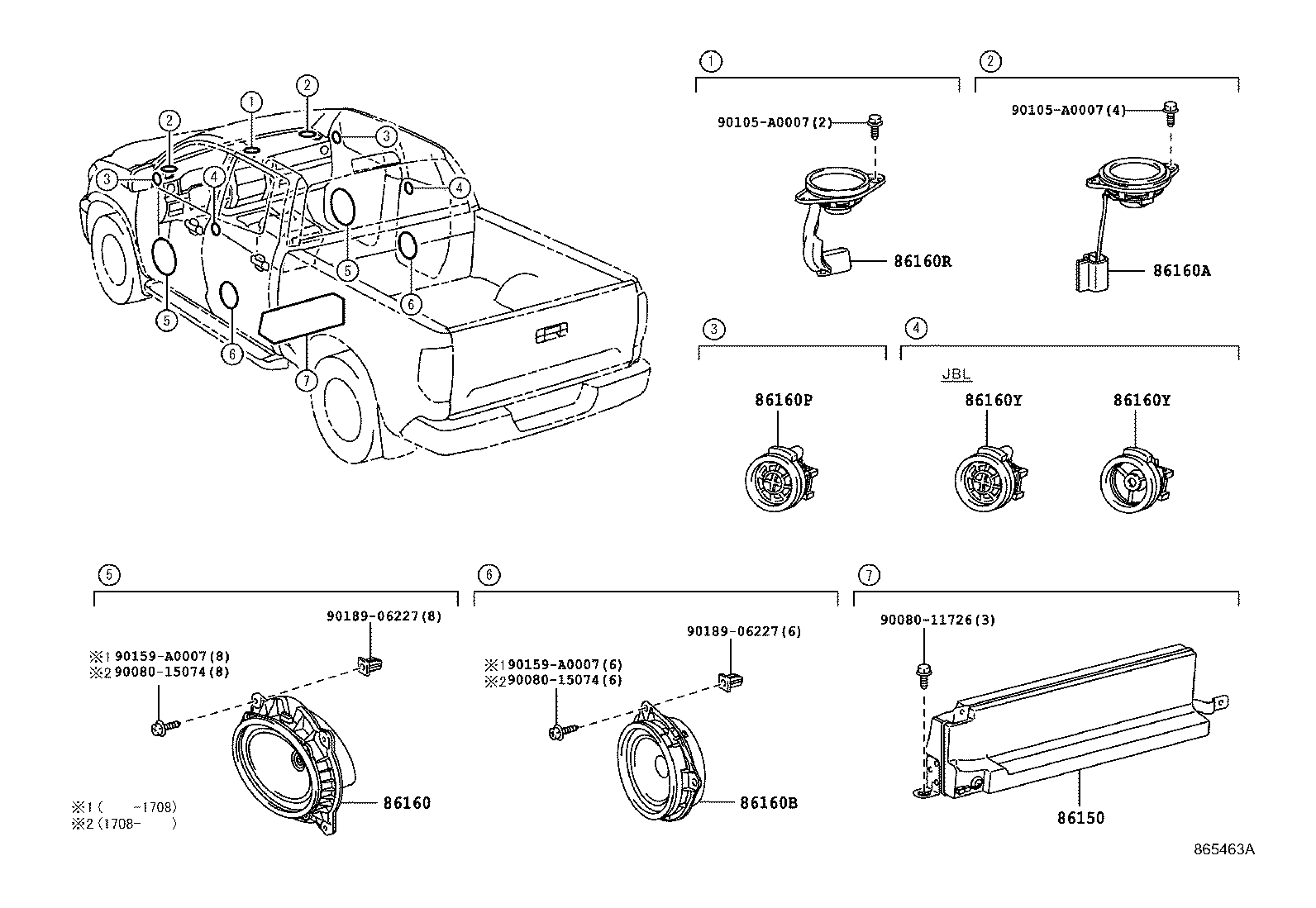

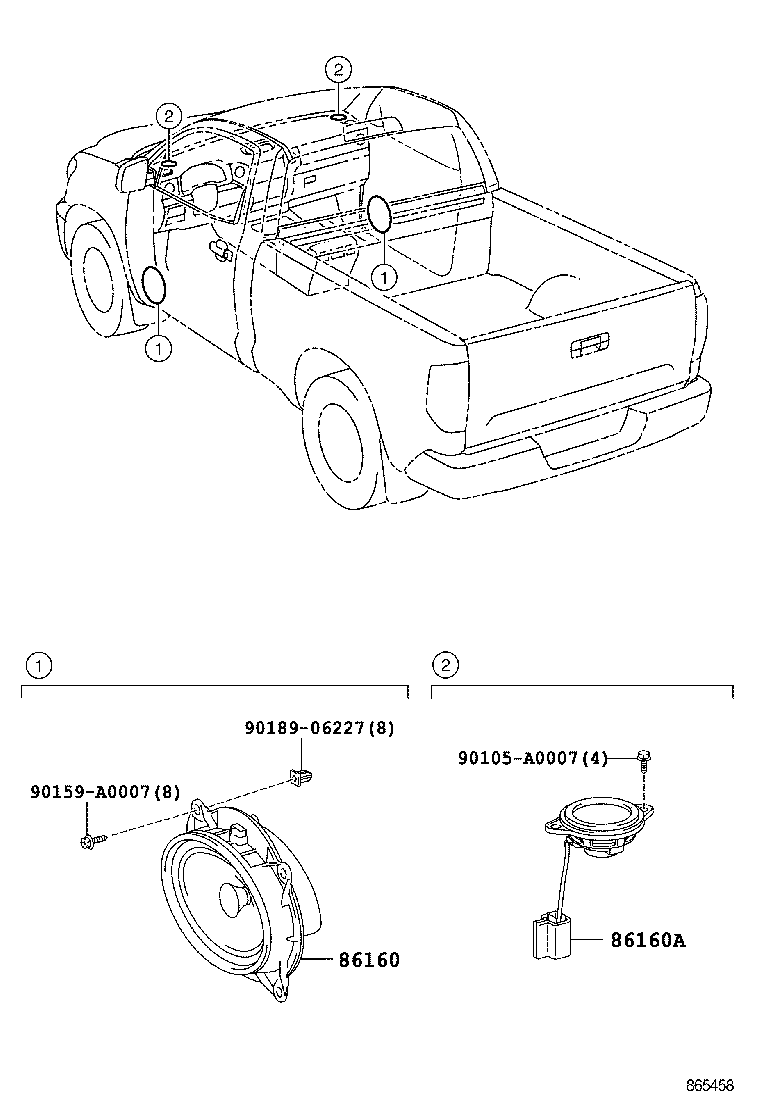

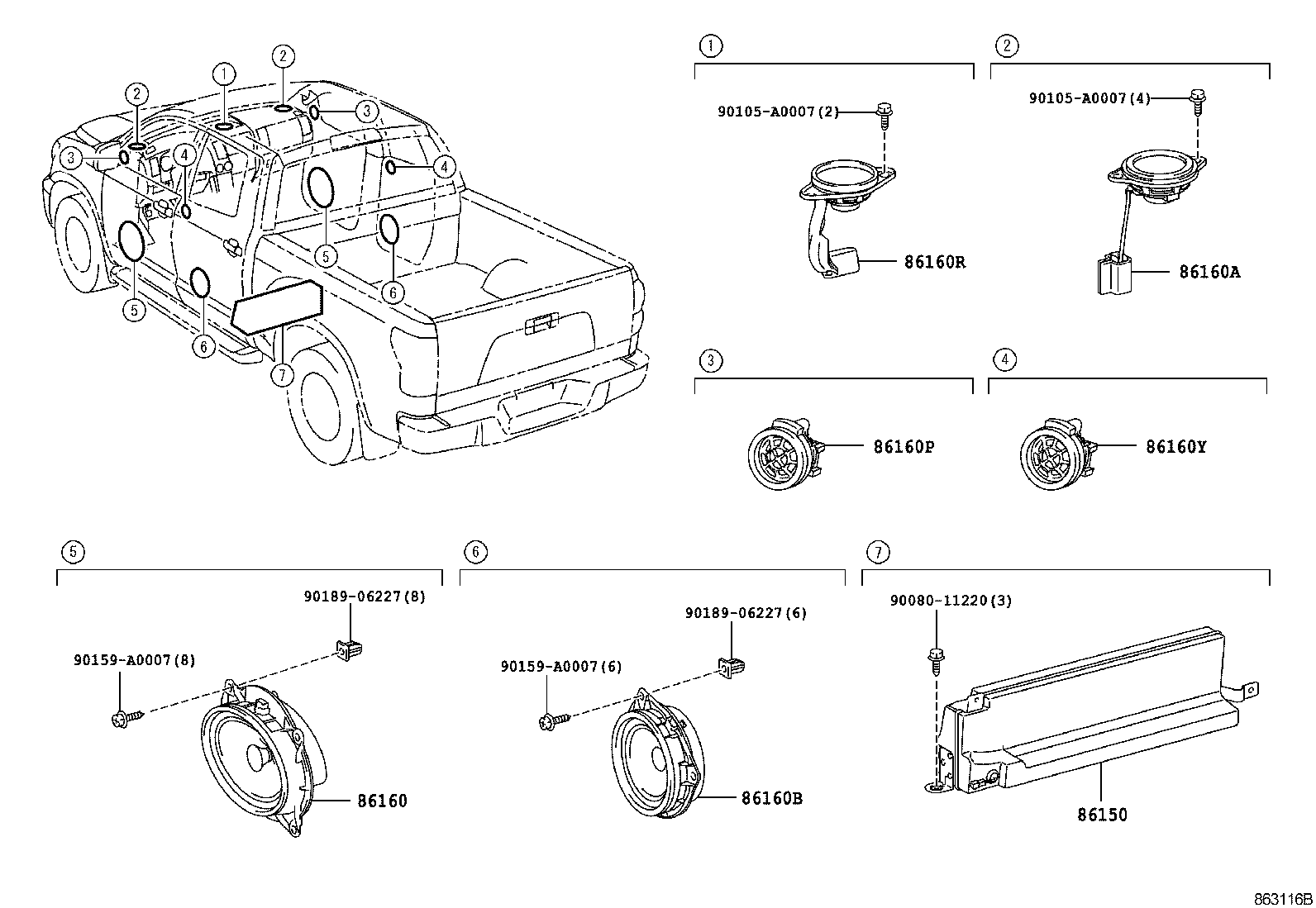

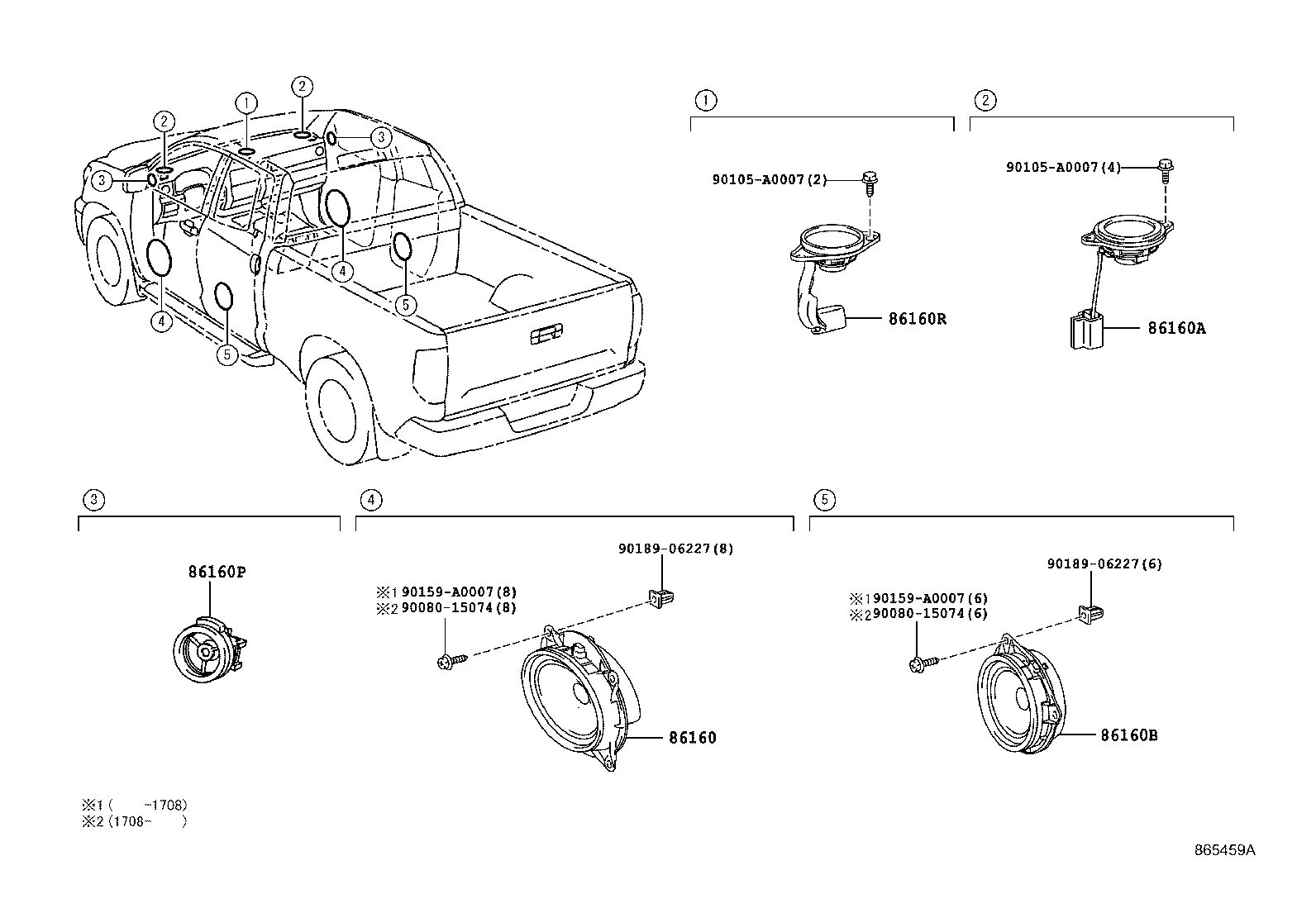

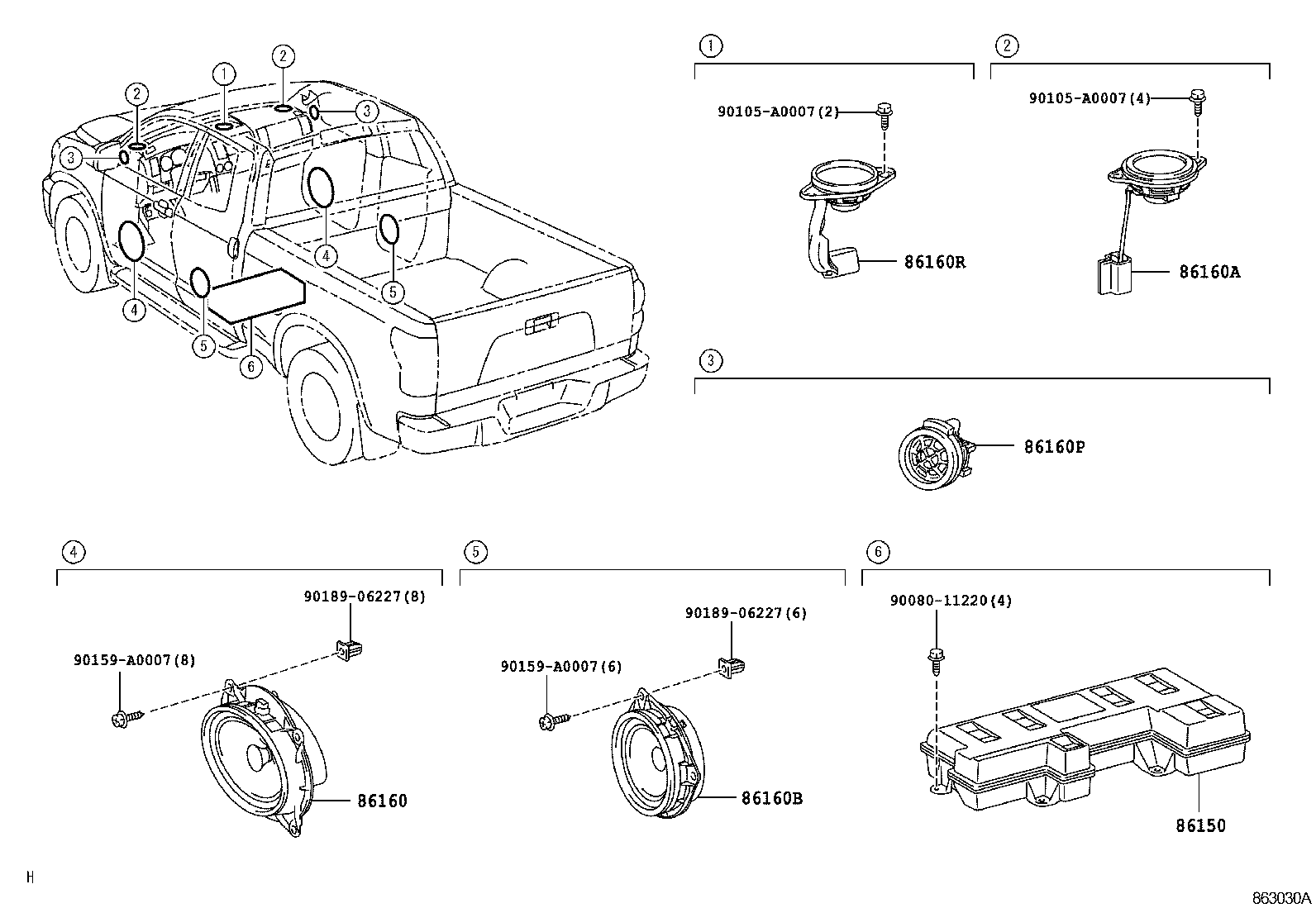

Figure 863032A 863032A 2006-11 → 2013-08 Figure 865458 865458 2013-08 → — Figure 863030A 863030A 2006-11 → 2013-08 Figure 865459A 865459A 2013-08 → — Figure 863116B 863116B 2007-03 → 2013-08 Figure 865463A 865463A 2013-08 → —

Part groups

PNCDescription
86150 Speaker Assy, W/Box, NO.1
86160 Speaker Assy, Front NO.1
86160A Speaker Set, Front
86160B Speaker Assy, Rear
86160P Speaker Assy, Front NO.2
86160R Speaker Assy, Stereo Component
86160Y Speaker Assy, Rear NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
