Toyota Tundra
2006-11 → 2021-10 · chassis GSK5#,UCK5#,UPK5#,USK5# · catalogue 841430 · United States
Supported model
Data version 2023-05

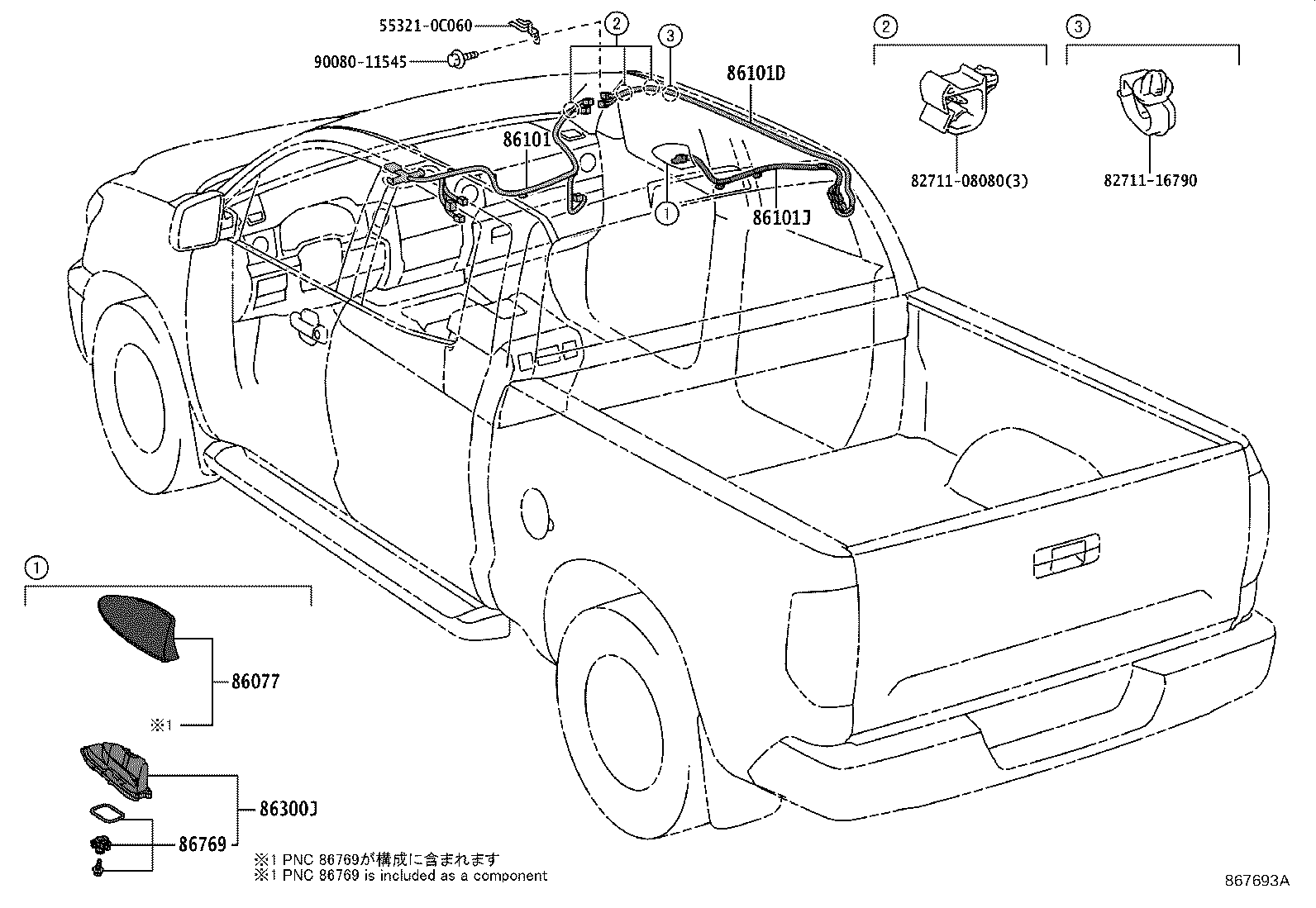

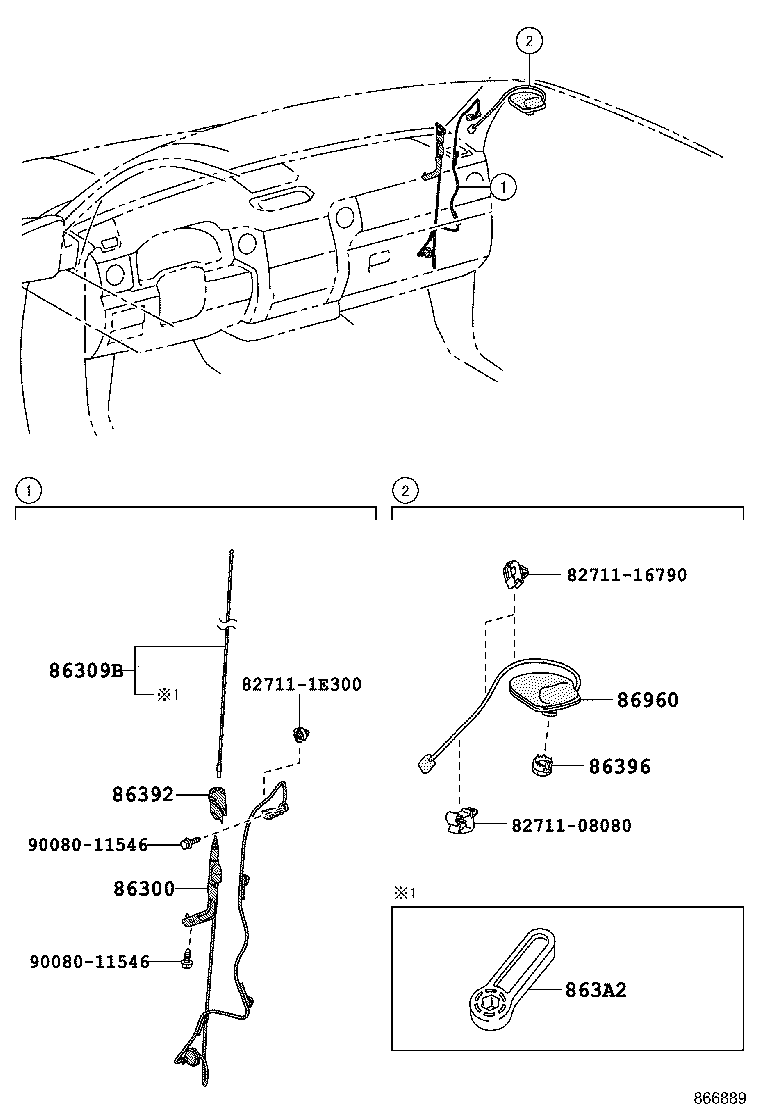

Antenna
13 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 86077 | Cover Kit, Antenna |
| 86101 | Cord Sub-assy, Antenna |
| 86101D | Cord Sub-assy, Antenna, NO.3 |
| 86101J | Cord Sub-assy, Antenna, NO.2 |
| 86300 | Antenna Assy, W/Holder |
| 86300J | Antenna Assy, Roof |
| 86309 | Pole Sub-assy, Pillar Antenna |
| 86309B | Pole Sub-assy, Pull Top Antenna |
| 86392 | Ornament, Antenna |
| 86396 | Nut, Antenna |
| 863A2 | Tool, Pole Antenna |
| 86769 | Housing, Roof Antenna |
| 86960 | Antenna Assy, Satellite Radio |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
