Toyota Tundra

2006-11 → 2021-10 · chassis GSK5#,UCK5#,UPK5#,USK5# · catalogue 841430 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

8 part groups · 6 illustrations

Illustrations

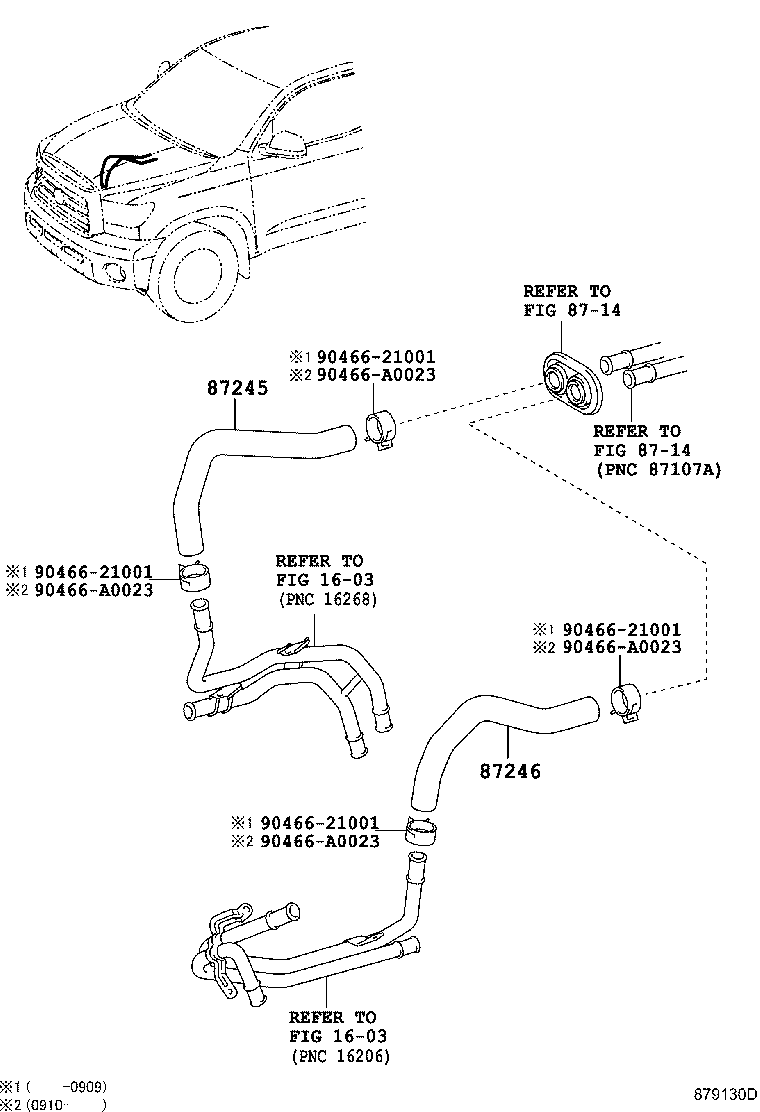

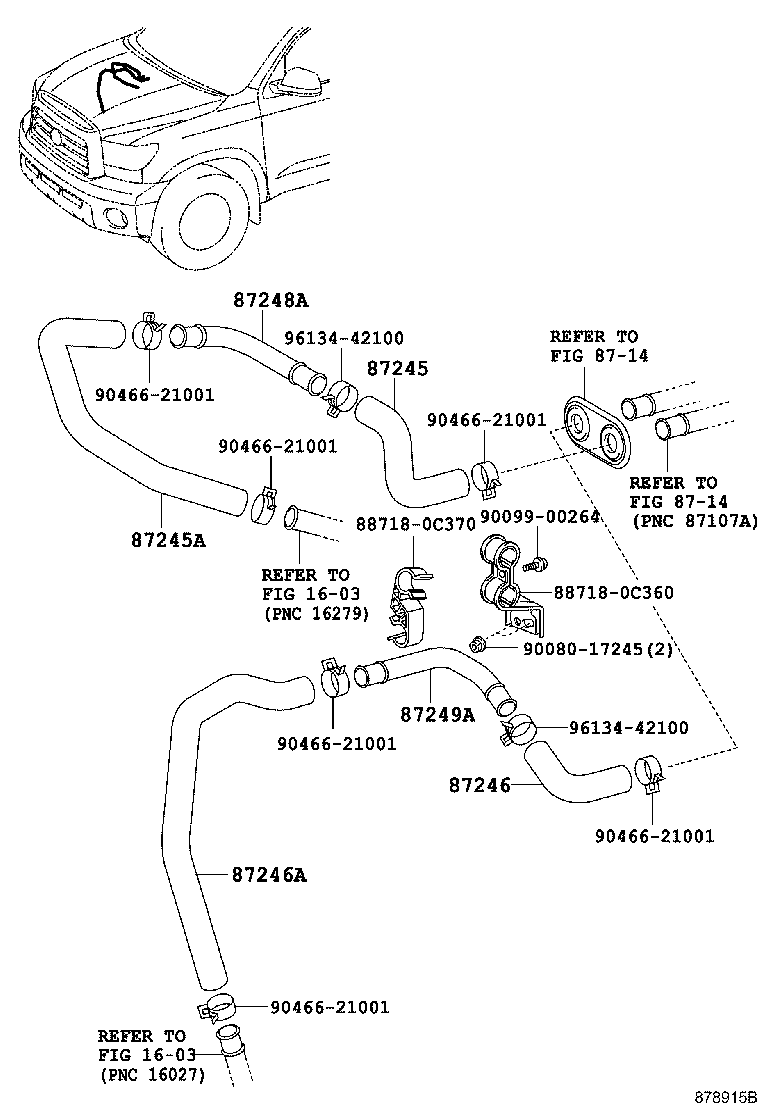

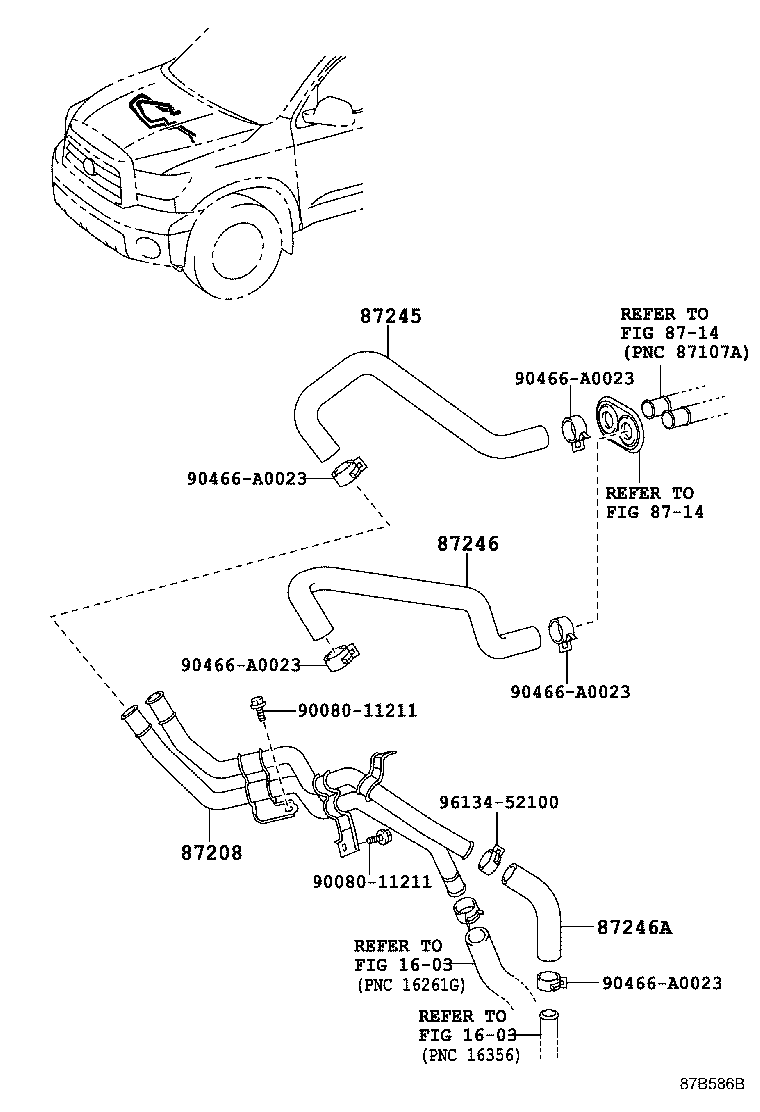

Figure 878914E 878914E 2006-11 → 2010-08 Figure 87B586B 87B586B 2010-08 → 2014-09 Figure 878915B 878915B 2006-11 → 2009-04 Figure 879130D 879130D 2007-01 → — Figure 879130D 879130D 2009-04 → — Figure 879130D 879130D 2015-08 → —

Part groups

PNCDescription
87124 Clamp, Heater
87208 Pipe Sub-assy, Heater Water
87245 Hose, Heater Water, Inlet
87245A Hose, Heater Water, Inlet A
87246 Hose, Heater Water, Outlet
87246A Hose, Heater Water, Outlet A
87248A Pipe, Heater Water Inlet, A
87249A Pipe, Heater Water Outlet, A
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
