Toyota Tundra

2006-11 → 2021-10 · chassis GSK5#,UCK5#,UPK5#,USK5# · catalogue 841430 · United States

Supported model Data version 2023-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

5 part groups · 5 illustrations

Illustrations

Figure 878919C

878919C 2006-11 → 2010-08

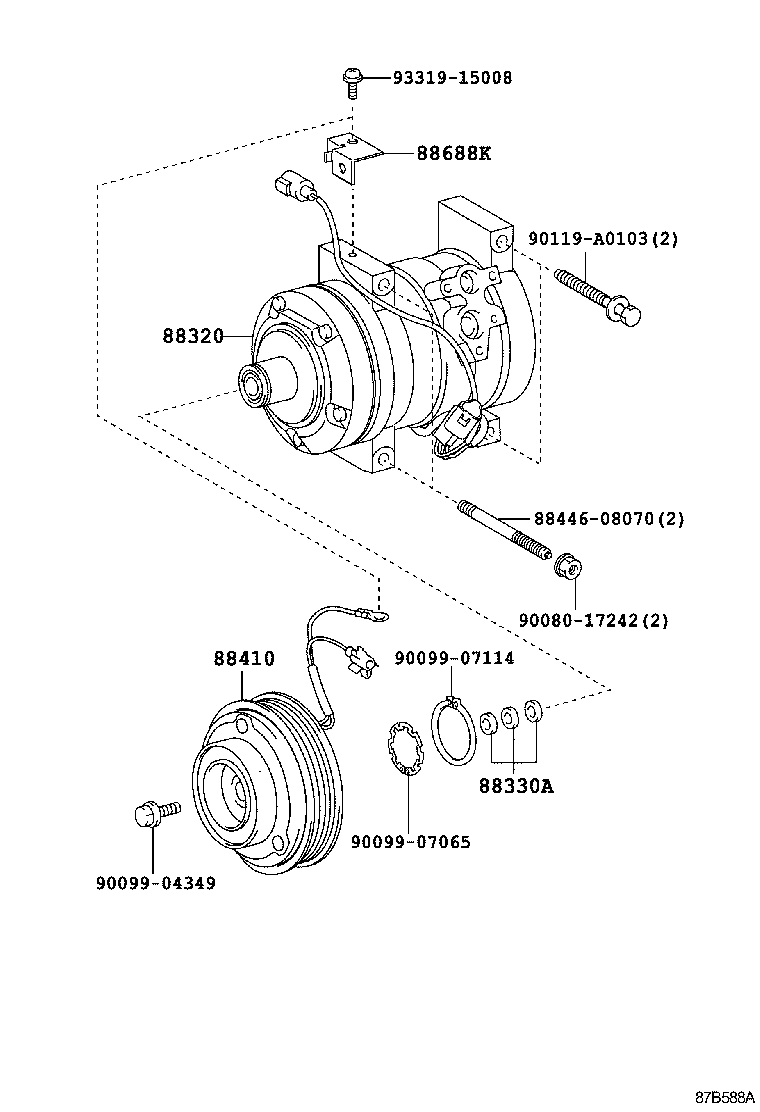

Figure 87B588A

87B588A 2010-08 → 2014-09

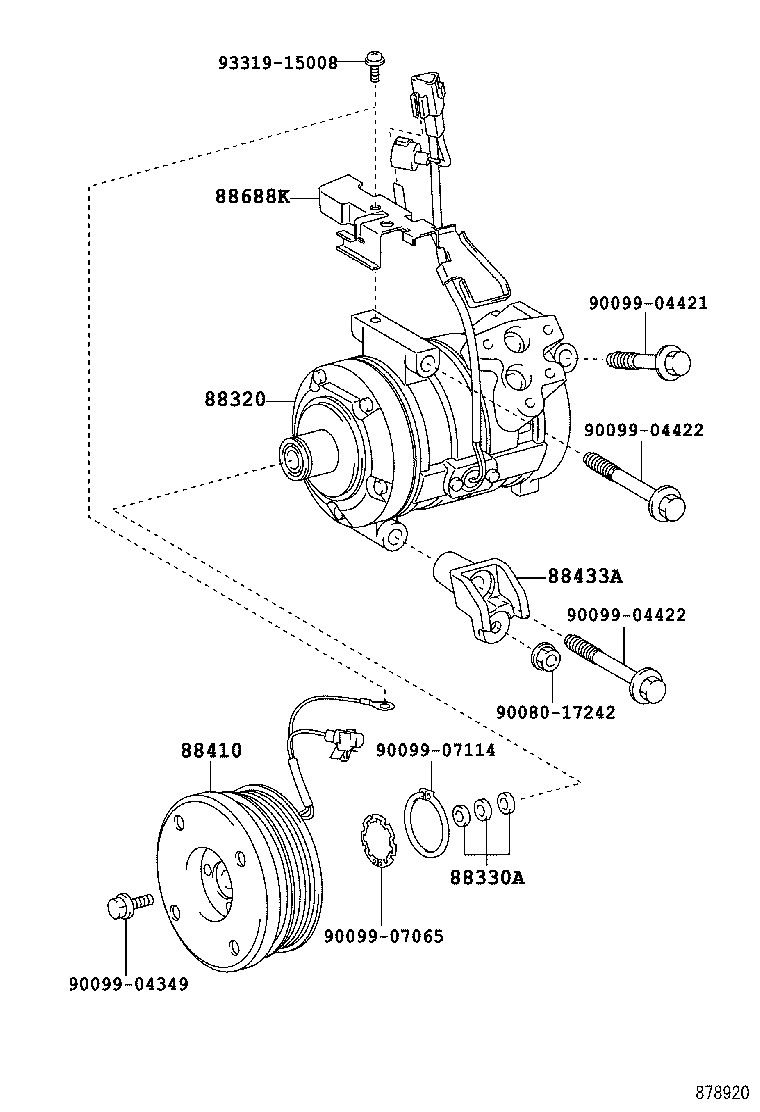

Figure 878920B

878920B 2006-11 → 2009-04

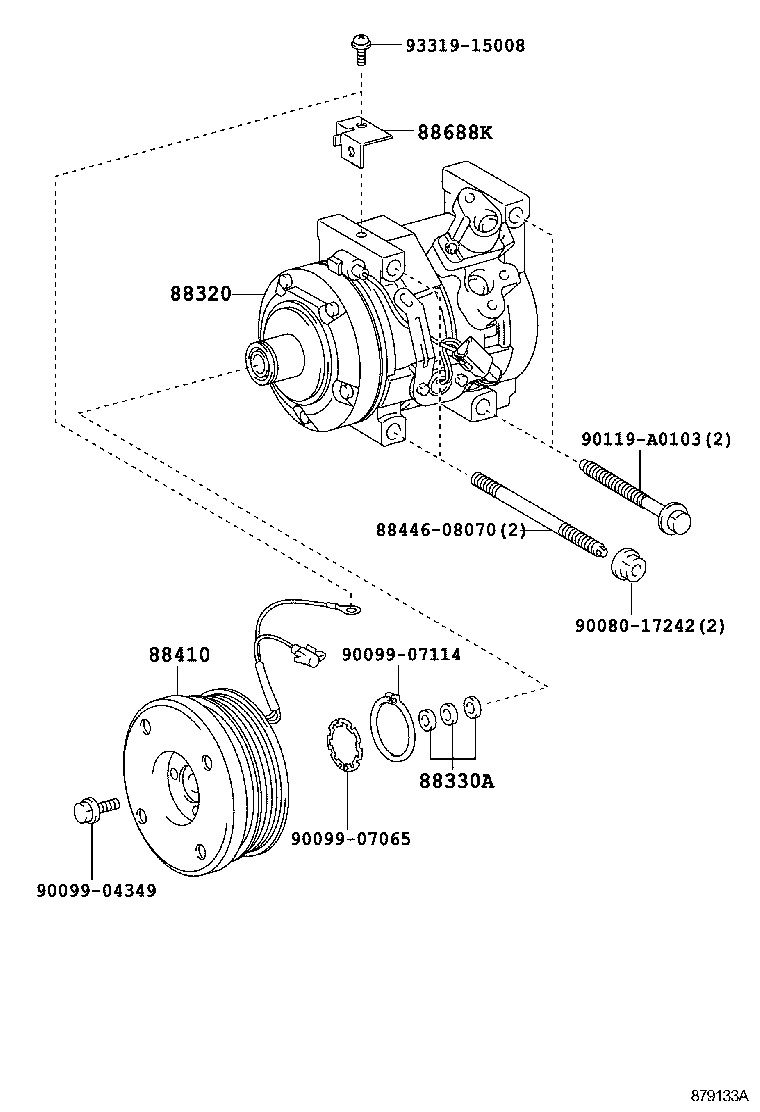

Figure 879133A

879133A 2007-01 → 2009-04

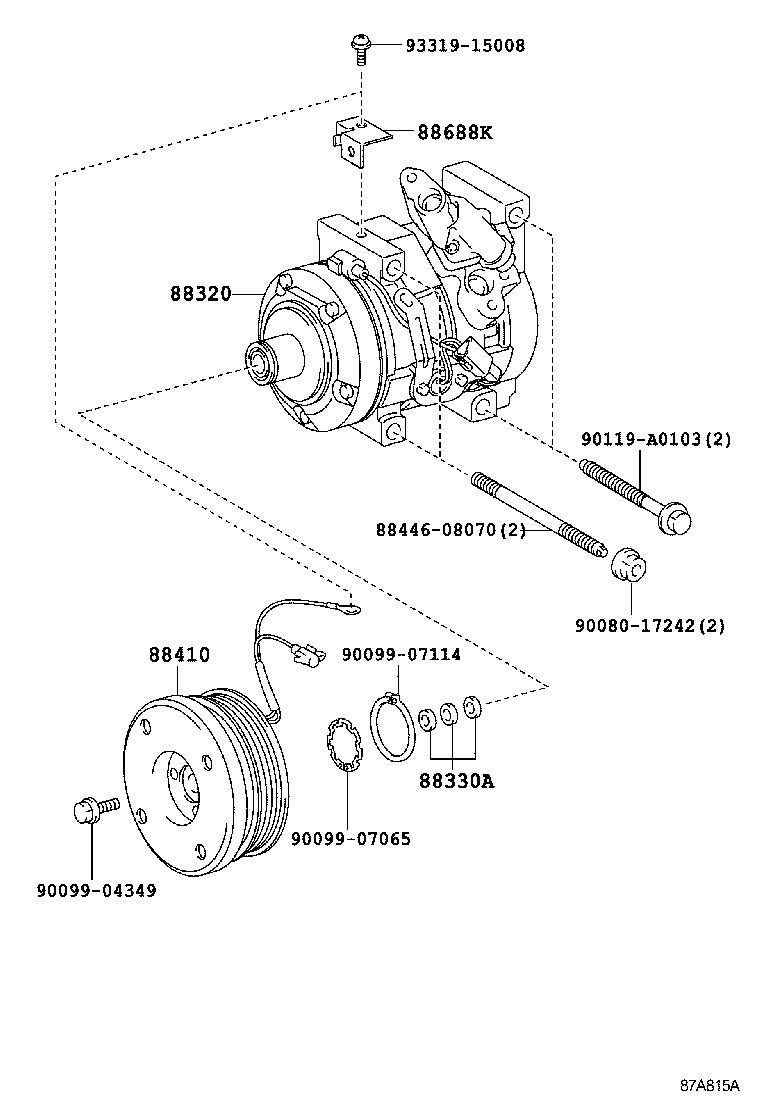

Figure 87A815A

87A815A 2009-04 → —

Part groups

PNC	Description
88320	Compressor Assy, Cooler
88330A	Washer (FOR MAGNET CLUTCH)
88410	Clutch Assy, Magnet
88433A	Stay, Compressor
88688K	Bracket, Cooler Compressor

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
