Toyota Tundra/Sequoia

2021-11 → present · chassis VXKA7#,VXKH7#,VXKH8# · catalogue 841440 · United States

Supported model Data version 2022-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

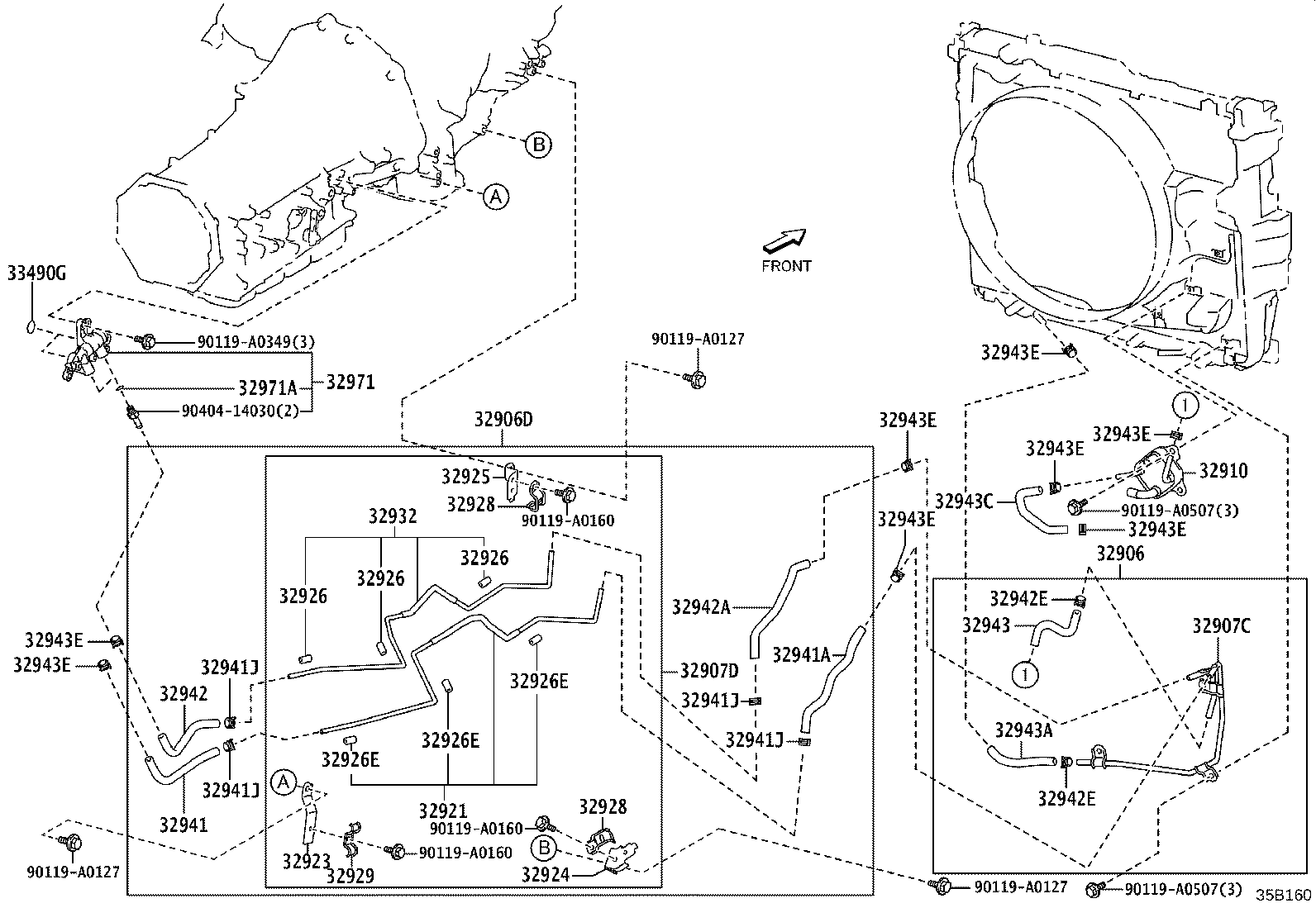

Exploded illustration 35B160 32929 — CLAMP, FLEXIBLE HOSE, NO.2 (2 parts) 32928 — CLAMP, FLEXIBLE HOSE, NO.1 (2 parts) 32928 — CLAMP, FLEXIBLE HOSE, NO.1 (2 parts) 32925 — CLAMP, OIL COOLER TUBE, NO.3 (2 parts) 32924 — CLAMP, OIL COOLER TUBE, NO.2 (2 parts) 32923 — CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE (2 parts) 32932 — TUBE, OIL COOLER OUTLET (6 parts) 32926 — CUSHION, OIL COOLER TUBE(ATM) (4 parts) 32926 — CUSHION, OIL COOLER TUBE(ATM) (4 parts) 32926 — CUSHION, OIL COOLER TUBE(ATM) (4 parts) 32926E — CUSHION, OIL COOLER TUBE, NO.2(ATM) (4 parts) 32921 — TUBE, OIL COOLER INLET, NO.1 (6 parts) 32926E — CUSHION, OIL COOLER TUBE, NO.2(ATM) (4 parts) 32926E — CUSHION, OIL COOLER TUBE, NO.2(ATM) (4 parts) 32943C — HOSE, TRANSMISSION OIL COOLER, NO.3 (3 parts) 32943E — CLIP, NO.3(FOR OIL COOLER HOSE) (2 parts) 32943E — CLIP, NO.3(FOR OIL COOLER HOSE) (2 parts) 32943E — CLIP, NO.3(FOR OIL COOLER HOSE) (2 parts) 32943A — HOSE, TRANSMISSION OIL COOLER, NO.2 (2 parts) 32943 — HOSE, TRANSMISSION OIL COOLER, NO.1 (2 parts) 32943E — CLIP, NO.3(FOR OIL COOLER HOSE) (2 parts) 32942E — CLIP, NO.2(FOR OIL COOLER HOSE) (2 parts) 32942E — CLIP, NO.2(FOR OIL COOLER HOSE) (2 parts) 32907C — TUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1 (2 parts) 32906 — TUBE SUB-ASSY, OIL COOLER (2 parts) 32943E — CLIP, NO.3(FOR OIL COOLER HOSE) (2 parts) 32943E — CLIP, NO.3(FOR OIL COOLER HOSE) (2 parts) 32943E — CLIP, NO.3(FOR OIL COOLER HOSE) (2 parts) 32971 — THERMOSTAT, TRANSMISSION OIL (2 parts) 32971A — RING, O(FOR TRANSMISSION OIL THERMOSTAT) (2 parts) 33490G — RING, O (FOR TRANSMISSION OIL COOLER) (2 parts) 32943E — CLIP, NO.3(FOR OIL COOLER HOSE) (2 parts) 32941 — HOSE, OIL COOLER INLET, NO.1 (2 parts) 32942 — HOSE, OIL COOLER OUTLET, NO.1 (2 parts) 32941A — HOSE, OIL COOLER INLET, NO.2 (2 parts) 32942A — HOSE, OIL COOLER OUTLET, NO.2 (2 parts) 32907D — TUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.2 (6 parts) 32906D — TUBE SUB-ASSY, OIL COOLER, NO.2 (6 parts) 32941J — CLIP, NO.1(FOR OIL COOLER HOSE) (2 parts) 32941J — CLIP, NO.1(FOR OIL COOLER HOSE) (2 parts) 32941J — CLIP, NO.1(FOR OIL COOLER HOSE) (2 parts) 32941J — CLIP, NO.1(FOR OIL COOLER HOSE) (2 parts) 32910 — COOLER ASSY, OIL (2 parts) 90119A0507 — not listed in this catalogue 90119A0507 — not listed in this catalogue 90119A0127 — not listed in this catalogue 9040414030 — not listed in this catalogue 90119A0349 — not listed in this catalogue 90119A0127 — not listed in this catalogue 90119A0127 — not listed in this catalogue 90119A0160 — not listed in this catalogue 90119A0160 — not listed in this catalogue 90119A0160 — not listed in this catalogue
35B160 · 43 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
75 parts on this figure
Part number Description Fitment Price
32906 — Tube Sub-assy, Oil Cooler
32906-0C081 Tube Sub-assy, Oil Cooler
2021-11 → —
VXKA70,75 RF DCB S;VXKA71,72,77,VXKH71,80 +2 —
32906-0C081 Tube Sub-assy, Oil Cooler
2021-11 → 2024-08 ended
VXKA70,75 DCB L;VXKA71,VXKH71,80 Z —
32906D — Tube Sub-assy, Oil Cooler, NO.2
32906-0C070 Tube Sub-assy, Oil Cooler, NO.2
2021-11 → 2022-06 ended
VXKA7# —
32906-0C071 Tube Sub-assy, Oil Cooler, NO.2
2022-07 → 2024-08 ended
VXKA71 Z;VXKA70,75 DCB L —
32906-0C071 Tube Sub-assy, Oil Cooler, NO.2
2022-07 → —
VXKA71,72,77 L,S;VXKA70,75 DCB S;VXKA70,75,76 +1 —
32906-0C090 Tube Sub-assy, Oil Cooler, NO.2
2022-03 → 2022-06 ended
VXKH7# —
32906-0C091 Tube Sub-assy, Oil Cooler, NO.2
2022-07 → 2024-08 ended
VXKH71,80 Z —
32906-0C091 Tube Sub-assy, Oil Cooler, NO.2
2022-07 → —
VXKH71,80 L,S;VXKH70,75,76,85 —
32907C — Tube Sub-assy, Oil Cooler W/O Hose, NO.1
32907-0C070 Tube Sub-assy, Oil Cooler W/O Hose, NO.1
2021-11 → 2024-08 ended
VXKA70,75 DCB L;VXKA71,VXKH71,80 Z —
32907-0C070 Tube Sub-assy, Oil Cooler W/O Hose, NO.1
2021-11 → —
VXKA70,75 RF DCB S;VXKA71,72,77,VXKH71,80 +2 —
32907D — Tube Sub-assy, Oil Cooler W/O Hose, NO.2
32907-0C060 Tube Sub-assy, Oil Cooler W/O Hose, NO.2
2021-11 → 2022-06 ended
VXKA7# —
32907-0C061 Tube Sub-assy, Oil Cooler W/O Hose, NO.2
2022-07 → 2024-08 ended
VXKA71 Z;VXKA70,75 DCB L —
32907-0C061 Tube Sub-assy, Oil Cooler W/O Hose, NO.2
2022-07 → —
VXKA71,72,77 L,S;VXKA70,75 DCB S;VXKA70,75,76 +1 —
32907-0C080 Tube Sub-assy, Oil Cooler W/O Hose, NO.2
2022-03 → 2022-06 ended
VXKH7# —
32907-0C081 Tube Sub-assy, Oil Cooler W/O Hose, NO.2
2022-07 → 2024-08 ended
VXKH71,80 Z —
32907-0C081 Tube Sub-assy, Oil Cooler W/O Hose, NO.2
2022-07 → —
VXKH71,80 L,S;VXKH70,75,76,85 —
32910 — Cooler Assy, Oil
32910-0C020 Cooler Assy, Oil
2021-11 → 2024-08 ended
VXKA70,75 DCB L;VXKA71,VXKH71,80 Z —
32910-0C020 Cooler Assy, Oil
2021-11 → —
VXKA70,75 RF DCB S;VXKA71,72,77,VXKH71,80 +2 —
32921 — Tube, Oil Cooler Inlet, NO.1
32921-0C040 Tube, Oil Cooler Inlet, NO.1
2021-11 → 2022-06 ended
VXKA7# —
32921-0C041 Tube, Oil Cooler Inlet, NO.1
2022-07 → 2024-08 ended
VXKA71 Z;VXKA70,75 DCB L —
32921-0C041 Tube, Oil Cooler Inlet, NO.1
2022-07 → —
VXKA71,72,77 L,S;VXKA70,75 DCB S;VXKA70,75,76 +1 —
32921-0C050 Tube, Oil Cooler Inlet, NO.1
2022-03 → 2022-06 ended
VXKH7# —
32921-0C051 Tube, Oil Cooler Inlet, NO.1
2022-07 → 2024-08 ended
VXKH71,80 Z —
32921-0C051 Tube, Oil Cooler Inlet, NO.1
2022-07 → —
VXKH71,80 L,S;VXKH70,75,76,85 —
32923 — Clamp, Automatic Transmission Oil Cooler Tube
32923-0C050 Clamp, Automatic Transmission Oil Cooler Tube
2022-03 → 2024-08 ended
VXKH71,80 Z —
32923-0C050 Clamp, Automatic Transmission Oil Cooler Tube
2022-03 → —
VXKH71,80 L,S;VXKH70,75,76,85 —
32924 — Clamp, Oil Cooler Tube, NO.2
32924-0C020 Clamp, Oil Cooler Tube, NO.2
2021-11 → —
VXKA70,75 RF DCB S;VXKA71,72,77,VXKH71,80 +2 —
32924-0C020 Clamp, Oil Cooler Tube, NO.2
2021-11 → 2024-08 ended
VXKA70,75 DCB L;VXKA71,VXKH71,80 Z —
32925 — Clamp, Oil Cooler Tube, NO.3
32925-0C020 Clamp, Oil Cooler Tube, NO.3
2021-11 → 2024-08 ended
VXKA70,75 DCB L;VXKA71,VXKH71,80 Z —
32925-0C020 Clamp, Oil Cooler Tube, NO.3
2021-11 → —
VXKA70,75 RF DCB S;VXKA71,72,77,VXKH71,80 +2 —
32926 — Cushion, Oil Cooler Tube(ATM)
32926-04010 note Cushion, Oil Cooler Tube(ATM)
2021-11 → 2024-08 ended
VXKA71 Z;VXKA70,75 DCB L —
32926-04010 note Cushion, Oil Cooler Tube(ATM)
2022-03 → 2024-08 ended
VXKH71,80 Z —
32926-04010 note Cushion, Oil Cooler Tube(ATM)
2021-11 → —
VXKA71,72,77 L,S;VXKA70,75 DCB S;VXKA70,75,76 +1 —
32926-04010 note Cushion, Oil Cooler Tube(ATM)
2022-03 → —
VXKH71,80 L,S;VXKH70,75,76,85 —
32926E — Cushion, Oil Cooler Tube, NO.2(ATM)
32926-30030 Cushion, Oil Cooler Tube, NO.2(ATM)
2022-03 → —
VXKH71,80 L,S;VXKH70,75,76,85 —
32926-30030 Cushion, Oil Cooler Tube, NO.2(ATM)
2021-11 → —
VXKA71,72,77 L,S;VXKA70,75 DCB S;VXKA70,75,76 +1 —
32926-30030 Cushion, Oil Cooler Tube, NO.2(ATM)
2021-11 → 2024-08 ended
VXKA71 Z;VXKA70,75 DCB L —
32926-30030 Cushion, Oil Cooler Tube, NO.2(ATM)
2022-03 → 2024-08 ended
VXKH71,80 Z —
32928 — Clamp, Flexible Hose, NO.1
32928-04010 Clamp, Flexible Hose, NO.1
2021-11 → —
VXKA70,75 RF DCB S;VXKA71,72,77,VXKH71,80 +2 —
32928-04010 Clamp, Flexible Hose, NO.1
2021-11 → 2024-08 ended
VXKA70,75 DCB L;VXKA71,VXKH71,80 Z —
32929 — Clamp, Flexible Hose, NO.2
32928-04020 Clamp, Flexible Hose, NO.2
2022-03 → 2024-08 ended
VXKH71,80 Z —
32928-04020 Clamp, Flexible Hose, NO.2
2022-03 → —
VXKH71,80 L,S;VXKH70,75,76,85 —
32932 — Tube, Oil Cooler Outlet
32922-0C050 Tube, Oil Cooler Outlet
2021-11 → 2022-06 ended
VXKA7# —
32922-0C051 Tube, Oil Cooler Outlet
2022-07 → —
VXKA71,72,77 L,S;VXKA70,75 DCB S;VXKA70,75,76 +1 —
32922-0C051 Tube, Oil Cooler Outlet
2022-07 → 2024-08 ended
VXKA71 Z;VXKA70,75 DCB L —
32922-0C060 Tube, Oil Cooler Outlet
2022-03 → 2022-06 ended
VXKH7# —
32922-0C061 Tube, Oil Cooler Outlet
2022-07 → 2024-08 ended
VXKH71,80 Z —
32922-0C061 Tube, Oil Cooler Outlet
2022-07 → —
VXKH71,80 L,S;VXKH70,75,76,85 —
32941 — Hose, Oil Cooler Inlet, NO.1
32941-0C090 Hose, Oil Cooler Inlet, NO.1
2021-11 → 2024-08 ended
VXKA70,75 DCB L;VXKA71,VXKH71,80 Z —
32941-0C090 Hose, Oil Cooler Inlet, NO.1
2021-11 → —
VXKA70,75 RF DCB S;VXKA71,72,77,VXKH71,80 +2 —
32941A — Hose, Oil Cooler Inlet, NO.2
32941-0C100 Hose, Oil Cooler Inlet, NO.2
2021-11 → 2024-08 ended
VXKA70,75 DCB L;VXKA71,VXKH71,80 Z —
32941-0C100 Hose, Oil Cooler Inlet, NO.2
2021-11 → —
VXKA70,75 RF DCB S;VXKA71,72,77,VXKH71,80 +2 —
32941J — Clip, NO.1(FOR OIL COOLER HOSE)
90466-A0014 Clip, NO.1(FOR OIL COOLER HOSE)
2021-11 → 2024-08 ended
VXKA70,75 DCB L;VXKA71,VXKH71,80 Z —
90466-A0014 Clip, NO.1(FOR OIL COOLER HOSE)
2021-11 → —
VXKA70,75 RF DCB S;VXKA71,72,77,VXKH71,80 +2 —
32942 — Hose, Oil Cooler Outlet, NO.1
32942-0C100 Hose, Oil Cooler Outlet, NO.1
2021-11 → —
VXKA70,75 RF DCB S;VXKA71,72,77,VXKH71,80 +2 —
32942-0C100 Hose, Oil Cooler Outlet, NO.1
2021-11 → 2024-08 ended
VXKA70,75 DCB L;VXKA71,VXKH71,80 Z —
32942A — Hose, Oil Cooler Outlet, NO.2
32942-0C110 Hose, Oil Cooler Outlet, NO.2
2021-11 → 2024-08 ended
VXKA70,75 DCB L;VXKA71,VXKH71,80 Z —
32942-0C110 Hose, Oil Cooler Outlet, NO.2
2021-11 → —
VXKA70,75 RF DCB S;VXKA71,72,77,VXKH71,80 +2 —
32942E — Clip, NO.2(FOR OIL COOLER HOSE)
90466-A0014 Clip, NO.2(FOR OIL COOLER HOSE)
2021-11 → 2024-08 ended
VXKA70,75 DCB L;VXKA71,VXKH71,80 Z —
90466-A0014 Clip, NO.2(FOR OIL COOLER HOSE)
2021-11 → —
VXKA70,75 RF DCB S;VXKA71,72,77,VXKH71,80 +2 —
32943 — Hose, Transmission Oil Cooler, NO.1
32943-0C020 Hose, Transmission Oil Cooler, NO.1
2021-11 → 2024-08 ended
VXKA70,75 DCB L;VXKA71,VXKH71,80 Z —
32943-0C020 Hose, Transmission Oil Cooler, NO.1
2021-11 → —
VXKA70,75 RF DCB S;VXKA71,72,77,VXKH71,80 +2 —
32943A — Hose, Transmission Oil Cooler, NO.2
32943-0C030 Hose, Transmission Oil Cooler, NO.2
2021-11 → 2024-08 ended
VXKA70,75 DCB L;VXKA71,VXKH71,80 Z —
32943-0C030 Hose, Transmission Oil Cooler, NO.2
2021-11 → —
VXKA70,75 RF DCB S;VXKA71,72,77,VXKH71,80 +2 —
32943C — Hose, Transmission Oil Cooler, NO.3
32943-0C040 Hose, Transmission Oil Cooler, NO.3
2021-11 → 2023-06 ended
VXKA7#,VXKH7#,8# —
32943-0C041 Hose, Transmission Oil Cooler, NO.3
2023-07 → 2024-08 ended
VXKA70,75 DCB L;VXKA71,VXKH71,80 Z —
32943-0C041 Hose, Transmission Oil Cooler, NO.3
2023-07 → —
VXKA70,75 RF DCB S;VXKA71,72,77,VXKH71,80 +2 —
32943E — Clip, NO.3(FOR OIL COOLER HOSE)
90466-A0014 Clip, NO.3(FOR OIL COOLER HOSE)
2021-11 → 2024-08 ended
VXKA70,75 DCB L;VXKA71,VXKH71,80 Z —
90466-A0014 Clip, NO.3(FOR OIL COOLER HOSE)
2021-11 → —
VXKA70,75 RF DCB S;VXKA71,72,77,VXKH71,80 +2 —
32971 — Thermostat, Transmission Oil
32971-0C010 Thermostat, Transmission Oil
2021-11 → 2024-08 ended
VXKA70,75 DCB L;VXKA71,VXKH71,80 Z —
32971-0C010 Thermostat, Transmission Oil
2021-11 → —
VXKA70,75 RF DCB S;VXKA71,72,77,VXKH71,80 +2 —
32971A — Ring, O(FOR TRANSMISSION OIL THERMOSTAT)
90301-11031 Ring, O(FOR TRANSMISSION OIL THERMOSTAT)
2021-11 → 2024-08 ended
VXKA70,75 DCB L;VXKA71,VXKH71,80 Z —
90301-11031 Ring, O(FOR TRANSMISSION OIL THERMOSTAT)
2021-11 → —
VXKA70,75 RF DCB S;VXKA71,72,77,VXKH71,80 +2 —
33490G — Ring, O (FOR TRANSMISSION OIL COOLER)
90301-20012 Ring, O (FOR TRANSMISSION OIL COOLER)
2021-11 → 2024-08 ended
VXKA70,75 DCB L;VXKA71,VXKH71,80 Z —
90301-20012 Ring, O (FOR TRANSMISSION OIL COOLER)
2021-11 → —
VXKA70,75 RF DCB S;VXKA71,72,77,VXKH71,80 +2 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
