Toyota Tundra/Sequoia
2021-11 → present · chassis VXKA7#,VXKH7#,VXKH8# · catalogue 841440 · United States
Supported model
Data version 2022-06

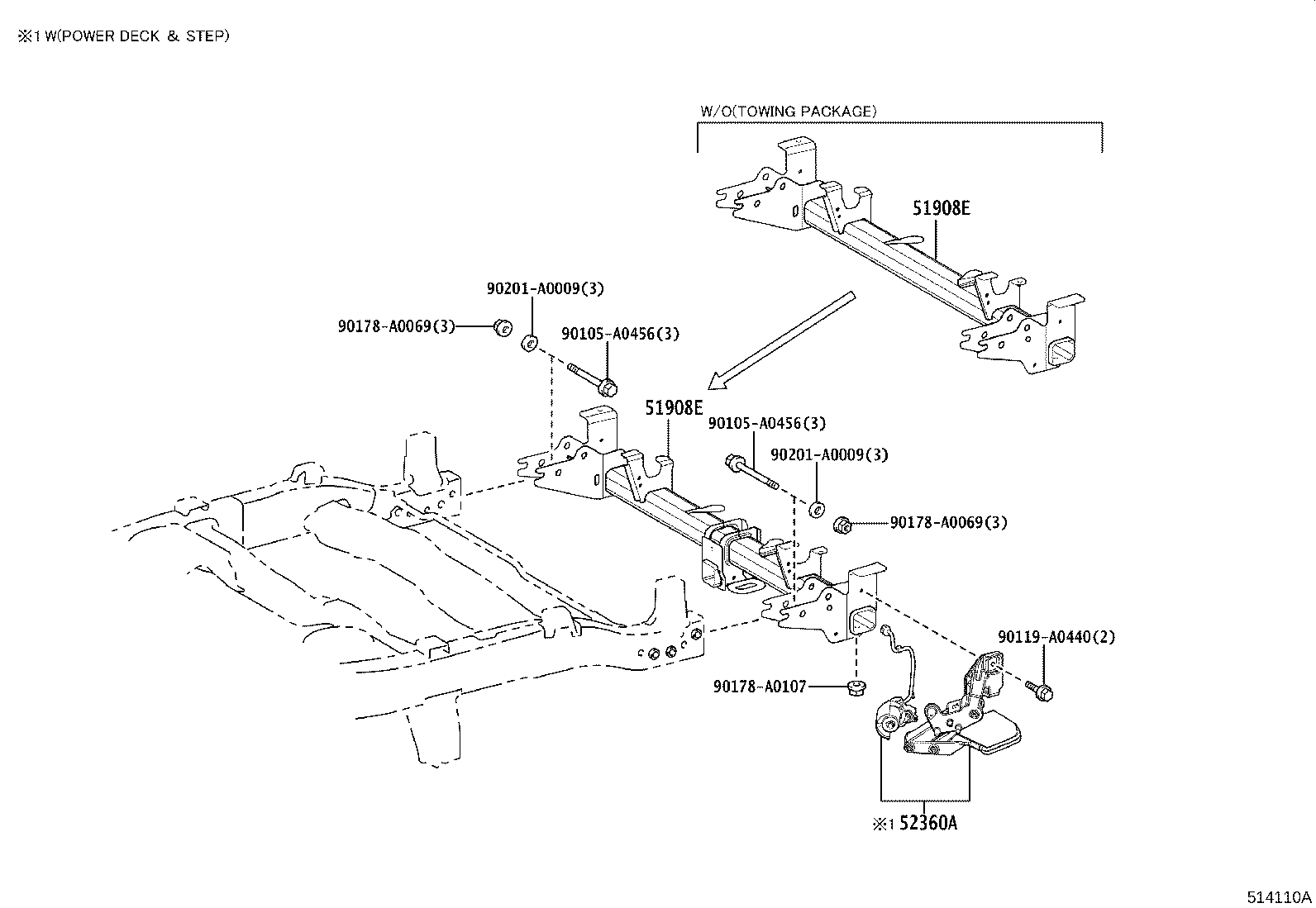

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 51908E — Bracket Sub-assy, Receiver Hitch | ||||
| 51908-0C060 |
Bracket Sub-assy, Receiver Hitch
2021-11 → 2024-08
ended
|
VXKA71,VXKH71 Z;VXKA70,75 DCB L | — | |
| 51908-0C060 |
Bracket Sub-assy, Receiver Hitch
2021-11 → —
|
VXKA70,75 DCB S;VXKA71,72,77,VXKH71 L,S;VXKA70,75,76,VXKH70,75,76 +1 | — | |
| 52023-0C080 note |
Bracket Sub-assy, Receiver Hitch
2021-11 → 2025-08
ended
|
VXKA70,72,75,77 S | — | |
| 52360A — Step Assy, Back, LH | ||||
| 52360-0C010 note |
Step Assy, Back, LH
2021-11 → 2024-08
ended
|
VXKA71,VXKH71 Z | — | |
| 52360-0C010 note |
Step Assy, Back, LH
2021-11 → 2024-11
ended
|
VXKA70,75,76,VXKH70,75,76 Z | — | |
| 52360-0C010 |
Step Assy, Back, LH
2022-03 → 2024-11
ended
|
VXKH75 U | — | |
| 52360-0C011 |
Step Assy, Back, LH
2024-12 → —
|
VXKH75 U | — | |
| 52360-0C011 note |
Step Assy, Back, LH
2024-12 → —
|
VXKA70,75,76,VXKH70,75,76 Z | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
