Toyota Tundra/Sequoia

2021-11 → present · chassis VXKA7#,VXKH7#,VXKH8# · catalogue 841440 · United States

Supported model Data version 2022-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

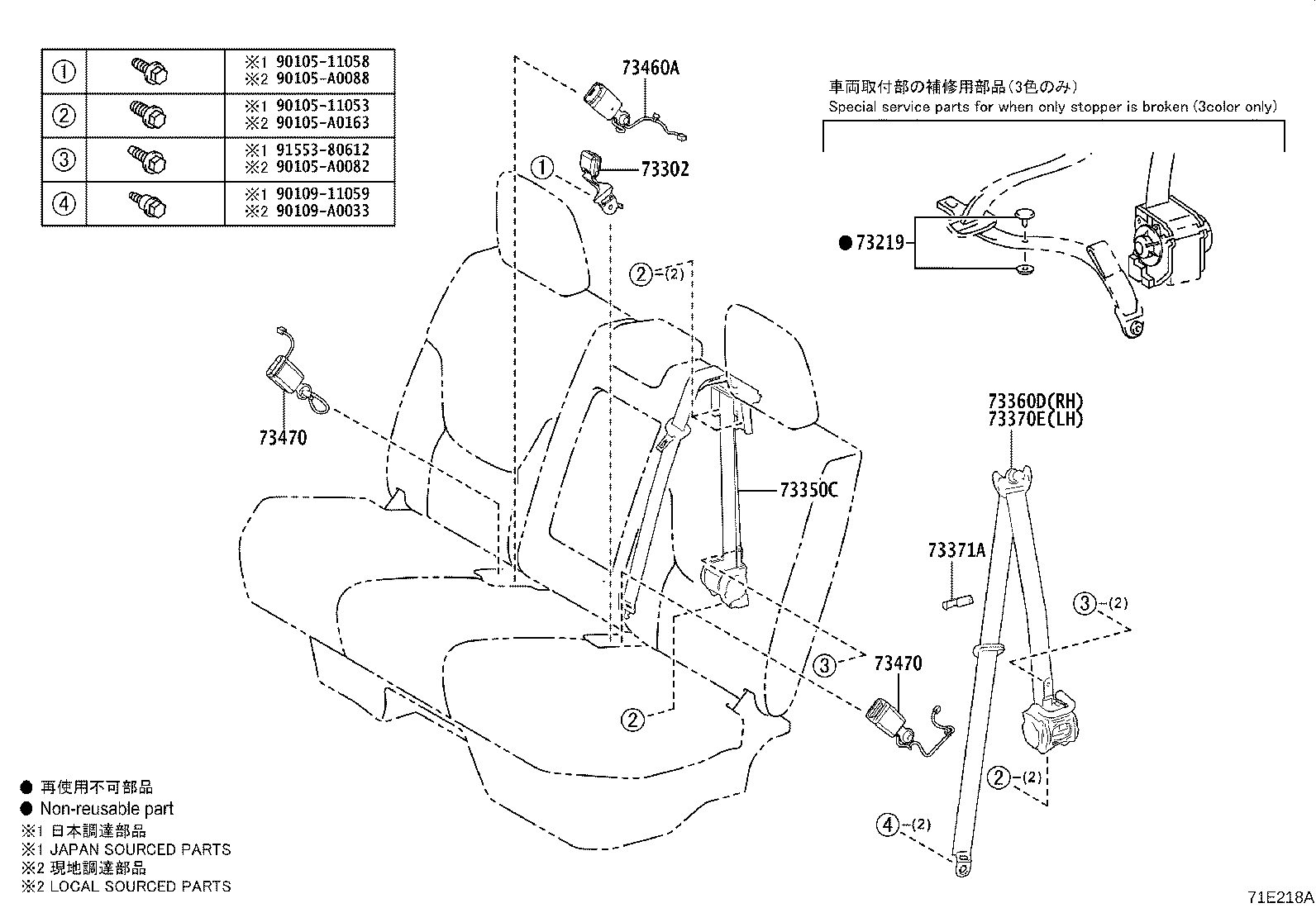

Exploded illustration 71E218A 73470 — BELT ASSY, REAR SEAT, OUTER (5 parts) 73302 — BELT SUB-ASSY, REAR SEAT OUTER (9 parts) 73460A — BELT ASSY, REAR SEAT CENTER, INNER (5 parts) 73470 — BELT ASSY, REAR SEAT, OUTER (5 parts) 73350C — BELT ASSY, REAR SEAT, OUTER CENTER (7 parts) 73371A — HANGER REAR SEAT SHOULDER BELT (10 parts) 73360D — BELT ASSY, REAR SEAT, OUTER RH (23 parts) 73370E — BELT ASSY, REAR SEAT, OUTER LH (23 parts) 9010511058 — not listed in this catalogue 90105A0088 — not listed in this catalogue 9010511053 — not listed in this catalogue 90105A0163 — not listed in this catalogue 9155380612 — not listed in this catalogue 90105A0082 — not listed in this catalogue 9010911059 — not listed in this catalogue 90109A0033 — not listed in this catalogue 73219 — STOPPER, TONGUE PLATE (6 parts)
71E218A · 9 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
88 parts on this figure
Part number Description Fitment Price
73219 — Stopper, Tongue Plate
73219-02010 note Stopper, Tongue Plate
2021-11 → 2024-08 ended
VXKA70,75 DCB L;VXKA71,VXKH71,80 Z —
73219-02010 note Stopper, Tongue Plate
2021-11 → —
VXKA70,75 RF DCB S;VXKA71,72,77,VXKH71,80 +2 —
73219-02020 note Stopper, Tongue Plate
2021-11 → 2024-08 ended
VXKA70,75 DCB L;VXKA71,VXKH71,80 Z —
73219-02020 note Stopper, Tongue Plate
2021-11 → —
VXKA70,75 RF DCB S;VXKA71,72,77,VXKH71,80 +2 —
73219-02030 note Stopper, Tongue Plate
2021-11 → —
VXKA70,75 RF DCB S;VXKA71,72,77,VXKH71,80 +2 —
73219-02030 note Stopper, Tongue Plate
2021-11 → 2024-08 ended
VXKA70,75 DCB L;VXKA71,VXKH71,80 Z —
73302 — Belt Sub-assy, Rear Seat Outer
73301-0C090-C1 note Belt Sub-assy, Rear Seat Outer
2021-11 → 2024-08 ended
VXKA70,75 DCB L —
73301-0C090-C1 note Belt Sub-assy, Rear Seat Outer
2021-11 → 2024-08 ended
VXKA71,VXKH71 Z —
73301-0C090-C1 note Belt Sub-assy, Rear Seat Outer
2021-11 → —
VXKA70,75,76,VXKH70,75,76 Z —
73301-0C090-C1 note Belt Sub-assy, Rear Seat Outer
2021-11 → —
VXKA70,75 DCB S;VXKA70,75 CMAX +2 —
73301-0C090-D0 note Belt Sub-assy, Rear Seat Outer
2022-03 → —
VXKH75 L —
73302-0C020-C0 note Belt Sub-assy, Rear Seat Outer
2022-07 → 2024-08 ended
VXKH80 Z —
73302-0C020-C0 note Belt Sub-assy, Rear Seat Outer
2022-07 → —
VXKH8# L,S —
73302-0C020-C0 note Belt Sub-assy, Rear Seat Outer
2022-07 → —
VXKH85 Z —
73302-0C020-D0 note Belt Sub-assy, Rear Seat Outer
2022-07 → —
VXKH85 L —
73350C — Belt Assy, Rear Seat, Outer Center
73350-0C020-C0 note Belt Assy, Rear Seat, Outer Center
2021-11 → 2024-08 ended
VXKA70,75 DCB L —
73350-0C020-C0 note Belt Assy, Rear Seat, Outer Center
2021-11 → —
VXKA70,72,75,77 DCB S —
73350-0C040-C0 note Belt Assy, Rear Seat, Outer Center
2021-11 → —
VXKA70,71,75,76,VXKH7# CMAX (L,S,U) —
73350-0C040-C0 note Belt Assy, Rear Seat, Outer Center
2021-11 → —
VXKA70,75,76,VXKH70,75,76 Z —
73350-0C040-C0 note Belt Assy, Rear Seat, Outer Center
2021-11 → 2024-08 ended
VXKA71,VXKH71 Z —
73350-0C040-D0 note Belt Assy, Rear Seat, Outer Center
2022-03 → —
VXKH75 L —
73350-0C050-C0 note Belt Assy, Rear Seat, Outer Center
2022-07 → —
VXKH8# L,S —
73360D — Belt Assy, Rear Seat, Outer RH
73360-0C110-C1 note Belt Assy, Rear Seat, Outer RH
2021-11 → 2024-08 ended
VXKA70,72,75,77 DCB —
73360-0C130-C1 note Belt Assy, Rear Seat, Outer RH
2021-11 → 2023-08 ended
VXKH75 L —
73360-0C130-C1 note Belt Assy, Rear Seat, Outer RH
2021-11 → 2024-08 ended
VXKA70,71,75,76,VXKH70,71,76 CMAX (L,S) —
73360-0C130-C1 note Belt Assy, Rear Seat, Outer RH
2023-08 → 2024-08 ended
VXKH75 L —
73360-0C130-C2 note Belt Assy, Rear Seat, Outer RH
2021-11 → 2024-08 ended
VXKA70,71,75,76,VXKH7# Z —
73360-0C130-C2 note Belt Assy, Rear Seat, Outer RH
2022-03 → 2024-08 ended
VXKH75 U —
73360-0C130-C2 note Belt Assy, Rear Seat, Outer RH
2023-08 → 2024-08 ended
VXKH75 L —
73360-0C130-D1 note Belt Assy, Rear Seat, Outer RH
2022-03 → 2023-08 ended
VXKH75 L —
73360-0C130-D2 note Belt Assy, Rear Seat, Outer RH
2023-08 → 2024-08 ended
VXKH75 L —
73360-0C140-C0 note Belt Assy, Rear Seat, Outer RH
2022-07 → 2023-08 ended
VXKH85 L —
73360-0C140-C0 note Belt Assy, Rear Seat, Outer RH
2023-08 → 2024-09 ended
VXKH8# L —
73360-0C140-C0 note Belt Assy, Rear Seat, Outer RH
2022-07 → 2024-09 ended
VXKH8# L,S —
73360-0C140-C1 note Belt Assy, Rear Seat, Outer RH
2022-07 → 2024-08 ended
VXKH80 Z —
73360-0C140-C1 note Belt Assy, Rear Seat, Outer RH
2022-07 → 2023-08 ended
VXKH85 L —
73360-0C140-C1 note Belt Assy, Rear Seat, Outer RH
2023-08 → 2024-09 ended
VXKH8# L —
73360-0C140-C1 note Belt Assy, Rear Seat, Outer RH
2022-07 → —
VXKH85 Z —
73360-0C140-C1 note Belt Assy, Rear Seat, Outer RH
2024-09 → —
VXKH8# L,S —
73360-0C140-D0 note Belt Assy, Rear Seat, Outer RH
2022-07 → 2023-08 ended
VXKH85 L —
73360-0C140-D1 note Belt Assy, Rear Seat, Outer RH
2023-08 → —
VXKH85 L —
73360-AN010-C0 note Belt Assy, Rear Seat, Outer RH
2024-09 → —
VXKA70,75,76,VXKH70,75,76 Z —
73360-AN010-C0 note Belt Assy, Rear Seat, Outer RH
2024-09 → —
VXKA70,71,75,76,VXKH7# CMAX (L,S,U) —
73360-AN010-D0 note Belt Assy, Rear Seat, Outer RH
2024-09 → —
VXKH75 L —
73360-AN020-C0 note Belt Assy, Rear Seat, Outer RH
2024-09 → —
VXKA70,72,75,77 DCB S —
73370E — Belt Assy, Rear Seat, Outer LH
73370-0C090-C1 note Belt Assy, Rear Seat, Outer LH
2021-11 → 2024-08 ended
VXKA70,72,75,77 DCB —
73370-0C100-C1 note Belt Assy, Rear Seat, Outer LH
2021-11 → 2023-08 ended
VXKH75 L —
73370-0C100-C1 note Belt Assy, Rear Seat, Outer LH
2023-08 → 2024-08 ended
VXKH75 L —
73370-0C100-C1 note Belt Assy, Rear Seat, Outer LH
2021-11 → 2024-08 ended
VXKA70,71,75,76,VXKH70,71,76 CMAX (L,S) —
73370-0C100-C2 note Belt Assy, Rear Seat, Outer LH
2023-08 → 2024-08 ended
VXKH75 L —
73370-0C100-C2 note Belt Assy, Rear Seat, Outer LH
2022-03 → 2024-08 ended
VXKH75 U —
73370-0C100-C2 note Belt Assy, Rear Seat, Outer LH
2021-11 → 2024-08 ended
VXKA70,71,75,76,VXKH7# Z —
73370-0C100-D1 note Belt Assy, Rear Seat, Outer LH
2022-03 → 2023-08 ended
VXKH75 L —
73370-0C100-D2 note Belt Assy, Rear Seat, Outer LH
2023-08 → 2024-08 ended
VXKH75 L —
73370-0C110-C0 note Belt Assy, Rear Seat, Outer LH
2022-07 → 2023-08 ended
VXKH85 L —
73370-0C110-C0 note Belt Assy, Rear Seat, Outer LH
2022-07 → 2024-09 ended
VXKH8# L,S —
73370-0C110-C0 note Belt Assy, Rear Seat, Outer LH
2023-08 → 2024-09 ended
VXKH8# L —
73370-0C110-C1 note Belt Assy, Rear Seat, Outer LH
2022-07 → 2023-08 ended
VXKH85 L —
73370-0C110-C1 note Belt Assy, Rear Seat, Outer LH
2022-07 → 2024-08 ended
VXKH80 Z —
73370-0C110-C1 note Belt Assy, Rear Seat, Outer LH
2023-08 → 2024-09 ended
VXKH8# L —
73370-0C110-C1 note Belt Assy, Rear Seat, Outer LH
2022-07 → —
VXKH85 Z —
73370-0C110-C1 note Belt Assy, Rear Seat, Outer LH
2024-09 → —
VXKH8# L,S —
73370-0C110-D0 note Belt Assy, Rear Seat, Outer LH
2022-07 → 2023-08 ended
VXKH85 L —
73370-0C110-D1 note Belt Assy, Rear Seat, Outer LH
2023-08 → —
VXKH85 L —
73370-AN010-C0 note Belt Assy, Rear Seat, Outer LH
2024-09 → —
VXKA70,75,76,VXKH70,75,76 Z —
73370-AN010-C0 note Belt Assy, Rear Seat, Outer LH
2024-09 → —
VXKA70,71,75,76,VXKH7# CMAX (L,S,U) —
73370-AN010-D0 note Belt Assy, Rear Seat, Outer LH
2024-09 → —
VXKH75 L —
73370-AN020-C0 note Belt Assy, Rear Seat, Outer LH
2024-09 → —
VXKA70,72,75,77 DCB S —
73371A — Hanger Rear Seat Shoulder Belt
73371-0E010-C1 note Hanger Rear Seat Shoulder Belt
2021-11 → 2024-08 ended
VXKA70,75 DCB L —
73371-0E010-C1 note Hanger Rear Seat Shoulder Belt
2021-11 → 2024-08 ended
VXKA71,VXKH71 Z —
73371-0E010-C1 note Hanger Rear Seat Shoulder Belt
2021-11 → —
VXKA70,75,76,VXKH70,75,76 Z —
73371-0E010-C1 note Hanger Rear Seat Shoulder Belt
2021-11 → —
VXKH75 ,S U;VXKA70,75 DCB +4 —
73371-0E010-C1 note Hanger Rear Seat Shoulder Belt
2022-03 → —
VXKH75 L —
73371-60040-C1 note Hanger Rear Seat Shoulder Belt
2022-07 → 2023-08 ended
VXKH85 L —
73371-60040-C1 note Hanger Rear Seat Shoulder Belt
2023-08 → —
VXKH85 L —
73371-60040-C1 note Hanger Rear Seat Shoulder Belt
2022-07 → —
VXKH85 Z —
73371-60040-C1 note Hanger Rear Seat Shoulder Belt
2022-07 → —
VXKH8# L,S —
73371-60040-C1 note Hanger Rear Seat Shoulder Belt
2022-07 → 2024-08 ended
VXKH80 Z —
73460A — Belt Assy, Rear Seat Center, Inner
73306-0C070-C0 note Belt Assy, Rear Seat Center, Inner
2021-11 → 2024-08 ended
VXKA70,75 DCB L —
73306-0C070-C0 note Belt Assy, Rear Seat Center, Inner
2021-11 → 2024-08 ended
VXKA71,VXKH71 Z —
73306-0C070-C0 note Belt Assy, Rear Seat Center, Inner
2021-11 → —
VXKA70,75,76,VXKH70,75,76 Z —
73306-0C070-C0 note Belt Assy, Rear Seat Center, Inner
2021-11 → —
VXKH75 ,S U;VXKA70,75 DCB +4 —
73306-0C070-C0 note Belt Assy, Rear Seat Center, Inner
2022-03 → —
VXKH75 L —
73470 — Belt Assy, Rear Seat, Outer
73380-0C090-C0 note Belt Assy, Rear Seat, Outer
2021-11 → 2024-08 ended
VXKA70,75 DCB L —
73380-0C090-C0 note Belt Assy, Rear Seat, Outer
2021-11 → 2024-08 ended
VXKA71,VXKH71 Z —
73380-0C090-C0 note Belt Assy, Rear Seat, Outer
2021-11 → —
VXKA70,75,76,VXKH70,75,76 Z —
73380-0C090-C0 note Belt Assy, Rear Seat, Outer
2021-11 → —
VXKH75 ,S U;VXKA70,75 DCB +4 —
73380-0C090-C0 note Belt Assy, Rear Seat, Outer
2022-03 → —
VXKH75 L —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
