Toyota Tundra/Sequoia

2021-11 → present · chassis VXKA7#,VXKH7#,VXKH8# · catalogue 841440 · United States

Supported model Data version 2022-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

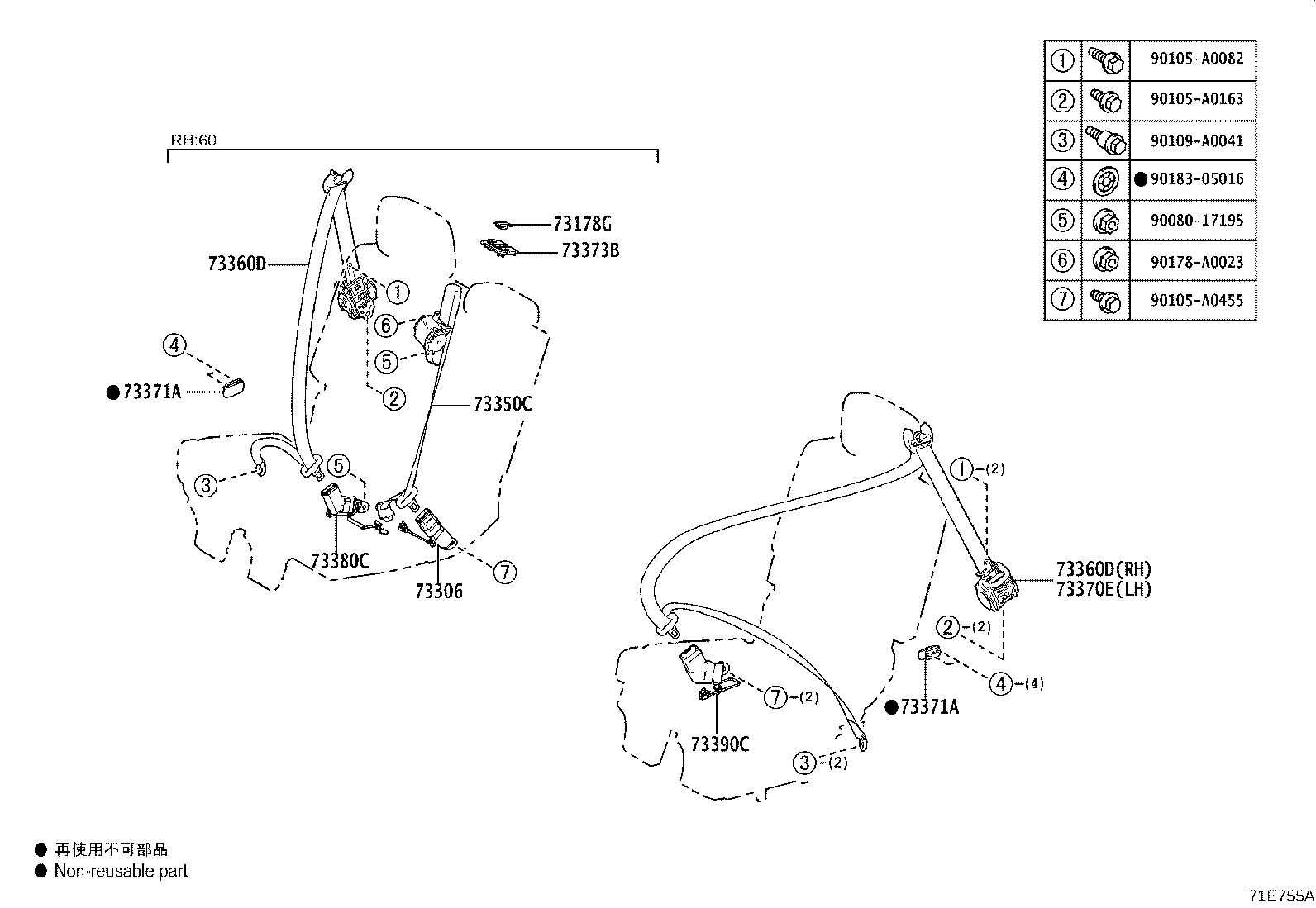

Exploded illustration 71E755A 73178G — CAP, SEAT BELT ANCHOR COVER (1 parts) 73373B — COVER, REAR NO.1 SEAT SHOULDER BELT (1 parts) 73360D — BELT ASSY, REAR SEAT, OUTER RH (23 parts) 73371A — HANGER REAR SEAT SHOULDER BELT (10 parts) 73390C — BELT ASSY, REAR NO.1 SEAT, INNER LH (5 parts) 90105A0082 — not listed in this catalogue 90105A0163 — not listed in this catalogue 90109A0041 — not listed in this catalogue 9018305016 — not listed in this catalogue 9008017195 — not listed in this catalogue 90178A0023 — not listed in this catalogue 90105A0455 — not listed in this catalogue 73380C — BELT ASSY, REAR NO.1 SEAT, INNER RH (6 parts) 73306 — BELT SUB-ASSY SEAT, INNER (1 parts) 73350C — BELT ASSY, REAR SEAT, OUTER CENTER (7 parts) 73360D — BELT ASSY, REAR SEAT, OUTER RH (23 parts) 73370E — BELT ASSY, REAR SEAT, OUTER LH (23 parts) 73371A — HANGER REAR SEAT SHOULDER BELT (10 parts)
71E755A · 11 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
77 parts on this figure
Part number Description Fitment Price
73178G — Cap, Seat Belt Anchor Cover
73178-48010-C1 note Cap, Seat Belt Anchor Cover
2022-07 → —
VXKH8# L,S —
73306 — Belt Sub-assy Seat, Inner
73306-0C090-C0 note Belt Sub-assy Seat, Inner
2022-07 → —
VXKH8# L,S —
73350C — Belt Assy, Rear Seat, Outer Center
73350-0C020-C0 note Belt Assy, Rear Seat, Outer Center
2021-11 → 2024-08 ended
VXKA70,75 DCB L —
73350-0C020-C0 note Belt Assy, Rear Seat, Outer Center
2021-11 → —
VXKA70,72,75,77 DCB S —
73350-0C040-C0 note Belt Assy, Rear Seat, Outer Center
2021-11 → 2024-08 ended
VXKA71,VXKH71 Z —
73350-0C040-C0 note Belt Assy, Rear Seat, Outer Center
2021-11 → —
VXKA70,75,76,VXKH70,75,76 Z —
73350-0C040-C0 note Belt Assy, Rear Seat, Outer Center
2021-11 → —
VXKA70,71,75,76,VXKH7# CMAX (L,S,U) —
73350-0C040-D0 note Belt Assy, Rear Seat, Outer Center
2022-03 → —
VXKH75 L —
73350-0C050-C0 note Belt Assy, Rear Seat, Outer Center
2022-07 → —
VXKH8# L,S —
73360D — Belt Assy, Rear Seat, Outer RH
73360-0C110-C1 note Belt Assy, Rear Seat, Outer RH
2021-11 → 2024-08 ended
VXKA70,72,75,77 DCB —
73360-0C130-C1 note Belt Assy, Rear Seat, Outer RH
2021-11 → 2023-08 ended
VXKH75 L —
73360-0C130-C1 note Belt Assy, Rear Seat, Outer RH
2023-08 → 2024-08 ended
VXKH75 L —
73360-0C130-C1 note Belt Assy, Rear Seat, Outer RH
2021-11 → 2024-08 ended
VXKA70,71,75,76,VXKH70,71,76 CMAX (L,S) —
73360-0C130-C2 note Belt Assy, Rear Seat, Outer RH
2022-03 → 2024-08 ended
VXKH75 U —
73360-0C130-C2 note Belt Assy, Rear Seat, Outer RH
2023-08 → 2024-08 ended
VXKH75 L —
73360-0C130-C2 note Belt Assy, Rear Seat, Outer RH
2021-11 → 2024-08 ended
VXKA70,71,75,76,VXKH7# Z —
73360-0C130-D1 note Belt Assy, Rear Seat, Outer RH
2022-03 → 2023-08 ended
VXKH75 L —
73360-0C130-D2 note Belt Assy, Rear Seat, Outer RH
2023-08 → 2024-08 ended
VXKH75 L —
73360-0C140-C0 note Belt Assy, Rear Seat, Outer RH
2022-07 → 2023-08 ended
VXKH85 L —
73360-0C140-C0 note Belt Assy, Rear Seat, Outer RH
2022-07 → 2024-09 ended
VXKH8# L,S —
73360-0C140-C0 note Belt Assy, Rear Seat, Outer RH
2023-08 → 2024-09 ended
VXKH8# L —
73360-0C140-C1 note Belt Assy, Rear Seat, Outer RH
2023-08 → 2024-09 ended
VXKH8# L —
73360-0C140-C1 note Belt Assy, Rear Seat, Outer RH
2024-09 → —
VXKH8# L,S —
73360-0C140-C1 note Belt Assy, Rear Seat, Outer RH
2022-07 → —
VXKH85 Z —
73360-0C140-C1 note Belt Assy, Rear Seat, Outer RH
2022-07 → 2023-08 ended
VXKH85 L —
73360-0C140-C1 note Belt Assy, Rear Seat, Outer RH
2022-07 → 2024-08 ended
VXKH80 Z —
73360-0C140-D0 note Belt Assy, Rear Seat, Outer RH
2022-07 → 2023-08 ended
VXKH85 L —
73360-0C140-D1 note Belt Assy, Rear Seat, Outer RH
2023-08 → —
VXKH85 L —
73360-AN010-C0 note Belt Assy, Rear Seat, Outer RH
2024-09 → —
VXKA70,75,76,VXKH70,75,76 Z —
73360-AN010-C0 note Belt Assy, Rear Seat, Outer RH
2024-09 → —
VXKA70,71,75,76,VXKH7# CMAX (L,S,U) —
73360-AN010-D0 note Belt Assy, Rear Seat, Outer RH
2024-09 → —
VXKH75 L —
73360-AN020-C0 note Belt Assy, Rear Seat, Outer RH
2024-09 → —
VXKA70,72,75,77 DCB S —
73370E — Belt Assy, Rear Seat, Outer LH
73370-0C090-C1 note Belt Assy, Rear Seat, Outer LH
2021-11 → 2024-08 ended
VXKA70,72,75,77 DCB —
73370-0C100-C1 note Belt Assy, Rear Seat, Outer LH
2023-08 → 2024-08 ended
VXKH75 L —
73370-0C100-C1 note Belt Assy, Rear Seat, Outer LH
2021-11 → 2024-08 ended
VXKA70,71,75,76,VXKH70,71,76 CMAX (L,S) —
73370-0C100-C1 note Belt Assy, Rear Seat, Outer LH
2021-11 → 2023-08 ended
VXKH75 L —
73370-0C100-C2 note Belt Assy, Rear Seat, Outer LH
2021-11 → 2024-08 ended
VXKA70,71,75,76,VXKH7# Z —
73370-0C100-C2 note Belt Assy, Rear Seat, Outer LH
2022-03 → 2024-08 ended
VXKH75 U —
73370-0C100-C2 note Belt Assy, Rear Seat, Outer LH
2023-08 → 2024-08 ended
VXKH75 L —
73370-0C100-D1 note Belt Assy, Rear Seat, Outer LH
2022-03 → 2023-08 ended
VXKH75 L —
73370-0C100-D2 note Belt Assy, Rear Seat, Outer LH
2023-08 → 2024-08 ended
VXKH75 L —
73370-0C110-C0 note Belt Assy, Rear Seat, Outer LH
2022-07 → 2023-08 ended
VXKH85 L —
73370-0C110-C0 note Belt Assy, Rear Seat, Outer LH
2022-07 → 2024-09 ended
VXKH8# L,S —
73370-0C110-C0 note Belt Assy, Rear Seat, Outer LH
2023-08 → 2024-09 ended
VXKH8# L —
73370-0C110-C1 note Belt Assy, Rear Seat, Outer LH
2022-07 → 2023-08 ended
VXKH85 L —
73370-0C110-C1 note Belt Assy, Rear Seat, Outer LH
2022-07 → 2024-08 ended
VXKH80 Z —
73370-0C110-C1 note Belt Assy, Rear Seat, Outer LH
2023-08 → 2024-09 ended
VXKH8# L —
73370-0C110-C1 note Belt Assy, Rear Seat, Outer LH
2022-07 → —
VXKH85 Z —
73370-0C110-C1 note Belt Assy, Rear Seat, Outer LH
2024-09 → —
VXKH8# L,S —
73370-0C110-D0 note Belt Assy, Rear Seat, Outer LH
2022-07 → 2023-08 ended
VXKH85 L —
73370-0C110-D1 note Belt Assy, Rear Seat, Outer LH
2023-08 → —
VXKH85 L —
73370-AN010-C0 note Belt Assy, Rear Seat, Outer LH
2024-09 → —
VXKA70,75,76,VXKH70,75,76 Z —
73370-AN010-C0 note Belt Assy, Rear Seat, Outer LH
2024-09 → —
VXKA70,71,75,76,VXKH7# CMAX (L,S,U) —
73370-AN010-D0 note Belt Assy, Rear Seat, Outer LH
2024-09 → —
VXKH75 L —
73370-AN020-C0 note Belt Assy, Rear Seat, Outer LH
2024-09 → —
VXKA70,72,75,77 DCB S —
73371A — Hanger Rear Seat Shoulder Belt
73371-0E010-C1 note Hanger Rear Seat Shoulder Belt
2022-03 → —
VXKH75 L —
73371-0E010-C1 note Hanger Rear Seat Shoulder Belt
2021-11 → 2024-08 ended
VXKA70,75 DCB L —
73371-0E010-C1 note Hanger Rear Seat Shoulder Belt
2021-11 → —
VXKH75 ,S U;VXKA70,75 DCB +4 —
73371-0E010-C1 note Hanger Rear Seat Shoulder Belt
2021-11 → —
VXKA70,75,76,VXKH70,75,76 Z —
73371-0E010-C1 note Hanger Rear Seat Shoulder Belt
2021-11 → 2024-08 ended
VXKA71,VXKH71 Z —
73371-60040-C1 note Hanger Rear Seat Shoulder Belt
2022-07 → 2023-08 ended
VXKH85 L —
73371-60040-C1 note Hanger Rear Seat Shoulder Belt
2022-07 → —
VXKH8# L,S —
73371-60040-C1 note Hanger Rear Seat Shoulder Belt
2022-07 → —
VXKH85 Z —
73371-60040-C1 note Hanger Rear Seat Shoulder Belt
2023-08 → —
VXKH85 L —
73371-60040-C1 note Hanger Rear Seat Shoulder Belt
2022-07 → 2024-08 ended
VXKH80 Z —
73373B — Cover, Rear NO.1 Seat Shoulder Belt
73373-48080-C1 note Cover, Rear NO.1 Seat Shoulder Belt
2022-07 → —
VXKH8# L,S —
73380C — Belt Assy, Rear NO.1 Seat, Inner RH
73380-0C100-C0 note Belt Assy, Rear NO.1 Seat, Inner RH
2022-07 → —
VXKH8# L,S —
73380-0C110-C0 note Belt Assy, Rear NO.1 Seat, Inner RH
2022-07 → 2024-08 ended
VXKH80 Z —
73380-0C110-C0 note Belt Assy, Rear NO.1 Seat, Inner RH
2022-07 → 2023-08 ended
VXKH85 L —
73380-0C110-C0 note Belt Assy, Rear NO.1 Seat, Inner RH
2022-07 → —
VXKH85 Z —
73380-0C110-C0 note Belt Assy, Rear NO.1 Seat, Inner RH
2023-08 → —
VXKH85 L —
73380-0C110-C0 note Belt Assy, Rear NO.1 Seat, Inner RH
2023-08 → —
VXKH80 L —
73390C — Belt Assy, Rear NO.1 Seat, Inner LH
73390-0C050-C0 note Belt Assy, Rear NO.1 Seat, Inner LH
2022-07 → 2023-08 ended
VXKH85 L —
73390-0C050-C0 note Belt Assy, Rear NO.1 Seat, Inner LH
2022-07 → 2024-08 ended
VXKH80 Z —
73390-0C050-C0 note Belt Assy, Rear NO.1 Seat, Inner LH
2022-07 → —
VXKH8# L,S —
73390-0C050-C0 note Belt Assy, Rear NO.1 Seat, Inner LH
2022-07 → —
VXKH85 Z —
73390-0C050-C0 note Belt Assy, Rear NO.1 Seat, Inner LH
2023-08 → —
VXKH85 L —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
