Toyota Tundra/Sequoia

2021-11 → present · chassis VXKA7#,VXKH7#,VXKH8# · catalogue 841440 · United States

Supported model Data version 2022-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

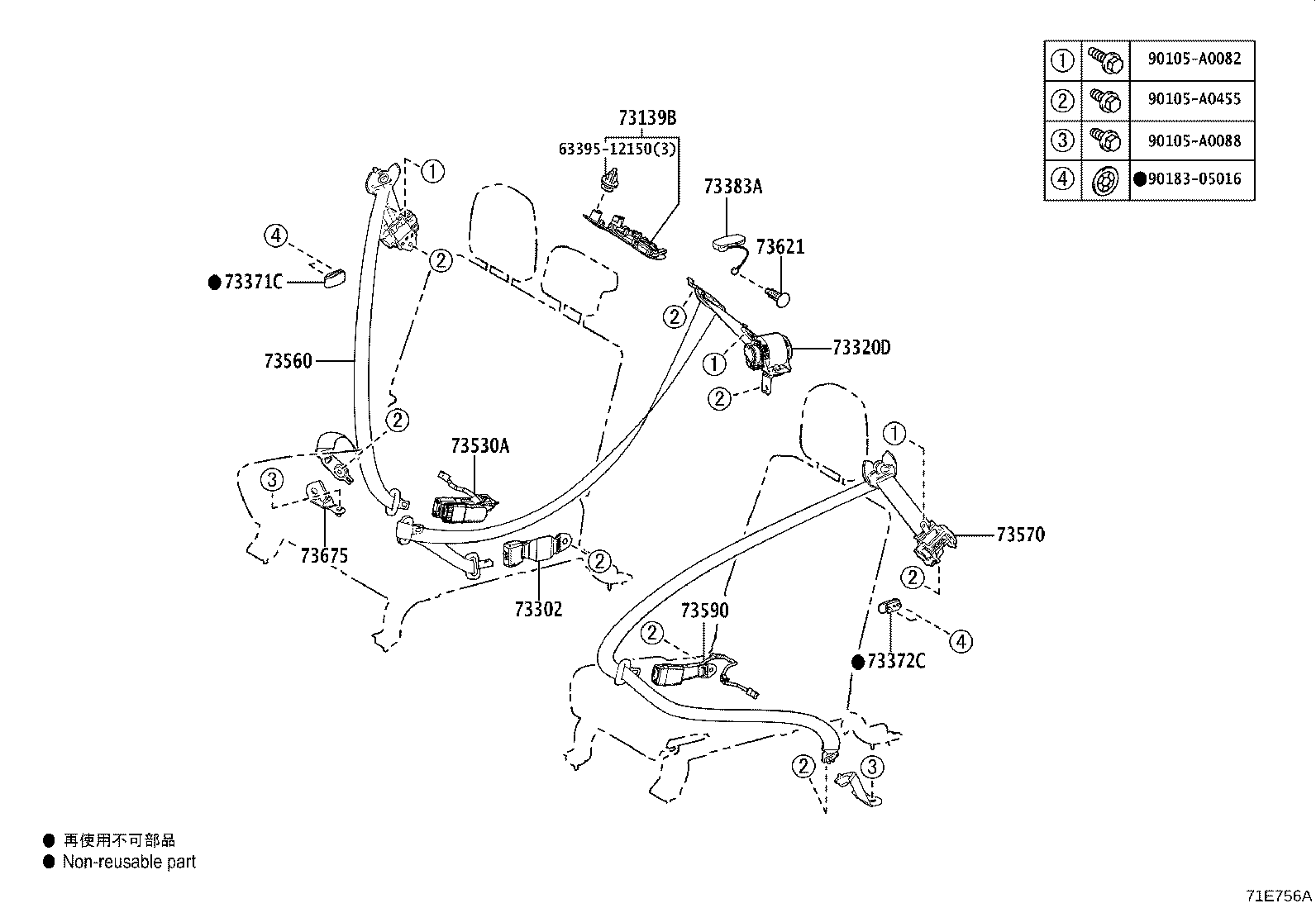

Exploded illustration 71E756A 73560 — BELT ASSY, REAR NO.2 SEAT, OUTER RH (7 parts) 73139B — COVER, SEAT BELT ANCHOR (8 parts) 73371C — HANGER, REAR NO.2 SEAT SHOULDER BELT, RH (4 parts) 73675 — PLATE, REAR OUTER ANCHOR, RH (2 parts) 73372C — HANGER, REAR NO.2 SEAT SHOULDER BELT, LH (4 parts) 73383A — HOOK, RR SEAT BELT (2 parts) 73621 — CLIP (2 parts) 90105A0082 — not listed in this catalogue 90105A0455 — not listed in this catalogue 6339512150 — not listed in this catalogue 90105A0088 — not listed in this catalogue 9018305016 — not listed in this catalogue 73302 — BELT SUB-ASSY, REAR SEAT OUTER (9 parts) 73590 — BELT ASSY, REAR NO.2 SEAT, INNER LH (4 parts) 73530A — BELT ASSY, REAR NO.2 SEAT LAP TYPE, RH (4 parts) 73570 — BELT ASSY, REAR NO.2 SEAT, OUTER LH (7 parts) 73320D — BELT ASSY, NO.2 SEAT 3 POINT TYPE, LH (4 parts)
71E756A · 12 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
57 parts on this figure
Part number Description Fitment Price
73139B — Cover, Seat Belt Anchor
73139-0C020-B0 note Cover, Seat Belt Anchor
2022-07 → 2024-09 ended
VXKH85 S;VXKH80 L,S —
73139-0C020-B0 note Cover, Seat Belt Anchor
2022-07 → 2024-09 ended
VXKH85 L —
73139-0C020-C0 note Cover, Seat Belt Anchor
2022-07 → 2024-09 ended
VXKH85 S;VXKH80 L,S —
73139-0C020-C0 note Cover, Seat Belt Anchor
2022-07 → 2024-09 ended
VXKH85 L —
73139-0C020-C0 note Cover, Seat Belt Anchor
2022-07 → —
VXKH85 Z —
73139-0C020-C0 note Cover, Seat Belt Anchor
2024-09 → —
VXKH85 S;VXKH80 L,S —
73139-0C020-C0 note Cover, Seat Belt Anchor
2024-09 → —
VXKH85 L —
73139-0C020-C0 note Cover, Seat Belt Anchor
2022-07 → 2024-08 ended
VXKH80 Z —
73302 — Belt Sub-assy, Rear Seat Outer
73301-0C090-C1 note Belt Sub-assy, Rear Seat Outer
2021-11 → 2024-08 ended
VXKA70,75 DCB L —
73301-0C090-C1 note Belt Sub-assy, Rear Seat Outer
2021-11 → 2024-08 ended
VXKA71,VXKH71 Z —
73301-0C090-C1 note Belt Sub-assy, Rear Seat Outer
2021-11 → —
VXKA70,75,76,VXKH70,75,76 Z —
73301-0C090-C1 note Belt Sub-assy, Rear Seat Outer
2021-11 → —
VXKA70,75 DCB S;VXKA70,75 CMAX +2 —
73301-0C090-D0 note Belt Sub-assy, Rear Seat Outer
2022-03 → —
VXKH75 L —
73302-0C020-C0 note Belt Sub-assy, Rear Seat Outer
2022-07 → —
VXKH8# L,S —
73302-0C020-C0 note Belt Sub-assy, Rear Seat Outer
2022-07 → —
VXKH85 Z —
73302-0C020-C0 note Belt Sub-assy, Rear Seat Outer
2022-07 → 2024-08 ended
VXKH80 Z —
73302-0C020-D0 note Belt Sub-assy, Rear Seat Outer
2022-07 → —
VXKH85 L —
73320D — Belt Assy, NO.2 Seat 3 Point Type, LH
73520-0C010-C0 note Belt Assy, NO.2 Seat 3 Point Type, LH
2022-07 → 2024-08 ended
VXKH80 Z —
73520-0C010-C0 note Belt Assy, NO.2 Seat 3 Point Type, LH
2022-07 → —
VXKH8# L,S —
73520-0C010-C0 note Belt Assy, NO.2 Seat 3 Point Type, LH
2022-07 → —
VXKH85 Z —
73520-0C010-D0 note Belt Assy, NO.2 Seat 3 Point Type, LH
2022-07 → —
VXKH85 L —
73371C — Hanger, Rear NO.2 Seat Shoulder Belt, RH
73371-60040-C1 note Hanger, Rear NO.2 Seat Shoulder Belt, RH
2022-07 → 2024-08 ended
VXKH80 Z —
73371-60040-C1 note Hanger, Rear NO.2 Seat Shoulder Belt, RH
2022-07 → —
VXKH85 S;VXKH80 L,S —
73371-60040-C1 note Hanger, Rear NO.2 Seat Shoulder Belt, RH
2022-07 → —
VXKH85 L —
73371-60040-C1 note Hanger, Rear NO.2 Seat Shoulder Belt, RH
2022-07 → —
VXKH85 Z —
73372C — Hanger, Rear NO.2 Seat Shoulder Belt, LH
73371-60040-C1 note Hanger, Rear NO.2 Seat Shoulder Belt, LH
2022-07 → —
VXKH85 Z —
73371-60040-C1 note Hanger, Rear NO.2 Seat Shoulder Belt, LH
2022-07 → —
VXKH85 L —
73371-60040-C1 note Hanger, Rear NO.2 Seat Shoulder Belt, LH
2022-07 → 2024-08 ended
VXKH80 Z —
73371-60040-C1 note Hanger, Rear NO.2 Seat Shoulder Belt, LH
2022-07 → —
VXKH85 S;VXKH80 L,S —
73383A — Hook, RR Seat Belt
73383-AA020 Hook, RR Seat Belt
2022-07 → 2024-08 ended
VXKH80 Z —
73383-AA020 Hook, RR Seat Belt
2022-07 → —
VXKH85;VXKH80 L,S —
73530A — Belt Assy, Rear NO.2 Seat Lap Type, RH
73530-0C010-C0 note Belt Assy, Rear NO.2 Seat Lap Type, RH
2022-07 → 2024-08 ended
VXKH80 Z —
73530-0C010-C0 note Belt Assy, Rear NO.2 Seat Lap Type, RH
2022-07 → —
VXKH85 S;VXKH80 L,S —
73530-0C010-C0 note Belt Assy, Rear NO.2 Seat Lap Type, RH
2022-07 → —
VXKH85 L —
73530-0C010-C0 note Belt Assy, Rear NO.2 Seat Lap Type, RH
2022-07 → —
VXKH85 Z —
73560 — Belt Assy, Rear NO.2 Seat, Outer RH
73560-0C050-C0 note Belt Assy, Rear NO.2 Seat, Outer RH
2022-07 → 2024-09 ended
VXKH8# L,S —
73560-0C050-C1 note Belt Assy, Rear NO.2 Seat, Outer RH
2022-07 → 2024-08 ended
VXKH80 Z —
73560-0C050-C1 note Belt Assy, Rear NO.2 Seat, Outer RH
2022-07 → 2024-09 ended
VXKH8# L,S —
73560-0C050-C1 note Belt Assy, Rear NO.2 Seat, Outer RH
2022-07 → —
VXKH85 Z —
73560-0C050-C1 note Belt Assy, Rear NO.2 Seat, Outer RH
2024-09 → —
VXKH8# L,S —
73560-0C050-D0 note Belt Assy, Rear NO.2 Seat, Outer RH
2022-07 → 2023-08 ended
VXKH85 L —
73560-0C050-D1 note Belt Assy, Rear NO.2 Seat, Outer RH
2023-08 → —
VXKH85 L —
73570 — Belt Assy, Rear NO.2 Seat, Outer LH
73570-0C060-C0 note Belt Assy, Rear NO.2 Seat, Outer LH
2022-07 → 2024-09 ended
VXKH8# L,S —
73570-0C060-C1 note Belt Assy, Rear NO.2 Seat, Outer LH
2022-07 → 2024-08 ended
VXKH80 Z —
73570-0C060-C1 note Belt Assy, Rear NO.2 Seat, Outer LH
2022-07 → 2024-09 ended
VXKH8# L,S —
73570-0C060-C1 note Belt Assy, Rear NO.2 Seat, Outer LH
2022-07 → —
VXKH85 Z —
73570-0C060-C1 note Belt Assy, Rear NO.2 Seat, Outer LH
2024-09 → —
VXKH8# L,S —
73570-0C060-D0 note Belt Assy, Rear NO.2 Seat, Outer LH
2022-07 → 2023-08 ended
VXKH85 L —
73570-0C060-D1 note Belt Assy, Rear NO.2 Seat, Outer LH
2023-08 → —
VXKH85 L —
73590 — Belt Assy, Rear NO.2 Seat, Inner LH
73590-0C060-C0 note Belt Assy, Rear NO.2 Seat, Inner LH
2022-07 → 2024-08 ended
VXKH80 Z —
73590-0C060-C0 note Belt Assy, Rear NO.2 Seat, Inner LH
2022-07 → —
VXKH85 S;VXKH80 L,S —
73590-0C060-C0 note Belt Assy, Rear NO.2 Seat, Inner LH
2022-07 → —
VXKH85 L —
73590-0C060-C0 note Belt Assy, Rear NO.2 Seat, Inner LH
2022-07 → —
VXKH85 Z —
73621 — Clip
76519-06010 Clip
2022-07 → 2024-08 ended
VXKH80 Z —
76519-06010 Clip
2022-07 → —
VXKH85;VXKH80 L,S —
73675 — Plate, Rear Outer Anchor, RH
73675-0C010 Plate, Rear Outer Anchor, RH
2022-07 → 2024-08 ended
VXKH80 Z —
73675-0C010 Plate, Rear Outer Anchor, RH
2022-07 → —
VXKH85;VXKH80 L,S —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
