Toyota Tundra/Sequoia
2021-11 → present · chassis VXKA7#,VXKH7#,VXKH8# · catalogue 841440 · United States
Supported model
Data version 2022-06
Water Pump

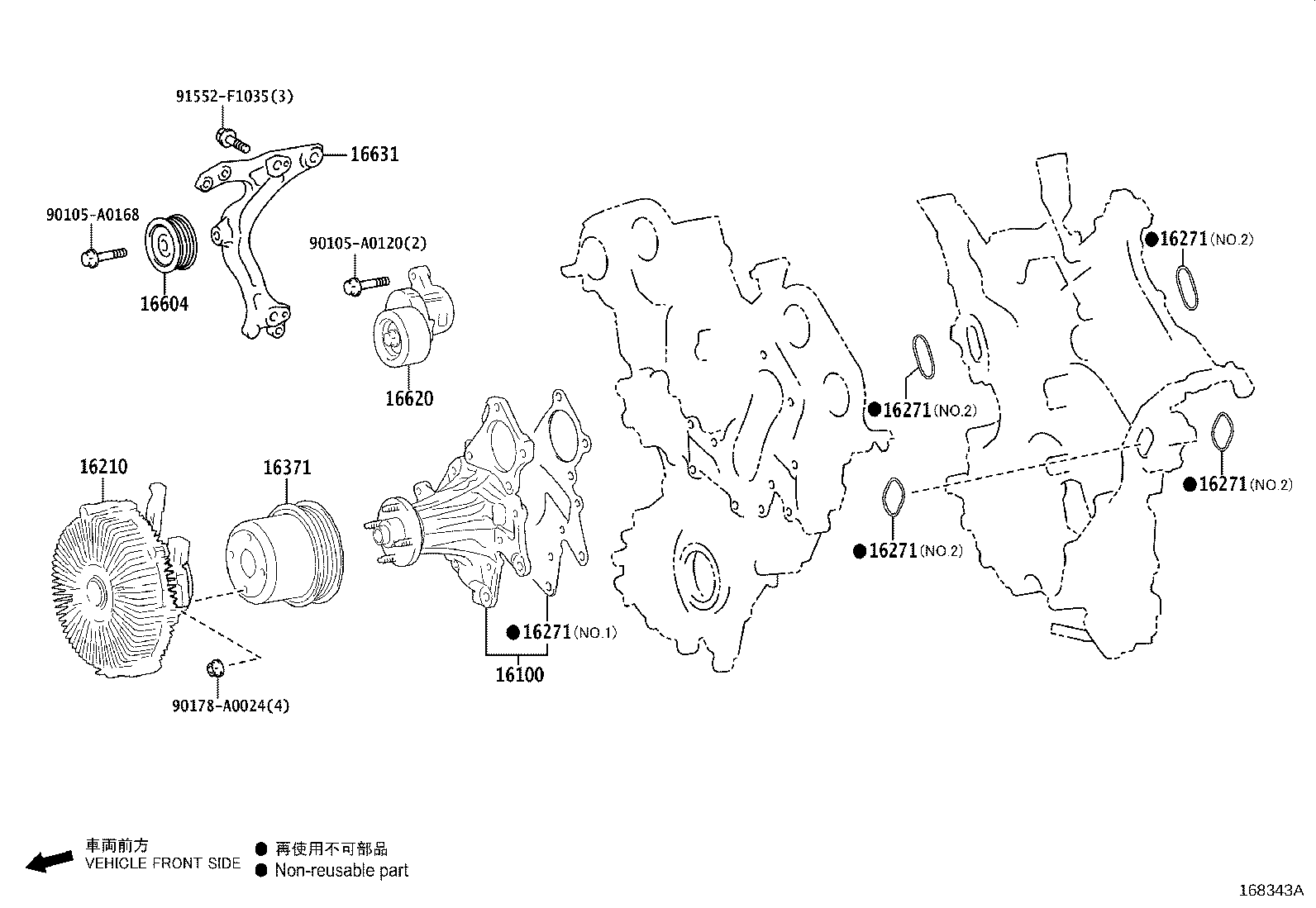

7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 16100 | Pump Assy, Engine Water |
| 16210 | Coupling Assy, Fluid |
| 16271 | Gasket, Water Pump |
| 16371 | Pulley, Fan |
| 16604 | Pulley Sub-assy, Idler, NO.2 |
| 16620 | Tensioner Assy, V-ribbed Belt |
| 16631 | Bracket, Idler Pulley |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
