Toyota Tundra/Sequoia

2021-11 → present · chassis VXKA7#,VXKH7#,VXKH8# · catalogue 841440 · United States

Supported model Data version 2022-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

9 part groups · 4 illustrations

Illustrations

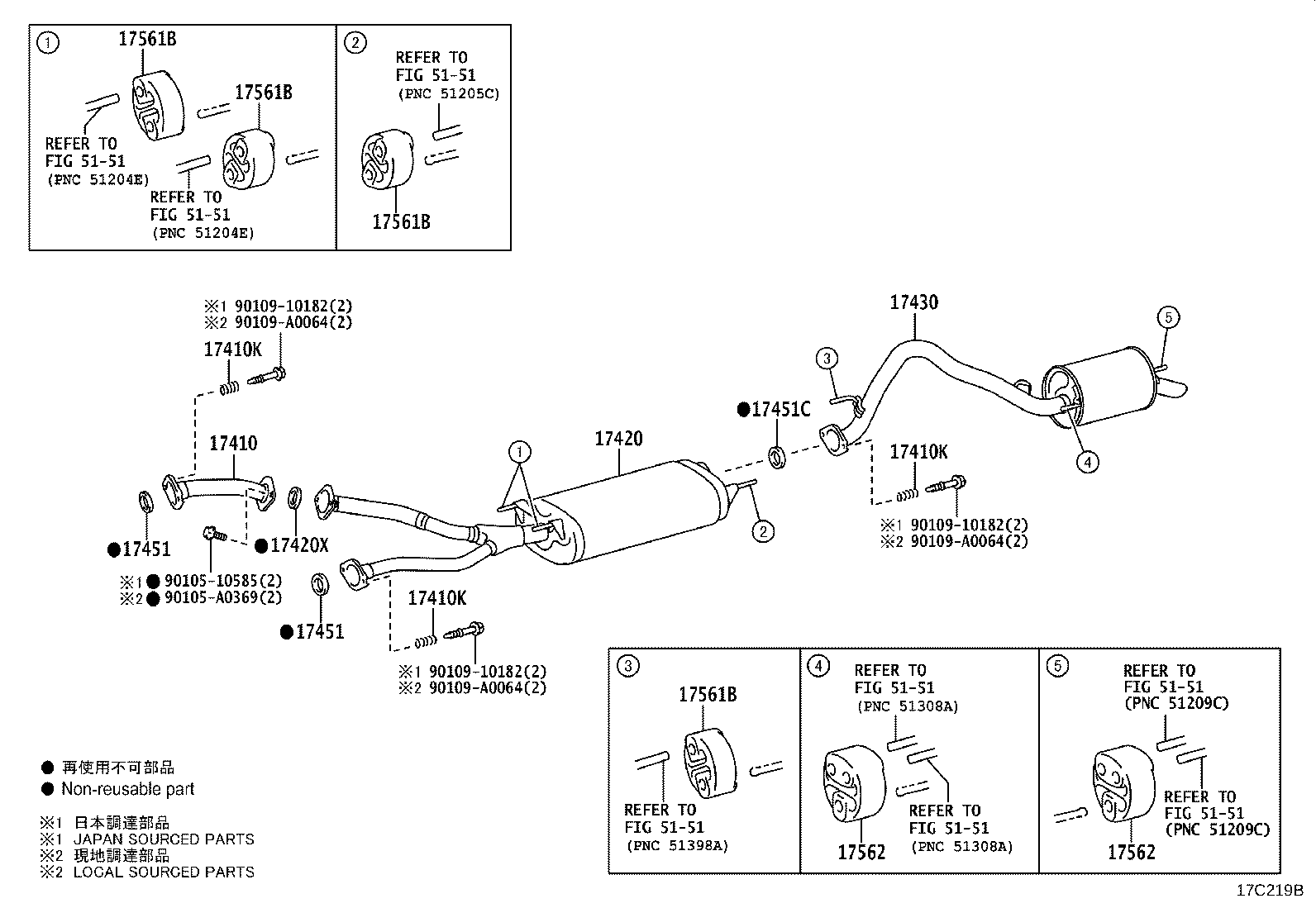

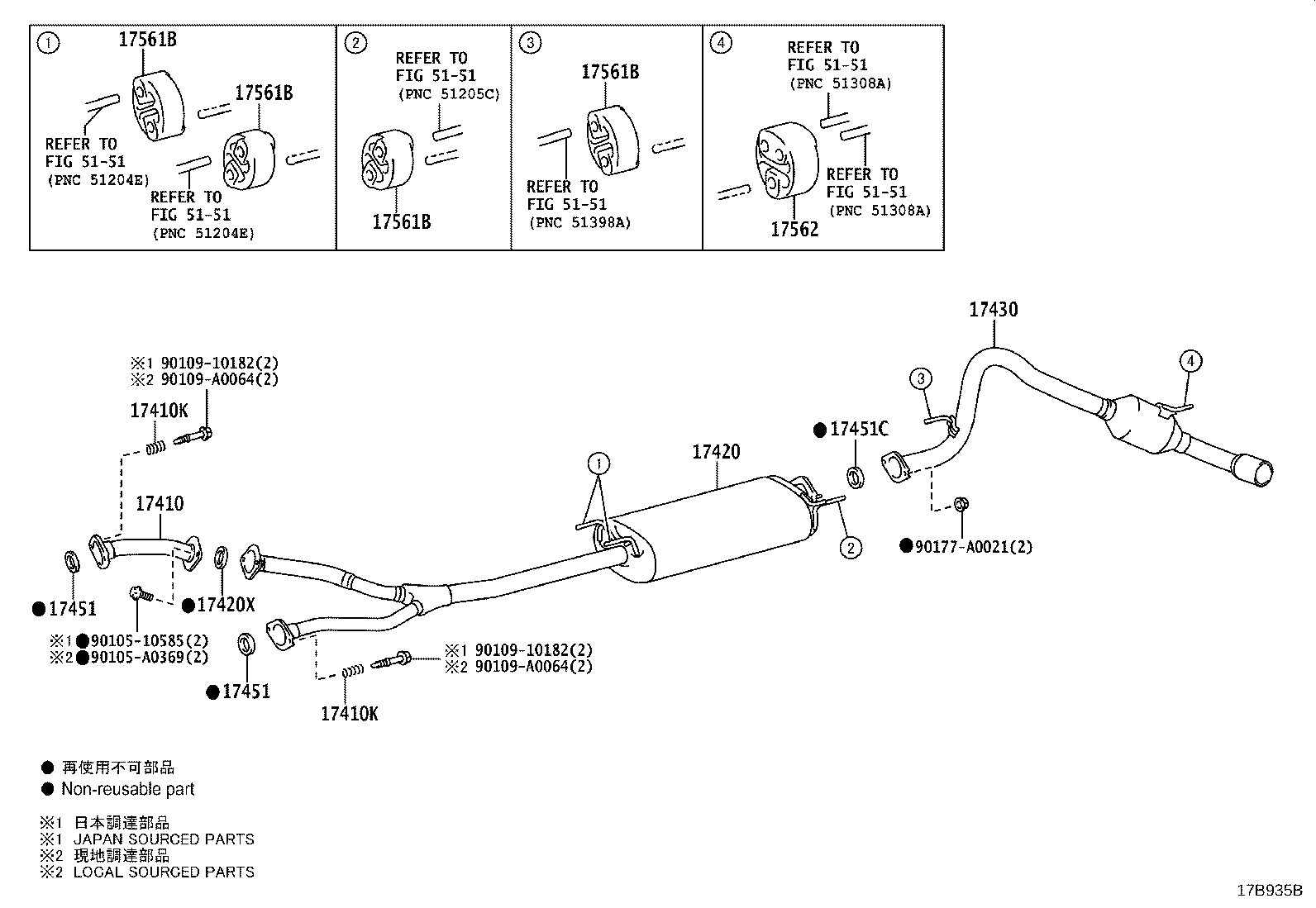

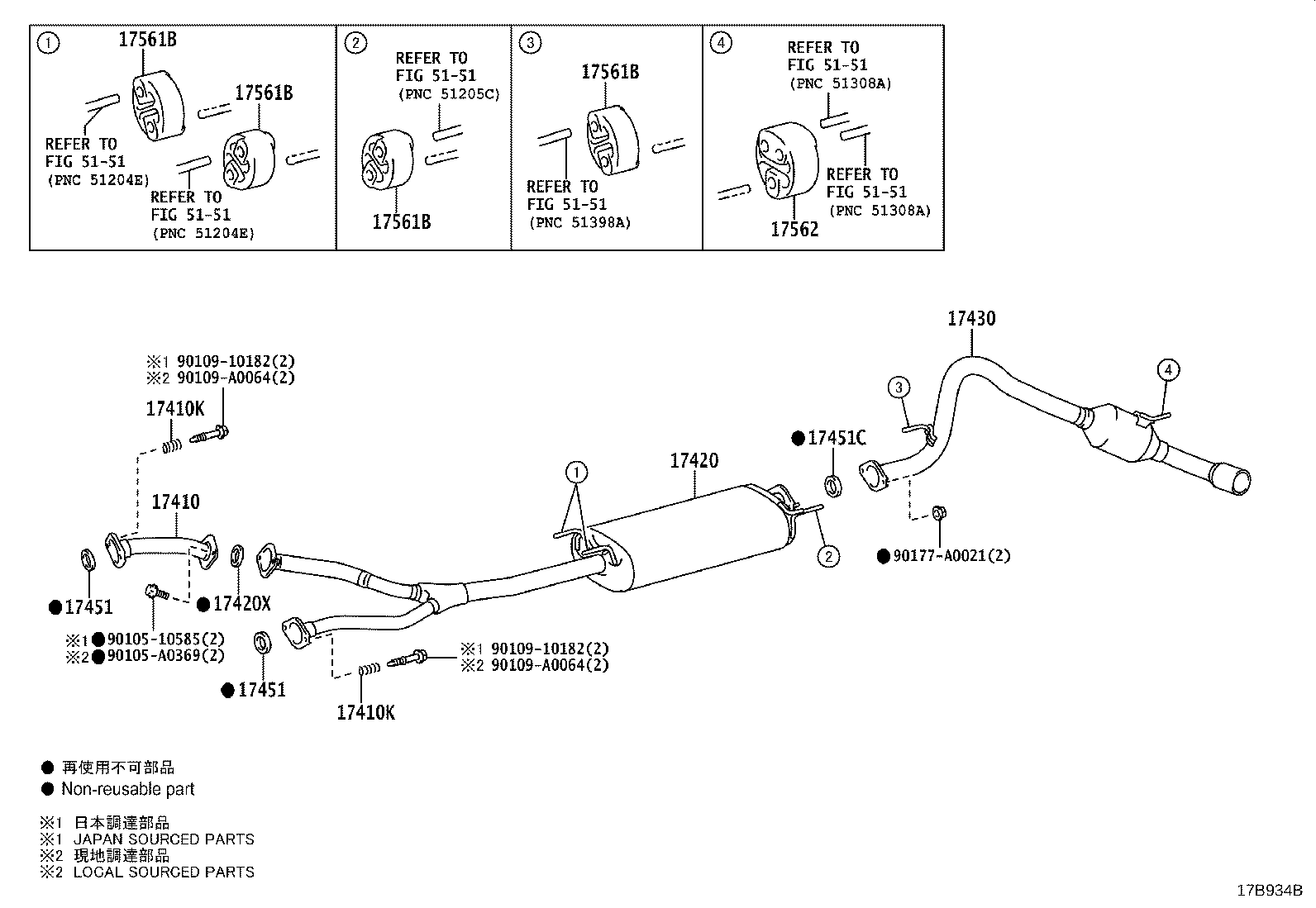

Figure 17B933B 17B933B 2021-11 → — Figure 17B934B 17B934B 2021-11 → — Figure 17B935B 17B935B 2021-11 → — Figure 17C219B 17C219B 2022-07 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410K Spring, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17451C Gasket, Exhaust Pipe, NO.3
17561B Support, Exhaust Pipe, NO.1
17562 Support, Exhaust Pipe, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
