Toyota Tundra/Sequoia

2021-11 → present · chassis VXKA7#,VXKH7#,VXKH8# · catalogue 841440 · United States

Supported model Data version 2022-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transfer Case & Extension Housing

13 part groups · 2 illustrations

Illustrations

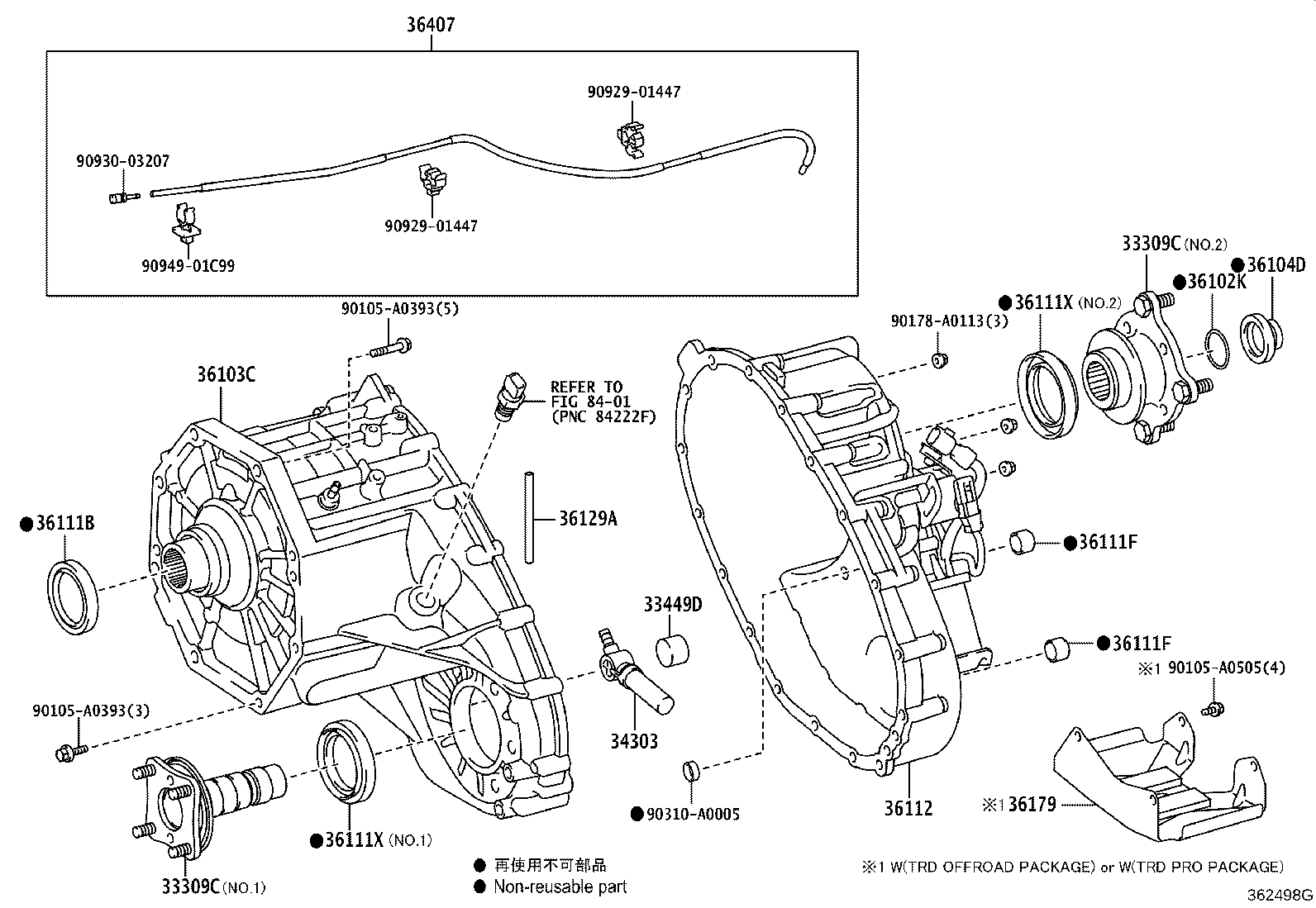

Figure 362497G 362497G 2021-11 → — Figure 362498G 362498G 2022-03 → —

Part groups

PNCDescription
33309C Flange Sub-assy, Output Shaft Companion
33449D Magnet (FOR TRANSFER CASE)
34303 Strainer Sub-assy, Transfer Oil
36102K Ring, O
36103C Case, Transfer, Front
36104D Nut (FOR TRANSFER OUTPUT SHAFT)
36111B Seal, Oil (FOR TRANSFER CASE)
36111F Plug (FOR TRANSFER CASE)
36111X Seal, Oil (FOR TRANSFER CASE), NO.2
36112 Case, Transfer, Rear
36129A Tube, Transfer Oil
36179 Protector, Transfer Case Lower
36407 Hose Sub-assy, Transfer Breather
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
