Toyota Tundra/Sequoia
2021-11 → present · chassis VXKA7#,VXKH7#,VXKH8# · catalogue 841440 · United States
Supported model
Data version 2022-06

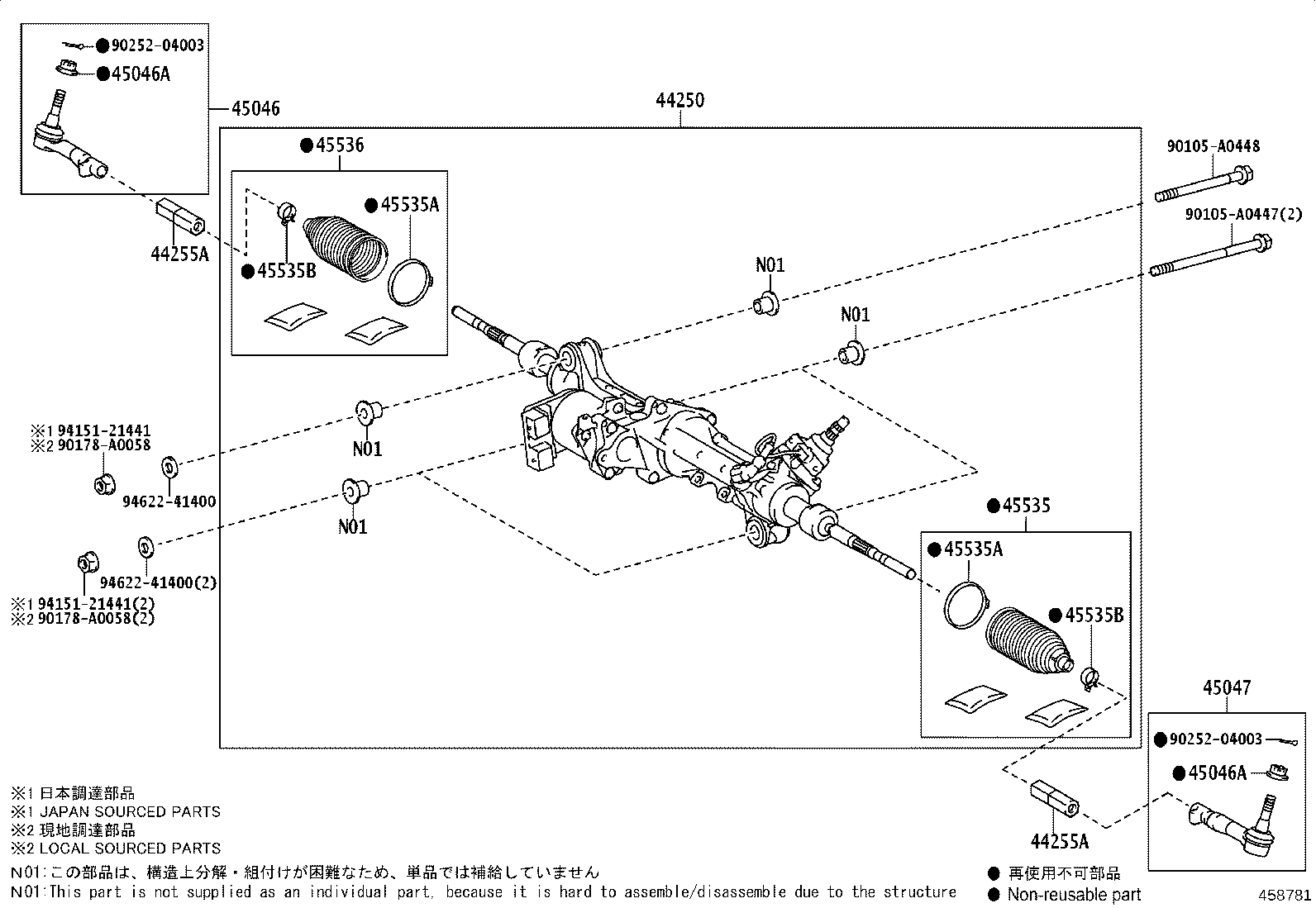

Front Steering Gear & Link
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 44250 | Gear Assy, Power Steering(FOR RACK & PINION) |
| 44255A | Cylinder, Sleeve |
| 45046 | End Sub-assy, Tie Rod, RH |
| 45046A | Nut, Castle(FOR TIE ROD END) |
| 45047 | End Sub-assy, Tie Rod, LH |
| 45535 | Boot, Steering Rack, NO.1 |
| 45535A | Clamp(FOR STEERING RACK BOOT) |
| 45535B | Clip(FOR STEERING RACK BOOT) |
| 45536 | Boot, Steering Rack, NO.2 |
| 45537B | Nut, Rack End Lock |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
