Toyota Tundra/Sequoia

2021-11 → present · chassis VXKA7#,VXKH7#,VXKH8# · catalogue 841440 · United States

Supported model Data version 2022-06

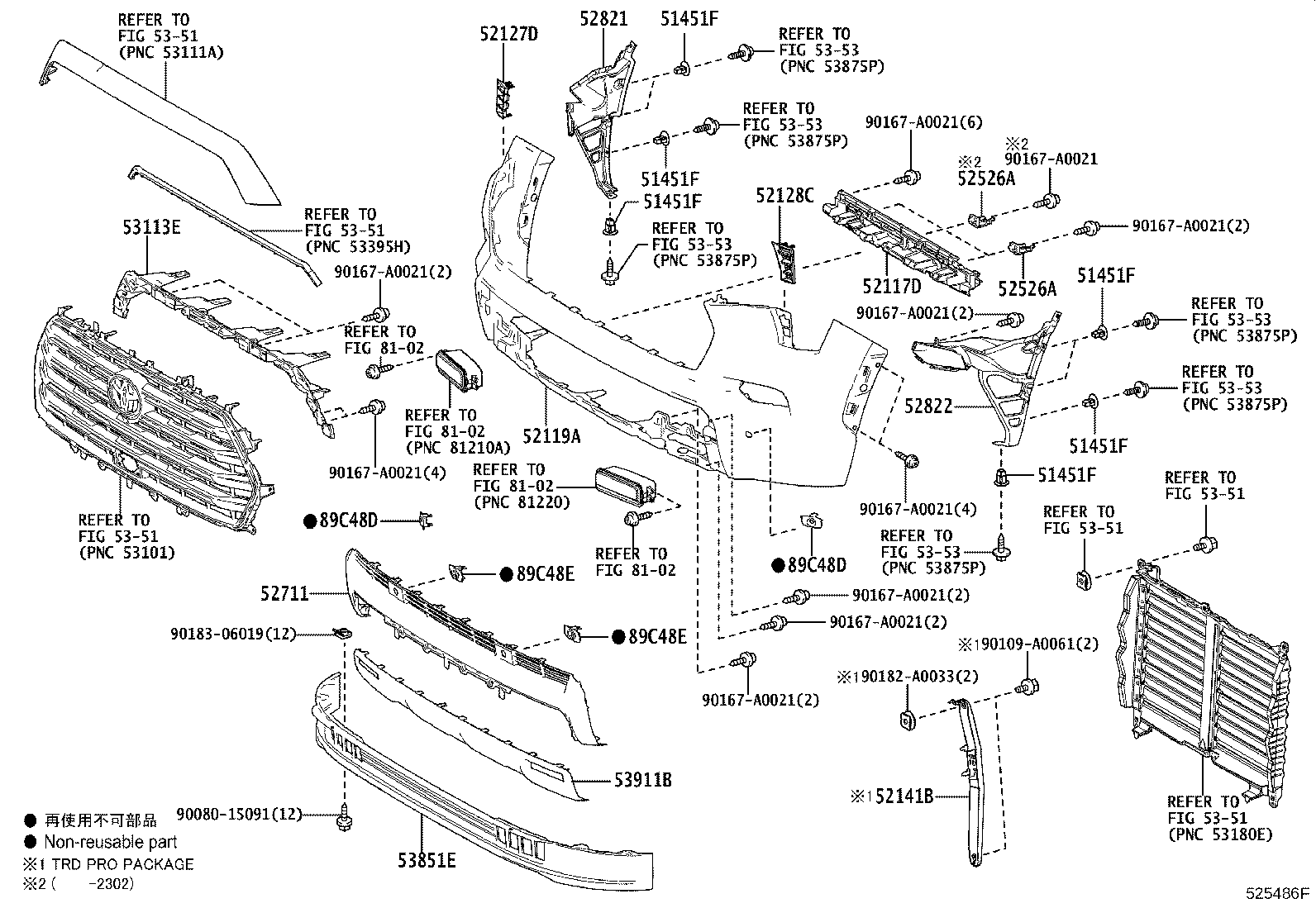

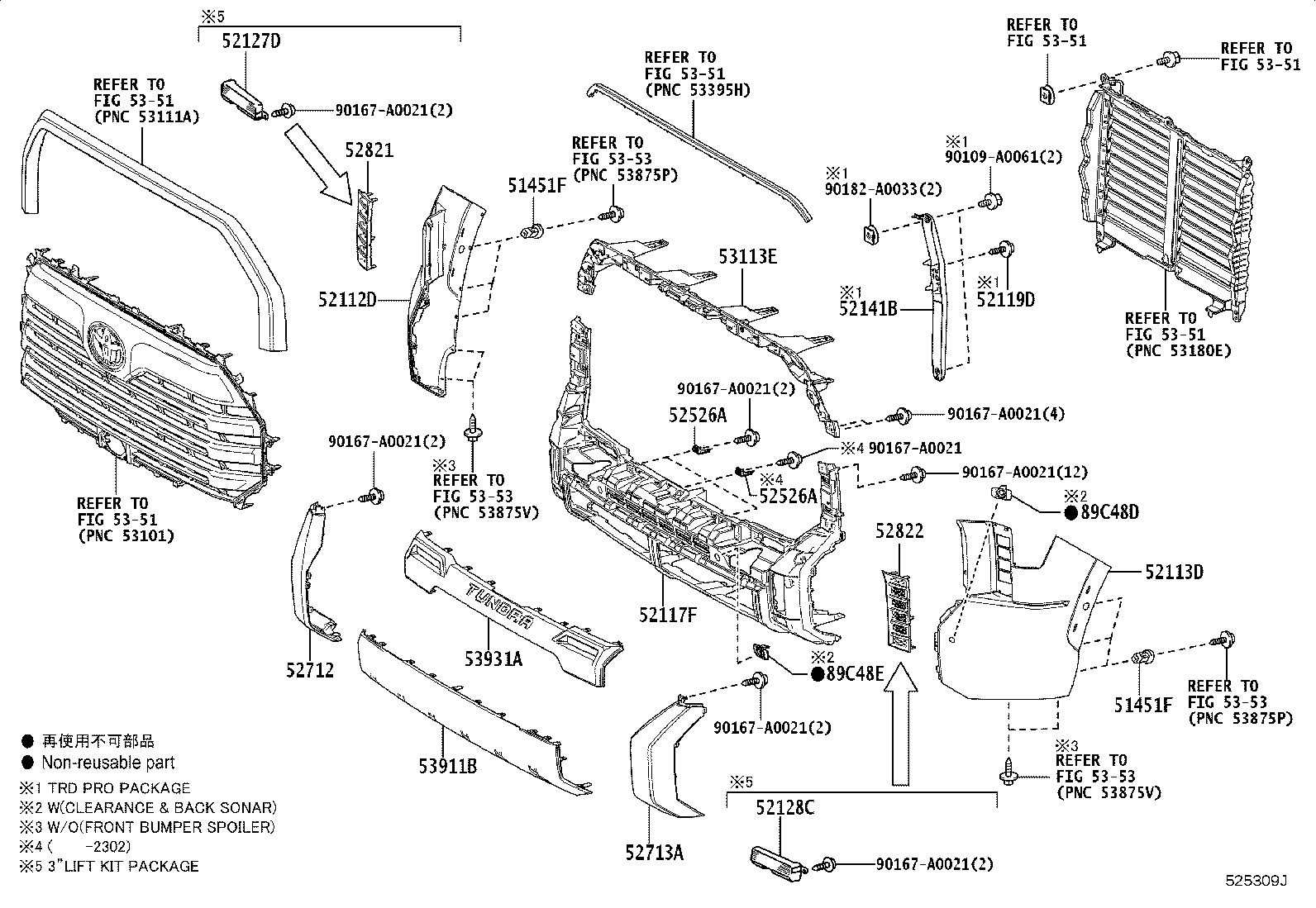

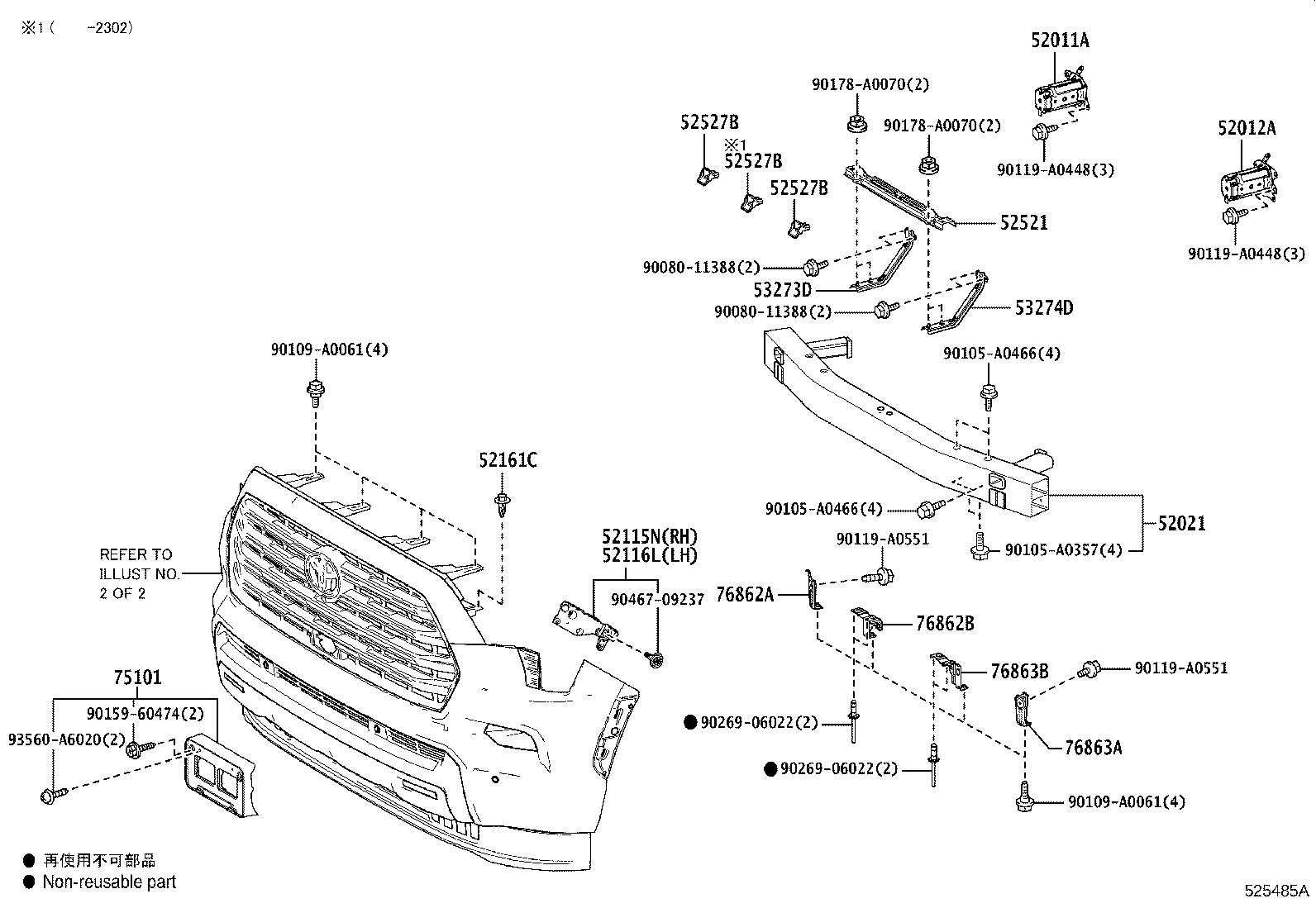

Front Bumper & Bumper Stay

39 part groups · 4 illustrations

PNC	Description
51451F	Grommet, NO.1
52011A	Arm Sub-assy, Front Bumper, RH
52012A	Arm Sub-assy, Front Bumper, LH
52021	Reinforcement Sub-assy, Front Bumper
52112D	Extension, Front Bumper, RH
52113D	Extension, Front Bumper, LH
52115N	Insert, Front Bumper Extension, RH
52116L	Insert, Front Bumper Extension, LH
52117D	Support, Front Bumper Side, Lower
52117F	Support, Front Bumper, Upper
52119A	Cover, Front Bumper
52119D	Screw, NO.1
52127D	Cover, Front Bumper Hole, RH
52128C	Cover, Front Bumper Hole, LH
52141B	Stay, Front Bumper
52161C	Piece, Front Bumper
52521	Retainer, Front Bumper, Upper Center
52526A	Retainer, Front Bumper, Lower NO.1
52527B	Retainer, Front Bumper, Lower NO.2
52711	Moulding, Front Bumper
52712	Moulding, Front Bumper Side, RH
52713A	Moulding, Front Bumper Side, LH
52821	Duct, Air Intake, RH
52822	Duct, Air Intake, LH
53113E	Grille, Radiator, Lower NO.2
53273D	Bracket, Front Bumper Arm Mounting, RH
53274D	Bracket, Front Bumper Arm Mounting, LH
53851E	Pad, Front Wheel Opening Extension, NO.1
53911B	Panel, Front Valance
53931A	Extension, Front Bumper, Upper
75101	Bracket Sub-assy, Front License Plate
76862A	Bracket, Front Spoiler, RH NO.1
76862B	Bracket, Front Spoiler, RH NO.2
76862C	Bracket, Front Spoiler, RH NO.3
76863A	Bracket, Front Spoiler, LH NO.1
76863B	Bracket, Front Spoiler, LH NO.2
76863C	Bracket, Front Spoiler, LH NO.3
89C48D	Retainer, Ultrasonic Sensor, Front Corner
89C48E	Retainer, Ultrasonic Sensor, Front Center

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
