Toyota Tundra/Sequoia

2021-11 → present · chassis VXKA7#,VXKH7#,VXKH8# · catalogue 841440 · United States

Supported model Data version 2022-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

9 part groups · 6 illustrations

Illustrations

Figure 645228D

645228D 2021-11 → —

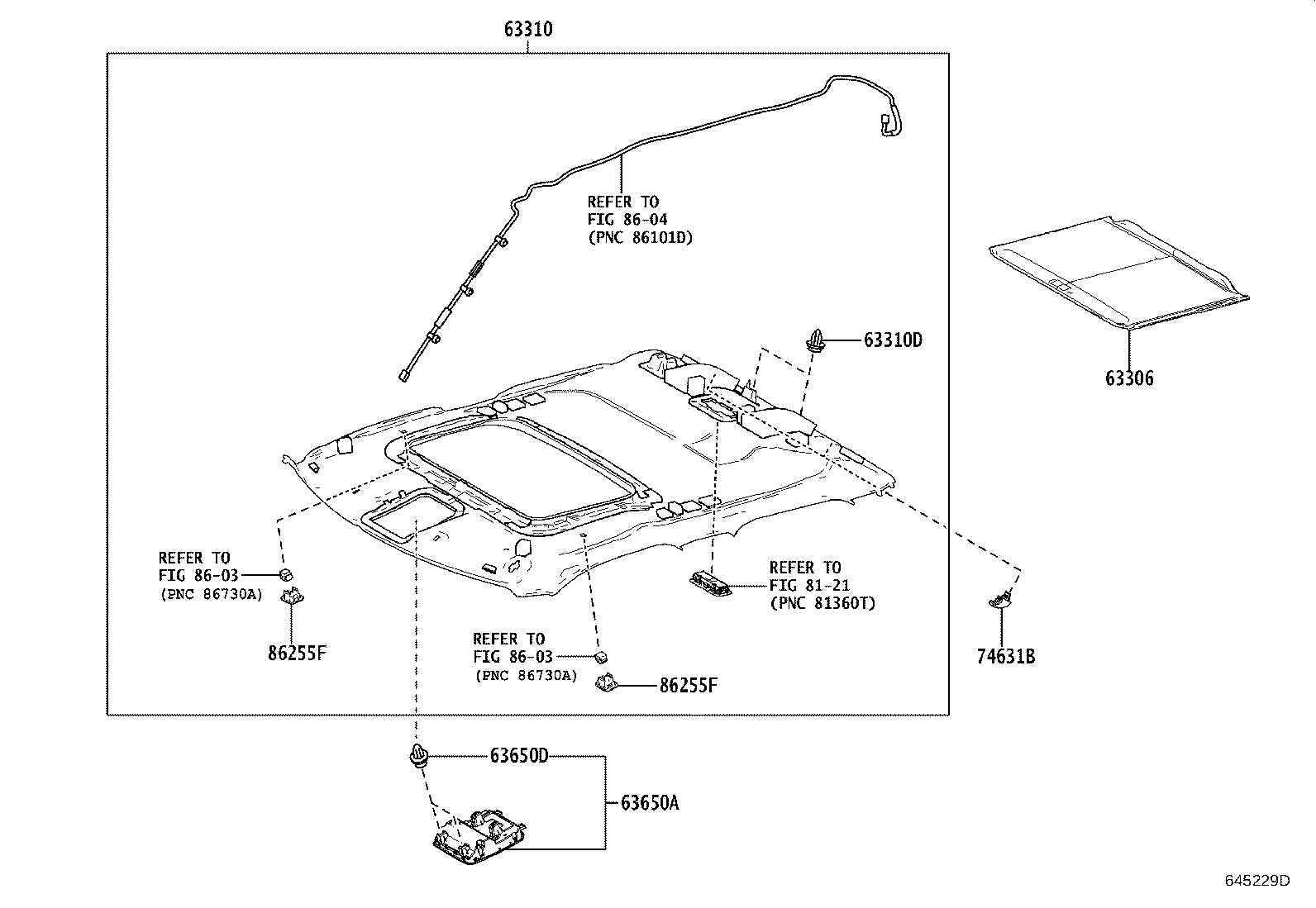

Figure 645229D

645229D 2021-11 → —

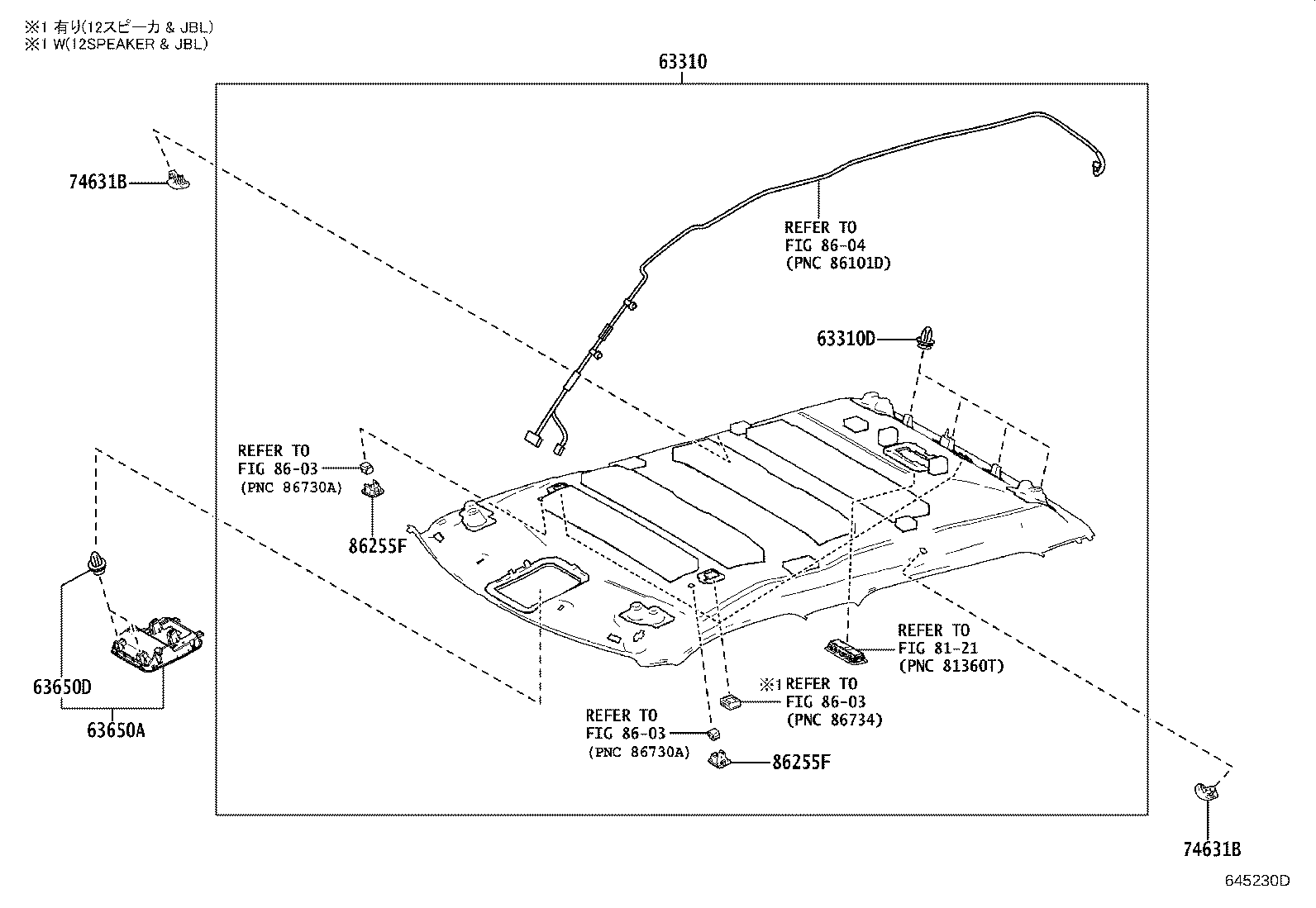

Figure 645230D

645230D 2021-11 → —

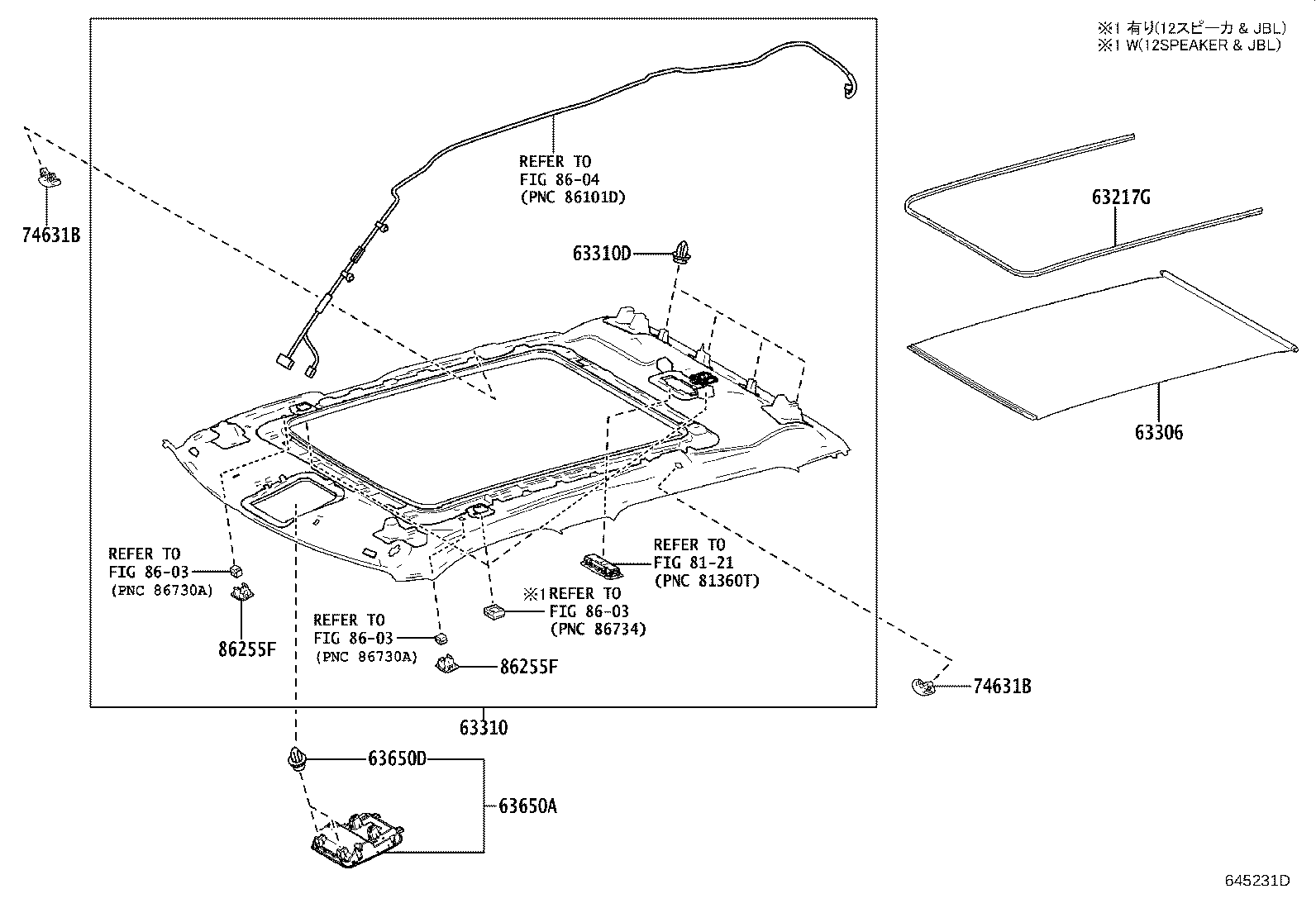

Figure 645231D

645231D 2021-11 → —

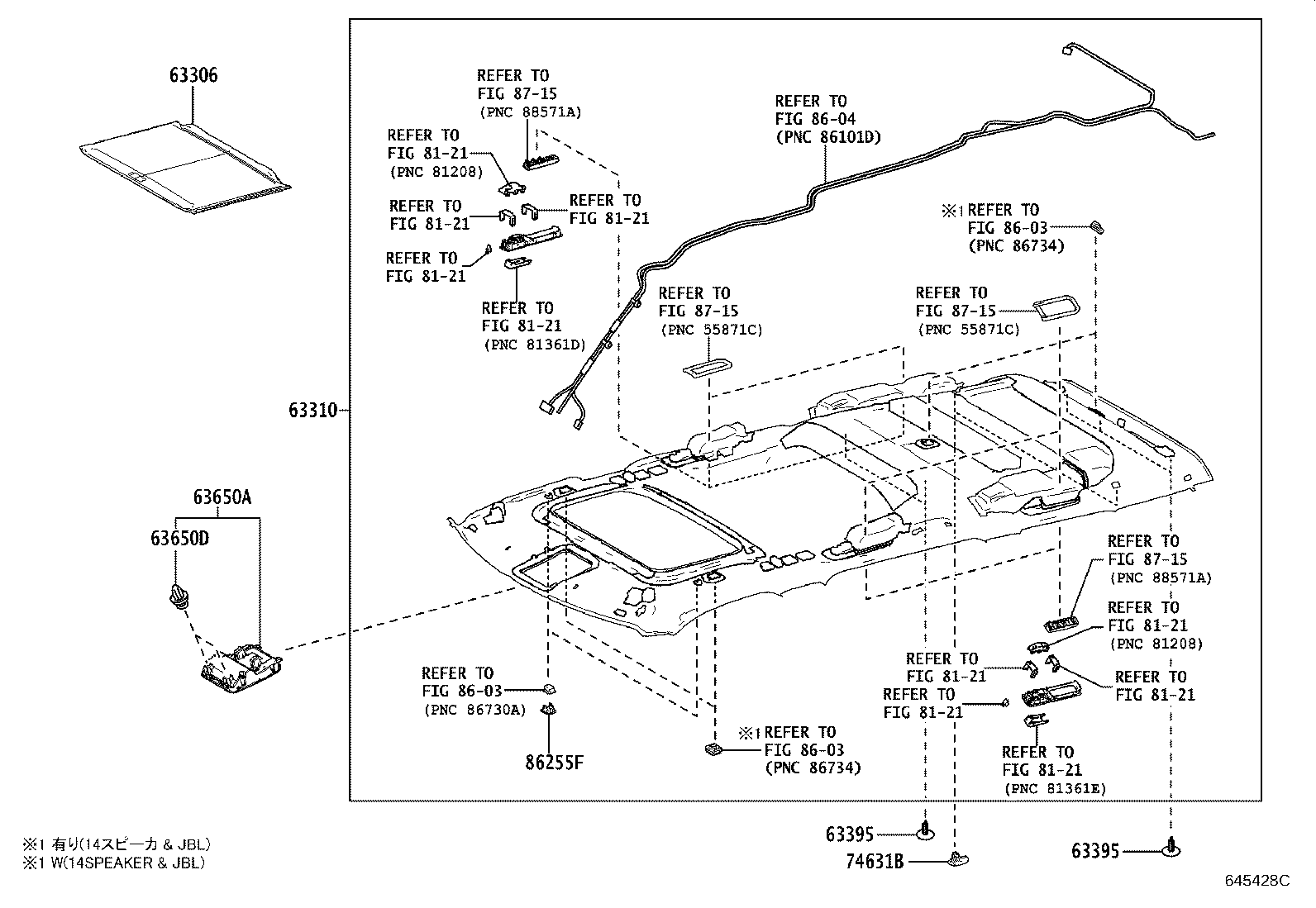

Figure 645428C

645428C 2022-07 → —

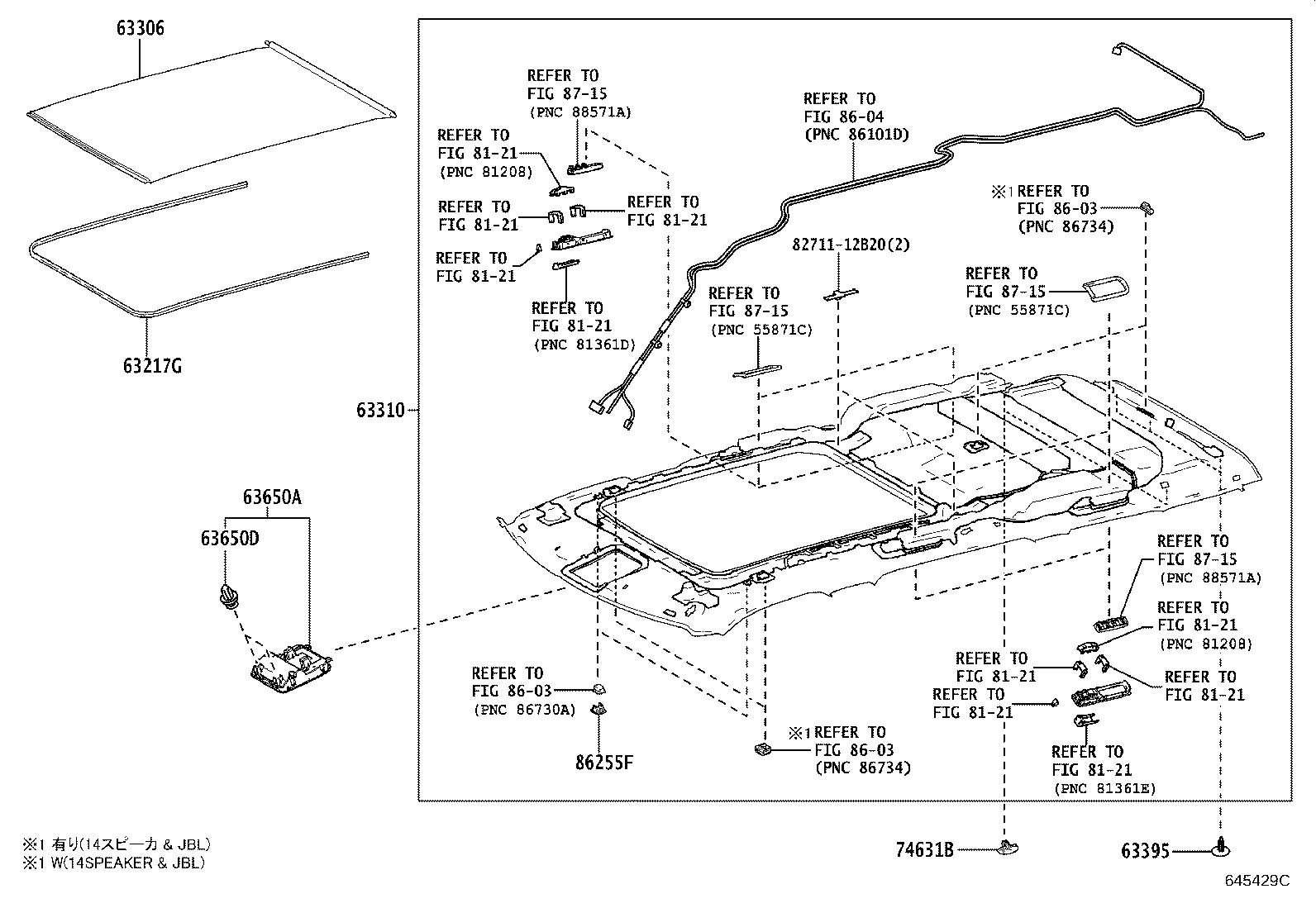

Figure 645429C

645429C 2022-07 → —

Part groups

PNC	Description
63217G	Garnish, Sliding Roof Side, RH
63306	Trim Sub-assy, Sunshade
63310	Headlining Assy, Roof
63310D	Clip, Roof Headlining
63395	Clip, Roof Headlining Trim
63650A	Box Assy, Roof Console
63650D	Clip(FOR ROOF CONSOLE BOX)
74631B	Hook, Coat
86255F	Case, Microphone

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
