Toyota Tundra/Sequoia
2021-11 → present · chassis VXKA7#,VXKH7#,VXKH8# · catalogue 841440 · United States
Supported model
Data version 2022-06

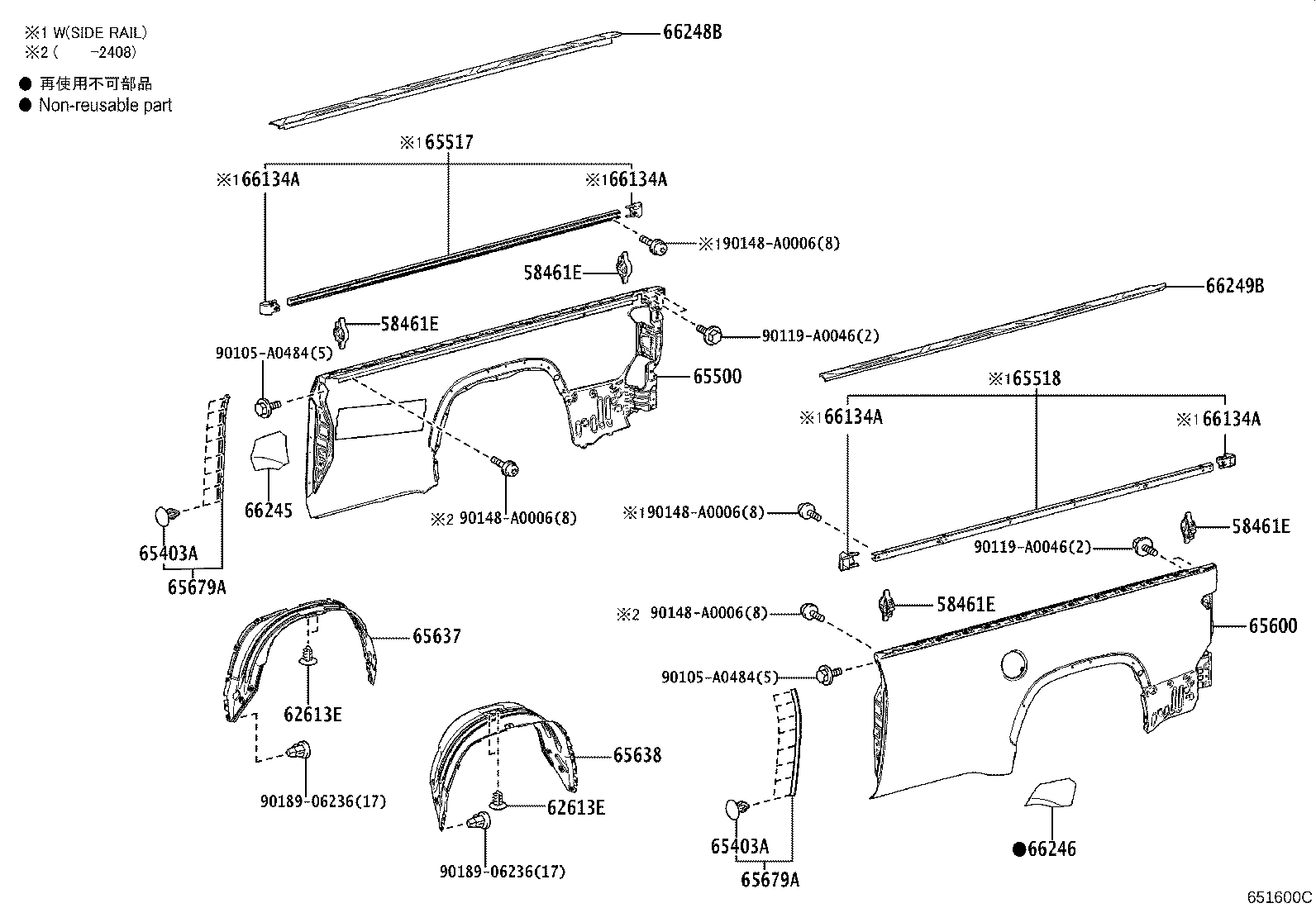

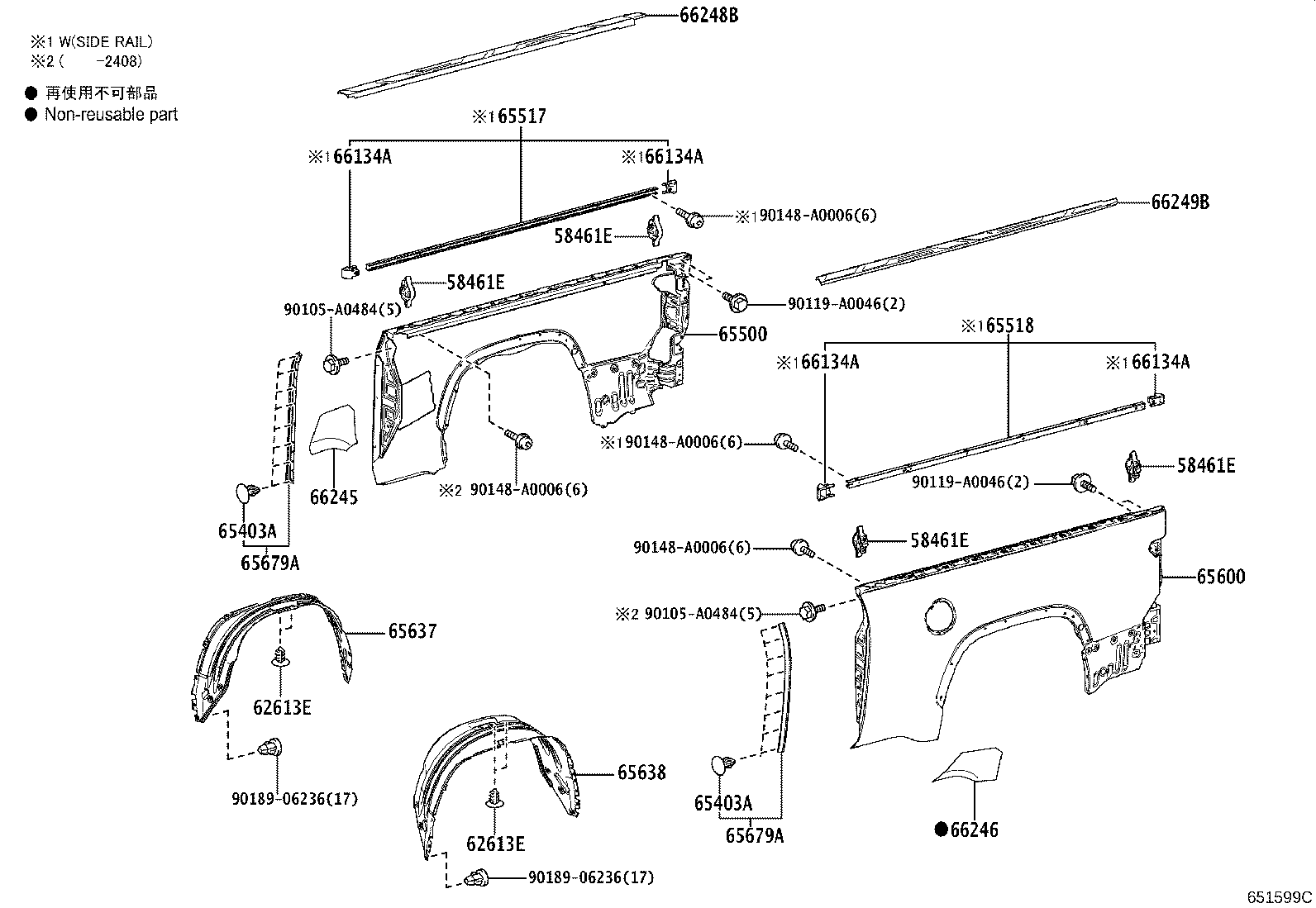

Rear Body Side Panel
15 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 58461E | Striker, Luggage Hold Belt |
| 62613E | Clip (FOR QUARTER WHEEL HOUSE COVER) |
| 65403A | Clip, Corner Protector |
| 65500 | Panel Assy, Rear Body Side, RH |
| 65517 | Rail, Side Panel Top, Rear RH |
| 65518 | Rail, Side Panel Top, Rear LH |
| 65600 | Panel Assy, Rear Body Side, LH |
| 65637 | Liner, Rear Wheel House, RH |
| 65638 | Liner, Rear Wheel House, LH |
| 65679A | Seal, Side Gate |
| 66134A | Cap, Side Gate Support |
| 66245 | Protector, Rear Body, NO.3 RH |
| 66246 | Protector, Rear Body, NO.3 LH |
| 66248B | Protector, Rear Body Side Panel, RH |
| 66249B | Protector, Rear Body Side Panel, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
