Toyota Tundra/Sequoia
2021-11 → present · chassis VXKA7#,VXKH7#,VXKH8# · catalogue 841440 · United States
Supported model
Data version 2022-06

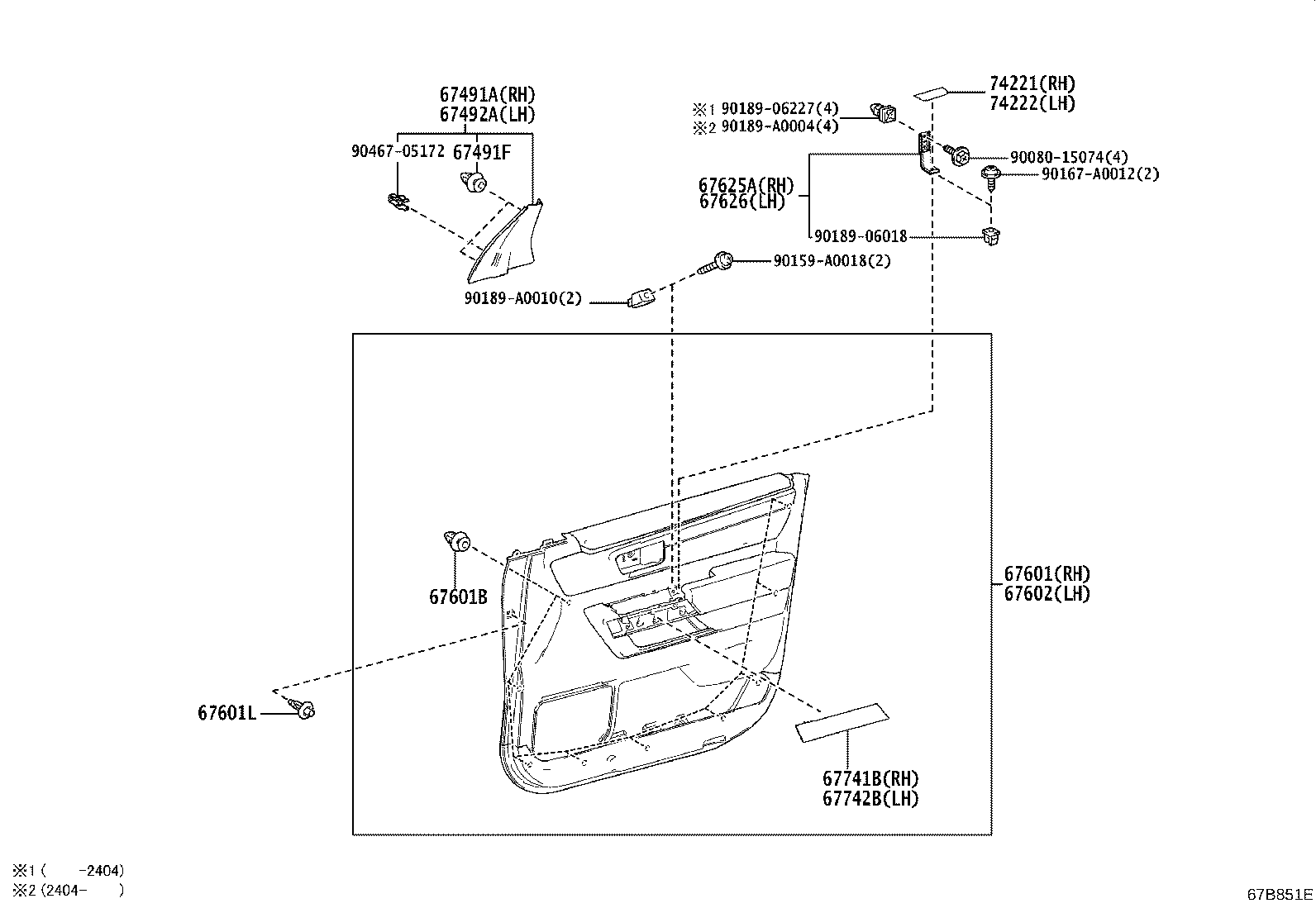

Front Door Panel & Glass
51 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67001 | Panel Sub-assy, Front Door, RH |
| 67001A | Cushion, Front Door Panel |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67401F | Frame Sub-assy, Front Door, Front Lower RH |
| 67402F | Frame Sub-assy, Front Door, Front Lower LH |
| 67433 | Frame, Front Door Window, Rear Lower RH |
| 67434 | Frame, Front Door Window, Rear Lower LH |
| 67491A | Garnish, Front Door Lower Frame Bracket, RH |
| 67491F | Clip(FOR DOOR TRIM) |
| 67492A | Garnish, Front Door Lower Frame Bracket, LH |
| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67601B | Clip(FOR FRONT DOOR TRIM BOARD) |
| 67601L | Clip(FOR FRONT DOOR TRIM BOARD) |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67625A | Bracket, Front Door Trim, NO.1 |
| 67626 | Bracket, Front Door Trim, LH |
| 67741B | Moulding, Front Door Trim, NO.1 RH |
| 67742B | Moulding, Front Door Trim, NO.1 LH |
| 67831 | Cover, Front Door Service Hole, RH |
| 67831D | Clip(FOR FRONT DOOR SERVICE HOLE COVER) |
| 67832 | Cover, Front Door Service Hole, LH |
| 67837D | Seal, Front Door Vent, RH |
| 67838B | Seal, Front Door Vent, LH |
| 67855B | Protector, Front Door Panel, RH |
| 67856B | Protector, Front Door Panel, LH |
| 67861 | Weatherstrip, Front Door, RH |
| 67861A | Retainer(FOR FRONT DOOR WEATHERSTRIP) |
| 67862 | Weatherstrip, Front Door, LH |
| 67865B | Weatherstrip, Front Door, NO.3 RH |
| 67866A | Weatherstrip, Front Door, NO.3 LH |
| 67867 | Clip, Door Weatherstrip |
| 67867A | Clip, Door Weatherstrip(FOR FRONT DOOR) |
| 67869J | Clip, Front Door Weatherstrip |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68141E | Run, Front Door Glass, RH |
| 68151E | Run, Front Door Glass, LH |
| 68171B | Weatherstrip, Front Door Glass, Inner RH |
| 68172A | Weatherstrip, Front Door Glass, Inner LH |
| 68194B | Seal, Front Door Belt, Rear RH |
| 68195B | Seal, Front Door Belt, Rear LH |
| 68610B | Check Assy, Front Door, RH |
| 68620 | Check Assy, Front Door, LH |
| 74221 | Cover, Door Armrest, RH |
| 74222 | Cover, Door Armrest, LH |
| 75921C | Tape, Black Out, NO.1 RH |
| 75922M | Tape, Black Out, NO.1 LH |
| 75925B | Tape, Black Out, NO.3 RH |
| 75926A | Tape, Black Out, NO.3 LH |
| 75927B | Tape, Black Out, NO.4 RH |
| 75928B | Tape, Black Out, NO.4 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
