Toyota Tundra/Sequoia
2021-11 → present · chassis VXKA7#,VXKH7#,VXKH8# · catalogue 841440 · United States
Supported model
Data version 2022-06

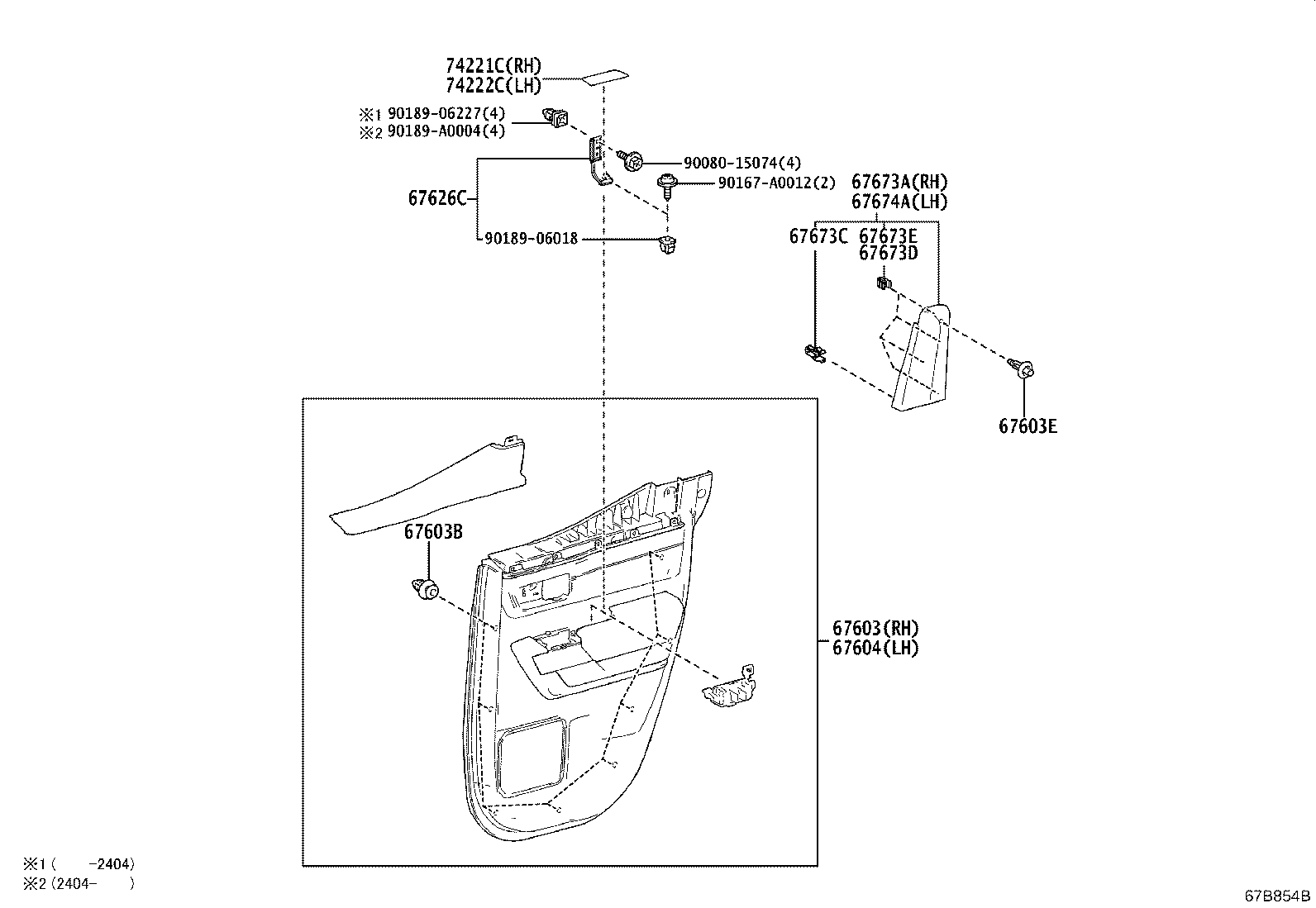

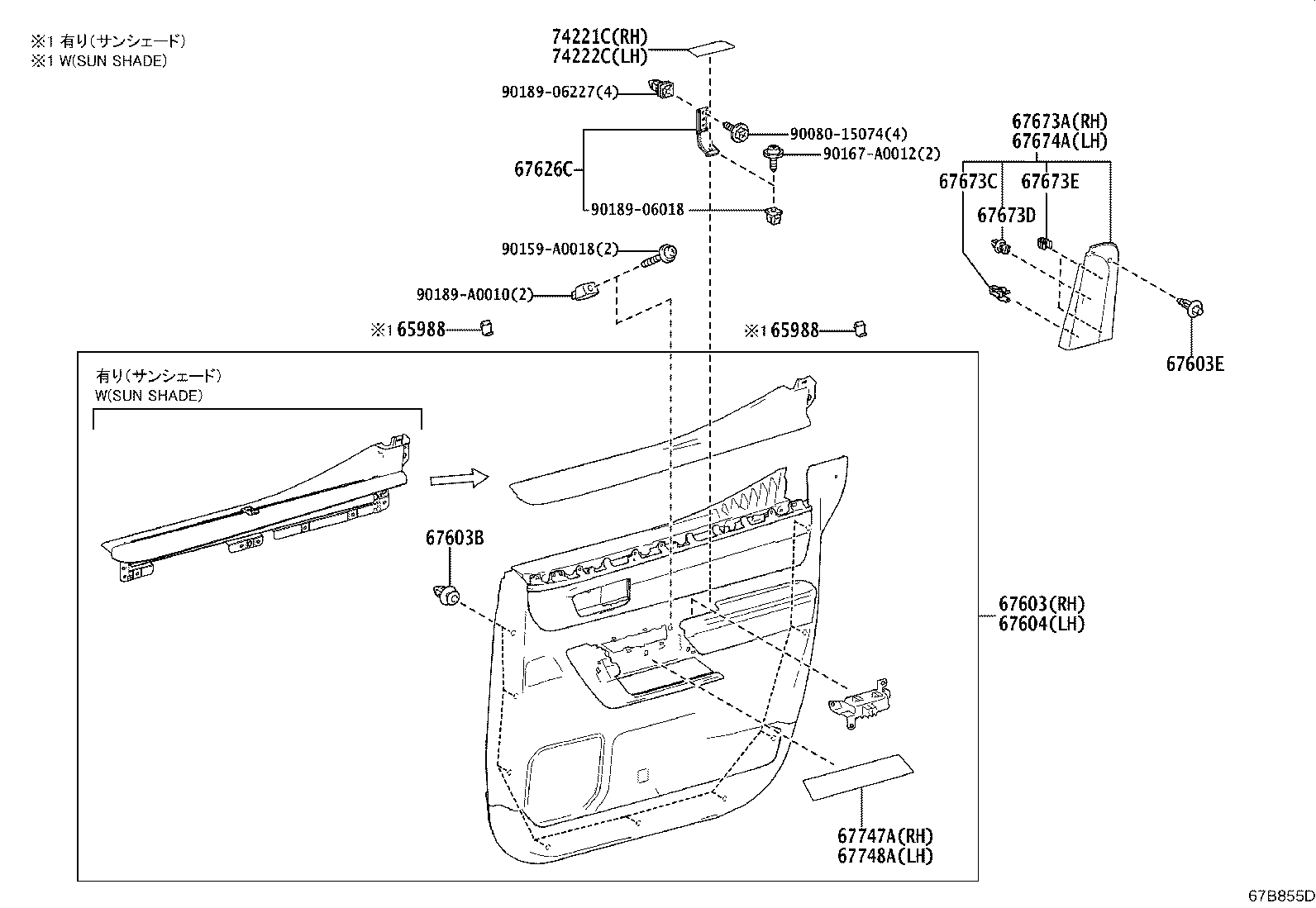

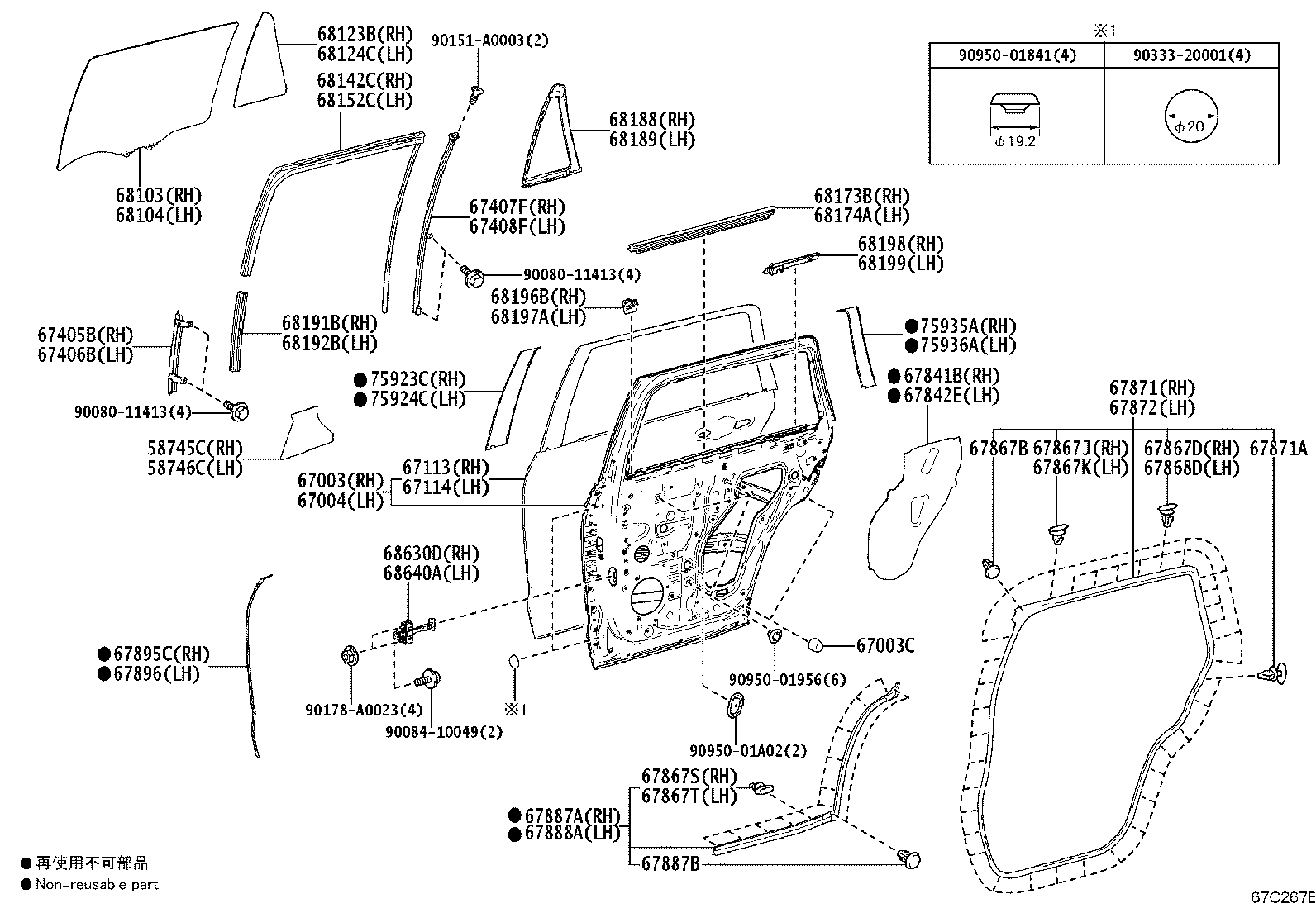

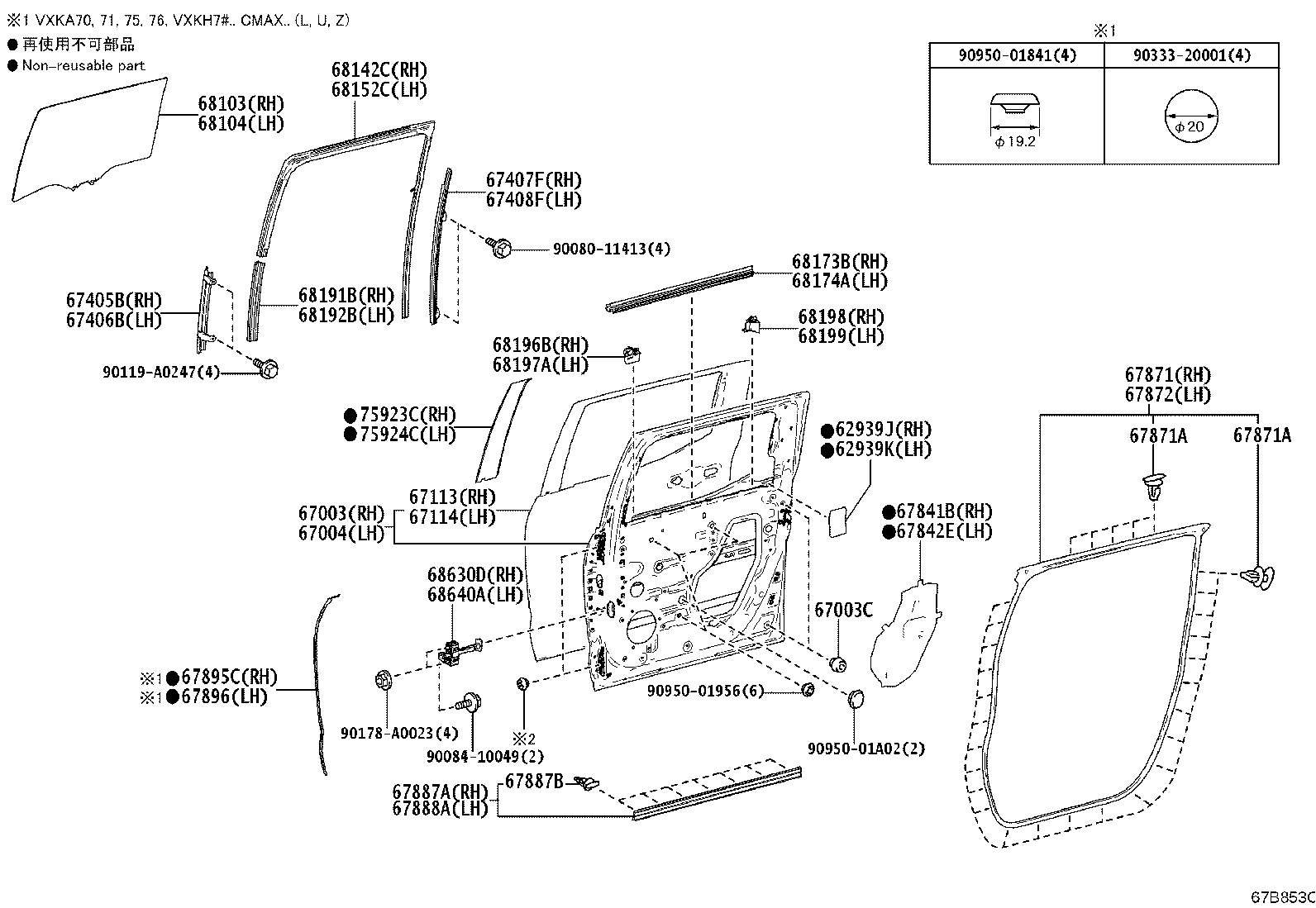

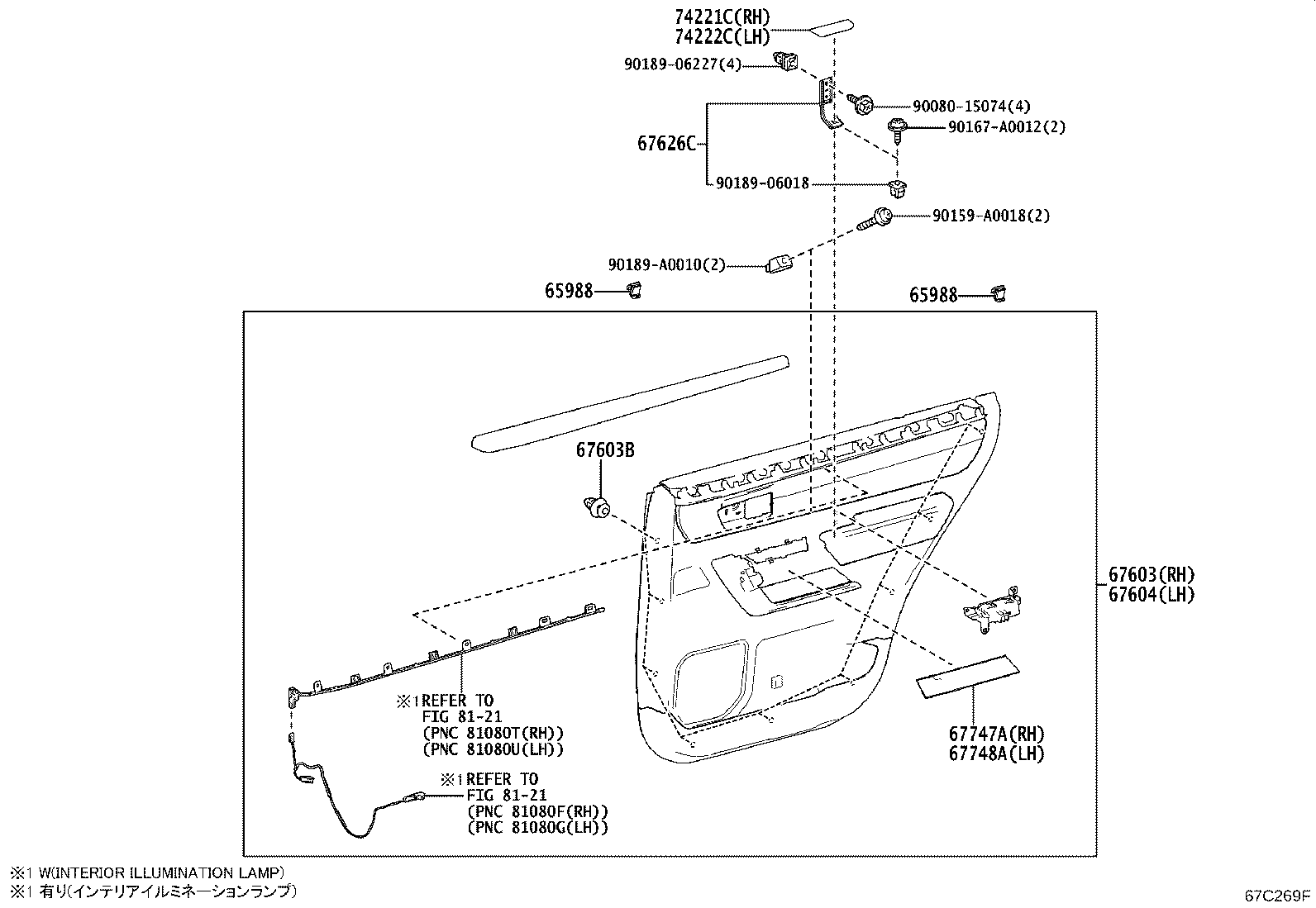

Rear Door Panel & Glass
69 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 58745C | Protector, Rear Door Panel, RH |
| 58746C | Protector, Rear Door Panel, LH |
| 62939J | Silencer, Rear Door Vent, RH |
| 62939K | Silencer, Rear Door Vent, LH |
| 65988 | Hook, Sunshade |
| 67003 | Panel Sub-assy, Rear Door, RH |
| 67003C | Cushion, Rear Door Panel |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67113 | Panel, Rear Door, Outer RH |
| 67114 | Panel, Rear Door, Outer LH |
| 67405B | Guide Sub-assy, Rear Door Window, Front RH |
| 67406B | Guide Sub-assy, Rear Door Window, Front LH |
| 67407F | Frame Sub-assy, Rear Door Window, Rear Lower RH |
| 67408F | Frame Sub-assy, Rear Door Window, Rear Lower LH |
| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603B | Clip(FOR REAR DOOR TRIM BOARD) |
| 67603E | Clip(FOR REAR DOOR TRIM BOARD) |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67626C | Bracket, Rear Door Trim, NO.2 |
| 67673A | Garnish, Rear Door Frame, RH |
| 67673C | Clip(FOR REAR DOOR FRAME GARNISH) |
| 67673D | Clip, NO.2 (FOR REAR DOOR FRAME GARNISH) |
| 67673E | Clip, NO.3 (FOR REAR DOOR FRAME GARNISH) |
| 67674A | Garnish, Rear Door Frame, LH |
| 67747A | Moulding, Rear Door Trim, NO.2 RH |
| 67748A | Moulding, Rear Door Trim, NO.2 LH |
| 67841B | Cover, Rear Door Service Hole |
| 67842E | Cover, Rear Door Service Hole, LH |
| 67867B | Clip, Door Weatherstrip(FOR REAR DOOR) |
| 67867D | Retainer, Rear Door Weatherstrip, RH |
| 67867J | Clip, Door Weatherstrip, RH(FOR REAR DOOR) |
| 67867K | Clip, Door Weatherstrip, LH(FOR REAR DOOR) |
| 67867S | Retainer, Rear Door Weatherstrip, NO.2, RH |
| 67867T | Retainer, Rear Door Weatherstrip, NO.2, LH |
| 67868D | Retainer, Rear Door Weatherstrip, LH |
| 67871 | Weatherstrip, Rear Door, RH |
| 67871A | Retainer(FOR REAR DOOR WEATHERSTRIP) |
| 67872 | Weatherstrip, Rear Door, LH |
| 67887A | Weatherstrip, Rear Door, NO.2 RH |
| 67887B | Clip(FOR REAR DOOR WEATHERSTRIP) |
| 67888A | Weatherstrip, Rear Door, NO.2 LH |
| 67895C | Weatherstrip, Rear Door, NO.3 RH |
| 67896 | Weatherstrip, Rear Door, NO.3 LH |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68123B | Glass, Rear Door Quarter Window, RH |
| 68124C | Glass, Rear Door Quarter Window, LH |
| 68142C | Run, Rear Door Glass, RH |
| 68147H | Run, Rear Door Glass, NO.3 RH |
| 68148B | Run, Rear Door Glass, NO.3 LH |
| 68152C | Run, Rear Door Glass, LH |
| 68173B | Weatherstrip, Rear Door Glass, Inner RH |
| 68174A | Weatherstrip, Rear Door Glass, Inner LH |
| 68188 | Weatherstrip, Rear Door Quarter Window, RH |
| 68189 | Weatherstrip, Rear Door Quarter Window, LH |
| 68191B | Run, Rear Door Glass, NO.2 RH |
| 68192B | Run, Rear Door Glass, NO.2 LH |
| 68196B | Seal, Rear Door Belt, Front RH |
| 68197A | Seal, Rear Door Belt, Front LH |
| 68198 | Seal, Rear Door Belt, Rear RH |
| 68199 | Seal, Rear Door Belt, Rear LH |
| 68630D | Check Assy, Rear Door, RH |
| 68640A | Check Assy, Rear Door, LH |
| 74221C | Cover, Rear Door Armrest, RH |
| 74222C | Cover, Rear Door Armrest, LH |
| 75923C | Tape, Black Out, NO.2 RH |
| 75924C | Tape, Black Out, NO.2 LH |
| 75935A | Tape, Black Out, NO.6 RH |
| 75936A | Tape, Black Out, NO.6 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
