Toyota Tundra/Sequoia
2021-11 → present · chassis VXKA7#,VXKH7#,VXKH8# · catalogue 841440 · United States
Supported model
Data version 2022-06
Back Door Panel & Glass

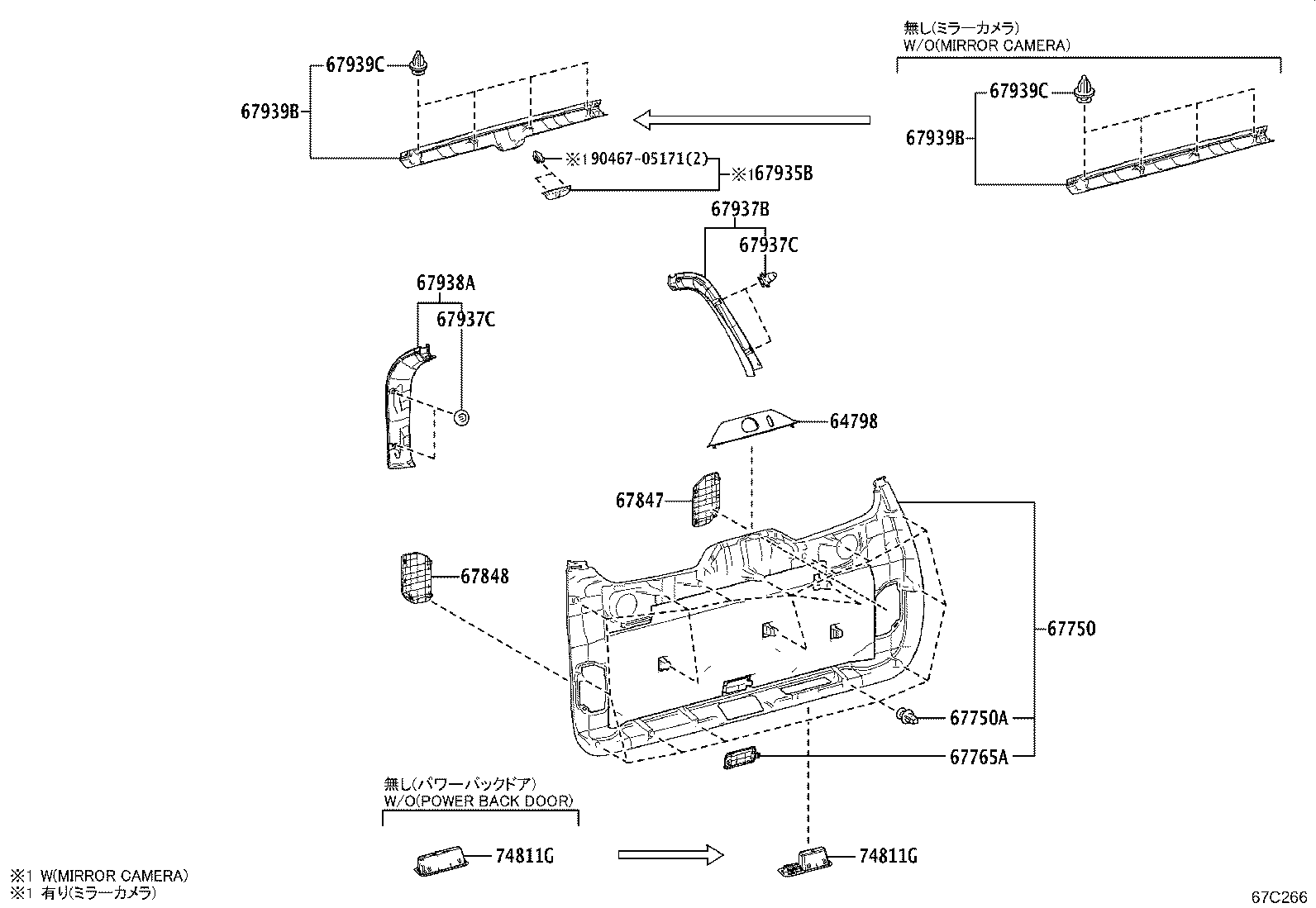

52 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62735P | Retainer, Back Door Window Hinge |
| 62785F | Spacer, Back Door Glass |
| 64798 | Cover, Back Door Lock |
| 67005 | Panel Sub-assy, Back Door |
| 67005B | Cushion(FOR BACK DOOR PANEL) |
| 67195 | Reinforcement, Back Door Stay, Lower RH |
| 67281G | Stopper, Back Door, Lower RH |
| 67282F | Stopper, Back Door, Lwr LH |
| 67293C | Cushion, Back Door Stopper |
| 67294D | Cushion, Back Door Stopper, LH |
| 67398B | Guide, Back Door Wire Harness, NO.1 |
| 67398C | Guide, Back Door Wire Harness, NO.2 |
| 67398D | Guide, Back Door Wire Harness, NO.3 |
| 67750 | Board Assy, Back Door Trim |
| 67750A | Clip(FOR BACK DOOR TRIM) |
| 67765A | Cover, Back Door Service Hole, NO.1 |
| 67847 | Cover, Back Door Service Hole, RH |
| 67848 | Cover, Back Door Service Hole, LH |
| 67881A | Weatherstrip, Back Door |
| 67882C | Weatherstrip, Back Door, NO.2 |
| 67891A | Seal, Back Door |
| 67935B | Garnish, Back Door |
| 67937B | Garnish, Back Door Side, RH |
| 67937C | Clip(FOR BACK DOOR SIDE GARNISH) |
| 67938A | Garnish, Back Door Side, LH |
| 67939B | Garnish, Back Door, Center |
| 67939C | Clip(FOR BACK DOOR CENTER GARNISH) |
| 68131 | Glass, Back Door |
| 68656 | Bracket, Back Door Window Frame, NO.1 RH |
| 68656A | Bracket, Back Door Window Frame, NO.2 RH |
| 68657 | Bracket, Back Door Window Frame, NO.3 RH |
| 68657A | Bracket, Back Door Window Frame, NO.4 RH |
| 68666 | Bracket, Back Door Window Frame, NO.1 LH |
| 68666A | Bracket, Back Door Window Frame, NO.2 LH |
| 68667 | Bracket, Back Door Window Frame, NO.3 LH |
| 68667A | Bracket, Back Door Window Frame, NO.4 LH |
| 68825A | Plate, Back Door Hinge, RH |
| 68826 | Plate, Back Door Hinge, LH |
| 69478A | Cushion, Back Door Lower Stopper |
| 69858 | Bracket, Back Door Glass Guide |
| 69999A | Pin, Back Door Guide Piece |
| 74811G | Handle, Door Pull |
| 75129C | Cushion, Rear Licence Plate |
| 75573K | Moulding, Back Window, Outside RH |
| 75574B | Moulding, Back Window, Outside LH |
| 76801 | Garnish Sub-assy, Back Door, Outside |
| 76812A | Garnish, Back Door, Outside NO.2 |
| 76817 | Clip, Back Door Outside Garnish |
| 76821C | Protector, Back Door Garnish Side, RH |
| 76822D | Protector, Back Door Garnish Side, LH |
| 76823 | Protector, Back Door Garnish Moulding, RH |
| 76825C | Protector, Back Door Outside Garnish |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
