Toyota Tundra/Sequoia
2021-11 → present · chassis VXKA7#,VXKH7#,VXKH8# · catalogue 841440 · United States
Supported model
Data version 2022-06
Armrest & Visor
26 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|

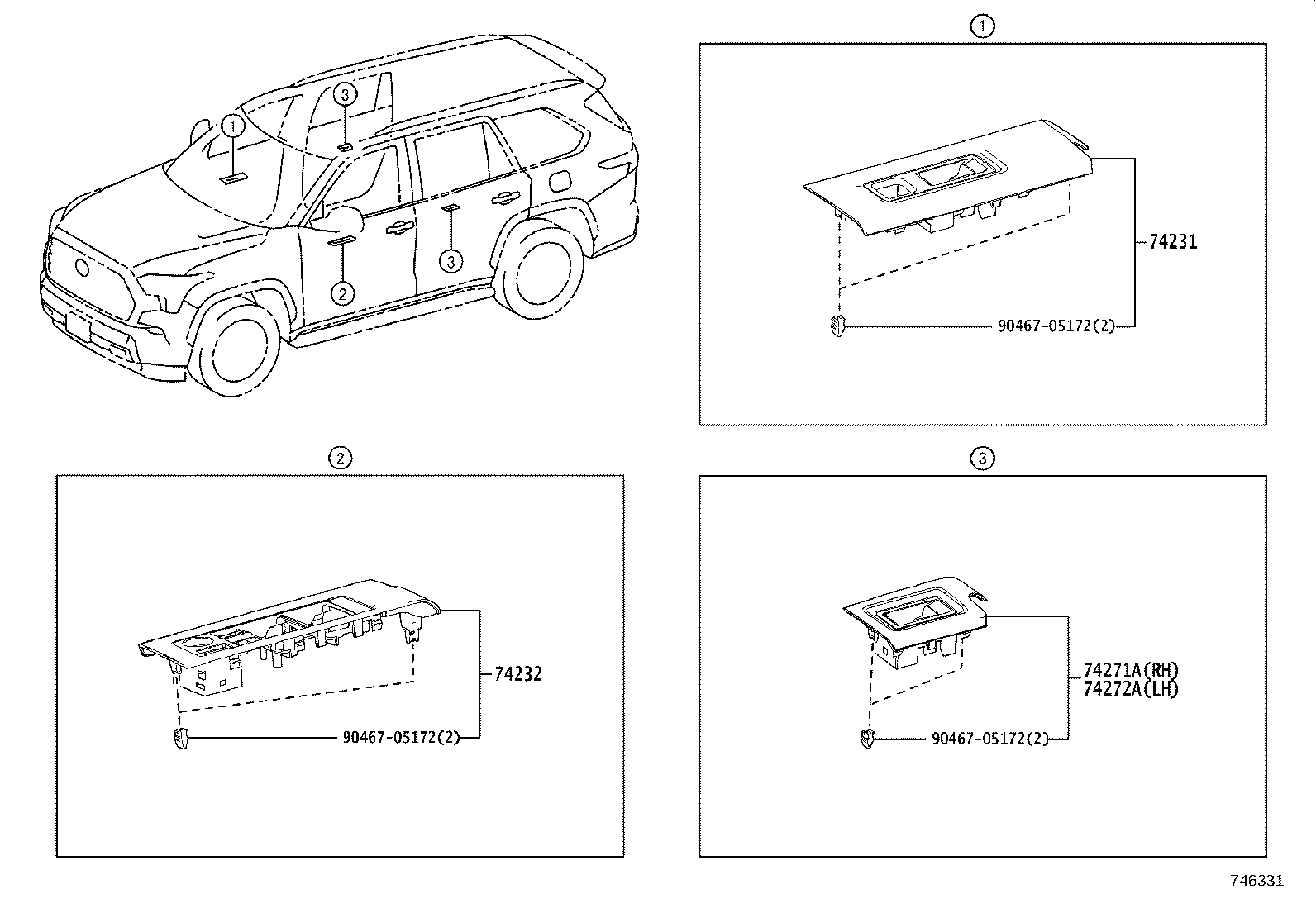

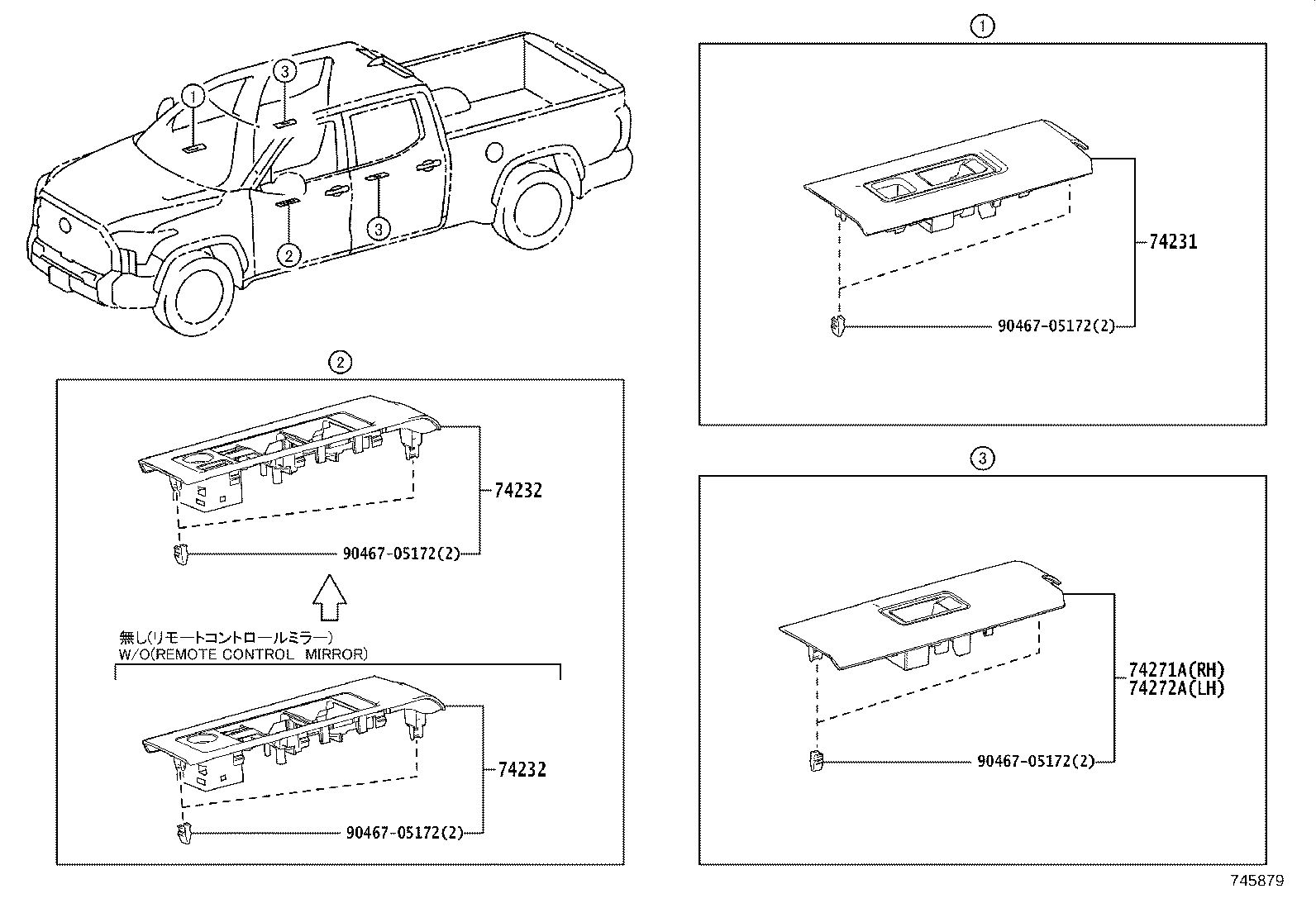

| 74231 | Panel, Front Armrest Base, Upper RH |
| 74232 | Panel, Front Armrest Base, Upper LH |
| 74271A | Panel, Rear Door Armrest Base, Upper RH |
| 74272A | Panel, Rear Door Armrest Base, Upper LH |
| 74310 | Visor Assy, RH |
| 74320 | Visor Assy, LH |
| 74325 | Cover, Visor Bracket |
| 74348 | Holder, Visor |
| 74610B | Grip Assy, Assist, NO.2 RH |
| 74610K | Grip Assy, Assist, NO.2 LH |
| 74610U | Grip Assy, Assist |
| 74610V | Grip Assy, Assist |
| 74611C | Cover, Assist Grip, LH |
| 74611E | Cover, Assist Grip, LH |
| 74612A | Cover, Assist Grip, RH |
| 74612C | Cover, Assist Grip, RH |
| 74615F | Plug, Front Assist Grip, Upr RH |
| 74615G | Plug, Front Assist Grip, Upr LH |
| 74616A | Plug, Front Assist Grip, Lower RH |
| 74616D | Plug, Front Assist Grip, Lwr LH |
| 74617A | Plug, Assist Grip |
| 74617C | Plug, Assist Grip |
| 74617F | Plug, Assist Grip |
| 74617W | Plug, Assist Grip |
| 74620C | Grip Assy, Assist, Rear RH |
| 74630E | Grip Assy, Assist, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
