Toyota Tundra/Sequoia

2021-11 → present · chassis VXKA7#,VXKH7#,VXKH8# · catalogue 841440 · United States

Supported model Data version 2022-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate

9 part groups · 2 illustrations

Illustrations

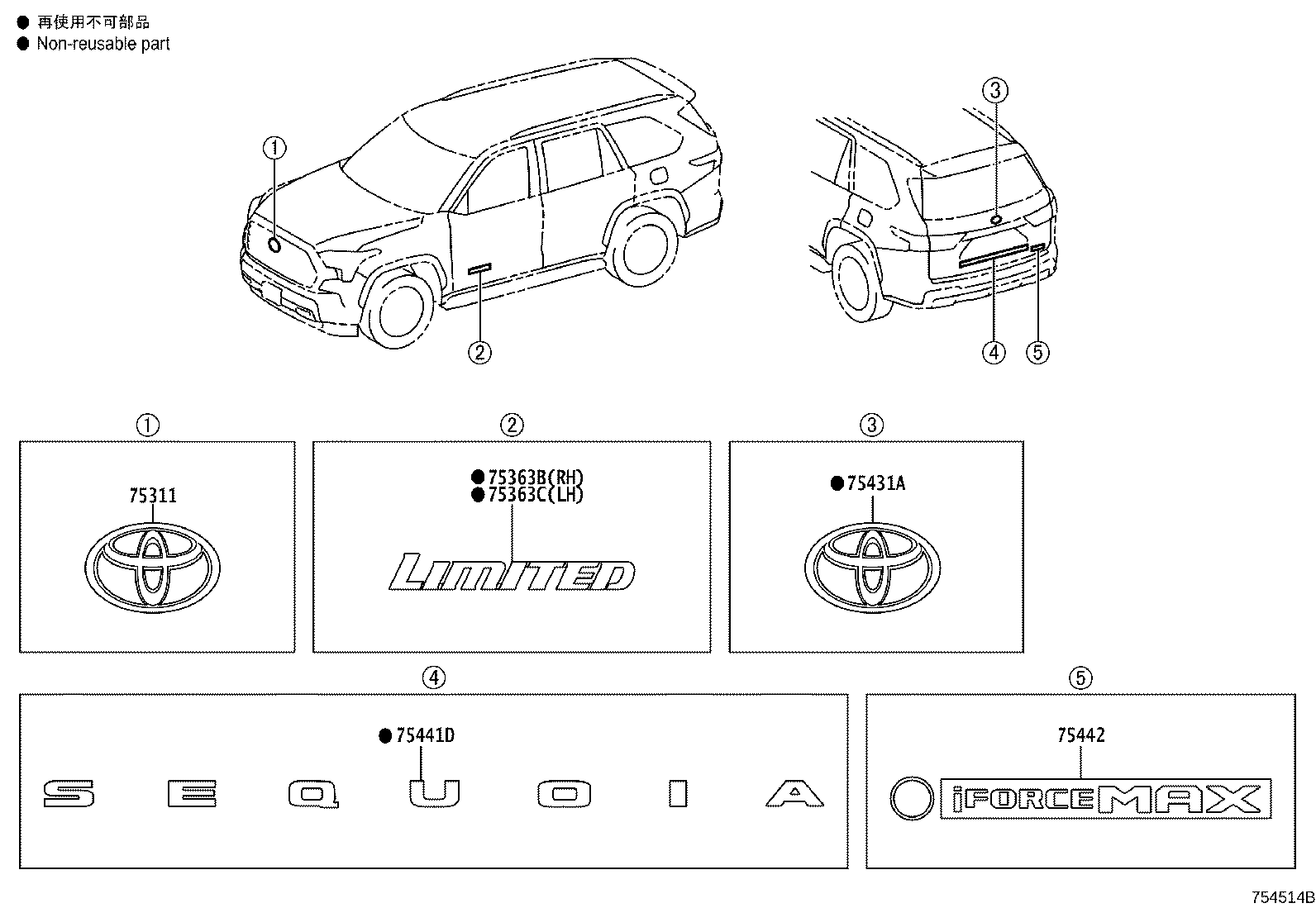

Figure 754393B 754393B 2021-11 → — Figure 754514B 754514B 2022-07 → —

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75363B Plate, Door Name, RH
75363C Plate, Door Name, LH
75431A Emblem, Back Door, NO.1
75441D Plate, Luggage Compartment Door Name, NO.1
75442 Plate, Luggage Compartment Door Name, NO.2
75455A Mark, Roof Side, NO.1 RH
75455B Mark, Roof Side, NO.1 LH
75473B Plate, Rear Body Name, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
