Toyota Tundra/Sequoia
2021-11 → present · chassis VXKA7#,VXKH7#,VXKH8# · catalogue 841440 · United States
Supported model
Data version 2022-06
Switch & Relay & Computer
182 part groups · 18 illustrations

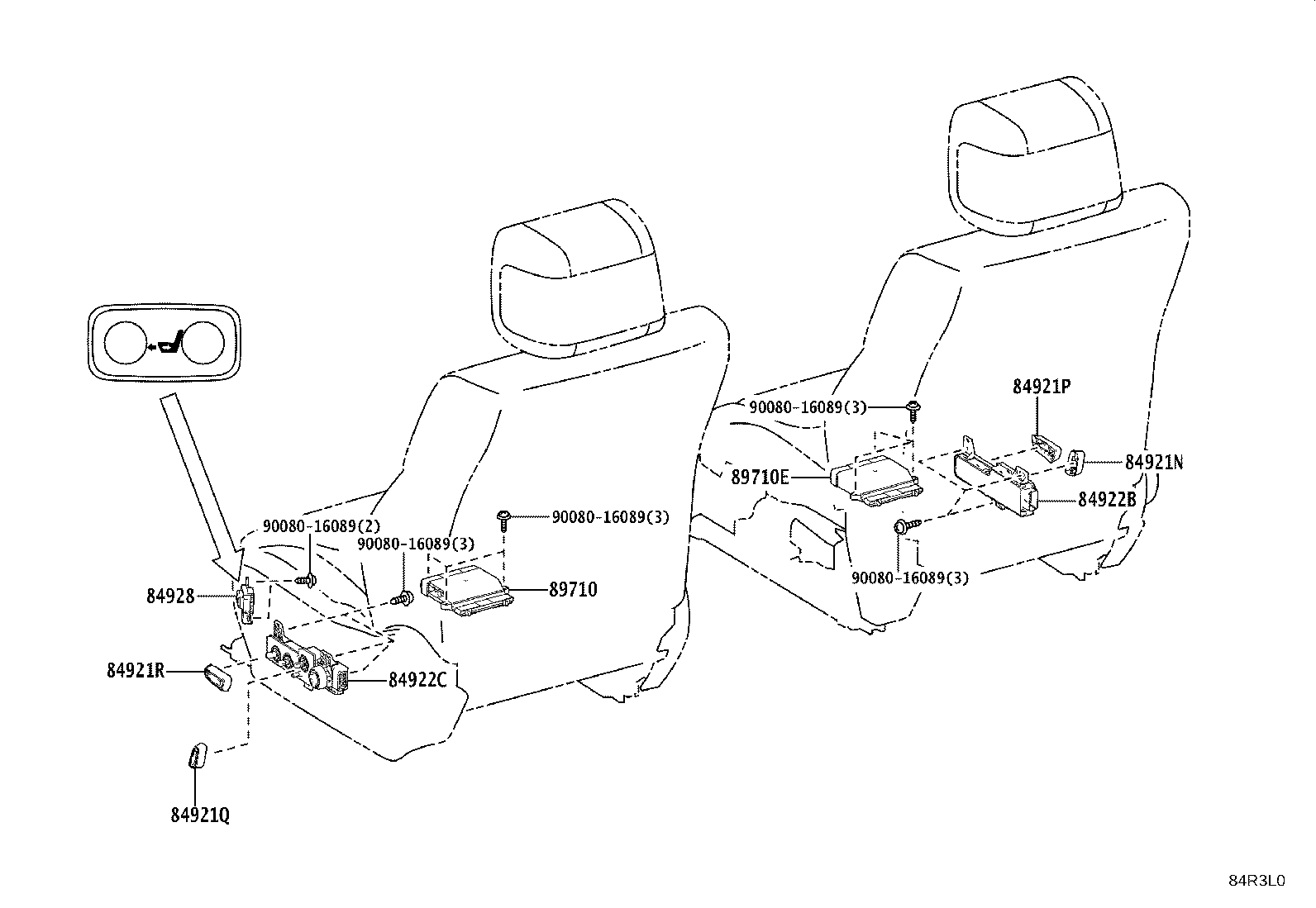

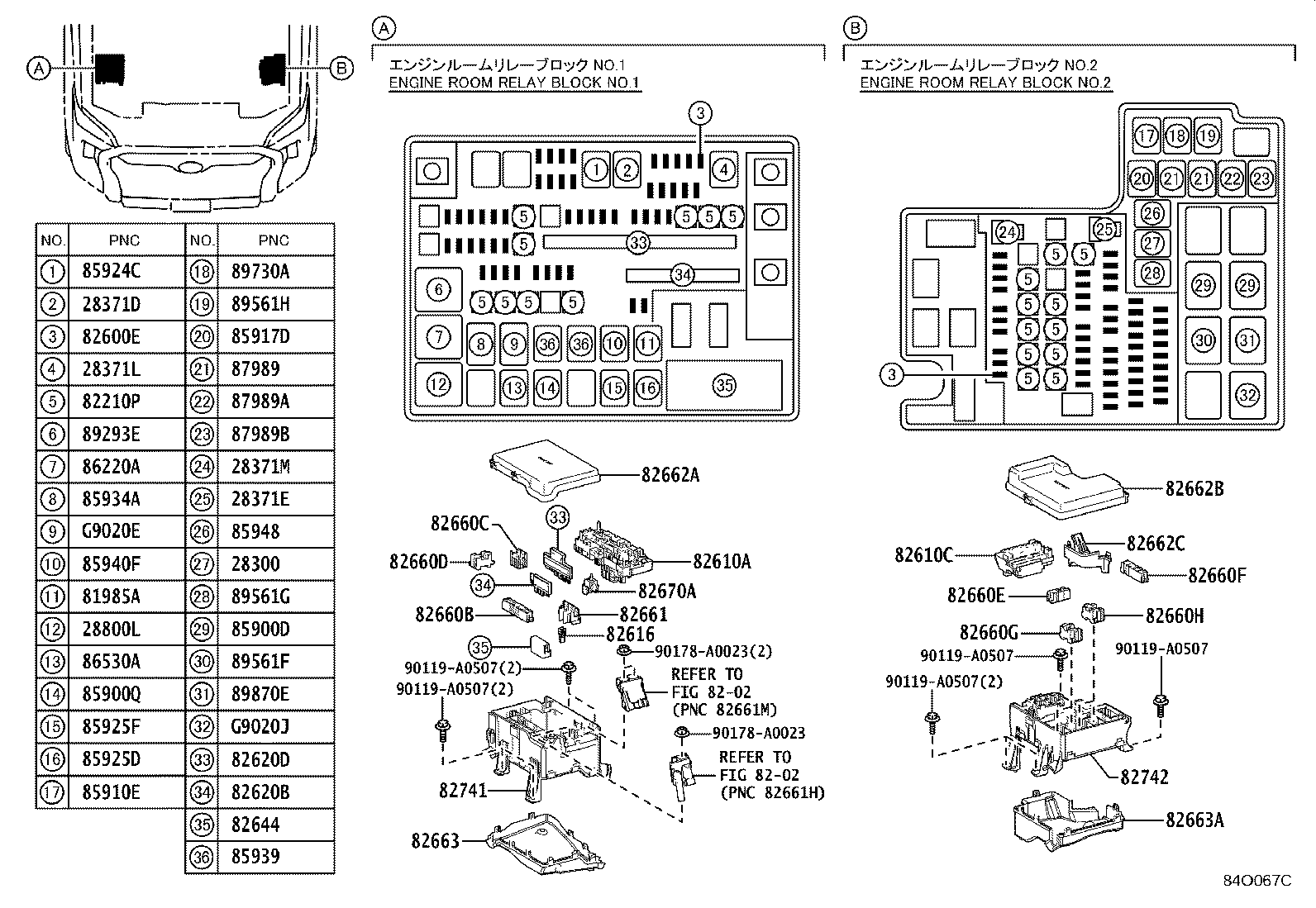

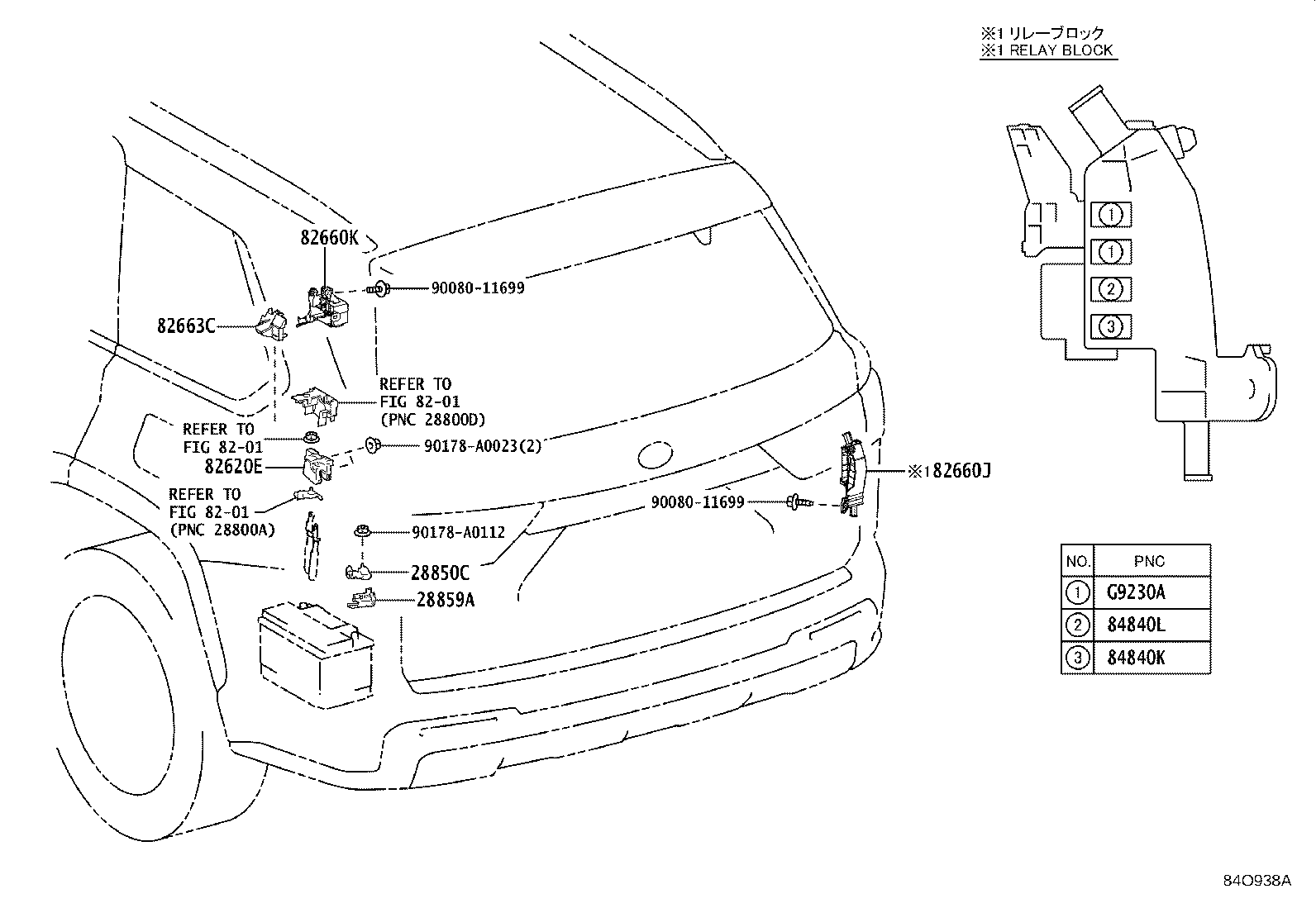

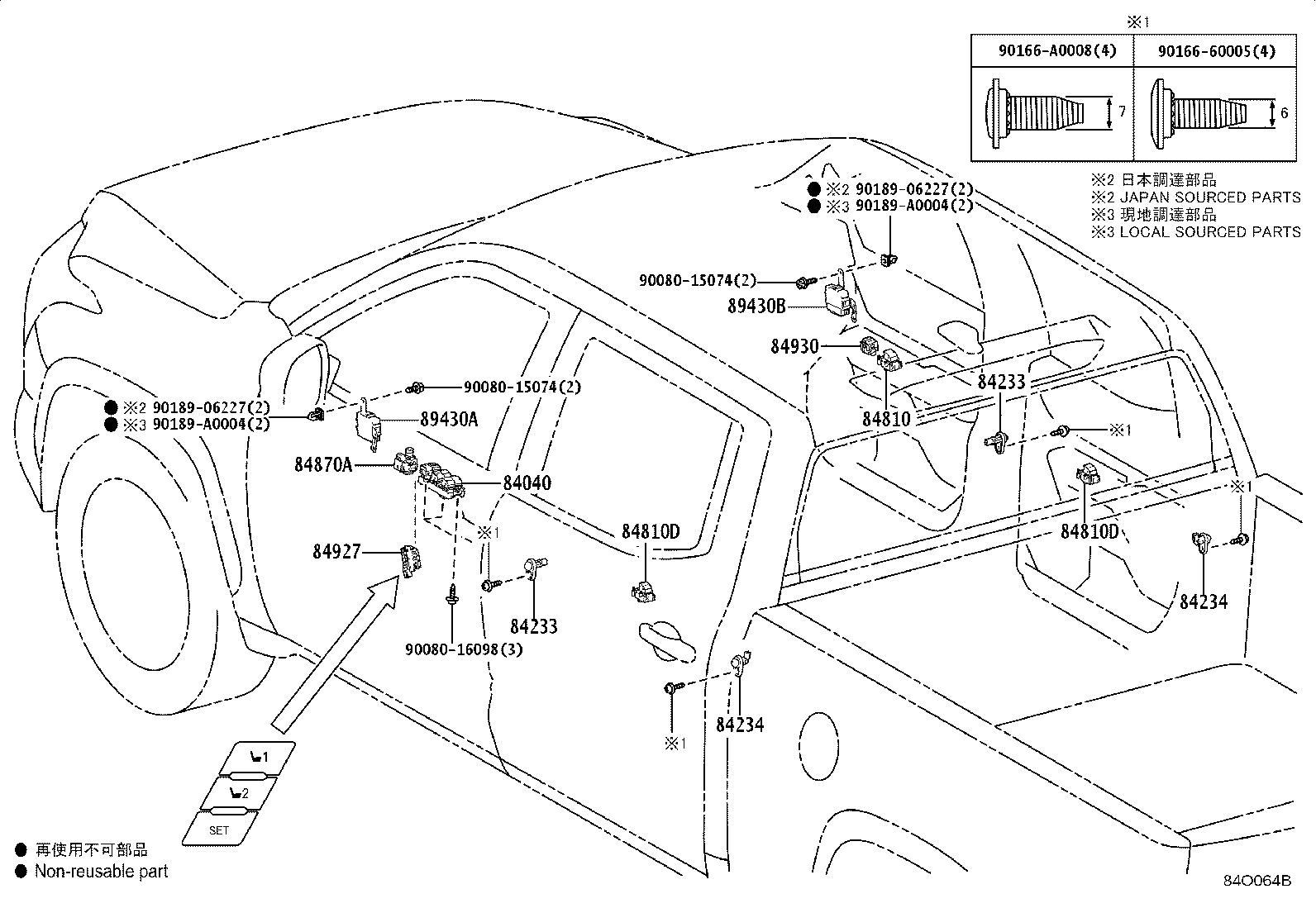

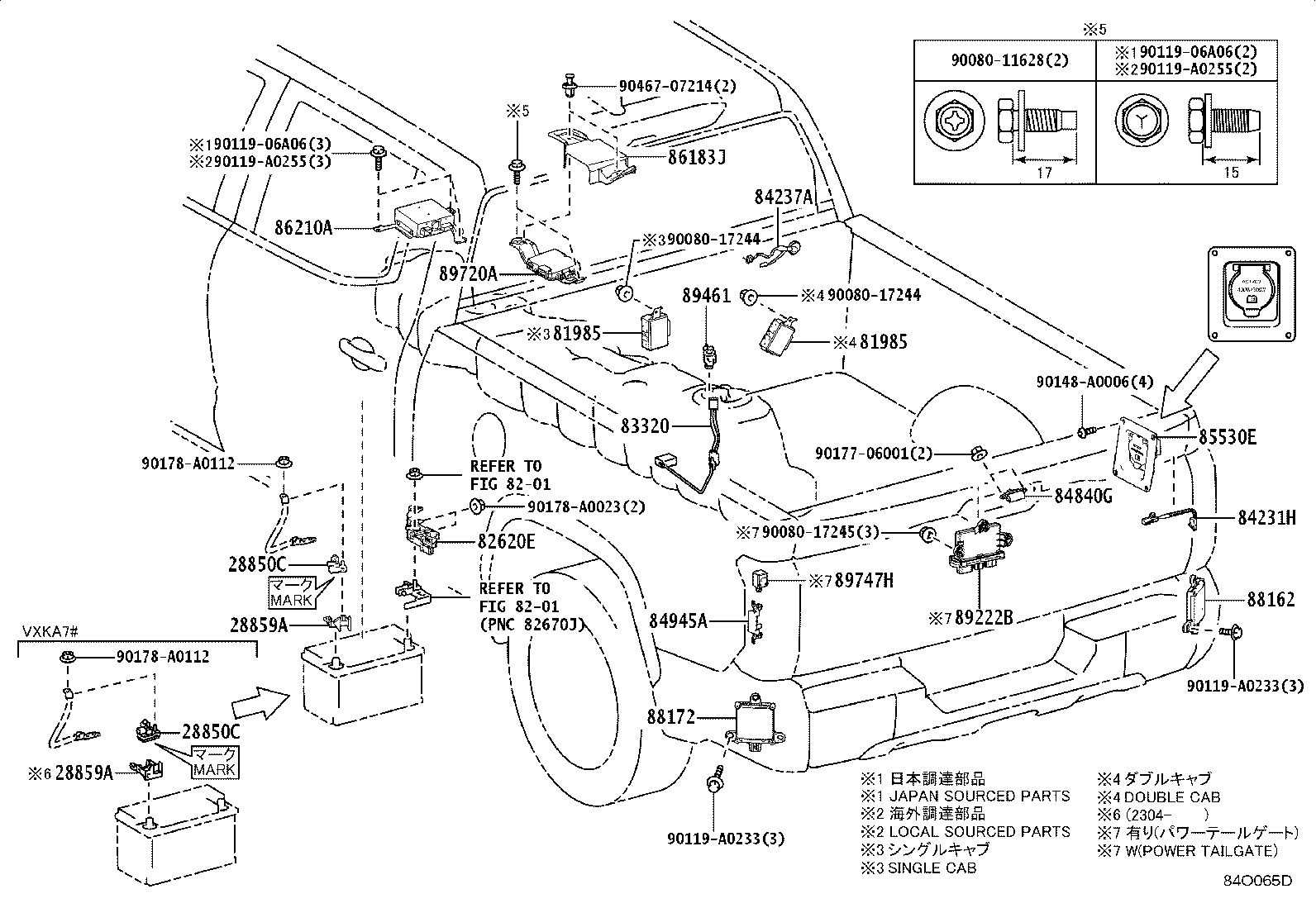

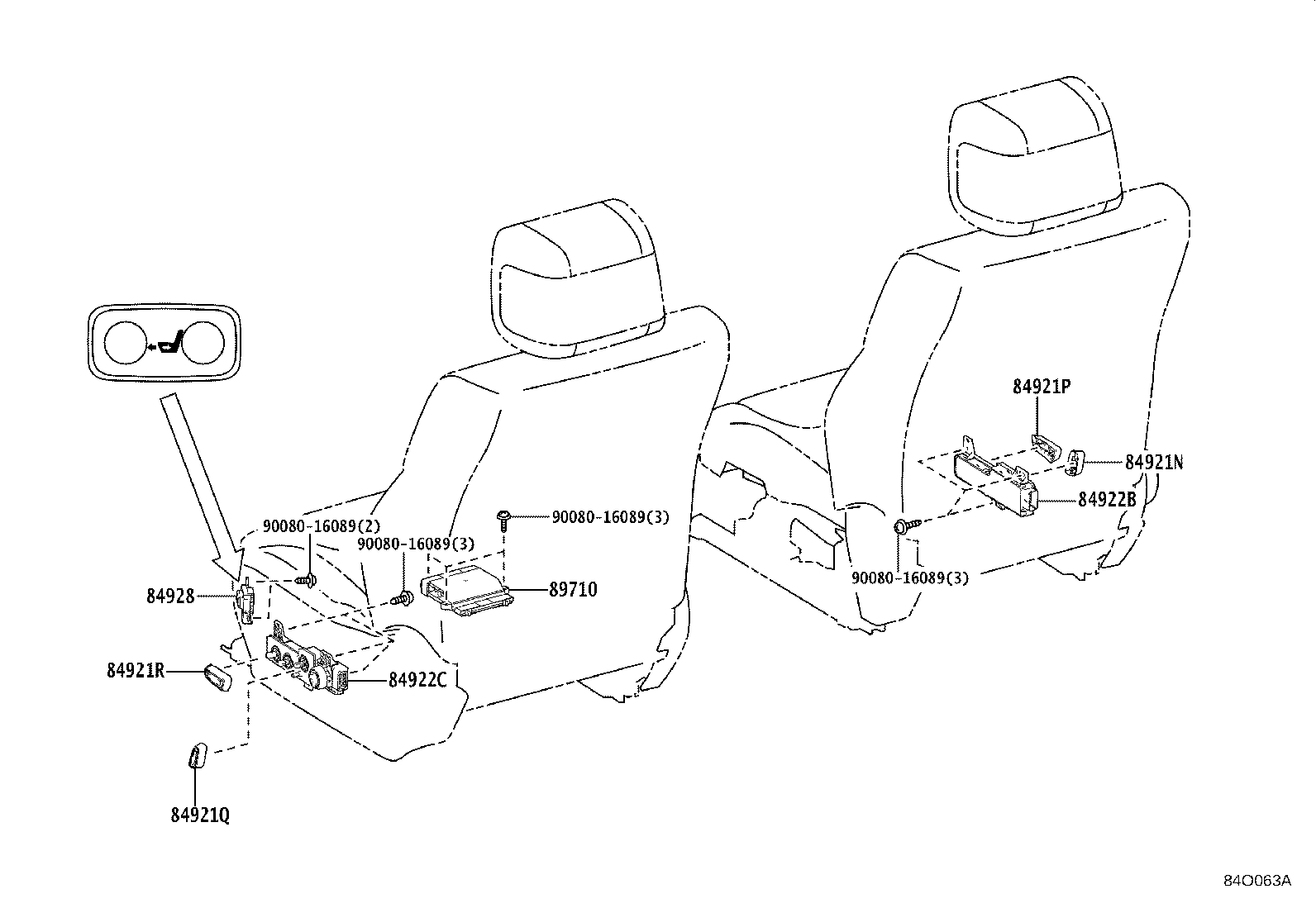

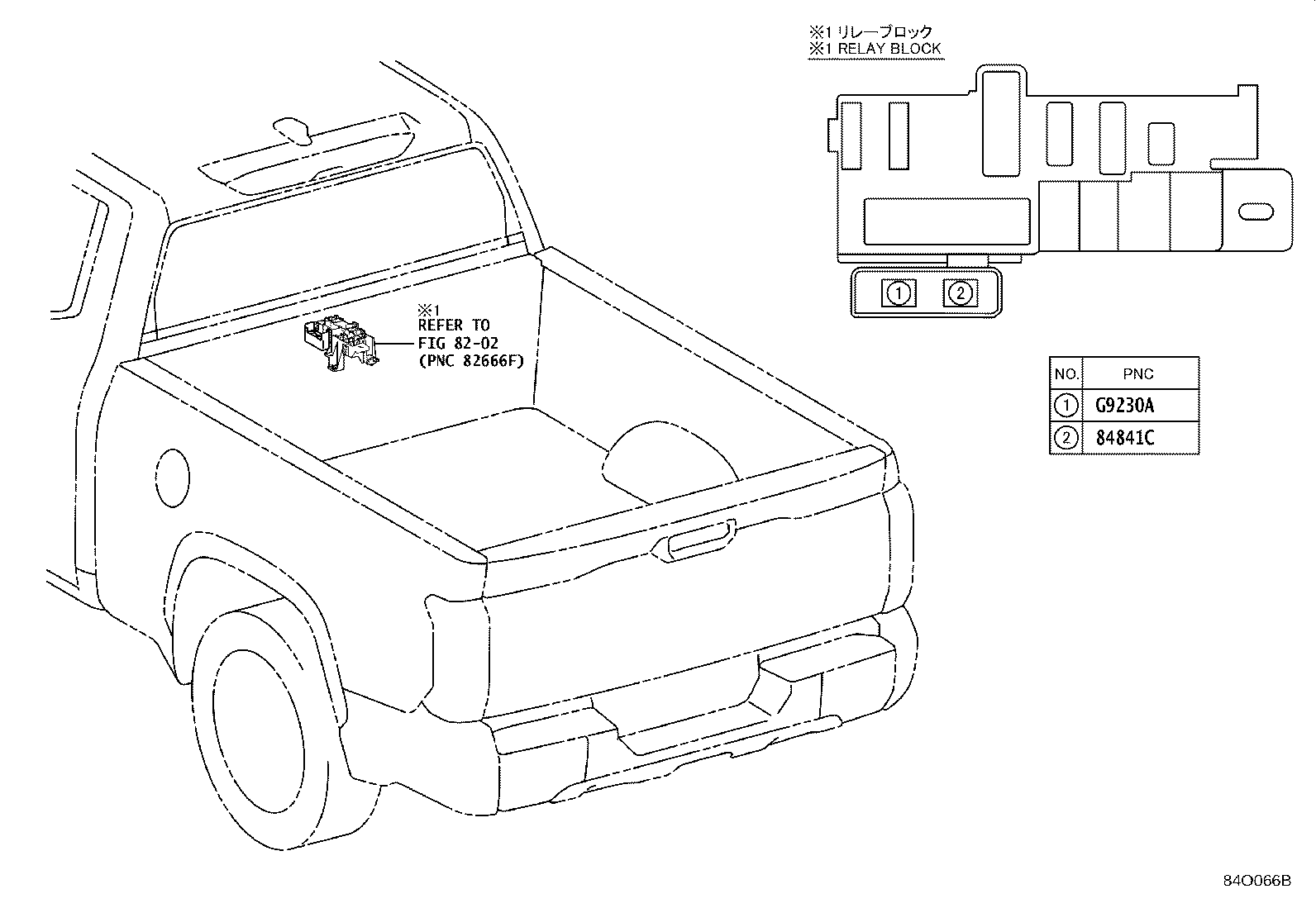

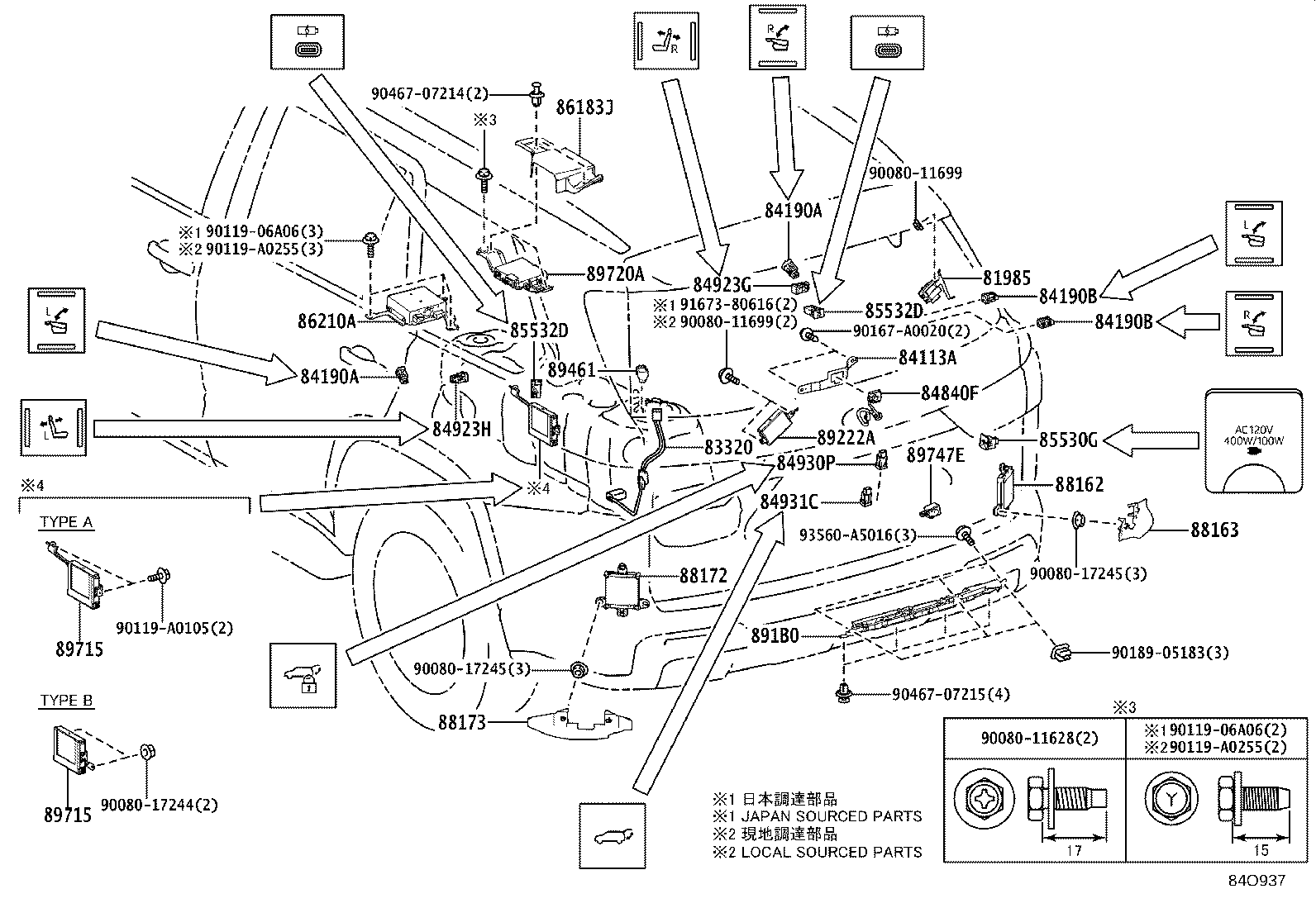

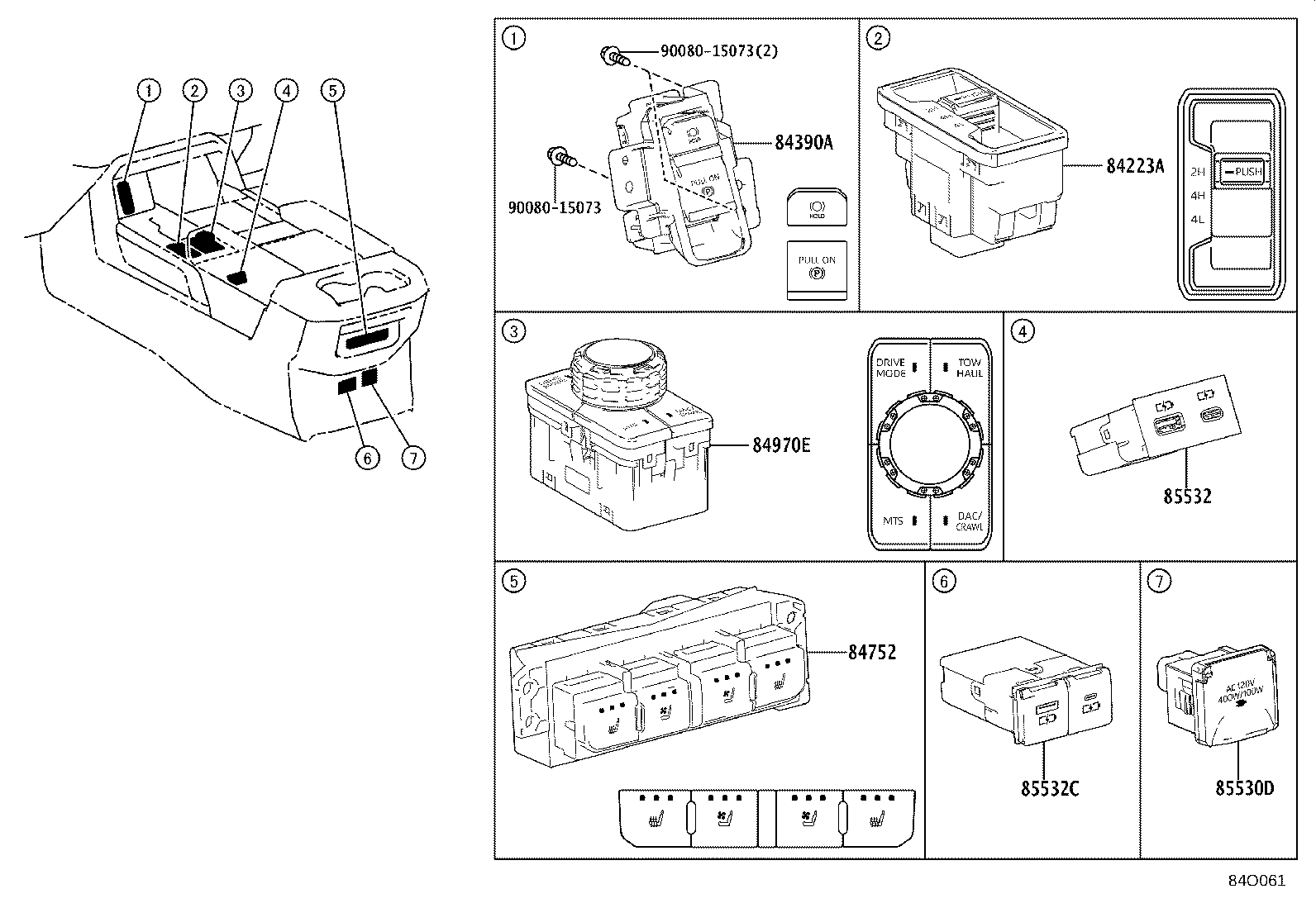

Illustrations

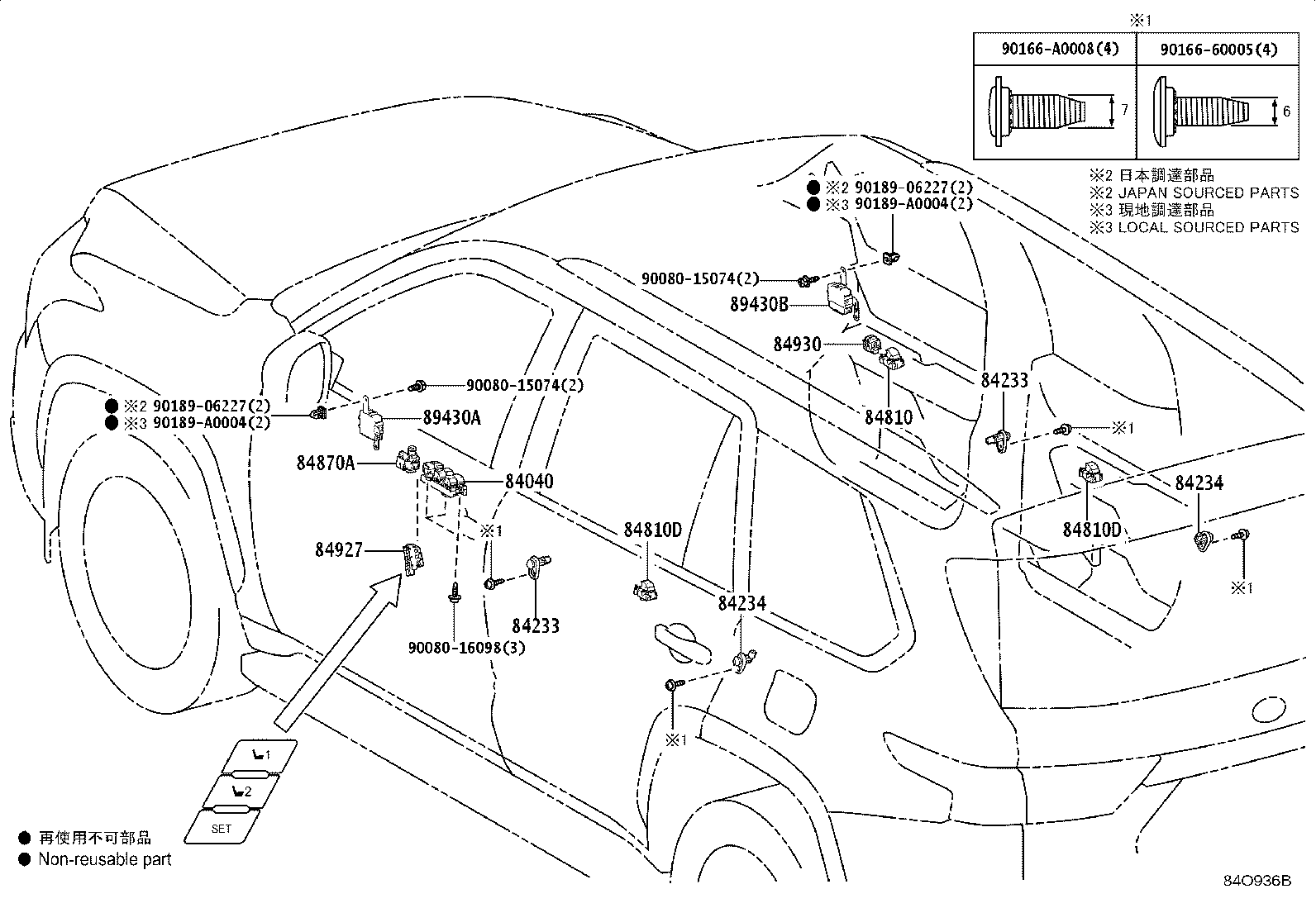

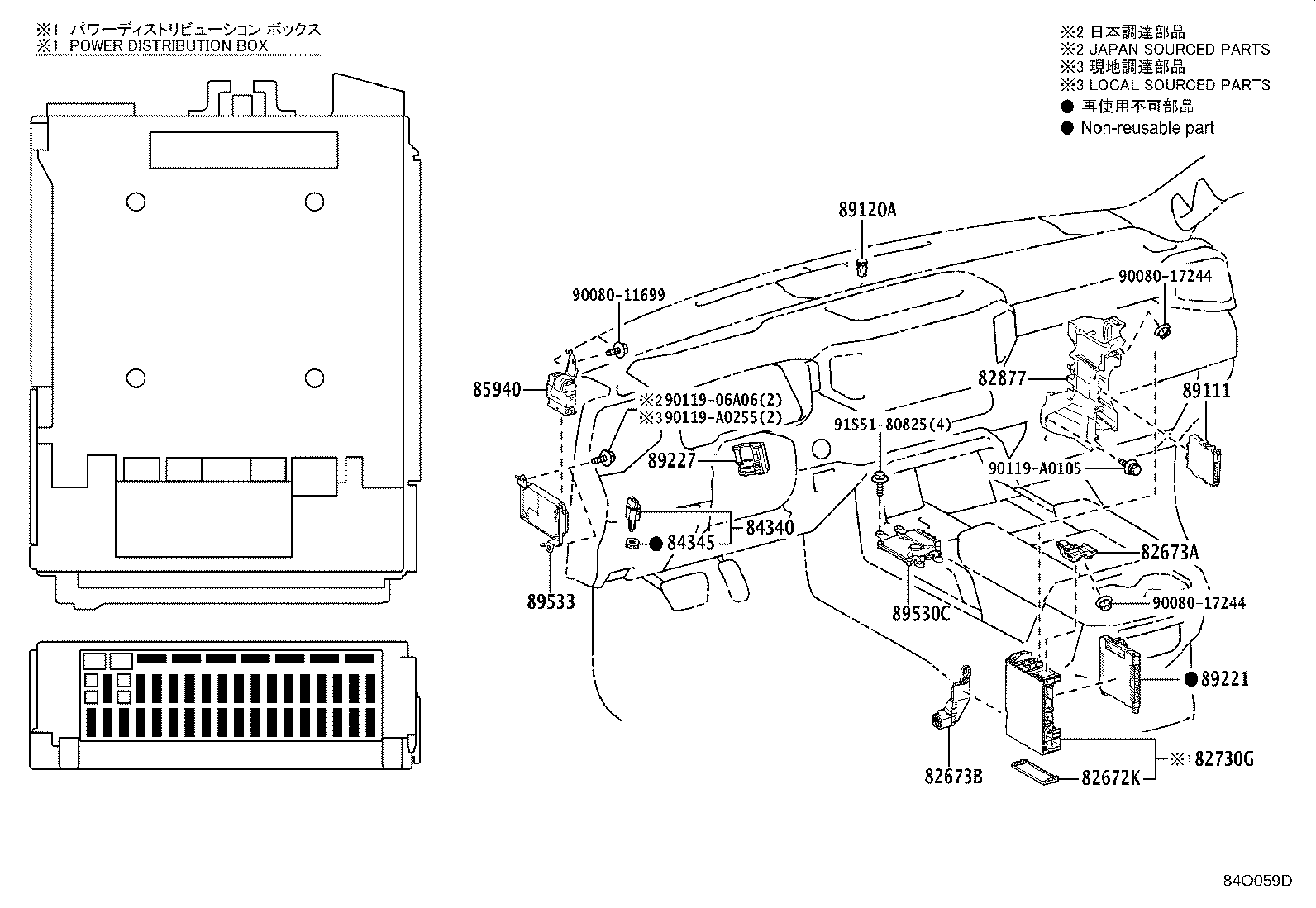

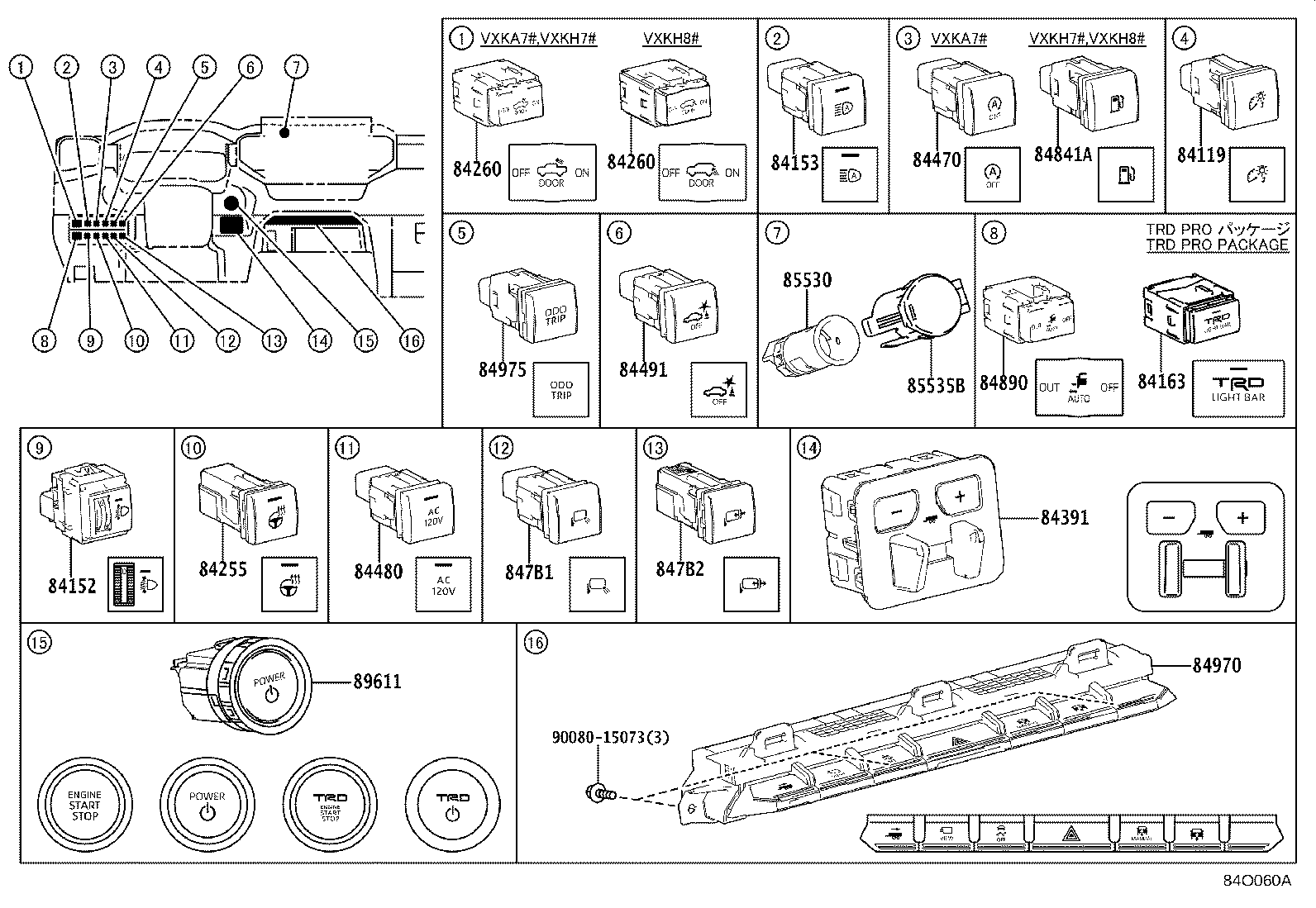

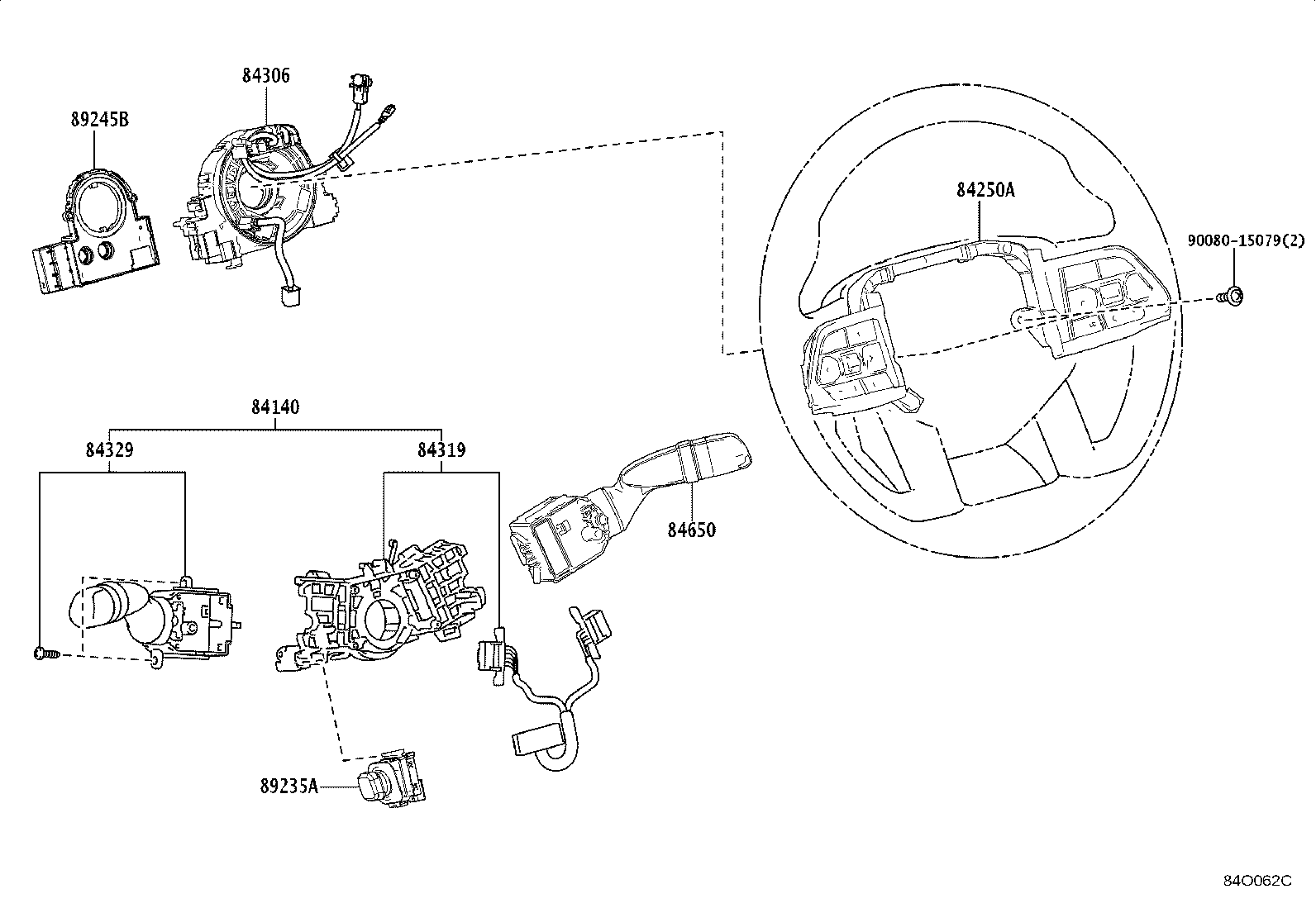

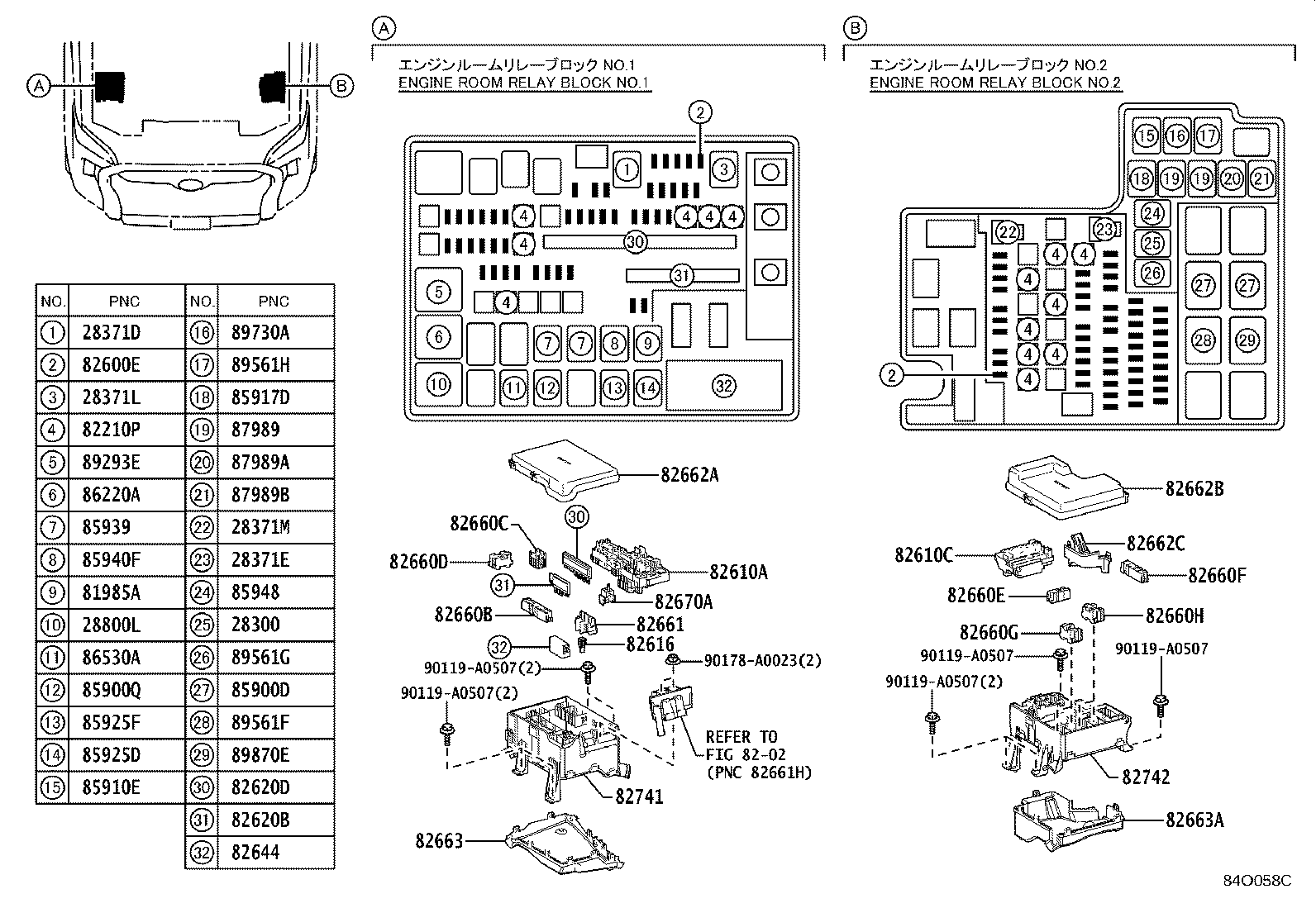

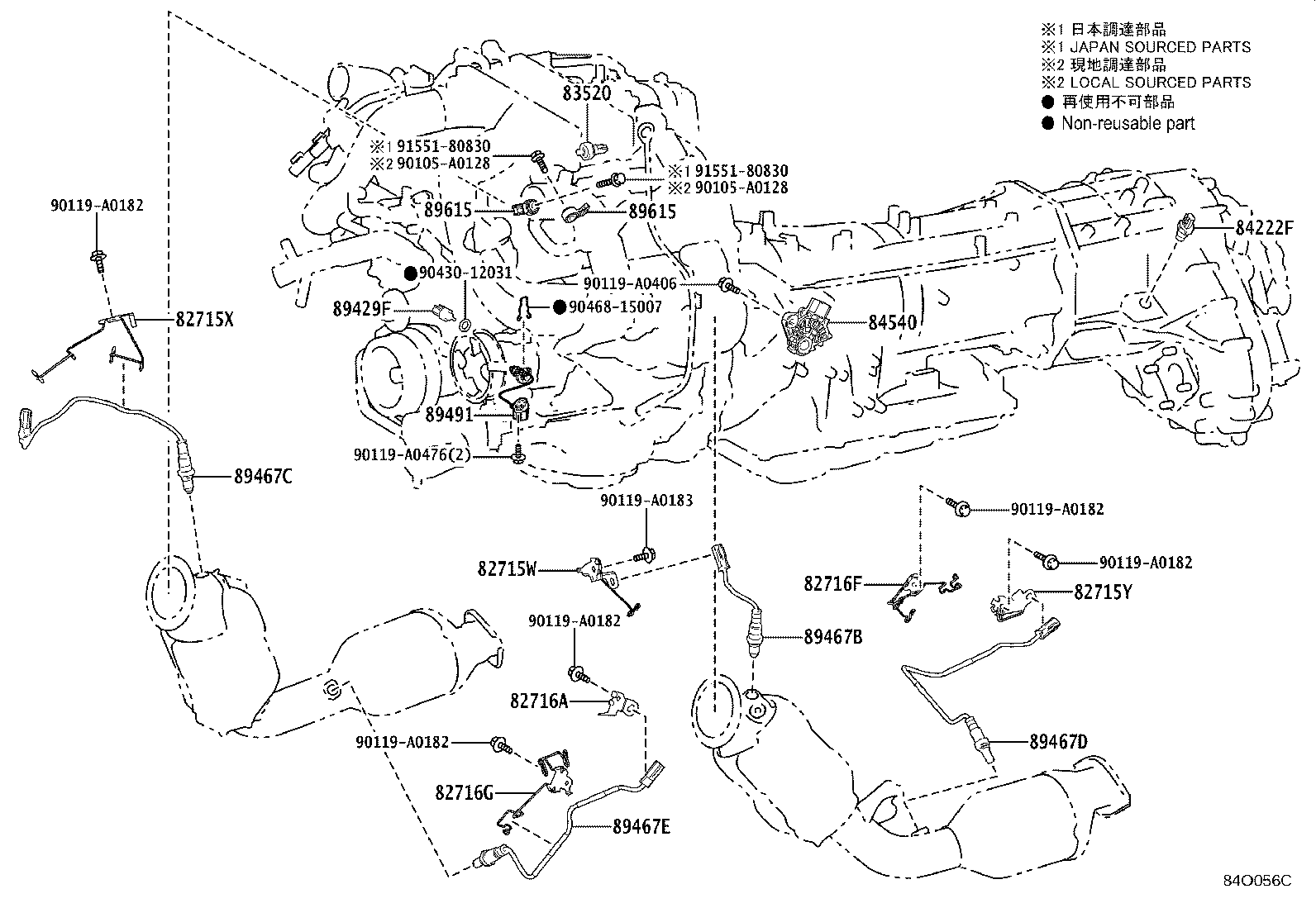

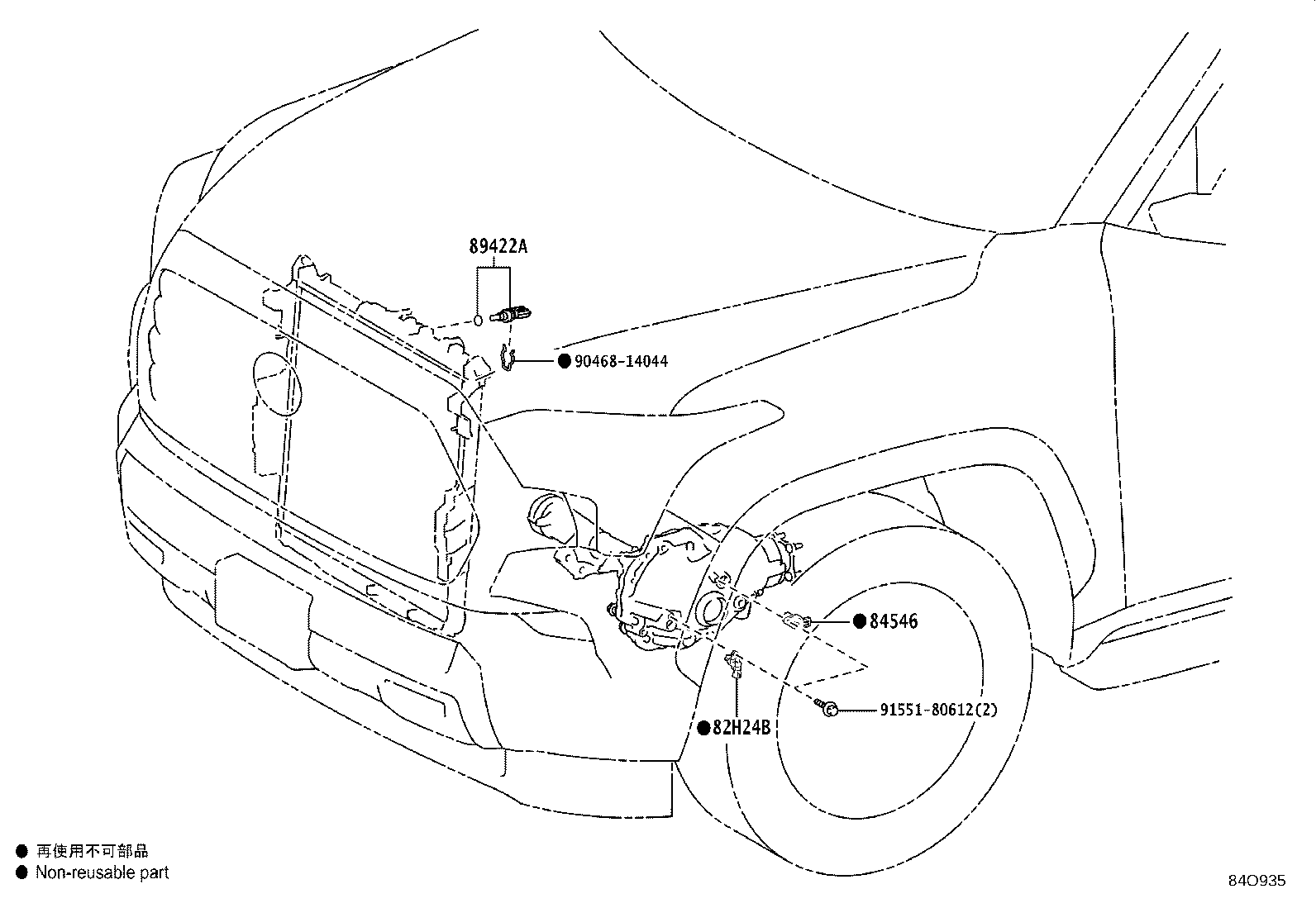

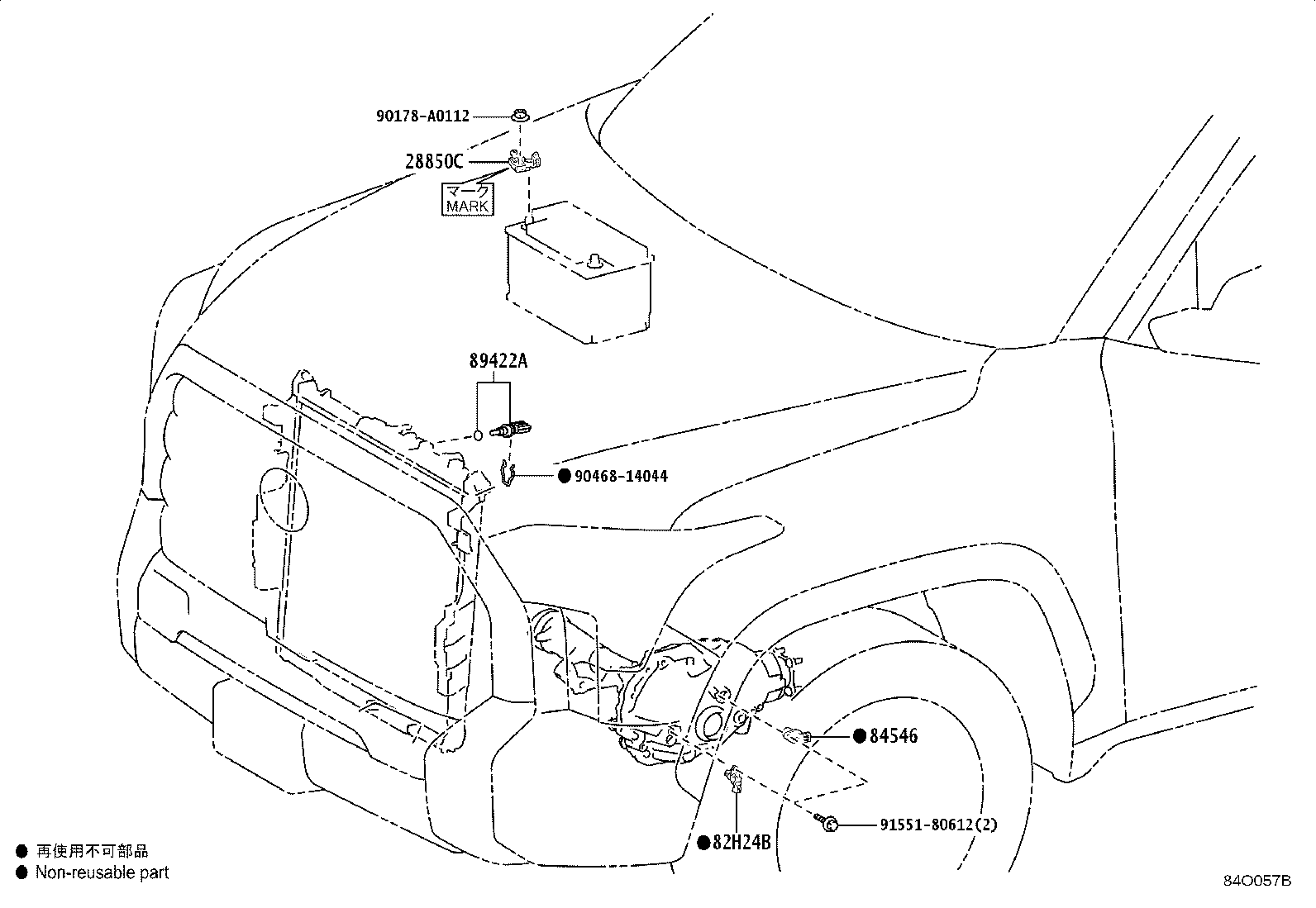

Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28371D | Relay, Ignition, NO.3 |
| 28371E | Relay, Ignition, NO.4 |
| 28371L | Relay, Igp |
| 28371M | Relay, Igp, NO.2 |
| 28800L | Relay, Sub Battery |
| 28850C | Sensor Assy, Battery State |
| 28859A | Holder, Battery Current Sensor |
| 81985 | Relay, Towing Converter |
| 81985A | Relay, Towing Back-up |
| 82210P | Engine Room Fusible Link |
| 82600E | Engine Room Fuse |
| 82610A | Block Assy, Fuse |
| 82610C | Block Assy, Fuse |
| 82616 | Puller, Fuse |
| 82620B | Block Assy, Fusible Link |
| 82620D | Block Assy, Fusible Link |
| 82620E | Block Assy, Fusible Link |
| 82644 | Computer, Semiconductor Power Integration |
| 82660B | Block Assy, Relay |
| 82660C | Block Assy, Relay |
| 82660D | Block Assy, Relay |
| 82660E | Block Assy, Relay |
| 82660F | Block Assy, Relay |
| 82660G | Block Assy, Relay |
| 82660H | Block Assy, Relay |
| 82660J | Block Assy, Relay |
| 82660K | Block Assy, Relay |
| 82661 | Cover, Relay Block, NO.1 |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82662B | Cover, Relay Block, Upper, NO.2 |
| 82662C | Cover, Relay Block, Upper, NO.3 |
| 82663 | Cover, Relay Block, Lower |
| 82663A | Cover, Relay Block, Lower, NO.2 |
| 82663C | Cover, Relay Block Lower, NO.4 |
| 82670A | Block Assy, Junction, NO.1 |
| 82672K | Cover, Power Distribution Box |
| 82673A | Bracket, Junction Block, NO.1 |
| 82673B | Bracket, Junction Block, NO.2 |
| 82715W | Bracket, Wiring Harness Clamp |
| 82715X | Bracket, Wiring Harness Clamp, NO.2 |
| 82715Y | Bracket, Wiring Harness Clamp, NO.3 |
| 82716A | Bracket, Wiring Harness Clamp |
| 82716F | Bracket, Wiring Harness Clamp, NO.4 |
| 82716G | Bracket, Wiring Harness Clamp |
| 82730G | Box Assy, Power Distribution |
| 82741 | Block, Engine Room Relay |
| 82742 | Block, Engine Room Relay, NO.2 |
| 82877 | Box, Computer Integration, RH |
| 82H24B | Connector, Wiring Harness |
| 83320 | Gage Assy, Fuel Sender |
| 83520 | Gage Assy,Oil Pressure Sender |
| 84040 | Master Switch Assy,Multiplex Network |
| 84113A | Bracket, Switch, NO.1 |
| 84119 | Rheostat, Light Control |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84152 | Switch, Headlamp Leveling |
| 84153 | Switch, Auto High Beam |
| 84163 | Switch, Light Emitting Diode Illumination |
| 84190A | Switch Assy, Fold Seat, NO.1 |
| 84190B | Switch Assy, Fold Seat, NO.2 |
| 84222F | Switch, Transfer Indicator |
| 84223A | Switch, Transfer Position |
| 84231H | Switch, Tail Gate Courtesy |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84237A | Switch, Hood Courtesy |
| 84250A | Switch Assy, Steering Pad |
| 84255 | Switch, Steering Heater |
| 84260 | Switch Assy, Deck Lamp |
| 84306 | Cable Sub-assy, Spiral |
| 84319 | Housing, Steering Wheel Switch |
| 84329 | Switch, Turn Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84345 | Adjuster, Stop Lamp Switch Mounting |
| 84390A | Switch Assy, Brake Warning |
| 84391 | Switch, Trailer Brake Control |
| 84470 | Switch Assy, Warning Canceling |
| 84480 | Switch Assy, Main |
| 84491 | Switch, Parking Support Brake Cancel |
| 84540 | Switch Assy, Neutral Start |
| 84546 | Switch, 4 Wheel Drive Position, NO.1 |
| 84650 | Switch Assy, Windshield Wiper |
| 84752 | Switch, Refreshing Seat |
| 847B1 | Switch, Outer Mirror Lamp |
| 847B2 | Switch, Outer Mirror Extend |
| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84840F | Switch Assy, Glass Hatch Opener |
| 84840G | Switch Assy, Back Door Opener |
| 84840K | Relay, Glass Hatch, NO.1 |
| 84840L | Relay, Glass Hatch, NO.2 |
| 84841A | Switch, Fuel Lid Opener |
| 84841C | Relay, Fuel Lid Opener |
| 84870A | Switch Assy, Outer Mirror |
| 84890 | Switch Assy, Side Auto Step |
| 84921N | Knob, Power Seat Switch, RH (FOR RECLINING) |
| 84921P | Knob, Power Seat Switch, RH (FOR SLIDE & VERTICAL) |
| 84921Q | Knob, Power Seat Switch, LH (FOR RECLINING) |
| 84921R | Knob, Power Seat Switch, LH (FOR SLIDE & VERTICAL) |
| 84922B | Switch, Front Power Seat, RH |
| 84922C | Switch, Front Power Seat, LH |
| 84923G | Switch, Rear Power Seat, NO.1, RH |
| 84923H | Switch, Rear Power Seat, NO.1, LH |
| 84927 | Switch, Seat Memory |
| 84928 | Switch, Seat Variable Cushion |
| 84930 | Switch Assy, Door Control |
| 84930P | Switch Assy, Door Control |
| 84931C | Switch, Back Door Control |
| 84945A | Switch, Luggage Electrical Key |
| 84970 | Switch Assy, Combination |
| 84970E | Switch Assy, Combination NO.2 |
| 84975 | Switch, Trip |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85530D | Socket Assy, Power Outlet, NO.2 |
| 85530E | Socket Assy, Power Outlet, NO.3 |
| 85530G | Socket Assy, Power Outlet, NO.4 |
| 85532 | Socket, Usb Charger |
| 85532C | Socket, Usb Charger, NO.2 |
| 85532D | Socket, Usb Charger, NO.3 |
| 85535B | Cover, Power Outlet Socket, NO.1 |
| 85900D | Relay, Tail Gate |
| 85900Q | Relay, Tail |
| 85910E | Relay, Injector |
| 85917D | Relay, Heater(FOR AIR FUEL RATIO SENSOR) |
| 85924C | Relay, Igct |
| 85925D | Relay, Ptc Heater |
| 85925F | Relay, Ptc Heater NO.2 |
| 85934A | Relay Condenser Fan |
| 85939 | Relay, Power Window |
| 85940 | Relay Assy, Windshield Wiper |
| 85940F | Relay Assy, Windshield Deicer |
| 85948 | Relay, Windshield Wiper |
| 86183J | Cover, Audio Amplifier |
| 86210A | Inverter Assy, Voltage |
| 86220A | Relay, Inverter |
| 86530A | Relay, Horn |
| 87989 | Relay, Mirror Control |
| 87989A | Relay, Mirror NO.1 |
| 87989B | Relay, Mirror NO.2 |
| 88162 | Sensor, Blind Spot Monitor, RH |
| 88163 | Cover, Blind Spot Monitor, RH |
| 88172 | Sensor, Blind Spot Monitor, LH |
| 88173 | Cover, Blind Spot Monitor, LH |
| 89111 | Computer, Network Gateway |
| 89120A | Sensor, Automatic Light Control |
| 891B0 | Sensor Assy, Kick Door Control |
| 89221 | Computer, Multiplex Network Body |
| 89222A | Computer, Multiplex Network Door |
| 89222B | Computer, Power Tailgate |
| 89227 | Computer, Multiplex Tilt & Telescopic |
| 89235A | Switch, Tilt & Telescopic |
| 89245B | Sensor, Steering |
| 89293E | Relay, Air Suspension |
| 89422A | Sensor, Water Temperature |
| 89429F | Sensor, Temperature |
| 89430A | Computer Assy, Outer Mirror Control, LH |
| 89430B | Computer Assy, Outer Mirror Control, RH |
| 89461 | Sensor, Vapor Pressure |
| 89467B | Sensor, Air Fuel Ratio |
| 89467C | Sensor, Air Fuel Ratio, NO.2 |
| 89467D | Sensor, Air Fuel Ratio, NO.3 |
| 89467E | Sensor, Air Fuel Ratio, NO.4 |
| 89491 | Sensor, Engine Oil Level |
| 89530C | Computer Assy, Transmission Control |
| 89533 | Computer, 4 Wheel Drive Control |
| 89561F | Relay, Electronic Fuel Injection Main, NO.1 |
| 89561G | Relay, Electronic Fuel Injection Main, NO.2 |
| 89561H | Relay, Electronic Fuel Injection Main, NO.3 |
| 89611 | Switch, Push Start |
| 89615 | Sensor, Knock Control |
| 89710 | Computer Assy, Position Control |
| 89710E | Computer Assy, Position Control, NO.2 |
| 89715 | Computer, Fold Seat Control |
| 89720A | Computer Assy, Side Auto Step Controller |
| 89730A | Relay(FOR SECURITY WARNING) |
| 89747E | Buzzer, Power Back Door Warning |
| 89747H | Buzzer, Power Tailgate |
| 89870E | Relay, Electronic Driver Unit |
| G9020E | Relay, Hybrid Water Pump |
| G9020J | Relay, Oil Pump |
| G9230A | Relay, Battery Fan, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
