Toyota Tundra/Sequoia
2021-11 → present · chassis VXKA7#,VXKH7#,VXKH8# · catalogue 841440 · United States
Supported model
Data version 2022-06

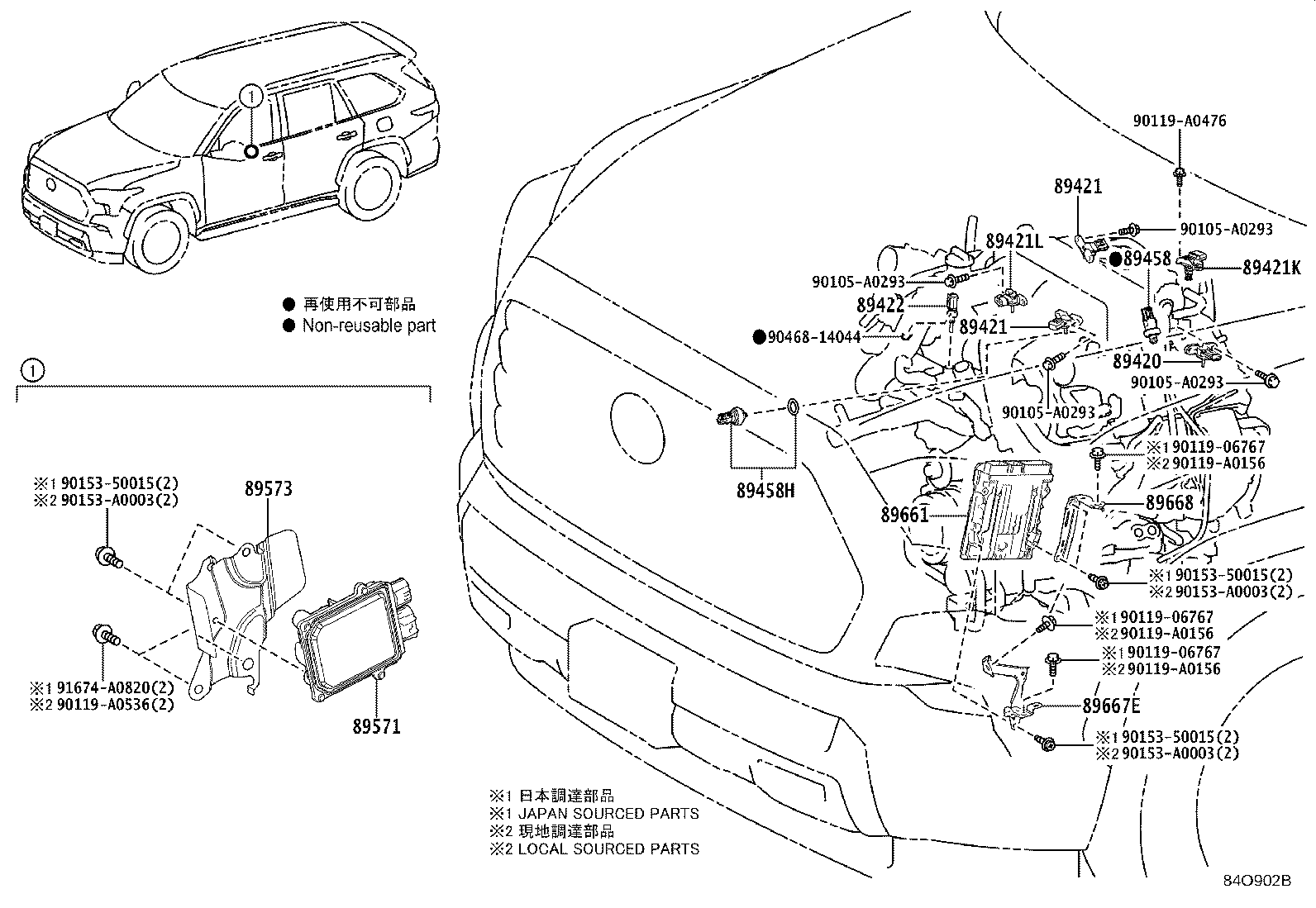

Electronic Fuel Injection System
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 89420 | Sensor Assy, Vacuum |
| 89421 | Sensor Assy, Vacuum (FOR E.F.I.) |
| 89421K | Sensor, Turbo Pressure, NO.1 |
| 89421L | Sensor, Turbo Pressure, NO.2 |
| 89422 | Sensor, Water Temperature (FOR E.F.I.) |
| 89458 | Sensor, Fuel Pressure |
| 89458H | Sensor, Fuel Pressure, NO.2 |
| 89571 | Computer, Fuel Pump Control |
| 89573 | Bracket, Fuel Pump Control Computer |
| 89573A | Bracket, Fuel Pump Control Computer, NO.2 |
| 89661 | Computer, Engine Control |
| 89667E | Bracket, Engine Control Computer, NO.1 |
| 89668 | Bracket, Engine Control Computer, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
