Toyota Tundra/Sequoia

2021-11 → present · chassis VXKA7#,VXKH7#,VXKH8# · catalogue 841440 · United States

Supported model Data version 2022-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

9 part groups · 2 illustrations

Illustrations

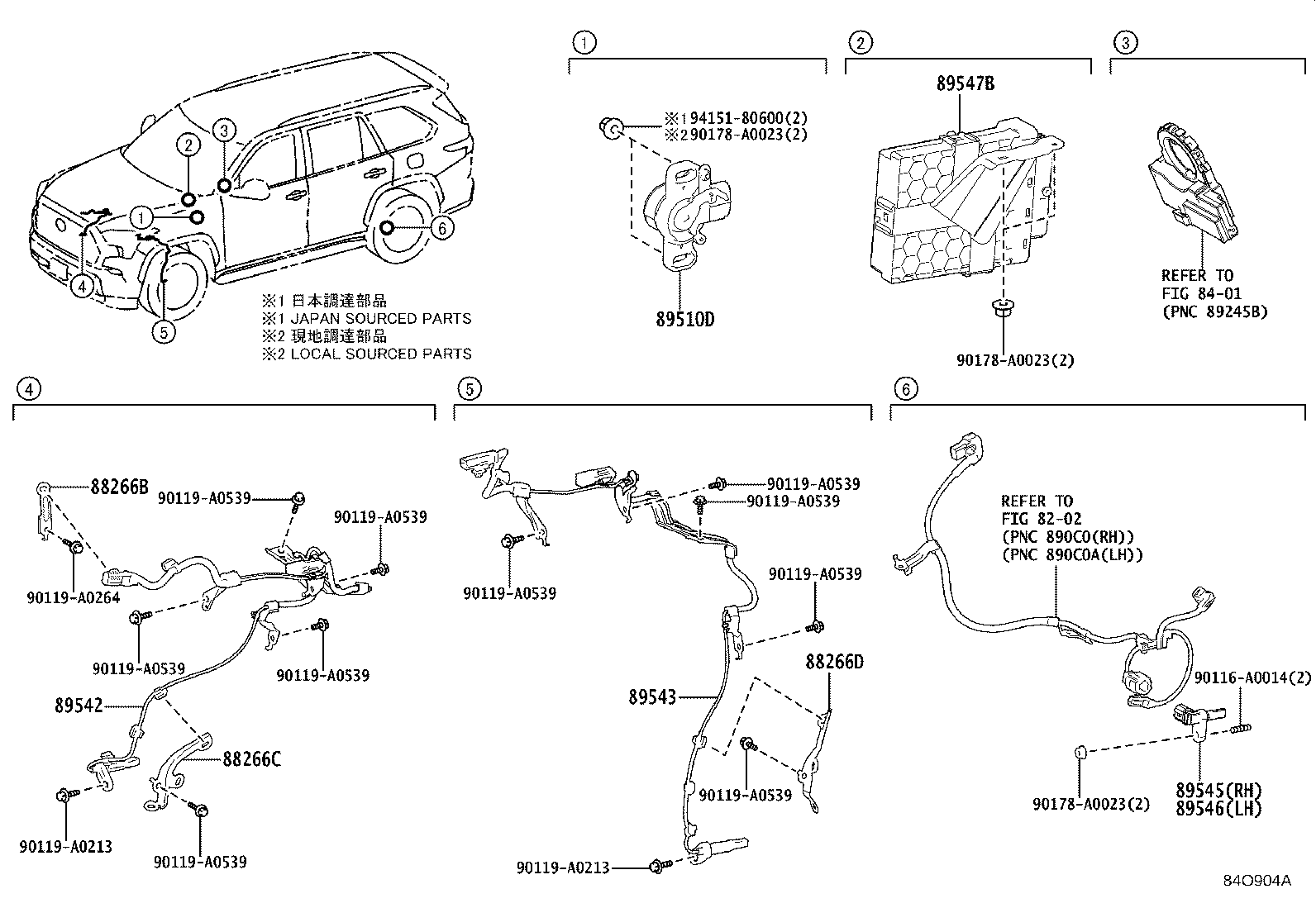

Figure 84O024A 84O024A 2021-11 → — Figure 84O904A 84O904A 2022-07 → —

Part groups

PNCDescription
88266B Clamp, Skid Control Sensor, NO.1
88266C Clamp, Skid Control Sensor, NO.2
88266D Clamp, Skid Control Sensor, NO.3
89510D Sensor Assy, Brake Pedal Stroke
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
89547B Relay, Brake Control W/Bracket
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
