Toyota Tundra/Sequoia
2021-11 → present · chassis VXKA7#,VXKH7#,VXKH8# · catalogue 841440 · United States
Supported model
Data version 2022-06

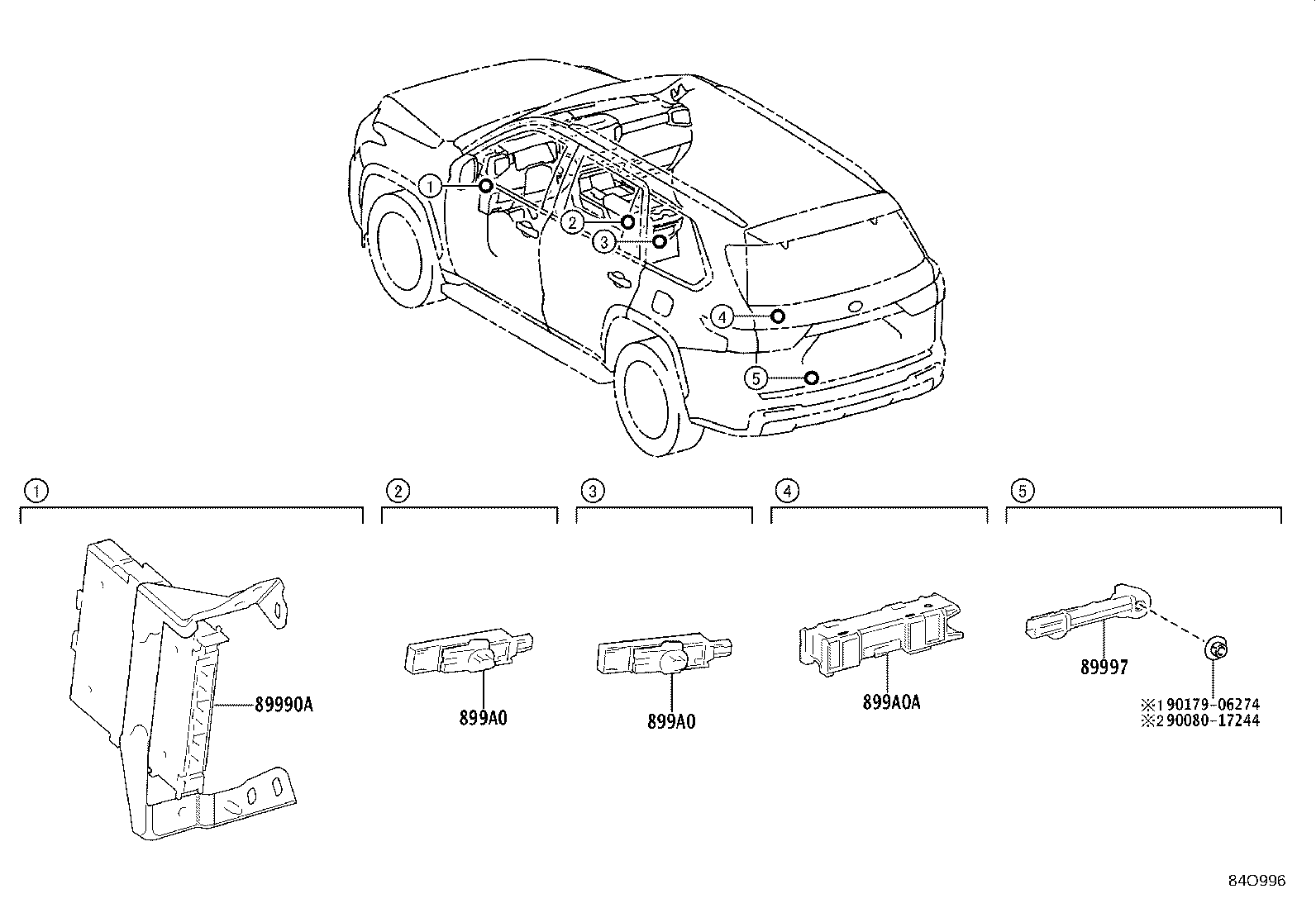

Wireless Door Lock
5 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 89747 | Buzzer, Wireless Door Lock |
| 89990A | Computer Assy, Smart Key |
| 89997 | Antenna, Electrical Key |
| 899A0 | Antenna Assy, Indoor Electrical Key, NO.1 |
| 899A0A | Antenna Assy, Indoor Electrical Key, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
