Toyota Tundra/Sequoia
2021-11 → present · chassis VXKA7#,VXKH7#,VXKH8# · catalogue 841440 · United States
Supported model
Data version 2022-06
Air Bag
13 part groups · 3 illustrations

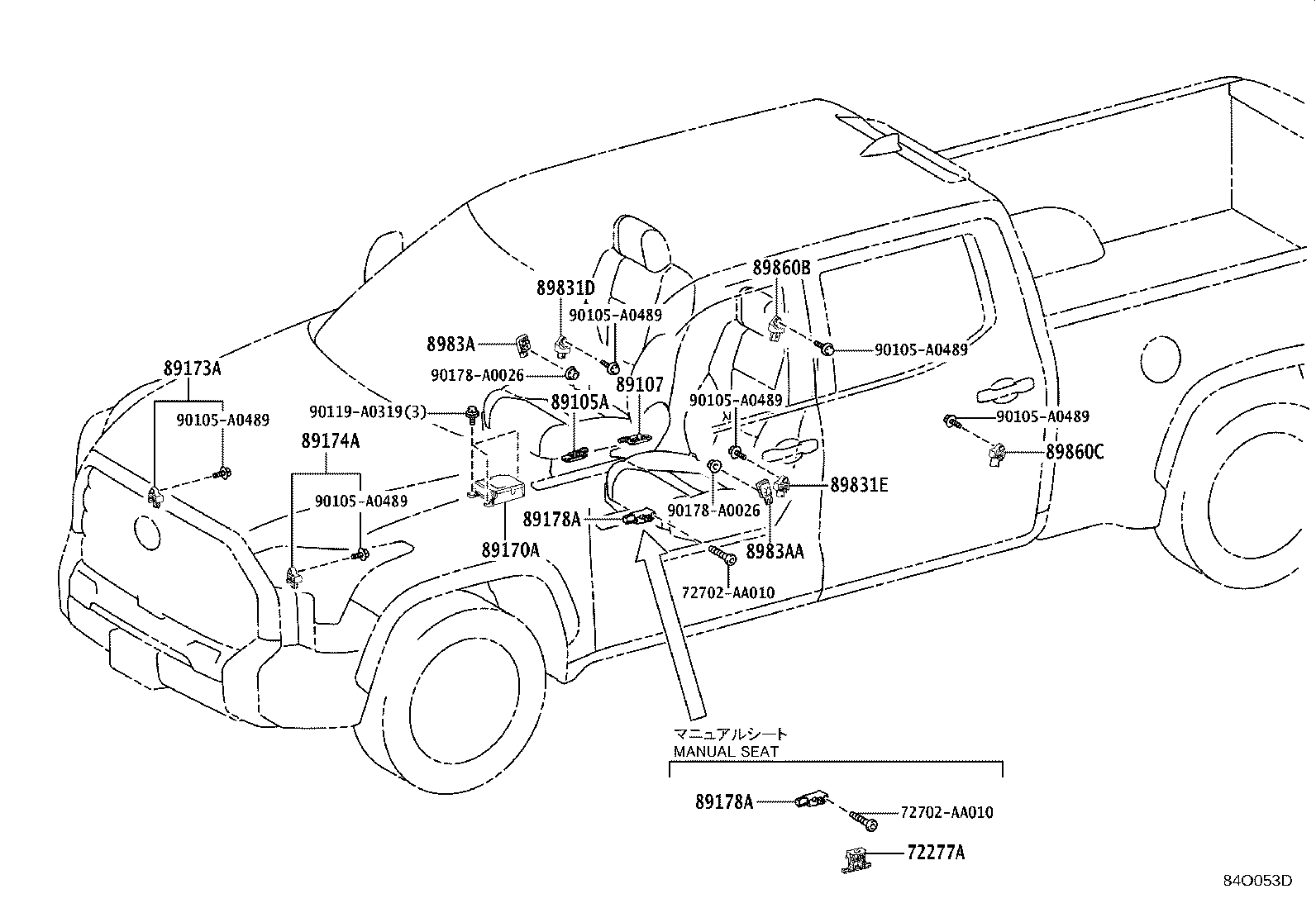

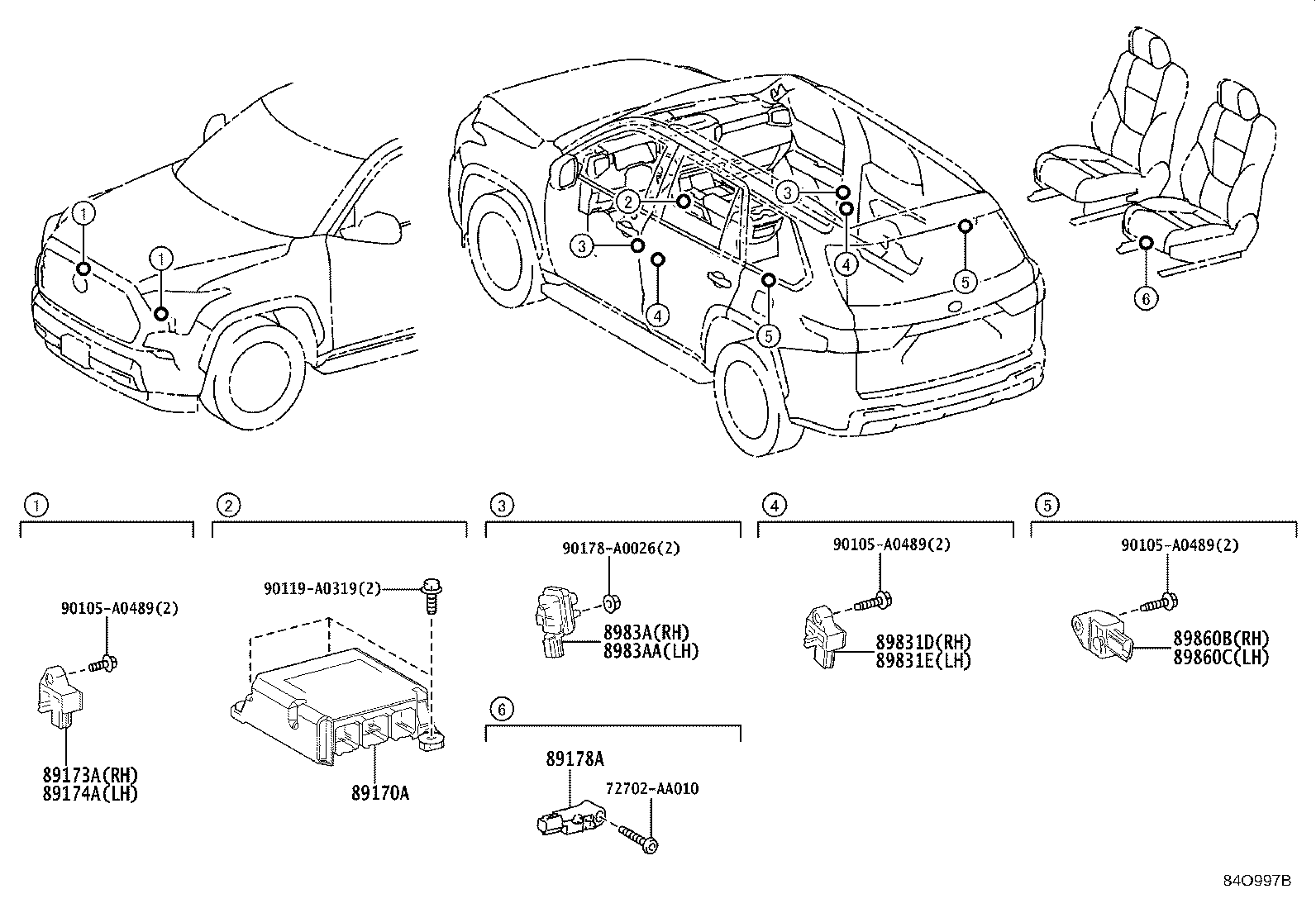

Part groups
| PNC | Description |
|---|---|
| 72277A | Protector, Seat Slide Position Sensor |
| 89105A | Sensor Sub-assy, Weight Detector, Front Inner |
| 89107 | Sensor Sub-assy, Weight Detector, Rear Inner |
| 89170A | Computer Assy, Airbag |
| 89173A | Sensor, Airbag, Front RH |
| 89174A | Sensor, Airbag, Front LH |
| 89178A | Sensor, Seat Position Airbag |
| 89831D | Sensor, Floor Side Airbag, RH |
| 89831E | Sensor, Floor Side Airbag, LH |
| 8983A | Sensor, Side Airbag Pressure, RH |
| 8983AA | Sensor, Side Airbag Pressure, LH |
| 89860B | Sensor Assy, Side Airbag, RH, NO.2 |
| 89860C | Sensor Assy, Side Airbag, LH, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
