Toyota Tundra/Sequoia
2021-11 → present · chassis VXKA7#,VXKH7#,VXKH8# · catalogue 841440 · United States
Supported model
Data version 2022-06

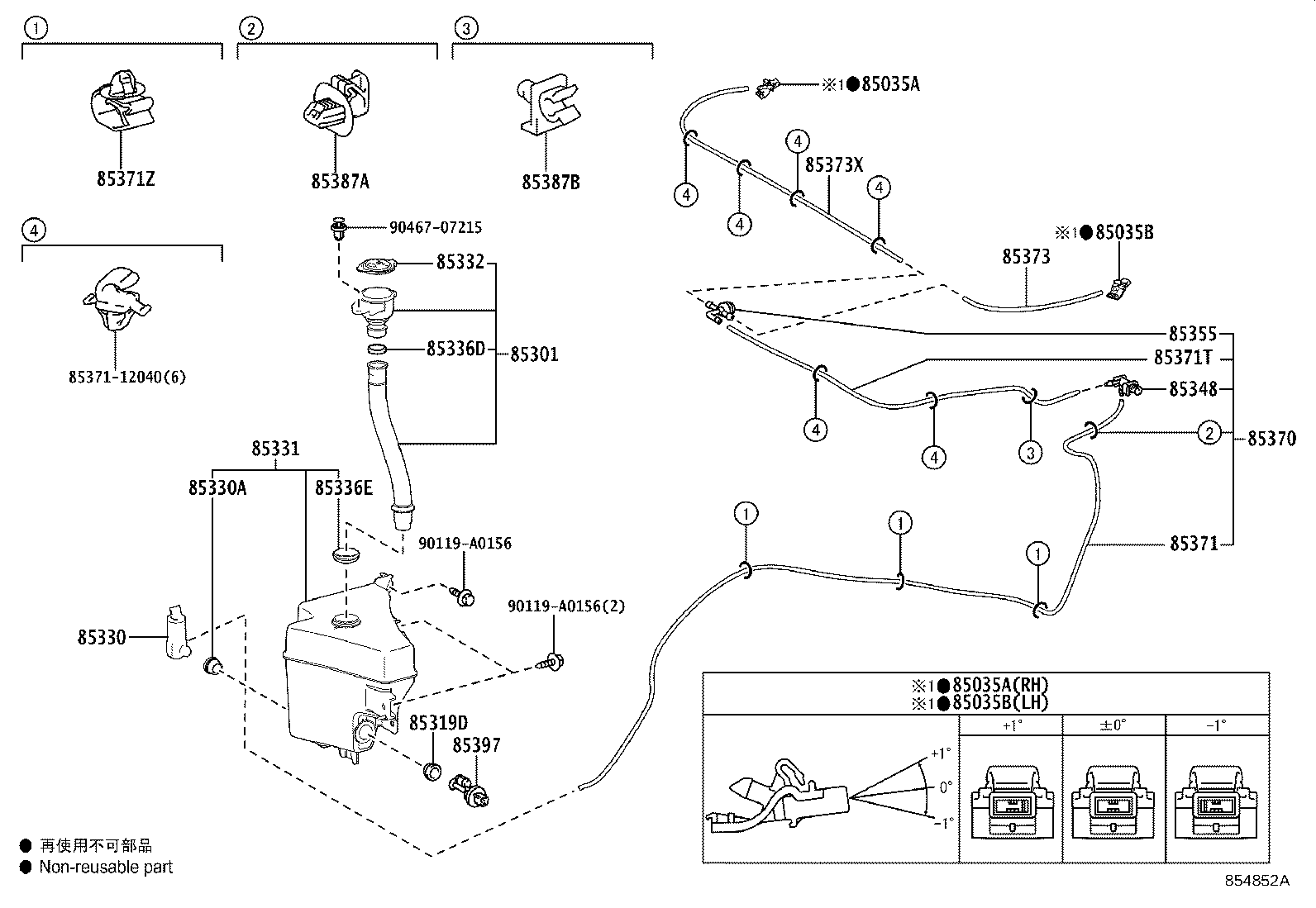

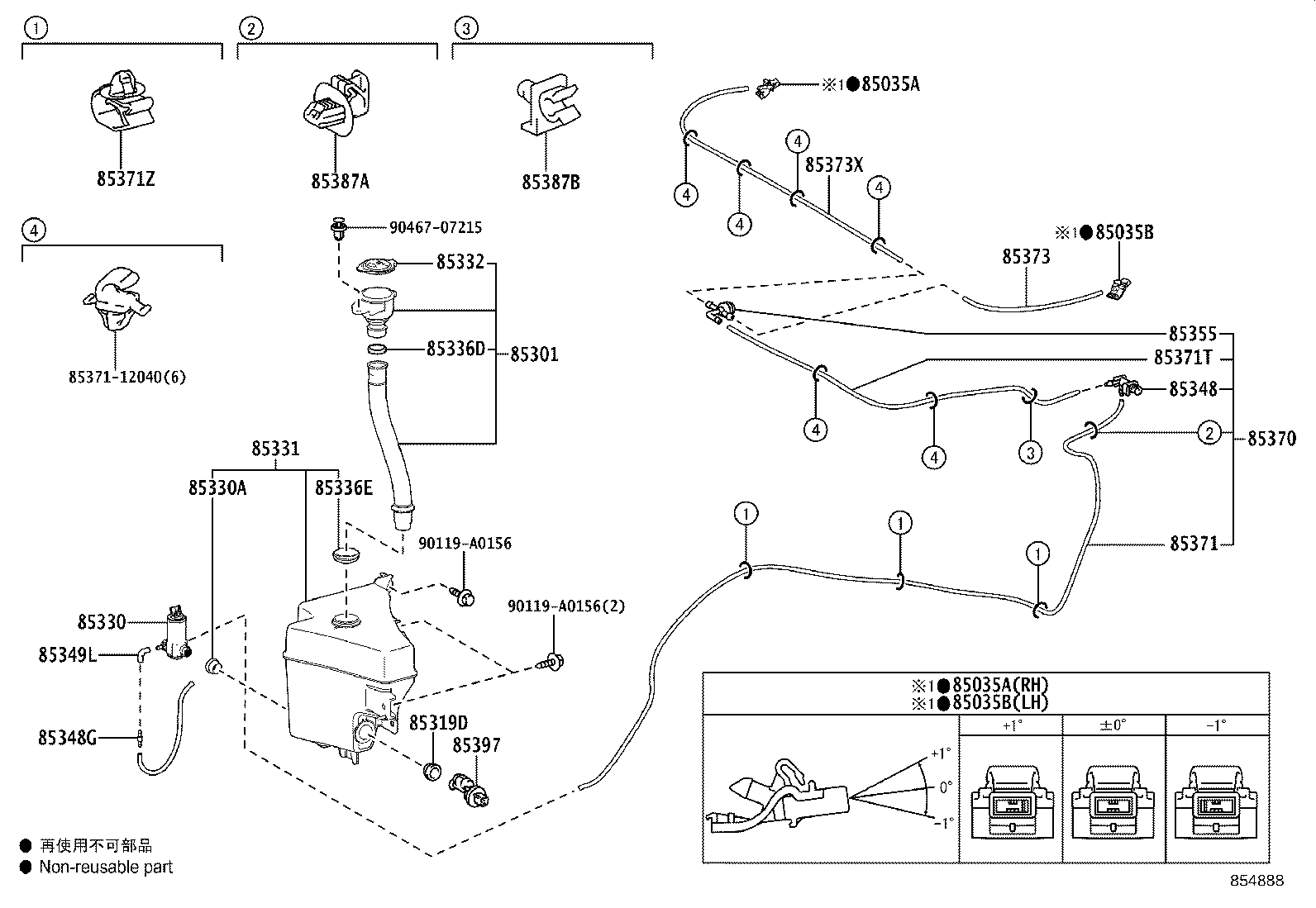

Windshield Washer
23 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 85035A | Nozzle, FR Washer, RH |
| 85035B | Nozzle, Front Washer, LH |
| 85301 | Inlet Sub-assy, Washer |
| 85319D | Packing, Front Washer |
| 85330 | Jar Assy, Windshield Washer |
| 85330A | Bush, Windshield Washer Jar |
| 85331 | Jar Sub-assy, Windshield Washer |
| 85332 | Cap, Windshield Washer Jar |
| 85336D | Packing, Windshield Washer Jar |
| 85336E | Packing, Windshield Washer Inlet Hose |
| 85348 | Joint, Windshield Washer Hose, NO.1 |
| 85348G | Joint, Windshield Washer Hose, NO.2 |
| 85349L | Joint, Windshield Washer Elbow, NO.1 |
| 85355 | Valve, Windshield Washer Hose |
| 85370 | Hose Assy, Windshield Washer |
| 85371 | Hose, Windshield Washer (FROM MOTOR TO JOINT) |
| 85371T | Hose, Windshield Washer (FROM JOINT TO JOINT) |
| 85371Z | Clamp, Washer Hose |
| 85373 | Hose, Windshield Washer (FROM JOINT TO NOZZLE) |
| 85373X | Hose, Windshield Washer (FROM JOINT TO NOZZLE), NO.2 |
| 85387A | Clamp, Washer, NO.2 |
| 85387B | Clamp, Washer, NO.3 |
| 85397 | Switch Assy,Level Warning |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
