Toyota Tundra/Sequoia
2021-11 → present · chassis VXKA7#,VXKH7#,VXKH8# · catalogue 841440 · United States
Supported model
Data version 2022-06

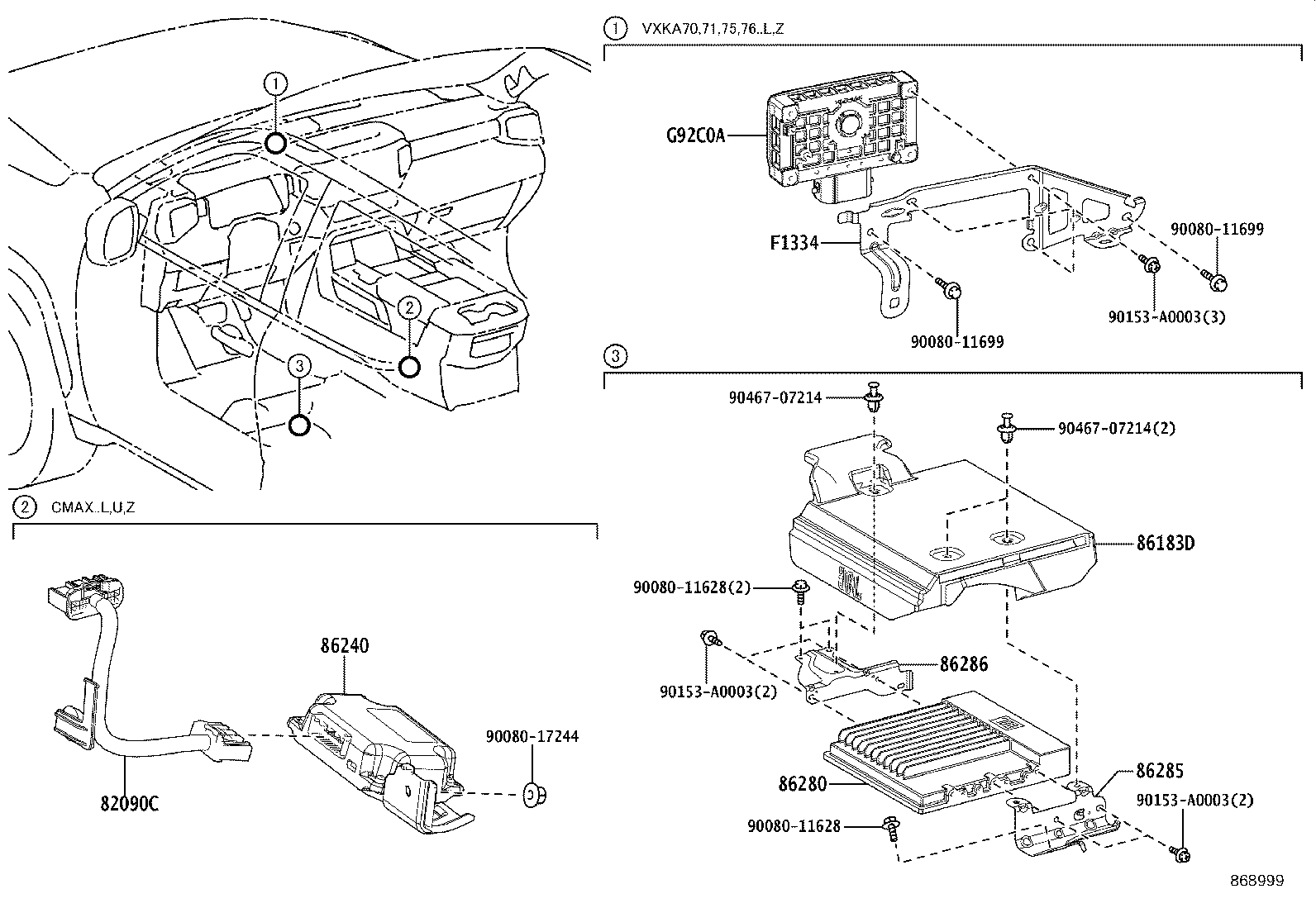

Radio Receiver & Amplifier & Condenser
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 82090C | Wire Assy, Extension |
| 86183D | Cover, Audio Amplifier |
| 86190C | Adapter Assy, Stereo Jack, NO.1 |
| 86240 | Equalizer Assy,Stereo Component |
| 86280 | Amplifier Assy, Stereo Component |
| 86285 | Bracket, Amplifier, NO.1 |
| 86286 | Bracket, Amplifier, NO.2 |
| F1334 | Bracket, Converter Control, NO.1 |
| G92C0A | Converter Assy, Eco-run Vehicle |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
