Toyota Tundra/Sequoia

2021-11 → present · chassis VXKA7#,VXKH7#,VXKH8# · catalogue 841440 · United States

Supported model Data version 2022-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

8 part groups · 6 illustrations

Illustrations

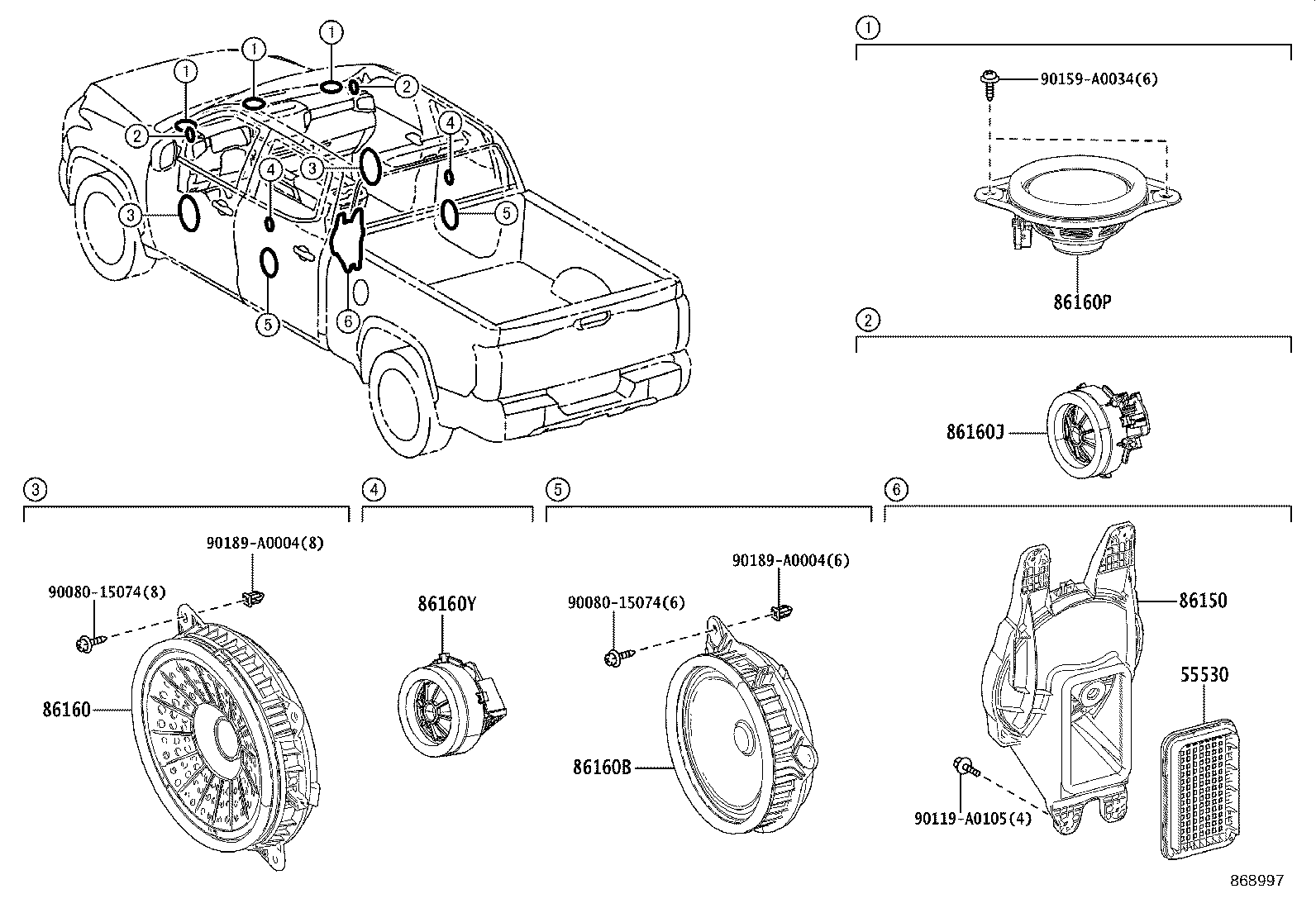

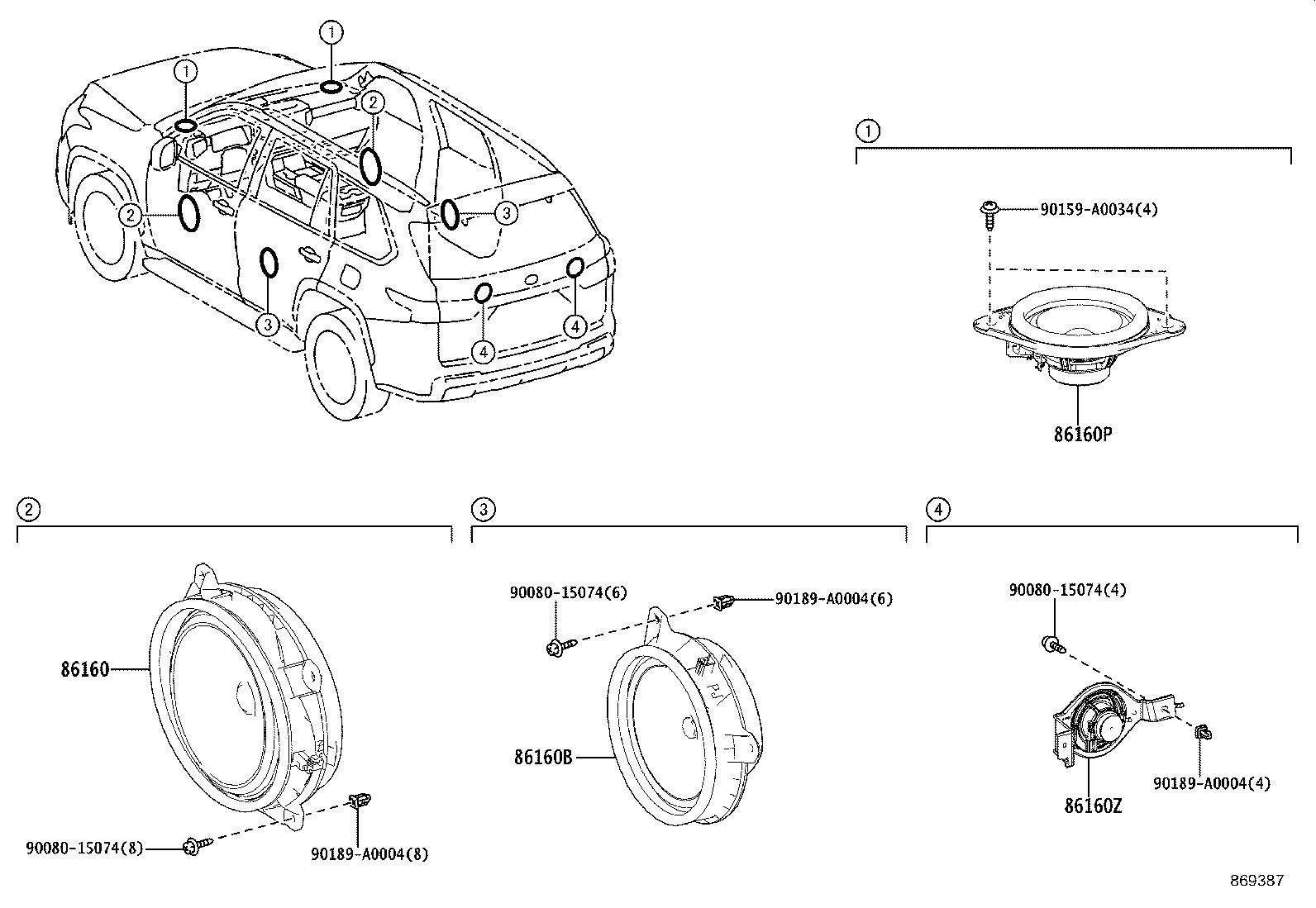

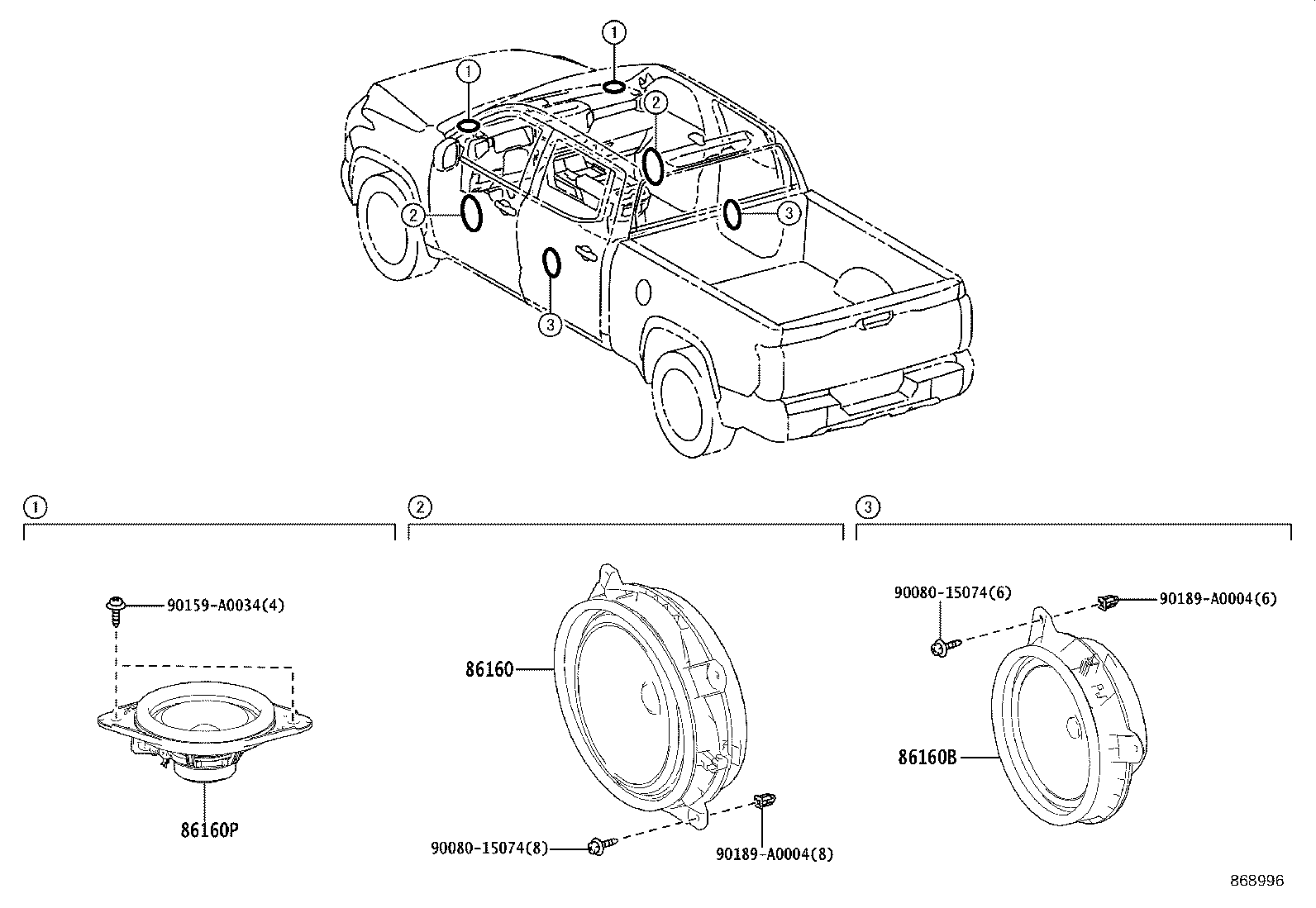

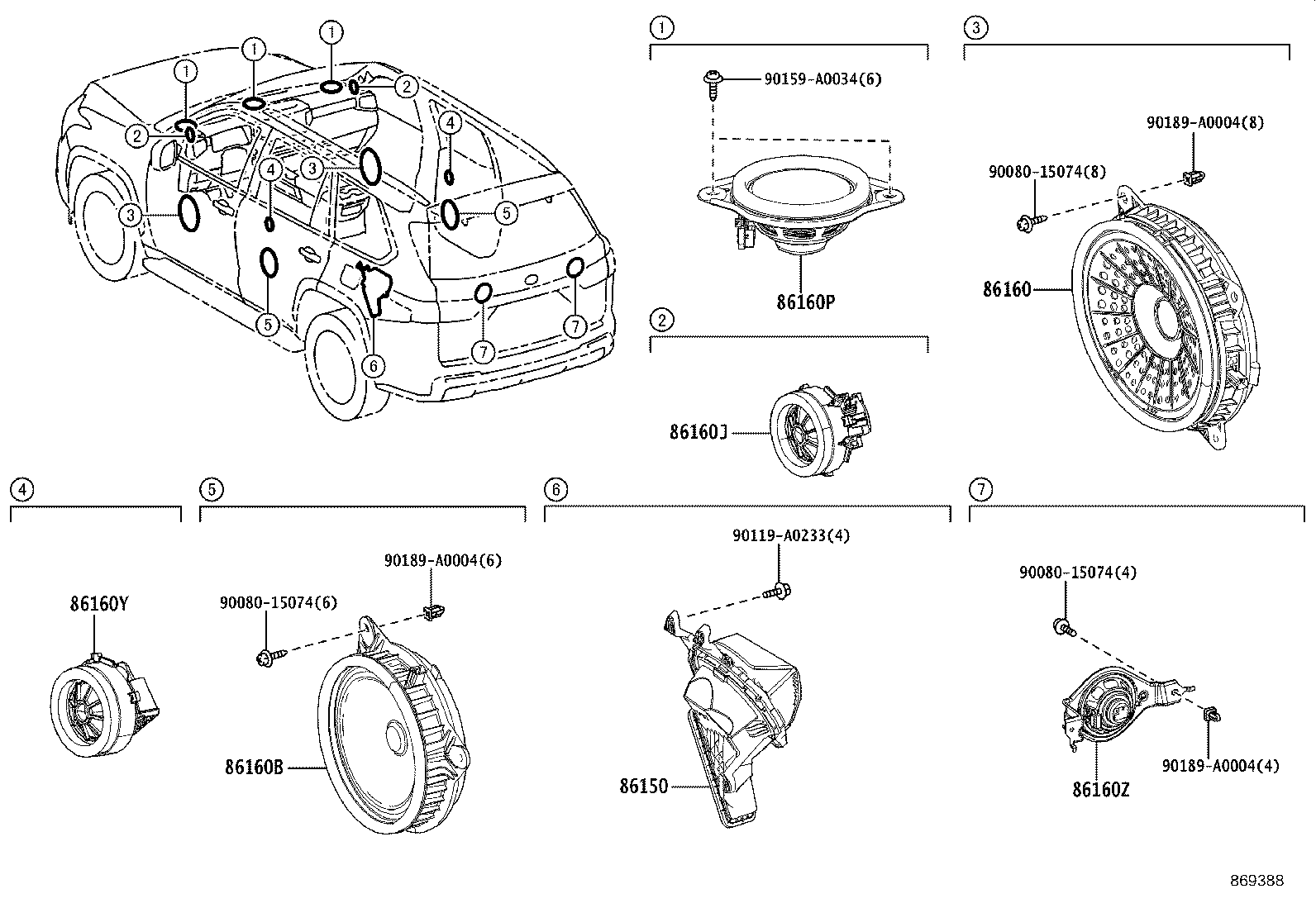

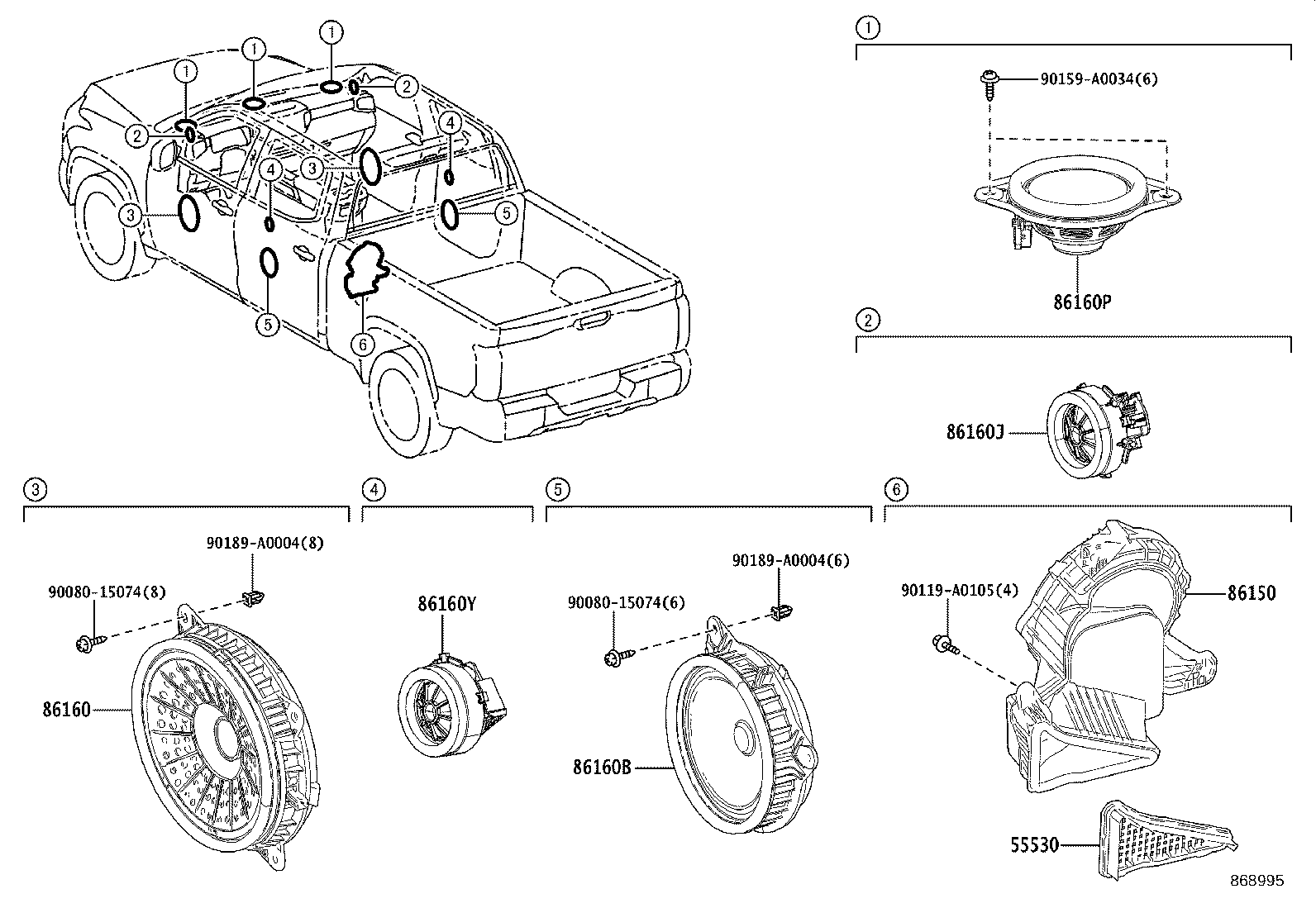

Figure 868994 868994 2021-11 → — Figure 868995 868995 2021-11 → — Figure 868996 868996 2021-11 → — Figure 868997 868997 2021-11 → — Figure 869387 869387 2022-07 → — Figure 869388 869388 2022-07 → —

Part groups

PNCDescription
55530 Cover Assy, Speaker Opening
86150 Speaker Assy, W/Box, NO.1
86160 Speaker Assy, Front NO.1
86160B Speaker Assy, Rear
86160J Speaker Assy, Front NO.3
86160P Speaker Assy, Front NO.2
86160Y Speaker Assy, Rear NO.2
86160Z Speaker Assy, Rear NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
