Toyota Tundra/Sequoia
2021-11 → present · chassis VXKA7#,VXKH7#,VXKH8# · catalogue 841440 · United States
Supported model
Data version 2022-06
Heating & Air Conditioning - Cooler Unit

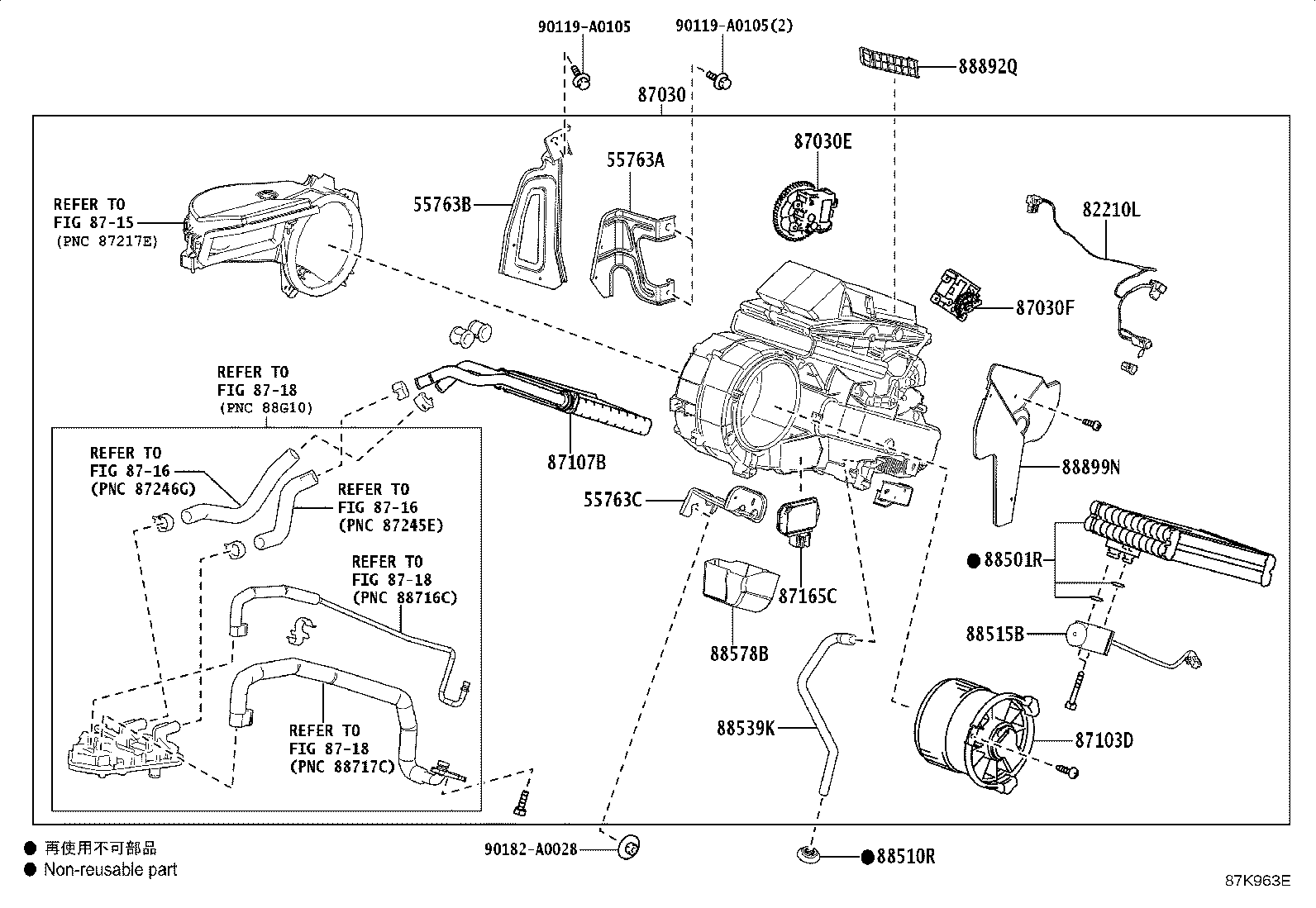

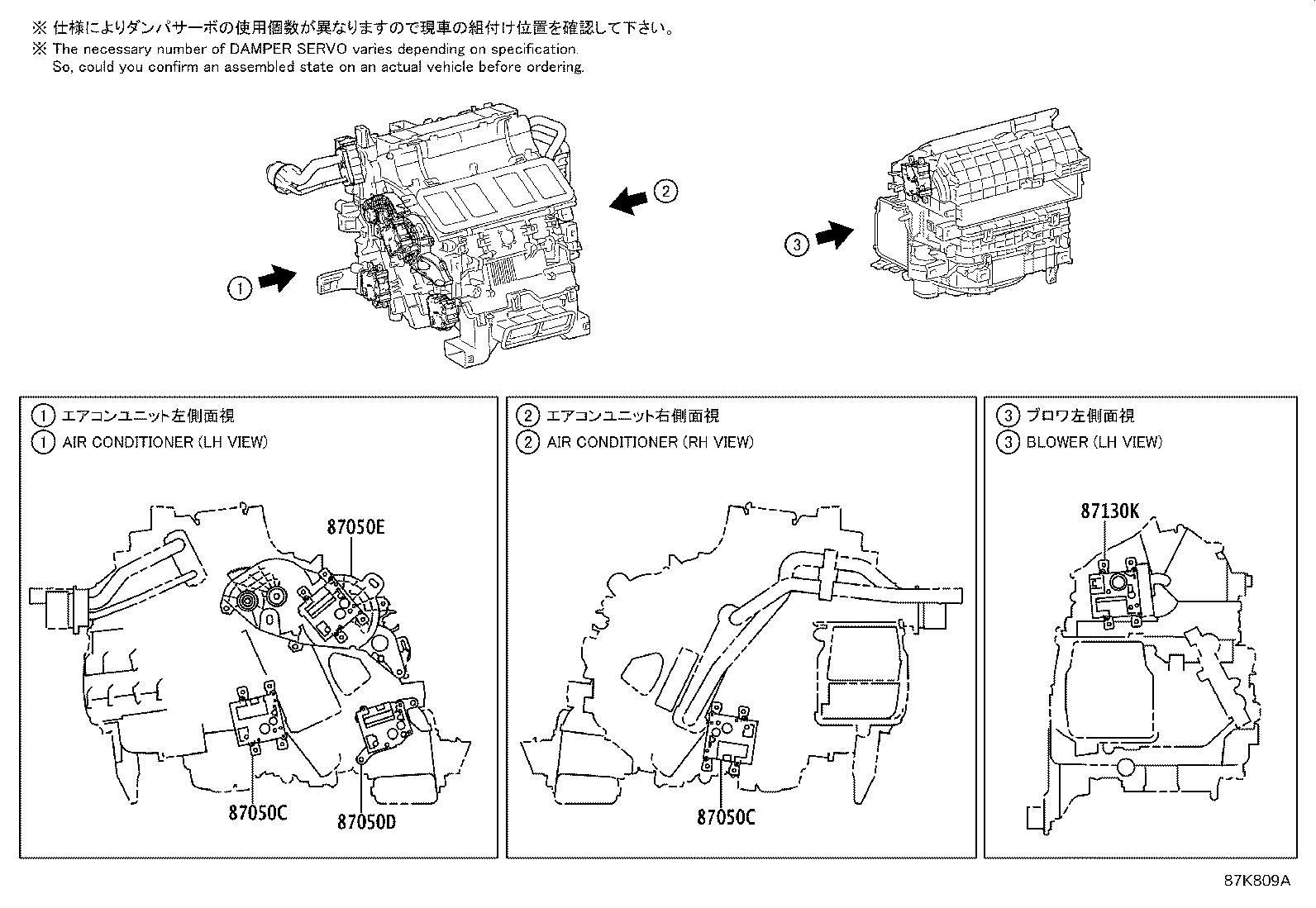

50 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 55763A | Bracket, Cooler Mounting |
| 55763B | Bracket, Cooler Mounting, NO.2 |
| 55763C | Bracket, Cooler Mounting, NO.3 |
| 82210K | Harness Assy, Air Conditioner |
| 82210L | Harness Assy, Air Conditioner, NO.2 |
| 87030 | Blower Assy, Air Conditioner |
| 87030E | Damper Servo Sub-assy, Rear Cooling Unit, NO.1 |
| 87030F | Damper Servo Sub-assy, Rear Cooling Unit, NO.2 |
| 87050 | Radiator Assy, Air Conditioner |
| 87050C | Damper Servo Sub-assy, Air Conditioner Radiator, NO.1 |
| 87050D | Damper Servo Sub-assy, Air Conditioner Radiator, NO.2 |
| 87050E | Damper Servo Sub-assy, Air Conditioner Radiator, NO.3 |
| 87103B | Motor Sub-assy, Blower W/Fan |
| 87103D | Motor Sub-assy, Blower W/Fan(FOR REAR) |
| 87107A | Unit Sub-assy, Heater Radiator |
| 87107B | Unit Sub-assy, Heater Radiator |
| 87107D | Ring, O (FOR HEATER RADIATOR UNIT) |
| 87114B | Cover, Heater |
| 87127E | Packing, Heater |
| 87128 | Grommet, Heater |
| 87128B | Grommet, Heater, NO.2 |
| 87130D | Blower Assy |
| 87130K | Damper Servo Sub-assy, Blower, NO.1 |
| 87139C | Filter, Clean Air |
| 87165C | Control, Blower Motor |
| 87429B | Packing, Cooler Unit, NO.1 |
| 87710G | Quick Heater Assy |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88501R | Evaporator Sub-assy (REAR) |
| 88510R | Grommet (FOR COOLER UNIT) |
| 88515 | Valve, Cooler Expansion |
| 88515B | Valve, Rear Cooling Unit Expansion |
| 88539 | Hose, Cooler Unit Drain, NO.1 |
| 88539C | Hose, Cooler Unit Drain, NO.2 |
| 88539E | Hose, Cooler Unit Drain, NO.3 |
| 88539G | Grommet (FOR COOLER UNIT DRAIN HOSE) |
| 88539K | Hose, Drain Cooler |
| 88548B | Case, Air Filter |
| 88578B | Packing, Cooling Unit, NO.1 |
| 88625 | Thermistor, Cooler, NO.1 |
| 88650N | Amplifier Assy, Air Conditioner |
| 88710H | Tube & Accessory Assy, Air Conditioner |
| 88710W | Ring, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER) |
| 88710Z | Ring, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER) |
| 88892Q | Plate, Cooler |
| 88897K | Grommet, (FOR COOLER PIPE) |
| 88897L | Grommet (FOR DRAIN HOSE) |
| 88898D | Grommet |
| 88899M | Plate, Cover(FOR AIR FILTER) |
| 88899N | Plate, Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
