Toyota Tundra/Sequoia
2021-11 → present · chassis VXKA7#,VXKH7#,VXKH8# · catalogue 841440 · United States
Supported model
Data version 2022-06

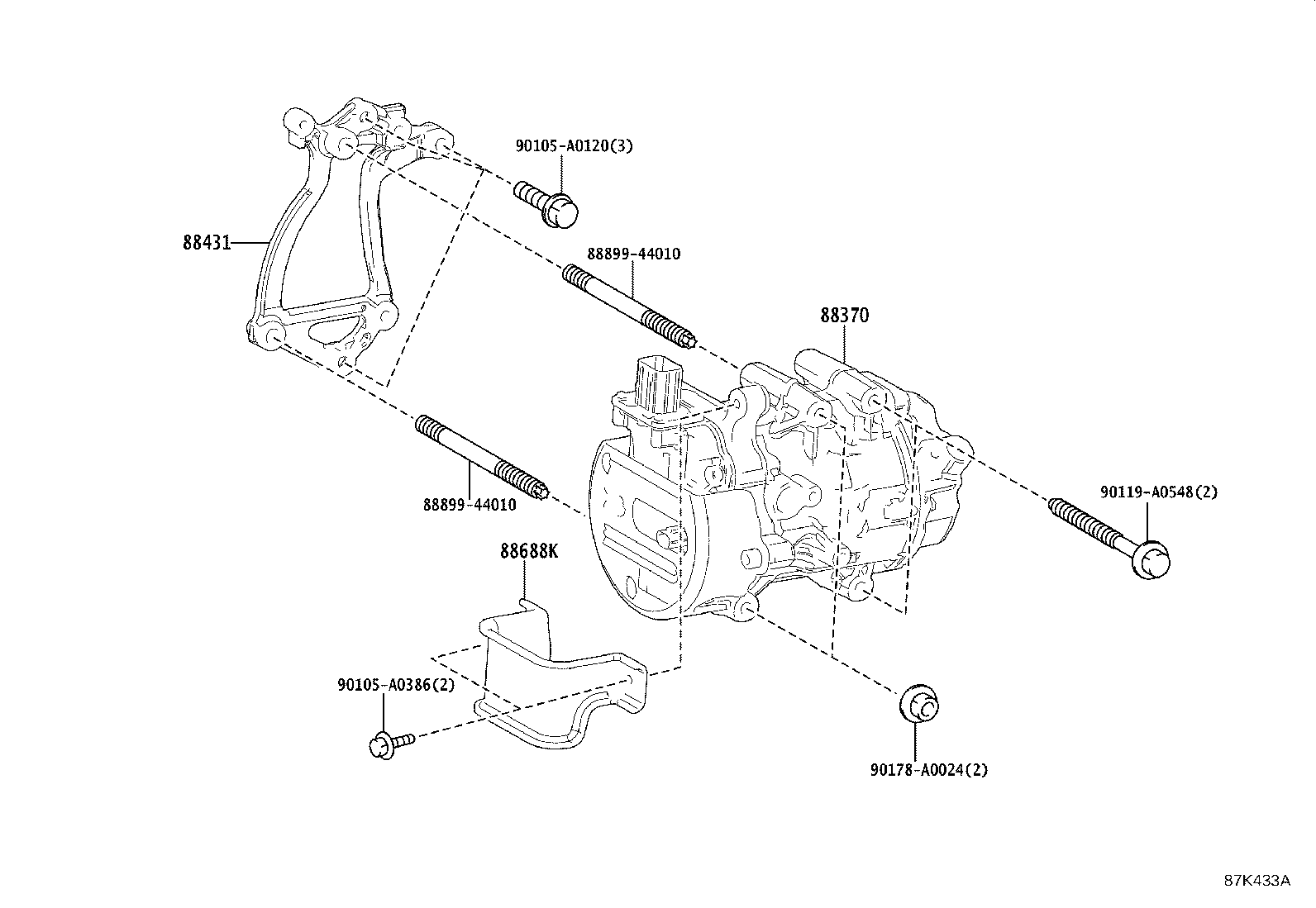

Heating & Air Conditioning - Compressor
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88320 | Compressor Assy, Cooler |
| 88335 | Gasket Kit, Overhaul |
| 88365 | Ring, Snap |
| 88365B | Ring, Snap, NO.2 |
| 88370 | Compressor Assy, W/Motor |
| 88410 | Clutch Assy, Magnet |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88446C | Bolt, Magnet Clutch Setting |
| 88688K | Bracket, Cooler Compressor |
| 88849 | Bracket, Cooler Compressor, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
