Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

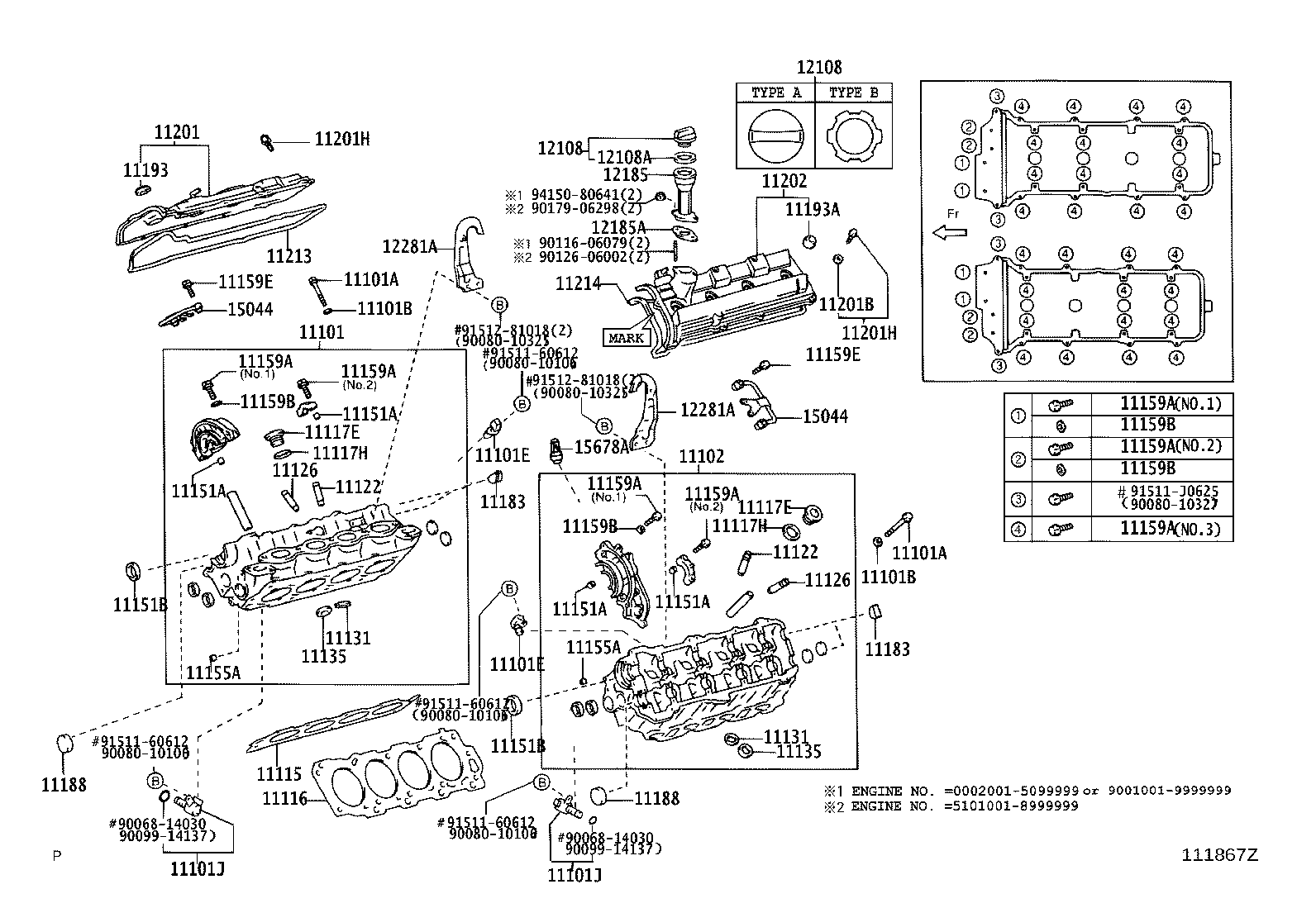

Exploded illustration 111867Z 11101 — HEAD SUB-ASSY, CYLINDER (2 parts) 11117E — PLUG, W/HEAD STRAIGHT SCREW, NO.1 (2 parts) 11101B — WASHER, PLATE(FOR CYLINDER HEAD SET) (2 parts) 11101A — BOLT(FOR CYLINDER HEAD SET) (2 parts) 11159A — BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) (10 parts) 11159A — BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) (10 parts) 11159E — BOLT(FOR CAMSHAFT OIL FEED PIPE) (3 parts) 11159B — WASHER, SEAL(FOR HEAD TO CAMSHAFT BEARING CAP) (2 parts) 11151A — PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) (3 parts) 11213 — GASKET, CYLINDER HEAD COVER (4 parts) 15044 — PIPE SUB-ASSY, CAMSHAFT OIL FEED (2 parts) 11151A — PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) (3 parts) 11126 — BUSH, EXHAUST VALVE GUIDE (4 parts) 11151B — SEAL, OIL(FOR CAMSHAFT SETTING) (3 parts) 11122 — BUSH, INTAKE VALVE GUIDE (4 parts) 11131 — SEAT, INTAKE VALVE (7 parts) 11135 — SEAT, EXHAUST VALVE (7 parts) 11155A — PIN, RING W/HEAD (3 parts) 11188 — PLUG, CAMSHAFT HOUSING (2 parts) 11115 — GASKET, CYLINDER HEAD (3 parts) 11116 — GASKET, CYLINDER HEAD, NO.2 (3 parts) 11151B — SEAL, OIL(FOR CAMSHAFT SETTING) (3 parts) 11151A — PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) (3 parts) 11151A — PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) (3 parts) 11155A — PIN, RING W/HEAD (3 parts) 11159B — WASHER, SEAL(FOR HEAD TO CAMSHAFT BEARING CAP) (2 parts) 11159A — BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) (10 parts) 11159A — BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) (10 parts) 11117E — PLUG, W/HEAD STRAIGHT SCREW, NO.1 (2 parts) 11117H — GASKET(FOR WATER HOLE) (2 parts) 11122 — BUSH, INTAKE VALVE GUIDE (4 parts) 11131 — SEAT, INTAKE VALVE (7 parts) 11135 — SEAT, EXHAUST VALVE (7 parts) 11188 — PLUG, CAMSHAFT HOUSING (2 parts) 11126 — BUSH, EXHAUST VALVE GUIDE (4 parts) 11101A — BOLT(FOR CYLINDER HEAD SET) (2 parts) 11101B — WASHER, PLATE(FOR CYLINDER HEAD SET) (2 parts) 11183 — PLUG, SEMICIRCULAR (2 parts) 11102 — HEAD, CYLINDER, LH (2 parts) 15044 — PIPE SUB-ASSY, CAMSHAFT OIL FEED (2 parts) 11159E — BOLT(FOR CAMSHAFT OIL FEED PIPE) (3 parts) 11202 — COVER SUB-ASSY, CYLINDER HEAD, LH (8 parts) 12108A — GASKET(FOR OIL FILLER CAP) (3 parts) 12108 — CAP SUB-ASSY, OIL FILLER (4 parts) 12185 — HOUSING, OIL FILLER CAP (3 parts) 9415080641 — not listed in this catalogue 9011606079 — not listed in this catalogue 12185A — GASKET, OIL FILLER CAP HOUSING (3 parts) 11214 — GASKET, CYLINDER HEAD COVER, NO.2 (4 parts) 9151281018 — not listed in this catalogue 9151281018 — not listed in this catalogue 11183 — PLUG, SEMICIRCULAR (2 parts) 11201 — COVER SUB-ASSY, CYLINDER HEAD (5 parts) 12108 — CAP SUB-ASSY, OIL FILLER (4 parts) 91511J0625 — not listed in this catalogue 11159A — BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) (10 parts) 11159B — WASHER, SEAL(FOR HEAD TO CAMSHAFT BEARING CAP) (2 parts) 11159A — BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) (10 parts) 11159A — BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) (10 parts) 11159B — WASHER, SEAL(FOR HEAD TO CAMSHAFT BEARING CAP) (2 parts) 11101J — VALVE ASSY, CAMSHAFT TIMING OIL CONTROL (4 parts) 9151160612 — not listed in this catalogue 9008010106 — not listed in this catalogue 11101J — VALVE ASSY, CAMSHAFT TIMING OIL CONTROL (4 parts) 9151160612 — not listed in this catalogue 9008010106 — not listed in this catalogue 9008010327 — not listed in this catalogue 9012606002 — not listed in this catalogue 9017906298 — not listed in this catalogue 9008010325 — not listed in this catalogue 9008010325 — not listed in this catalogue 15678A — FILTER, OIL CONTROL VALVE (1 parts) 9008010106 — not listed in this catalogue 9151160612 — not listed in this catalogue 11101E — SENSOR, CAM POSITION (2 parts) 9151160612 — not listed in this catalogue 11101E — SENSOR, CAM POSITION (2 parts) 9008010106 — not listed in this catalogue 11201H — BOLT(FOR CYLINDER HEAD COVER) (4 parts) 11117H — GASKET(FOR WATER HOLE) (2 parts) 9006814030 — not listed in this catalogue 9006814030 — not listed in this catalogue 9009914137 — not listed in this catalogue 9009914137 — not listed in this catalogue 11193 — GASKET, SPARK PLUG TUBE (3 parts) 11193A — GASKET, SPARK PLUG TUBE, LH (3 parts) 12281A — HANGER, ENGINE, NO.1 (4 parts) 12281A — HANGER, ENGINE, NO.1 (4 parts) 11201H — BOLT(FOR CYLINDER HEAD COVER) (4 parts) 11201B — WASHER, SEAL(FOR CYLINDER HEAD COVER) (2 parts)
111867Z · 68 callouts, 22 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
127 parts on this figure
Part number Description Fitment Price
11101 — Head Sub-assy, Cylinder
11101-59167 Head Sub-assy, Cylinder
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
11101-09220 Head Sub-assy, Cylinder
2004-08 → —
2UZFE UCK35,45 —
11101A — Bolt(FOR CYLINDER HEAD SET)
90910-02132 Bolt(FOR CYLINDER HEAD SET)
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
90910-02132 Bolt(FOR CYLINDER HEAD SET)
2004-08 → —
2UZFE UCK35,45 —
11101B — Washer, Plate(FOR CYLINDER HEAD SET)
90201-10133 Washer, Plate(FOR CYLINDER HEAD SET)
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
90201-10133 Washer, Plate(FOR CYLINDER HEAD SET)
2004-08 → —
2UZFE UCK35,45 —
11101E — Sensor, Cam Position
90919-05036 note Sensor, Cam Position
2004-08 → —
2UZFE UCK35,45 —
90919-A5002 note Sensor, Cam Position
2004-08 → —
2UZFE UCK35,45 —
11101J — Valve Assy, Camshaft Timing Oil Control
15330-0F010 note Valve Assy, Camshaft Timing Oil Control
2004-08 → —
2UZFE UCK35,45 —
15330-50011 note Valve Assy, Camshaft Timing Oil Control
2004-08 → —
2UZFE UCK35,45 —
15340-0F010 note Valve Assy, Camshaft Timing Oil Control
2004-08 → —
2UZFE UCK35,45 —
15340-50011 note Valve Assy, Camshaft Timing Oil Control
2004-08 → —
2UZFE UCK35,45 —
11102 — Head, Cylinder, LH
11102-59027 Head, Cylinder, LH
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
11102-09110 Head, Cylinder, LH
2004-08 → —
2UZFE UCK35,45 —
11115 — Gasket, Cylinder Head
11115-50050 Gasket, Cylinder Head
2000-09 → 2004-07 ended
2UZFE UCK35,45 —
11115-50080 Gasket, Cylinder Head
2004-07 → 2004-08 ended
2UZFE UCK35,45 —
11115-50080 note Gasket, Cylinder Head
2004-08 → —
2UZFE UCK35,45 —
11116 — Gasket, Cylinder Head, NO.2
11116-50040 Gasket, Cylinder Head, NO.2
2000-09 → 2004-07 ended
2UZFE UCK35,45 —
11116-50070 Gasket, Cylinder Head, NO.2
2004-07 → 2004-08 ended
2UZFE UCK35,45 —
11116-50070 note Gasket, Cylinder Head, NO.2
2004-08 → —
2UZFE UCK35,45 —
11117E — Plug, W/Head Straight Screw, NO.1
90341-27006 Plug, W/Head Straight Screw, NO.1
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
90341-27006 Plug, W/Head Straight Screw, NO.1
2004-08 → —
2UZFE UCK35,45 —
11117H — Gasket(FOR WATER HOLE)
90430-27005 Gasket(FOR WATER HOLE)
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
90430-27005 Gasket(FOR WATER HOLE)
2004-08 → —
2UZFE UCK35,45 —
11122 — Bush, Intake Valve Guide
11122-20020 note Bush, Intake Valve Guide
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
11123-20020 note Bush, Intake Valve Guide
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
11122-20020 note Bush, Intake Valve Guide
2004-08 → —
2UZFE UCK35,45 —
11123-20020 note Bush, Intake Valve Guide
2004-08 → —
2UZFE UCK35,45 —
11126 — Bush, Exhaust Valve Guide
11126-20020 note Bush, Exhaust Valve Guide
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
11127-20020 note Bush, Exhaust Valve Guide
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
11126-20020 note Bush, Exhaust Valve Guide
2004-08 → —
2UZFE UCK35,45 —
11127-20020 note Bush, Exhaust Valve Guide
2004-08 → —
2UZFE UCK35,45 —
11131 — Seat, Intake Valve
11131-0F010 note Seat, Intake Valve
2004-06 → 2004-08 ended
2UZFE UCK35,45 —
11131-50040 note Seat, Intake Valve
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
11132-50040 note Seat, Intake Valve
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
11131-0F010 note Seat, Intake Valve
2004-08 → —
2UZFE UCK35,45 —
11131-50040 note Seat, Intake Valve
2004-08 → —
2UZFE UCK35,45 —
11132-0F010 note Seat, Intake Valve
2004-08 → —
2UZFE UCK35,45 —
11132-50040 note Seat, Intake Valve
2004-08 → —
2UZFE UCK35,45 —
11135 — Seat, Exhaust Valve
11135-0F020 note Seat, Exhaust Valve
2004-06 → 2004-08 ended
2UZFE UCK35,45 —
11135-50040 note Seat, Exhaust Valve
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
11136-50040 note Seat, Exhaust Valve
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
11135-0F020 note Seat, Exhaust Valve
2004-08 → —
2UZFE UCK35,45 —
11135-50050 note Seat, Exhaust Valve
2004-08 → —
2UZFE UCK35,45 —
11136-0F020 note Seat, Exhaust Valve
2004-08 → —
2UZFE UCK35,45 —
11136-50050 note Seat, Exhaust Valve
2004-08 → —
2UZFE UCK35,45 —
11151A — Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
90253-10006 note Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
90253-10006 note Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2004-08 → —
2UZFE UCK35,45 —
90253-A0005 note Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2006-10 → —
2UZFE UCK35,45 —
11151B — Seal, Oil(FOR CAMSHAFT SETTING)
90311-38065 Seal, Oil(FOR CAMSHAFT SETTING)
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
90311-71002 note Seal, Oil(FOR CAMSHAFT SETTING)
2004-08 → —
2UZFE UCK35,45 —
90311-A0004 note Seal, Oil(FOR CAMSHAFT SETTING)
2004-08 → —
2UZFE UCK35,45 —
11155A — Pin, Ring W/Head
90253-09001 Pin, Ring W/Head
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
90253-09001 note Pin, Ring W/Head
2004-08 → —
2UZFE UCK35,45 —
90253-A0003 note Pin, Ring W/Head
2006-10 → —
2UZFE UCK35,45 —
11159A — Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
90080-10305 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2004-06 → 2004-08 ended
2UZFE UCK35,45 —
90080-10306 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2004-06 → 2004-08 ended
2UZFE UCK35,45 —
90105-07004 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
90105-07005 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
90119-07009 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2000-09 → 2004-06 ended
2UZFE UCK35,45 —
90080-10305 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2004-08 → —
2UZFE UCK35,45 —
90080-10306 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2004-08 → —
2UZFE UCK35,45 —
90105-07004 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2004-08 → —
2UZFE UCK35,45 —
90105-07005 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2004-08 → —
2UZFE UCK35,45 —
90119-07009 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2004-08 → —
2UZFE UCK35,45 —
11159B — Washer, Seal(FOR HEAD TO CAMSHAFT BEARING CAP)
90210-07003 Washer, Seal(FOR HEAD TO CAMSHAFT BEARING CAP)
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
90210-07003 Washer, Seal(FOR HEAD TO CAMSHAFT BEARING CAP)
2004-08 → —
2UZFE UCK35,45 —
11159E — Bolt(FOR CAMSHAFT OIL FEED PIPE)
90119-07012 Bolt(FOR CAMSHAFT OIL FEED PIPE)
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
90080-11581 note Bolt(FOR CAMSHAFT OIL FEED PIPE)
2004-08 → —
2UZFE UCK35,45 —
90119-07012 note Bolt(FOR CAMSHAFT OIL FEED PIPE)
2004-08 → —
2UZFE UCK35,45 —
11183 — Plug, Semicircular
11183-50020 Plug, Semicircular
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
11183-50020 Plug, Semicircular
2004-08 → —
2UZFE UCK35,45 —
11188 — Plug, Camshaft Housing
11188-50010 Plug, Camshaft Housing
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
11188-50010 Plug, Camshaft Housing
2004-08 → —
2UZFE UCK35,45 —
11193 — Gasket, Spark Plug Tube
11193-16010 Gasket, Spark Plug Tube
2000-09 → 2002-08 ended
2UZFE UCK35,45 —
11193-50010 Gasket, Spark Plug Tube
2002-08 → 2004-08 ended
2UZFE UCK35,45 —
11193-50010 Gasket, Spark Plug Tube
2004-08 → —
2UZFE UCK35,45 —
11193A — Gasket, Spark Plug Tube, LH
11193-16010 Gasket, Spark Plug Tube, LH
2000-09 → 2002-08 ended
2UZFE UCK35,45 —
11193-50010 Gasket, Spark Plug Tube, LH
2002-08 → 2004-08 ended
2UZFE UCK35,45 —
11193-50010 Gasket, Spark Plug Tube, LH
2004-08 → —
2UZFE UCK35,45 —
11201 — Cover Sub-assy, Cylinder Head
11201-50031 Cover Sub-assy, Cylinder Head
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
11201-0F010 note Cover Sub-assy, Cylinder Head
2004-08 → 2006-02 ended
2UZFE UCK35,45 —
11201-0F020 note Cover Sub-assy, Cylinder Head
2006-02 → —
2UZFE UCK35,45 —
11201-50031 note Cover Sub-assy, Cylinder Head
2004-08 → 2006-01 ended
2UZFE UCK35,45 —
11201-50041 note Cover Sub-assy, Cylinder Head
2006-01 → —
2UZFE UCK35,45 —
11201B — Washer, Seal(FOR CYLINDER HEAD COVER)
90210-07001 Washer, Seal(FOR CYLINDER HEAD COVER)
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
90210-07001 Washer, Seal(FOR CYLINDER HEAD COVER)
2004-08 → 2007-11 ended
2UZFE UCK35,45 —
11201H — Bolt(FOR CYLINDER HEAD COVER)
90109-06163 Bolt(FOR CYLINDER HEAD COVER)
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
90080-10330 note Bolt(FOR CYLINDER HEAD COVER)
2004-08 → 2006-02 ended
2UZFE UCK35,45 —
90105-A0103 note Bolt(FOR CYLINDER HEAD COVER)
2006-02 → —
2UZFE UCK35,45 —
90109-06163 note Bolt(FOR CYLINDER HEAD COVER)
2004-08 → —
2UZFE UCK35,45 —
11202 — Cover Sub-assy, Cylinder Head, LH
11202-50040 note Cover Sub-assy, Cylinder Head, LH
2000-09 → 2002-08 ended
2UZFE UCK35,45 —
11202-50041 note Cover Sub-assy, Cylinder Head, LH
2002-08 → 2004-08 ended
2UZFE UCK35,45 —
11202-0F010 note Cover Sub-assy, Cylinder Head, LH
2004-08 → 2006-02 ended
2UZFE UCK35,45 —
11202-0F020 note Cover Sub-assy, Cylinder Head, LH
2006-02 → —
2UZFE UCK35,45 —
11202-50041 note Cover Sub-assy, Cylinder Head, LH
2004-08 → 2006-01 ended
2UZFE UCK35,45 —
11202-50051 note Cover Sub-assy, Cylinder Head, LH
2006-01 → 2007-02 ended
2UZFE UCK35,45 —
11202-50051 note Cover Sub-assy, Cylinder Head, LH
2007-02 → —
2UZFE UCK35,45 —
11202-50080 note Cover Sub-assy, Cylinder Head, LH
2007-02 → —
2UZFE UCK35,45 —
11213 — Gasket, Cylinder Head Cover
11213-50030 Gasket, Cylinder Head Cover
2000-09 → 2003-11 ended
2UZFE UCK35,45 —
11213-50031 Gasket, Cylinder Head Cover
2003-11 → 2004-08 ended
2UZFE UCK35,45 —
11213-0F010 note Gasket, Cylinder Head Cover
2004-08 → —
2UZFE UCK35,45 —
11213-50031 note Gasket, Cylinder Head Cover
2004-08 → —
2UZFE UCK35,45 —
11214 — Gasket, Cylinder Head Cover, NO.2
11214-50010 Gasket, Cylinder Head Cover, NO.2
2000-09 → 2003-11 ended
2UZFE UCK35,45 —
11214-50011 Gasket, Cylinder Head Cover, NO.2
2003-11 → 2004-08 ended
2UZFE UCK35,45 —
11214-0F010 note Gasket, Cylinder Head Cover, NO.2
2004-08 → —
2UZFE UCK35,45 —
11214-50011 note Gasket, Cylinder Head Cover, NO.2
2004-08 → —
2UZFE UCK35,45 —
12108 — Cap Sub-assy, Oil Filler
12180-50030 note Cap Sub-assy, Oil Filler
2000-09 → 2001-10 ended
2UZFE UCK35,45 —
12180-50031 note Cap Sub-assy, Oil Filler
2001-10 → 2004-08 ended
2UZFE UCK35,45 —
12180-0D011 note Cap Sub-assy, Oil Filler
2004-08 → —
2UZFE UCK35,45 —
12180-50031 note Cap Sub-assy, Oil Filler
2004-08 → —
2UZFE UCK35,45 —
12108A — Gasket(FOR OIL FILLER CAP)
12195-50010 note Gasket(FOR OIL FILLER CAP)
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
12195-50010 note Gasket(FOR OIL FILLER CAP)
2004-08 → —
2UZFE UCK35,45 —
90080-43032 note Gasket(FOR OIL FILLER CAP)
2004-08 → —
2UZFE UCK35,45 —
12185 — Housing, Oil Filler Cap
12185-50020 Housing, Oil Filler Cap
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
12185-0F010 note Housing, Oil Filler Cap
2004-08 → —
2UZFE UCK35,45 —
12185-50020 note Housing, Oil Filler Cap
2004-08 → —
2UZFE UCK35,45 —
12185A — Gasket, Oil Filler Cap Housing
12196-50010 Gasket, Oil Filler Cap Housing
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
12196-0F010 note Gasket, Oil Filler Cap Housing
2004-08 → —
2UZFE UCK35,45 —
12196-50010 note Gasket, Oil Filler Cap Housing
2004-08 → —
2UZFE UCK35,45 —
12281A — Hanger, Engine, NO.1
12281-0F010 note Hanger, Engine, NO.1
2003-07 → 2004-08 ended
2UZFE UCK35,45 —
12281-50050 note Hanger, Engine, NO.1
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
12281-0F010 note Hanger, Engine, NO.1
2004-08 → —
2UZFE UCK35,45 —
12281-50050 note Hanger, Engine, NO.1
2004-08 → —
2UZFE UCK35,45 —
15044 — Pipe Sub-assy, Camshaft Oil Feed
15044-50020 Pipe Sub-assy, Camshaft Oil Feed
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
15044-50020 Pipe Sub-assy, Camshaft Oil Feed
2004-08 → —
2UZFE UCK35,45 —
15678A — Filter, Oil Control Valve
15678-46020 Filter, Oil Control Valve
2004-08 → —
2UZFE UCK35,45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
