Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

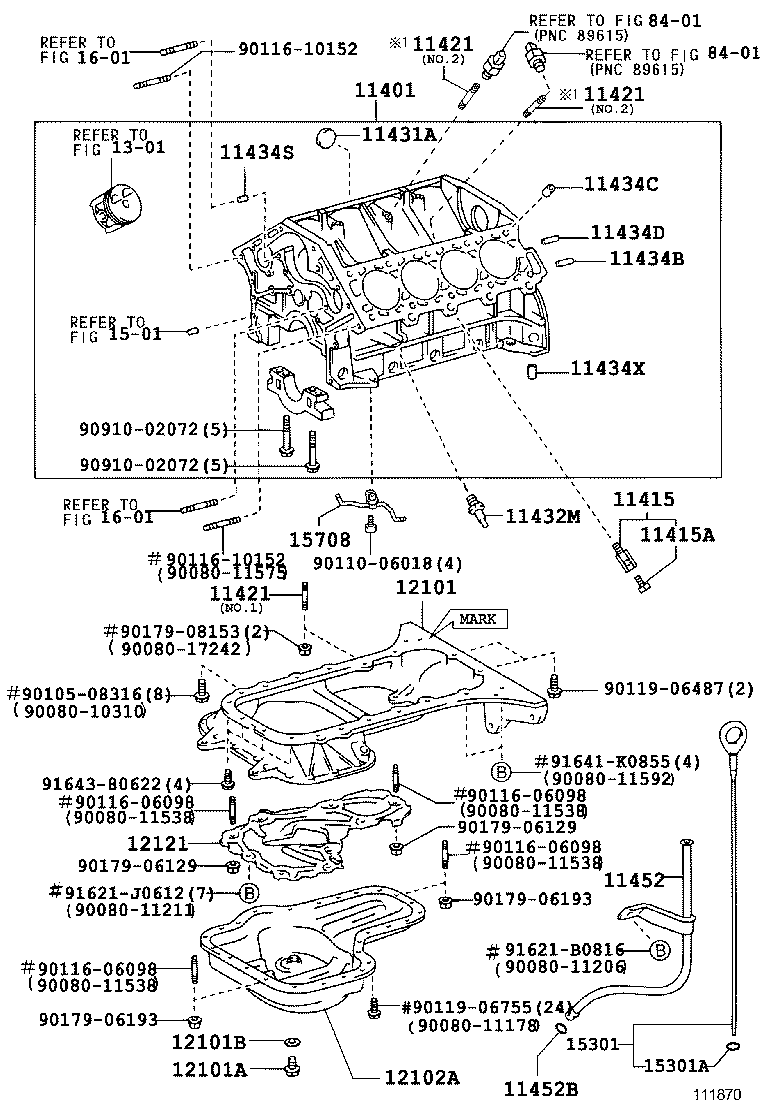

Exploded illustration 111870J 1601 — not listed in this catalogue 1301 — not listed in this catalogue 9011610152 — not listed in this catalogue 11401 — BLOCK SUB-ASSY, CYLINDER (6 parts) 11434S — PIN, RING(FOR WATER PUMP SET) (2 parts) 1501 — not listed in this catalogue 9091002072 — not listed in this catalogue 9091002072 — not listed in this catalogue 1601 — not listed in this catalogue 9011610152 — not listed in this catalogue 11421 — BOLT, STUD(FOR OIL PAN) (5 parts) 9017908153 — not listed in this catalogue 9010508316 — not listed in this catalogue 9164380622 — not listed in this catalogue 9011606098 — not listed in this catalogue 12121 — PLATE, OIL PAN BAFFLE, NO.1 (2 parts) 9017906129 — not listed in this catalogue 91621J0612 — not listed in this catalogue 9011606098 — not listed in this catalogue 9017906193 — not listed in this catalogue 12101B — GASKET(FOR OIL PAN DRAIN PLUG) (2 parts) 12101A — PLUG(FOR OIL PAN DRAIN) (2 parts) 12102A — PAN SUB-ASSY, OIL, NO.2 (4 parts) 91621B0816 — not listed in this catalogue 11452B — RING, O(FOR OIL LEVEL GAGE GUIDE) (2 parts) 9017906193 — not listed in this catalogue 11452 — GUIDE, OIL LEVEL GAGE (3 parts) 9011606098 — not listed in this catalogue 9011606098 — not listed in this catalogue 9017906129 — not listed in this catalogue 91641K0855 — not listed in this catalogue 9011906487 — not listed in this catalogue 12101 — PAN SUB-ASSY, OIL (6 parts) 11415A — PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) (2 parts) 11415 — COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) (2 parts) 11434X — PIN, RING(FOR CHAIN CACE) (3 parts) 11434B — PIN, STRAIGHT(FOR CLUTCH HOUSING SET) (3 parts) 11434D — PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) (3 parts) 11434C — PIN, STRAIGHT (FOR CYLINDER HEAD SET) (3 parts) 11431A — PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) (2 parts) 11432M — UNION(FOR CYLINDER BLOCK) (2 parts) 9008011206 — not listed in this catalogue 9008011211 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 9008011575 — not listed in this catalogue 9008011592 — not listed in this catalogue 9008010310 — not listed in this catalogue 15301 — GAGE SUB-ASSY, OIL LEVEL (3 parts) 15301A — RING, O(FOR OIL LEVEL GAGE) (1 parts) 9011006018 — not listed in this catalogue 15708 — NOZZLE SUB-ASSY, OIL, NO.1 (1 parts) 11421 — BOLT, STUD(FOR OIL PAN) (5 parts) 11421 — BOLT, STUD(FOR OIL PAN) (5 parts) 9008017242 — not listed in this catalogue 9011906755 — not listed in this catalogue 9008011178 — not listed in this catalogue 9008011538 — not listed in this catalogue 9008011538 — not listed in this catalogue 9008011538 — not listed in this catalogue 9008011538 — not listed in this catalogue
111870J · 23 callouts, 38 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
59 parts on this figure
Part number Description Fitment Price
11401 — Block Sub-assy, Cylinder
11401-59676 Block Sub-assy, Cylinder
2000-09 → 2001-10 ended
2UZFE UCK35,45 —
11401-59755 Block Sub-assy, Cylinder
2001-10 → 2004-08 ended
2UZFE UCK35,45 —
11401-09335 note Block Sub-assy, Cylinder
2004-08 → 2007-03 ended
2UZFE UCK35,45 —
11401-09336 note Block Sub-assy, Cylinder
2007-03 → —
2UZFE UCK35,45 —
11401-09710 note Block Sub-assy, Cylinder
2004-08 → 2006-10 ended
2UZFE UCK35,45 —
11401-09711 note Block Sub-assy, Cylinder
2006-10 → —
2UZFE UCK35,45 —
11415 — Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
90910-09095 Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
90910-09095 Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
2004-08 → —
2UZFE UCK35,45 —
11415A — Plug, Water Drain Cock(FOR CYLINDER BLOCK)
90910-09087 Plug, Water Drain Cock(FOR CYLINDER BLOCK)
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
90910-09087 Plug, Water Drain Cock(FOR CYLINDER BLOCK)
2004-08 → —
2UZFE UCK35,45 —
11421 — Bolt, Stud(FOR OIL PAN)
90080-12009 note Bolt, Stud(FOR OIL PAN)
2003-07 → 2004-08 ended
2UZFE UCK35,45 —
90126-08030 note Bolt, Stud(FOR OIL PAN)
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
90080-12009 note Bolt, Stud(FOR OIL PAN)
2004-08 → —
2UZFE UCK35,45 —
90126-08030 note Bolt, Stud(FOR OIL PAN)
2004-08 → —
2UZFE UCK35,45 —
90126-08039 note Bolt, Stud(FOR OIL PAN)
2004-08 → —
2UZFE UCK35,45 —
11431A — Plug, Tight, NO.1(FOR CYLINDER BLOCK)
96411-63500 Plug, Tight, NO.1(FOR CYLINDER BLOCK)
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
96411-63500 Plug, Tight, NO.1(FOR CYLINDER BLOCK)
2004-08 → —
2UZFE UCK35,45 —
11432M — Union(FOR CYLINDER BLOCK)
90404-53001 Union(FOR CYLINDER BLOCK)
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
90404-53001 Union(FOR CYLINDER BLOCK)
2004-08 → —
2UZFE UCK35,45 —
11434B — Pin, Straight(FOR CLUTCH HOUSING SET)
90250-10113 note Pin, Straight(FOR CLUTCH HOUSING SET)
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
90250-10113 note Pin, Straight(FOR CLUTCH HOUSING SET)
2004-08 → —
2UZFE UCK35,45 —
90250-A0018 note Pin, Straight(FOR CLUTCH HOUSING SET)
2006-12 → —
2UZFE UCK35,45 —
11434C — Pin, Straight (FOR CYLINDER HEAD SET)
90253-16001 note Pin, Straight (FOR CYLINDER HEAD SET)
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
90253-16001 note Pin, Straight (FOR CYLINDER HEAD SET)
2004-08 → —
2UZFE UCK35,45 —
90253-A0010 note Pin, Straight (FOR CYLINDER HEAD SET)
2006-10 → —
2UZFE UCK35,45 —
11434D — Pin, Straight(FOR ENGINE REAR OIL SEAL)
90250-06003 note Pin, Straight(FOR ENGINE REAR OIL SEAL)
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
90250-06003 note Pin, Straight(FOR ENGINE REAR OIL SEAL)
2004-08 → —
2UZFE UCK35,45 —
90250-A0012 note Pin, Straight(FOR ENGINE REAR OIL SEAL)
2006-12 → —
2UZFE UCK35,45 —
11434S — Pin, Ring(FOR WATER PUMP SET)
90253-11021 note Pin, Ring(FOR WATER PUMP SET)
2004-08 → —
2UZFE UCK35,45 —
90253-A0007 note Pin, Ring(FOR WATER PUMP SET)
2006-12 → —
2UZFE UCK35,45 —
11434X — Pin, Ring(FOR CHAIN CACE)
90253-11021 Pin, Ring(FOR CHAIN CACE)
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
90253-11021 note Pin, Ring(FOR CHAIN CACE)
2004-08 → —
2UZFE UCK35,45 —
90253-A0007 note Pin, Ring(FOR CHAIN CACE)
2006-12 → —
2UZFE UCK35,45 —
11452 — Guide, Oil Level Gage
11452-50140 Guide, Oil Level Gage
2000-09 → 2004-01 ended
2UZFE UCK35,45 —
11452-50141 Guide, Oil Level Gage
2004-01 → 2004-08 ended
2UZFE UCK35,45 —
11452-50142 Guide, Oil Level Gage
2004-08 → —
2UZFE UCK35,45 —
11452B — Ring, O(FOR OIL LEVEL GAGE GUIDE)
96721-19010 Ring, O(FOR OIL LEVEL GAGE GUIDE)
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
96721-19010 Ring, O(FOR OIL LEVEL GAGE GUIDE)
2004-08 → —
2UZFE UCK35,45 —
12101 — Pan Sub-assy, Oil
12111-0F010 note Pan Sub-assy, Oil
2003-07 → 2004-02 ended
2UZFE UCK35,45 —
12111-0F011 note Pan Sub-assy, Oil
2004-02 → 2004-08 ended
2UZFE UCK35,45 —
12111-50110 note Pan Sub-assy, Oil
2000-09 → 2004-02 ended
2UZFE UCK35,45 —
12111-50112 note Pan Sub-assy, Oil
2004-02 → 2004-08 ended
2UZFE UCK35,45 —
12111-0F011 note Pan Sub-assy, Oil
2004-08 → —
2UZFE UCK35,45 —
12111-50112 note Pan Sub-assy, Oil
2004-08 → —
2UZFE UCK35,45 —
12101A — Plug(FOR OIL PAN DRAIN)
90341-12023 Plug(FOR OIL PAN DRAIN)
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
90341-12023 Plug(FOR OIL PAN DRAIN)
2004-08 → —
2UZFE UCK35,45 —
12101B — Gasket(FOR OIL PAN DRAIN PLUG)
90430-12031 Gasket(FOR OIL PAN DRAIN PLUG)
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
90430-12031 Gasket(FOR OIL PAN DRAIN PLUG)
2004-08 → —
2UZFE UCK35,45 —
12102A — Pan Sub-assy, Oil, NO.2
12102-0F010 note Pan Sub-assy, Oil, NO.2
2003-07 → 2004-08 ended
2UZFE UCK35,45 —
12102-50111 note Pan Sub-assy, Oil, NO.2
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
12102-0F010 note Pan Sub-assy, Oil, NO.2
2004-08 → —
2UZFE UCK35,45 —
12102-50111 note Pan Sub-assy, Oil, NO.2
2004-08 → —
2UZFE UCK35,45 —
12121 — Plate, Oil Pan Baffle, NO.1
12121-50141 Plate, Oil Pan Baffle, NO.1
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
12121-50141 Plate, Oil Pan Baffle, NO.1
2004-08 → —
2UZFE UCK35,45 —
15301 — Gage Sub-assy, Oil Level
15301-50101 note Gage Sub-assy, Oil Level
2000-09 → 2004-08 ended
2UZFE UCK35,45 —
15301-0F010 note Gage Sub-assy, Oil Level
2004-08 → —
2UZFE UCK35,45 —
15301-50101 note Gage Sub-assy, Oil Level
2004-08 → —
2UZFE UCK35,45 —
15301A — Ring, O(FOR OIL LEVEL GAGE)
96741-19005 Ring, O(FOR OIL LEVEL GAGE)
2004-08 → —
2UZFE UCK35,45 —
15708 — Nozzle Sub-assy, Oil, NO.1
15790-50010 Nozzle Sub-assy, Oil, NO.1
2004-08 → —
2UZFE UCK35,45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
