Toyota Sequoia
2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States
Discontinued model
Data version 2008-05

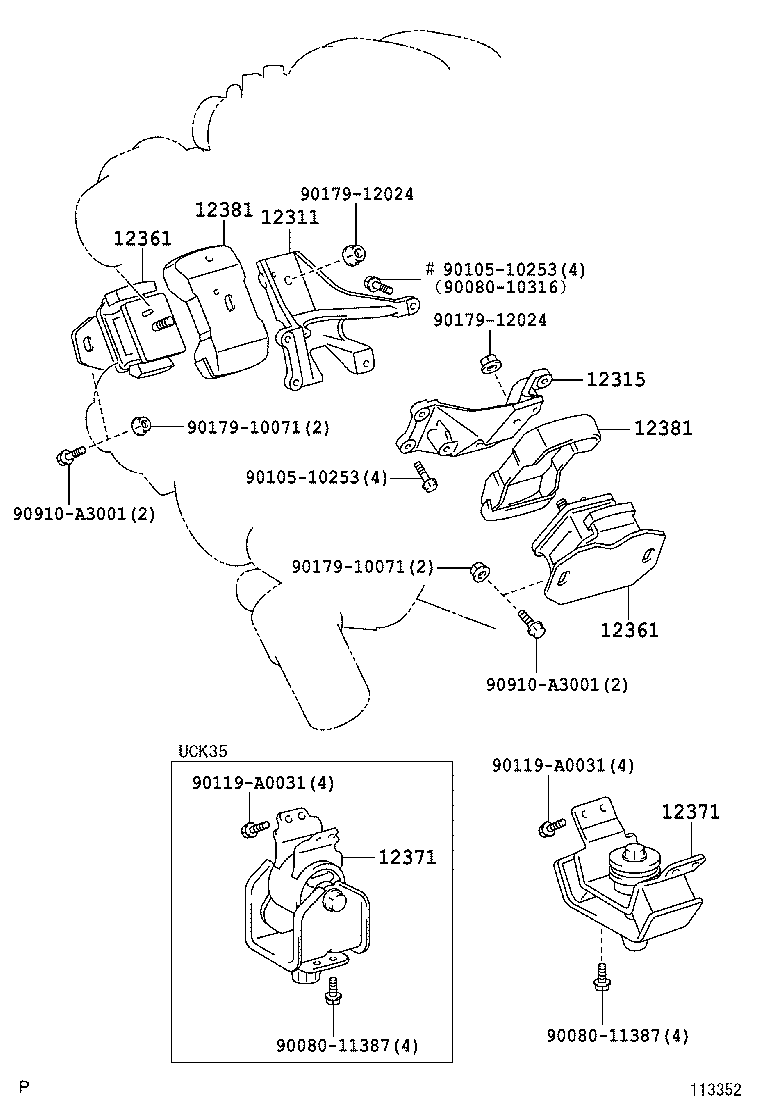

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 12311 — Bracket, Engine Mounting, Front NO.1 RH | ||||
| 12311-50120 note |
Bracket, Engine Mounting, Front NO.1 RH
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 12311-0F010 note |
Bracket, Engine Mounting, Front NO.1 RH
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 12311-50120 note |
Bracket, Engine Mounting, Front NO.1 RH
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 12315 — Bracket, Engine Mounting, Front NO.1 LH | ||||
| 12315-50090 note |
Bracket, Engine Mounting, Front NO.1 LH
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 12315-0F010 note |
Bracket, Engine Mounting, Front NO.1 LH
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 12315-50090 note |
Bracket, Engine Mounting, Front NO.1 LH
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 12361 — Insulator, Engine Mounting, Front | ||||
| 12361-50160 |
Insulator, Engine Mounting, Front
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 12361-50160 |
Insulator, Engine Mounting, Front
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 12371 — Insulator, Engine Mounting, Rear NO.1 | ||||
| 12371-50120 |
Insulator, Engine Mounting, Rear NO.1
2000-09 → 2004-08
ended
|
2UZFE UCK35 | — | |
| 12371-50130 |
Insulator, Engine Mounting, Rear NO.1
2000-09 → 2004-08
ended
|
2UZFE UCK45 | — | |
| 12371-0F030 |
Insulator, Engine Mounting, Rear NO.1
2004-08 → —
|
2UZFE UCK35 | — | |
| 12371-0F040 |
Insulator, Engine Mounting, Rear NO.1
2004-08 → —
|
2UZFE UCK45 | — | |
| 12381 — Stabilizer, Engine Mounting | ||||
| 12381-50120 |
Stabilizer, Engine Mounting
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 12381-50120 |
Stabilizer, Engine Mounting
2004-08 → —
|
2UZFE UCK35,45 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
