Toyota Sequoia
2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States
Discontinued model
Data version 2008-05

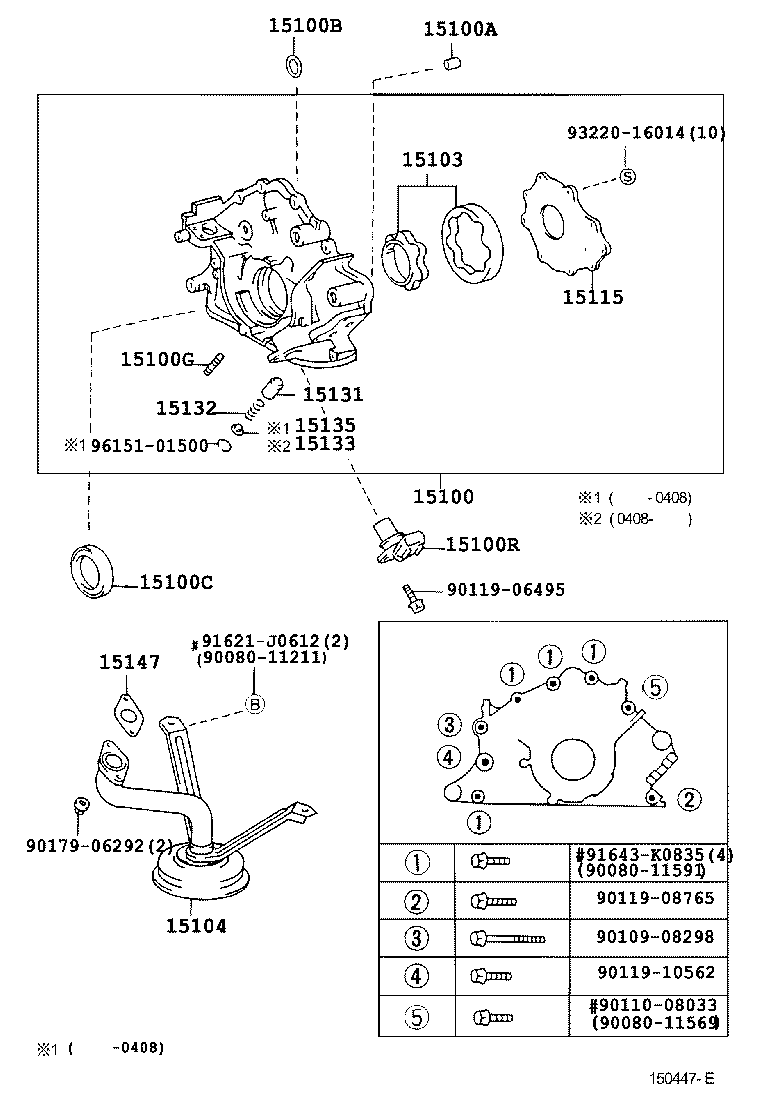

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 15100 — Pump Assy, Oil | ||||
| 15100-0F010 note |
Pump Assy, Oil
2003-07 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 15100-50050 note |
Pump Assy, Oil
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 15100-0F020 note |
Pump Assy, Oil
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 15100-50040 note |
Pump Assy, Oil
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 15100A — Pin, Ring(FOR OIL PUMP SET) | ||||
| 90253-13017 |
Pin, Ring(FOR OIL PUMP SET)
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 90253-13017 |
Pin, Ring(FOR OIL PUMP SET)
2004-08 → 2006-12
ended
|
2UZFE UCK35,45 | — | |
| 90253-13017 note |
Pin, Ring(FOR OIL PUMP SET)
2006-12 → —
|
2UZFE UCK35,45 | — | |
| 90253-A0008 note |
Pin, Ring(FOR OIL PUMP SET)
2006-12 → —
|
2UZFE UCK35,45 | — | |
| 15100B — Ring, O(FOR OIL PUMP) | ||||
| 96721-24025 |
Ring, O(FOR OIL PUMP)
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 96721-24025 |
Ring, O(FOR OIL PUMP)
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 15100C — Seal(FOR OIL PUMP) | ||||
| 90311-43006 note |
Seal(FOR OIL PUMP)
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 90311-A0001 note |
Seal(FOR OIL PUMP)
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 90311-43006 note |
Seal(FOR OIL PUMP)
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 90311-A0001 note |
Seal(FOR OIL PUMP)
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 15100G — Bolt,Stud(FOR OIL PUMP) | ||||
| 16193-15010 |
Bolt,Stud(FOR OIL PUMP)
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 16193-15010 |
Bolt,Stud(FOR OIL PUMP)
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 15100R — Sensor, Crank Position | ||||
| 90919-05035 note |
Sensor, Crank Position
2000-09 → 2004-06
ended
|
2UZFE UCK35,45 | — | |
| 90919-05035 note |
Sensor, Crank Position
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 90919-A5001 note |
Sensor, Crank Position
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 15103 — Gear Set, Oil Pump | ||||
| 15103-50020 |
Gear Set, Oil Pump
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 15103-0F020 |
Gear Set, Oil Pump
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 15104 — Strainer Sub-assy, Oil | ||||
| 15104-50170 |
Strainer Sub-assy, Oil
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 15104-50170 |
Strainer Sub-assy, Oil
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 15115 — Cover, Oil Pump | ||||
| 15115-50050 |
Cover, Oil Pump
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 15115-0F010 |
Cover, Oil Pump
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 15131 — Valve, Oil Pump Relief | ||||
| 15131-24010 |
Valve, Oil Pump Relief
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 15131-0A040 note |
Valve, Oil Pump Relief
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 15131-46040 note |
Valve, Oil Pump Relief
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 15132 — Spring, Oil Pump Relief Valve | ||||
| 15132-62010 note |
Spring, Oil Pump Relief Valve
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 15132-0A020 note |
Spring, Oil Pump Relief Valve
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 15132-46020 note |
Spring, Oil Pump Relief Valve
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 15133 — Plug, Oil Pump Relief Valve | ||||
| 15133-17010 |
Plug, Oil Pump Relief Valve
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 15135 — Retainer, Oil Pump Relief Valve | ||||
| 15135-15010 |
Retainer, Oil Pump Relief Valve
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 15147 — Gasket, Oil Strainer | ||||
| 15147-50011 |
Gasket, Oil Strainer
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 15147-50011 |
Gasket, Oil Strainer
2004-08 → —
|
2UZFE UCK35,45 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
